Emu Export LED Light Box

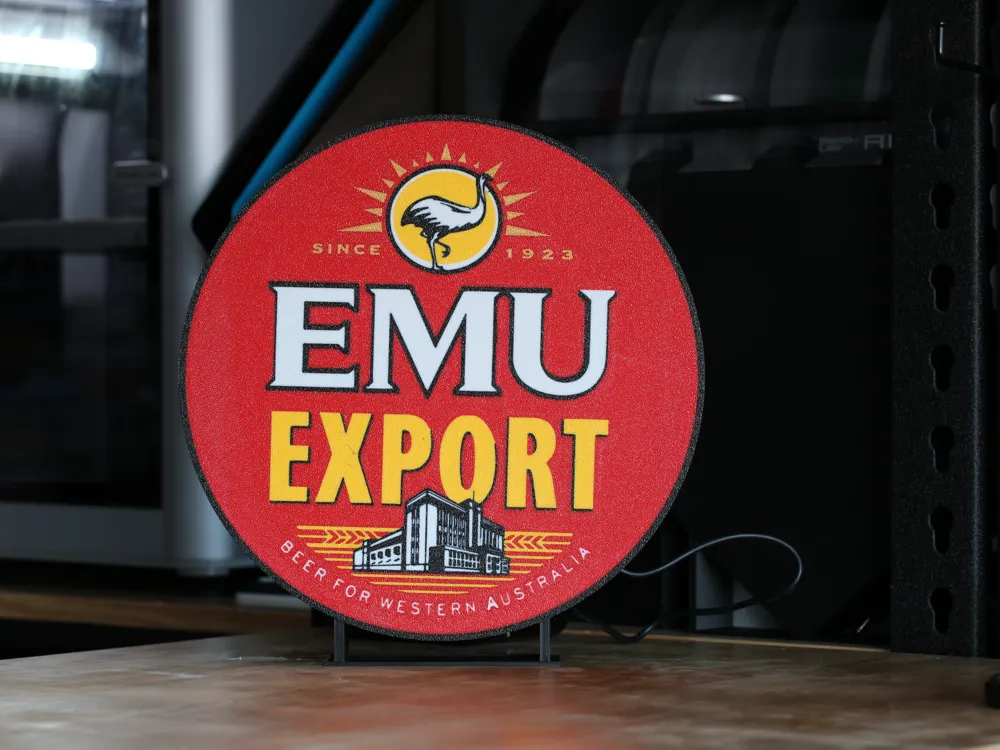

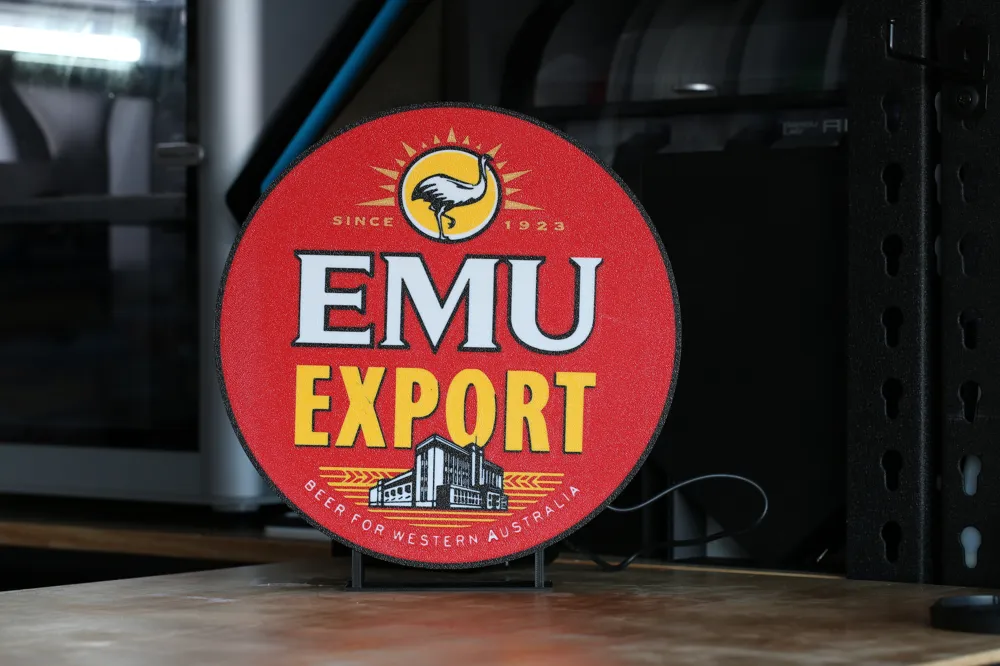

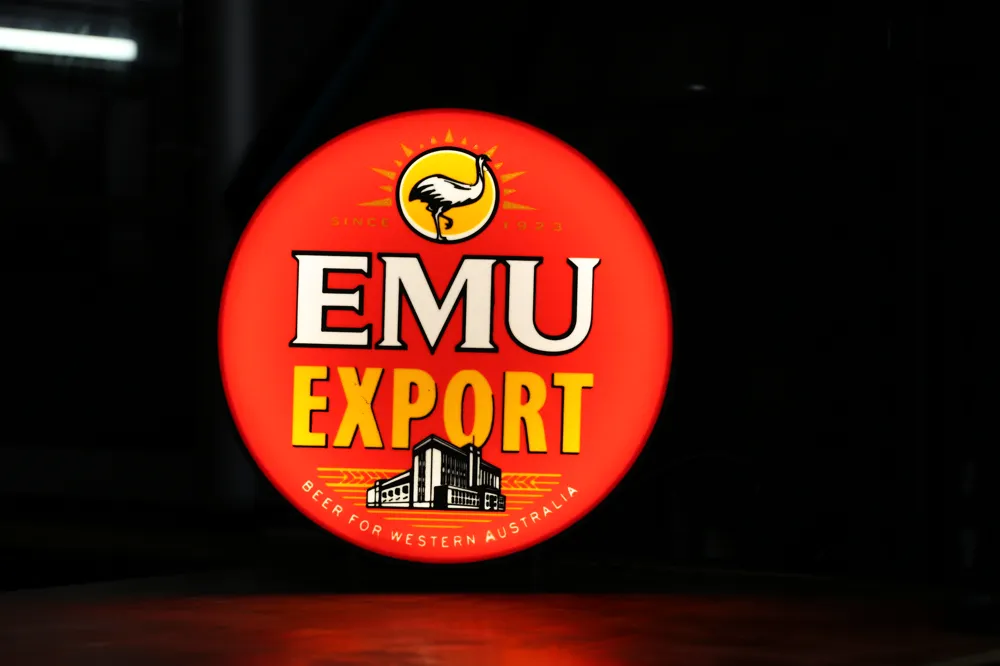

Modelled after the iconic Emu Export beer logo, this LED light box is a tribute to WA’s most beloved red can. Whether it’s for your home bar, shed, or just to celebrate classic Aussie brews, this design lights up with pure West Coast energy.
The faceplate and back plate joiners have been optimised for smooth, hassle-free glueing. Inside, the structure is set up for easy wiring and even light spread.

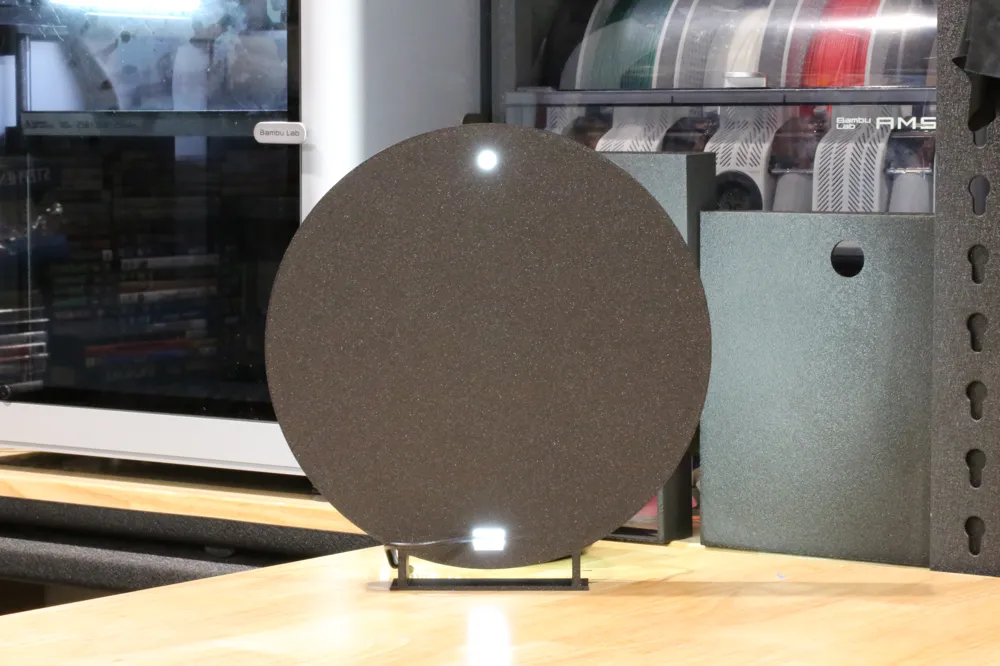

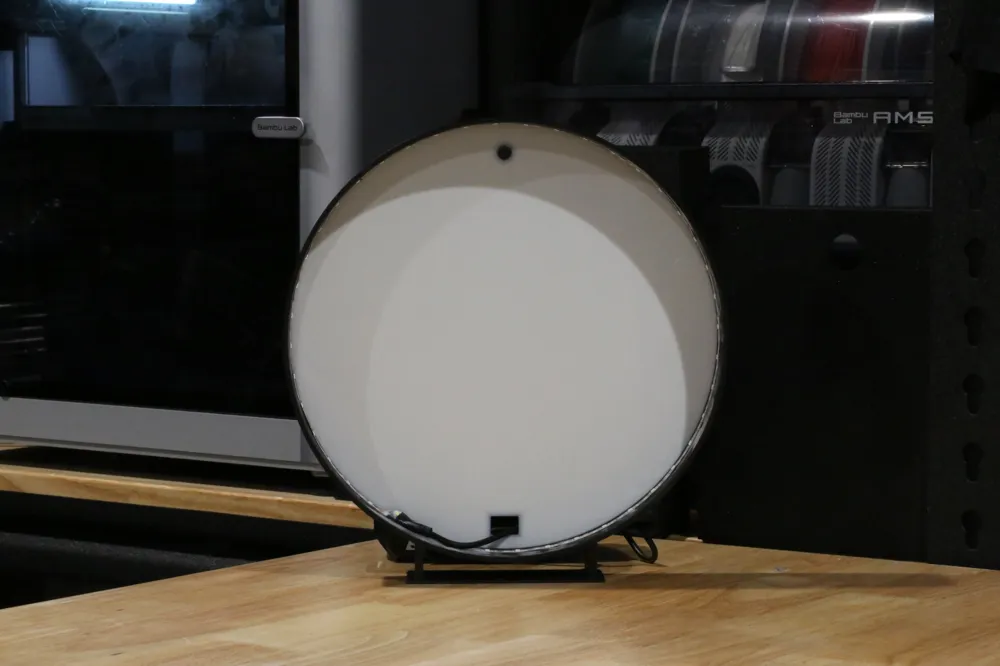

The rear plate is 2mm thick for added strength, and the internal surface is white to help boost light diffusion. If you don’t want to use multi-colour printing for the backplate, highlight it in Bambu Studio, press “N” to enter painting mode, and select ‘Erase All Painting’.
Design Note: It was requested that this model have as much detail as possible on the Brewery, similar to my XXXX Gold Light Box .
Due to the fine lines on the brewery, you will need to have your plate as clean as possible. I've done a few test plates and have redesigned this one a few times. I've settled on this design as an acceptable balance between high quality detail and ease of printing.
I'm designing popular drinks from around the world! Check out the collection so far below:
https://makerworld.com/en/collections/7040495-drink-light-boxes
Details:
- Modelled after the Emu Export beer logo

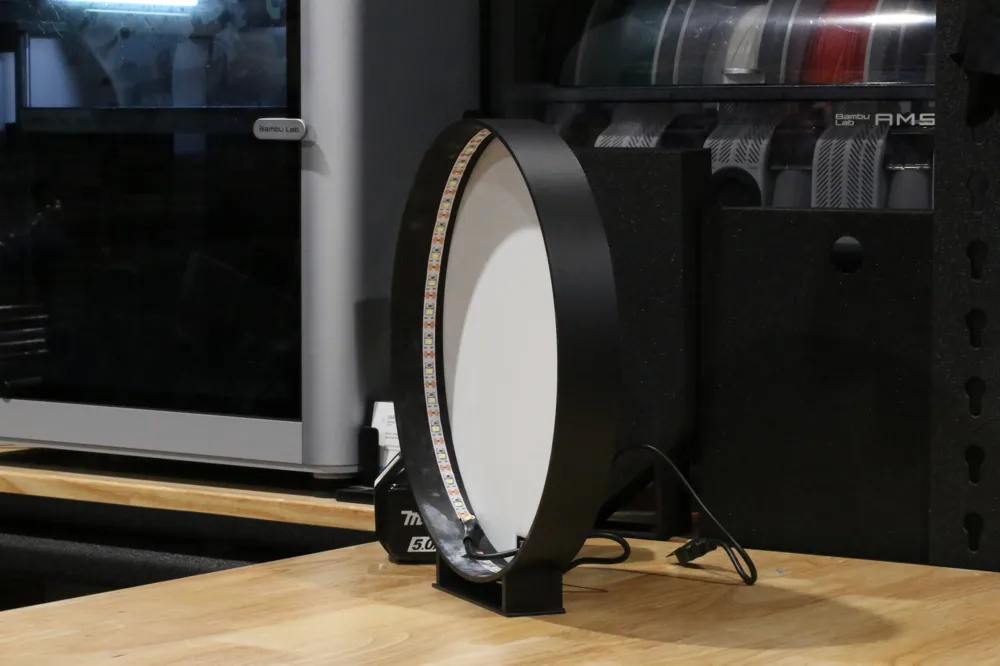

- Negative channel for LED light strip
- Internal structure optimised for easy wiring
- Stronger 2mm rear backplate

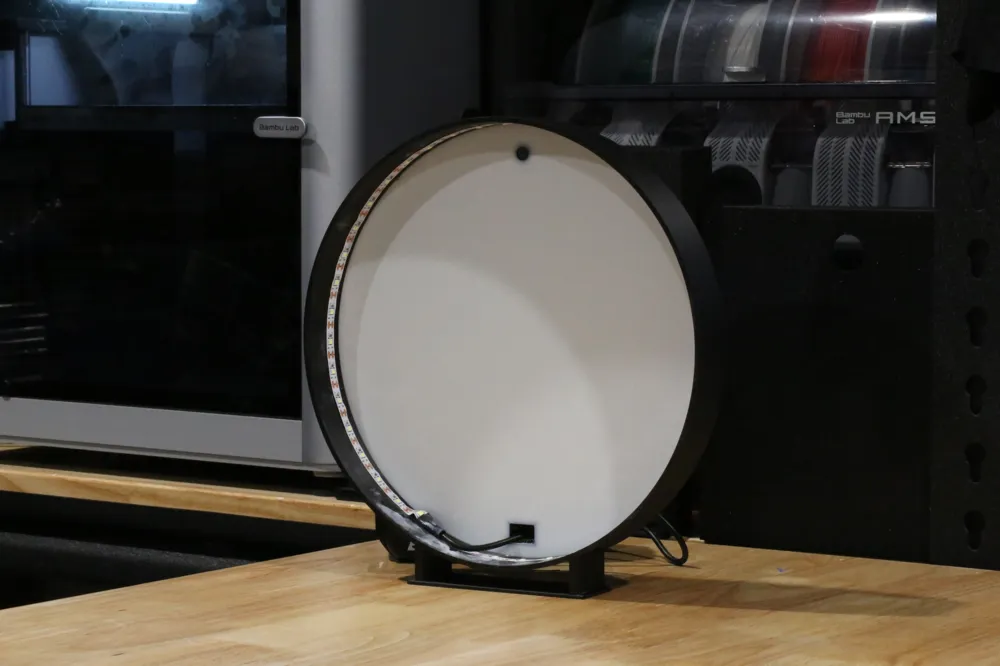

- White internal surface for better light diffusion
- Optimised X1C profile with minimal pinholes between filament joins
October 2025 Update
• A new Dual-Sided Light Box Bracket & Holder is now available!
• Mount your round light boxes to the wall and swap designs in seconds.
• Check it out here: https://makerworld.com/en/models/1936933-dual-double-sided-light-box-bracket-holder
Design Notes
All files are uploaded exactly as printed unless specified otherwise in project description (normally under a bold, red IMPORTANT). Some designs use different scaling (e.g. drinks lightbox series: front plate 90%, back plate 100%). If resizing, double-check your scale before printing.
All designs are created in Autodesk Fusion. Colours are separated in the Objects tab of Bambu Studio, so you can easily recolour if needed (e.g. single AMS setups).
