Description

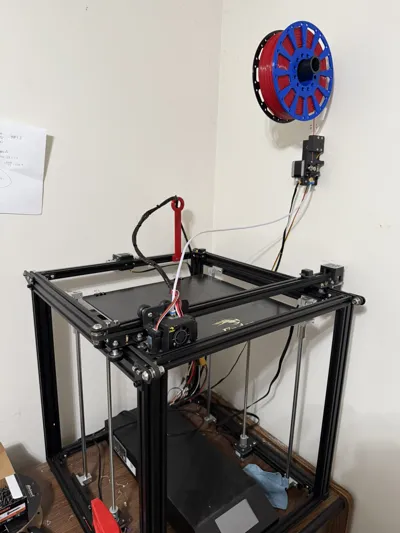

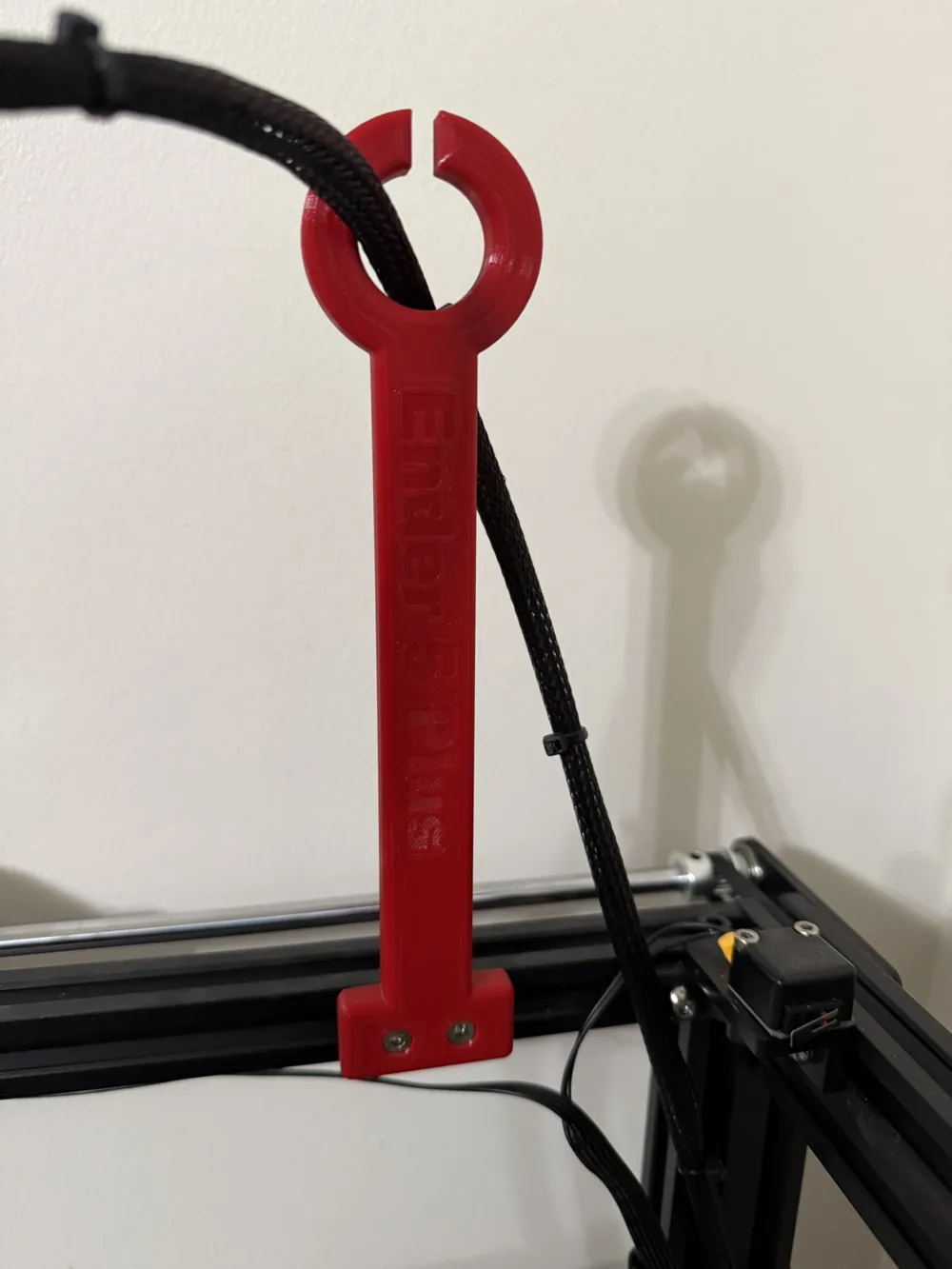

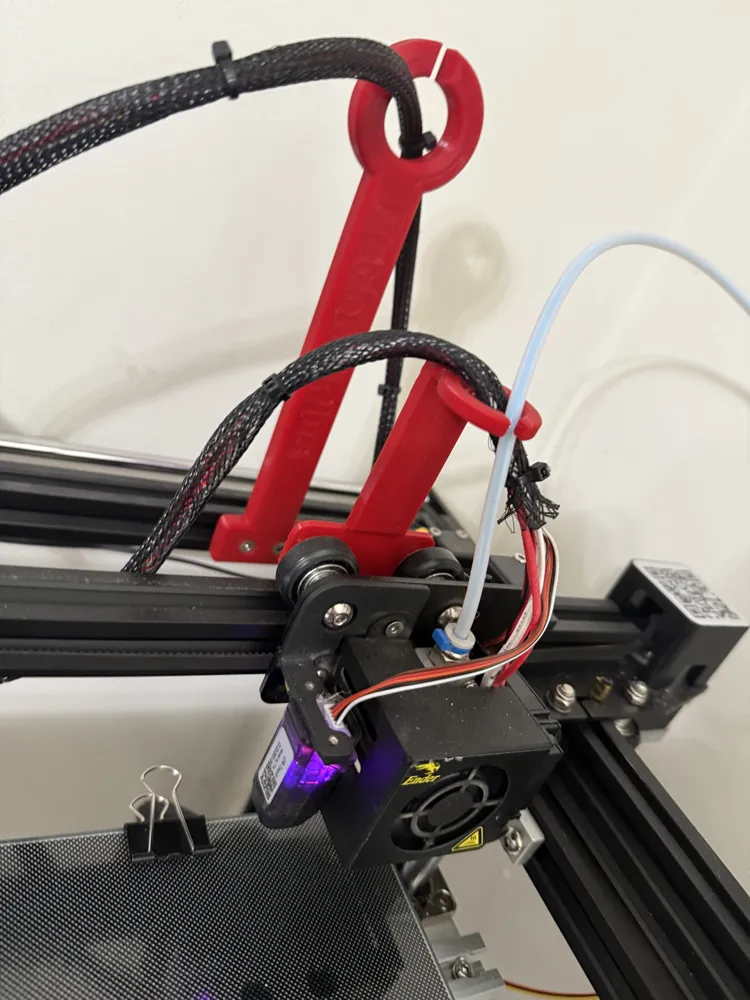

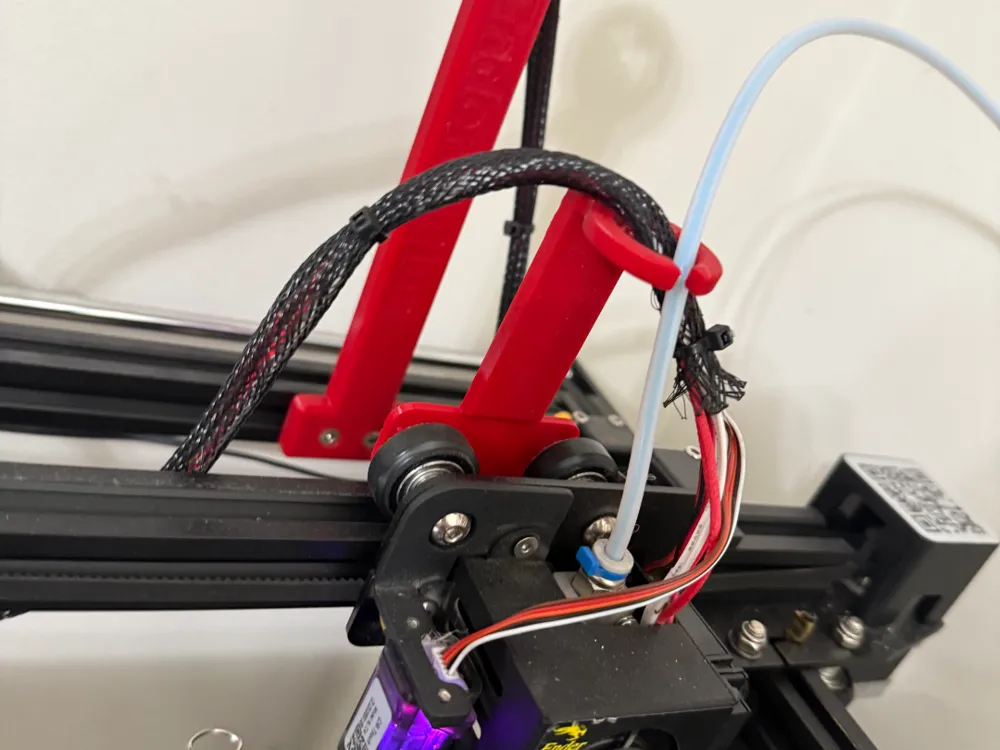

On the Ender 5 Plus I have been noticing that the wires tend to get caught on various things. This arm is to hold all the wires out of the way so when you print does fail, it's at least not the wires fault. I used the nuts and bolts from the extruder attach it to the machine. I believe they are #8 bolts with t nuts. Below are the print settings for durability.

Layer height: .2

Wall Thickness: 2.5 mm

Wall Line Count: 6

Infill Density: 60%

Infill Pattern: Triangle
