XiaoZhi AI Enclosure for ESP32-S3 Dev Board and 1.54" Display

XiaoZhi AI enclosure, with ample space for larger batteries or speakers

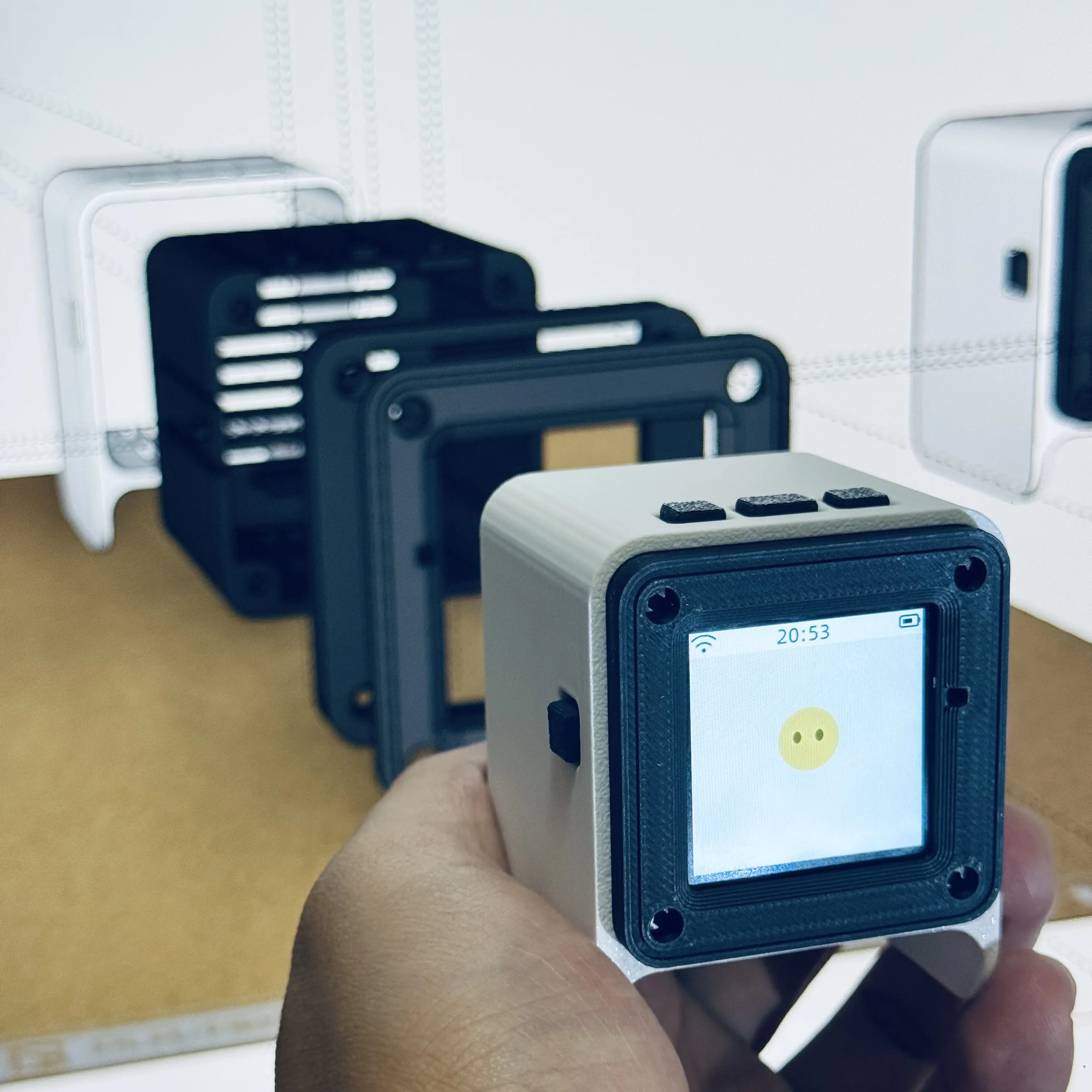

Assembly Diagram

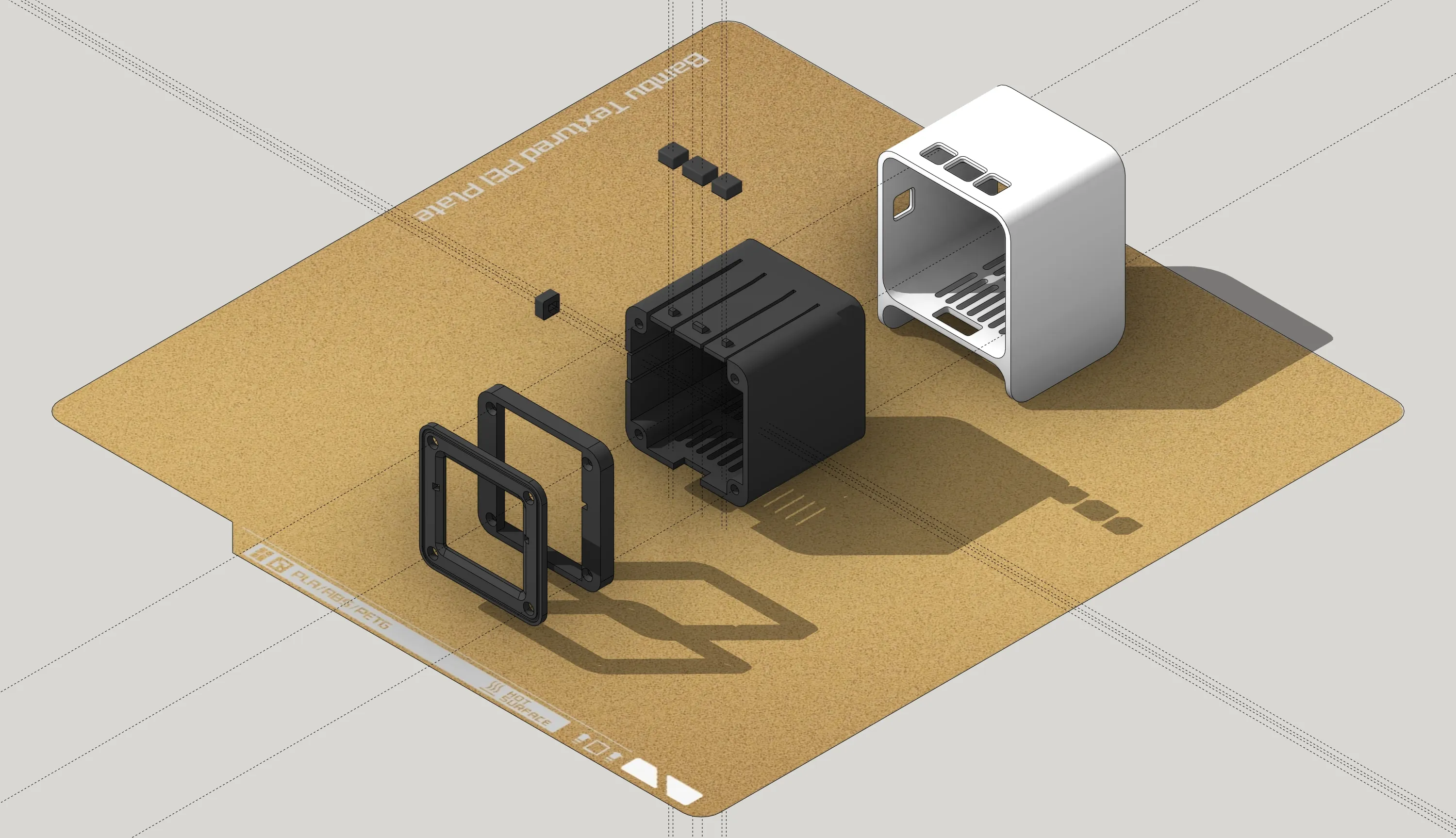

The model has separate printable components to ensure a satisfactory final assembly

Assembly requires glue and four M2 screws (not included)

The panel in the model is split into two parts for printing and requires gluing, align the microphone holes when gluing

The buttons and main body are printed separately and require gluing, the narrower side of the button mounting hole faces backward

The main body and casing feature a free-floating design, requiring manual alignment of the button holes. For assembly, press the buttons first, then insert the casing. The casing is tight and the buttons are fragile; exercise caution

The display screen and motherboard can be secured using double-sided foam tape. We recommend aligning the display screen and development board with the front panel before adhering the display screen and development board

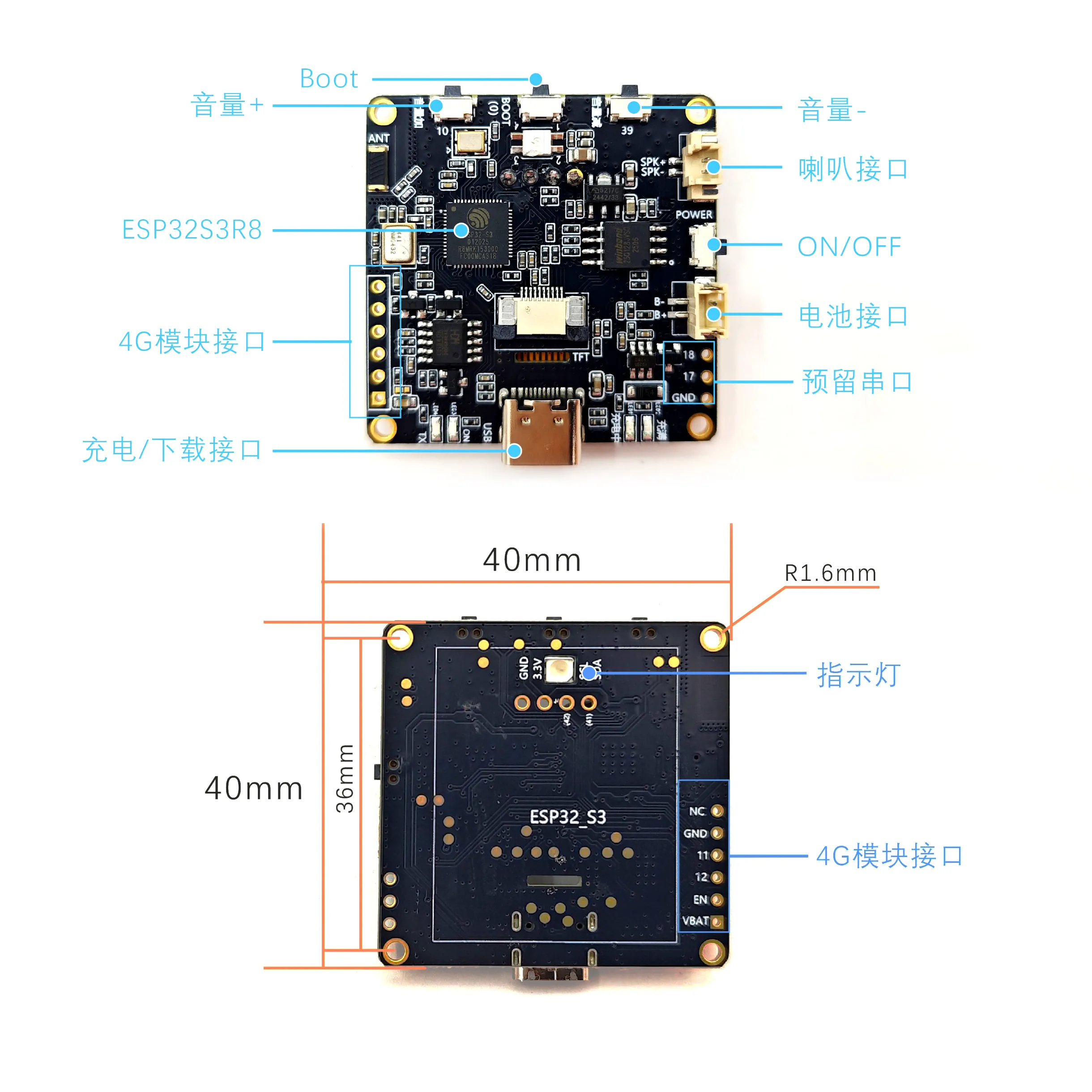

Compatible ESP32S3N16R8 version shown below, compatible display is a 1.54-inch display

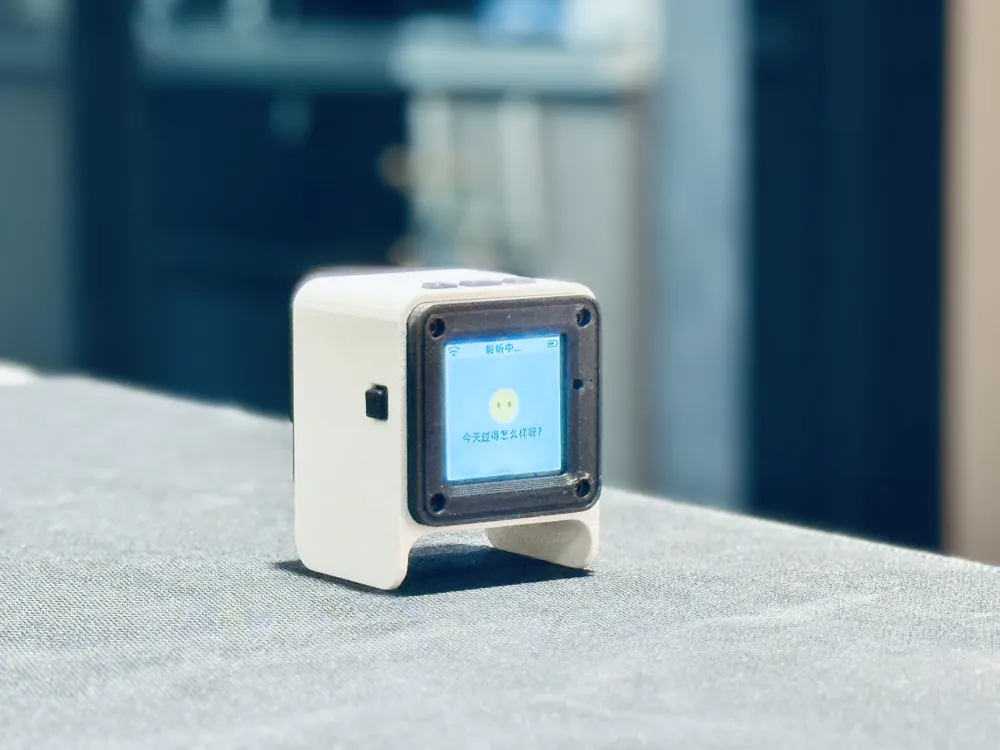

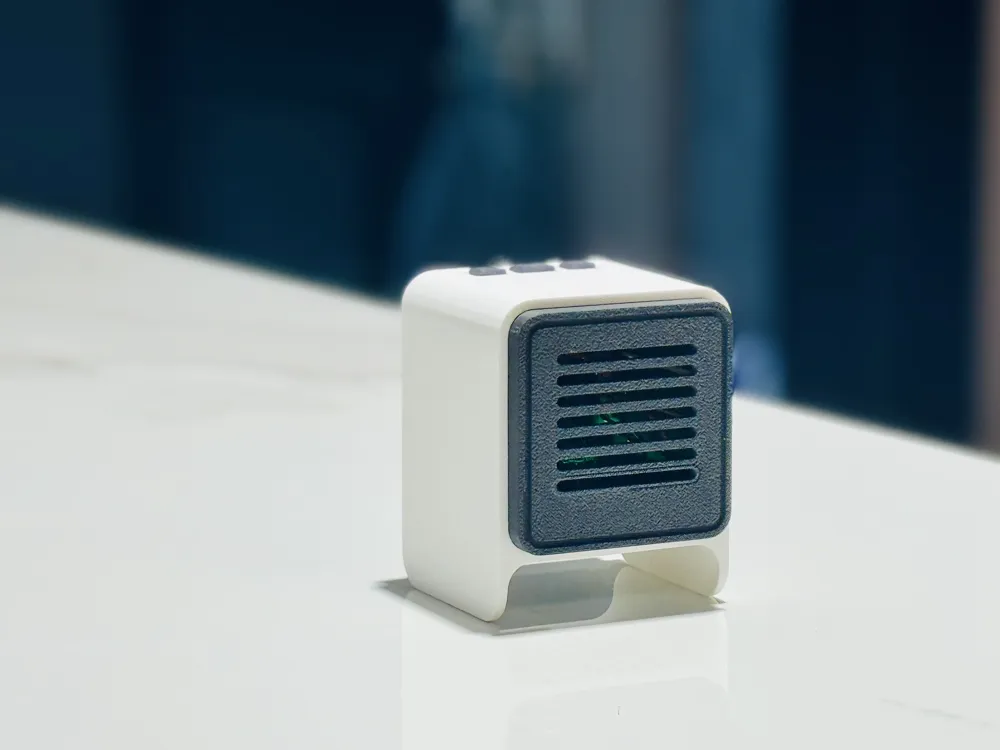

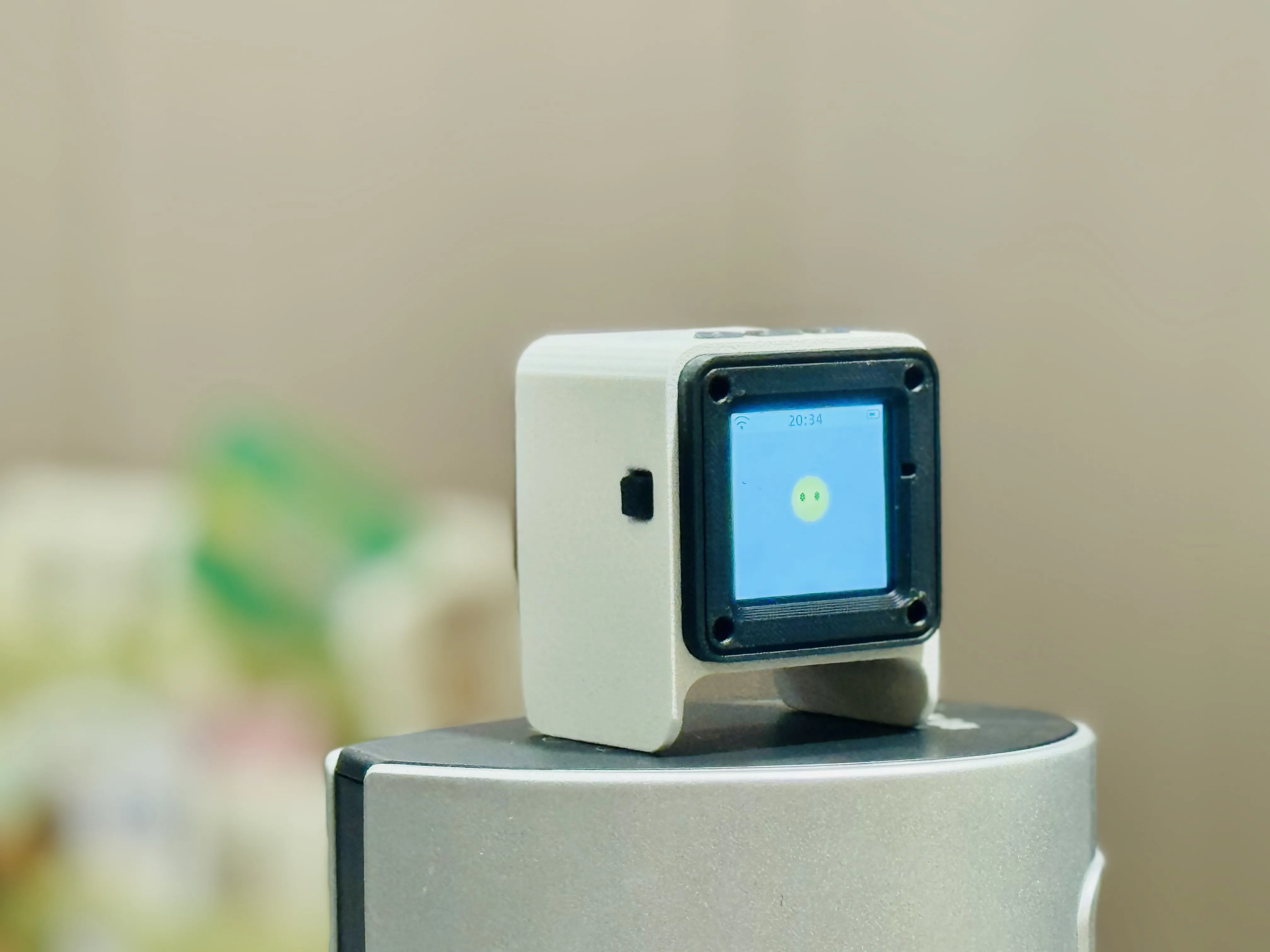

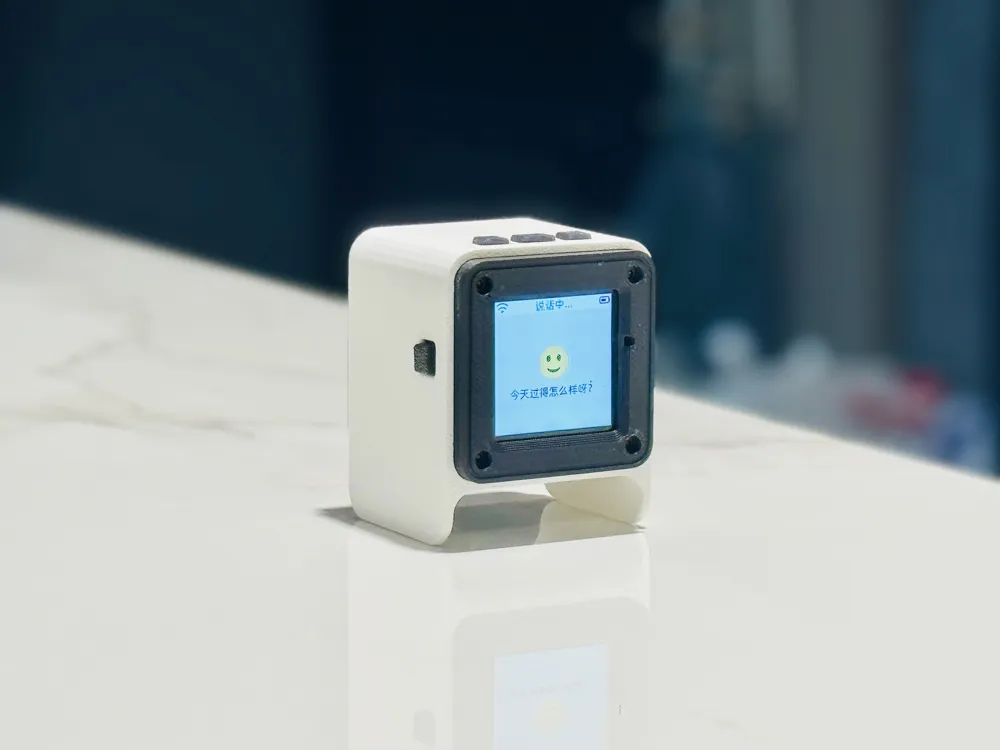

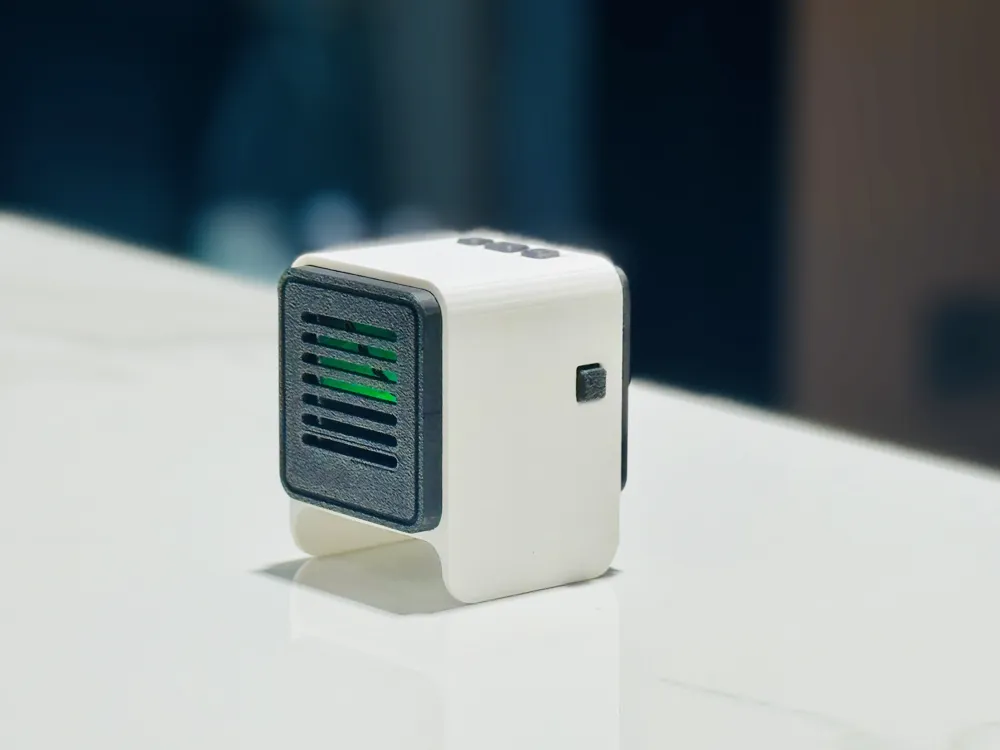

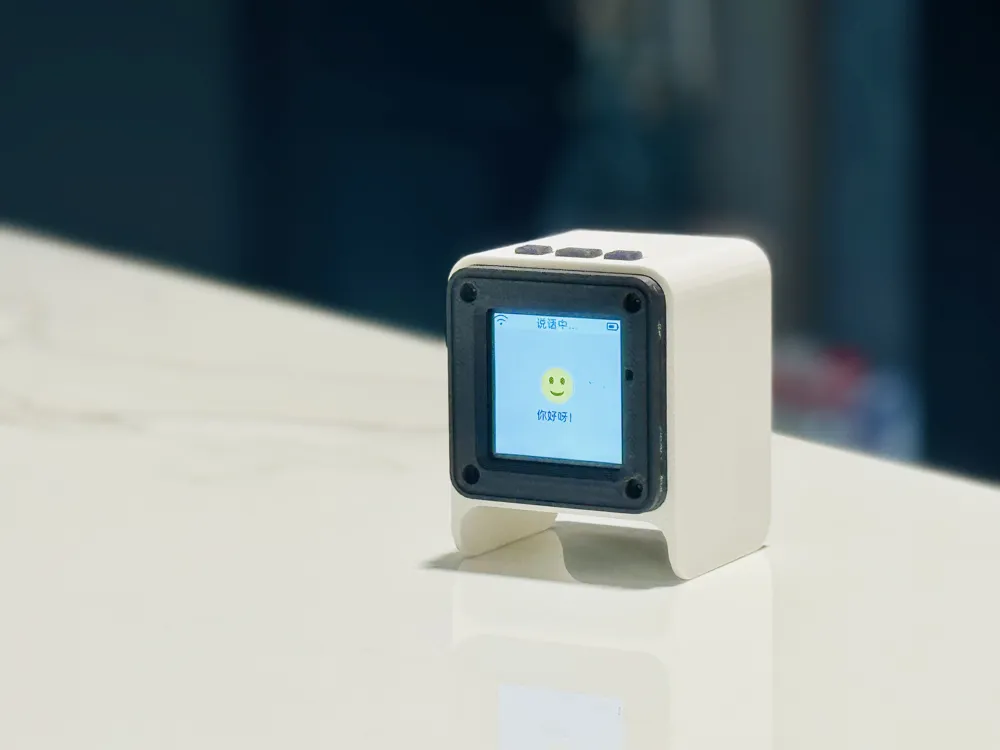

Finished Product
