Vise Swappable Jaw 2 or 4 Config - 100% Printable

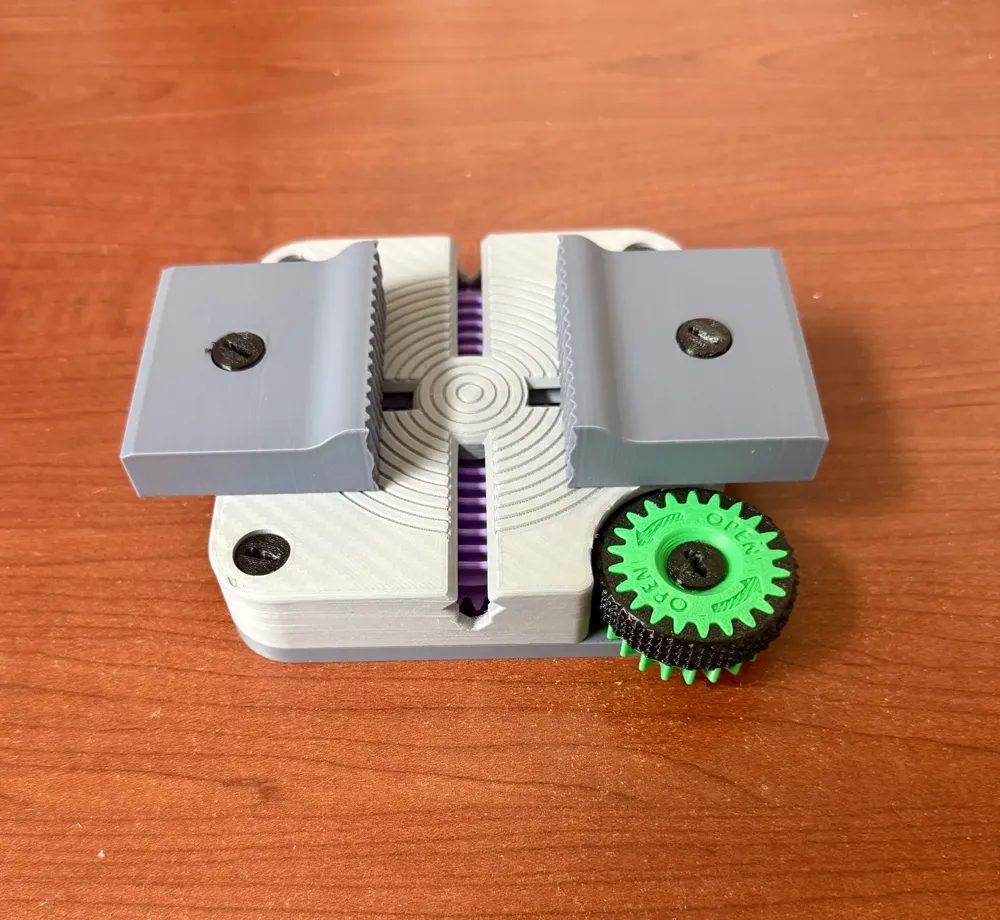

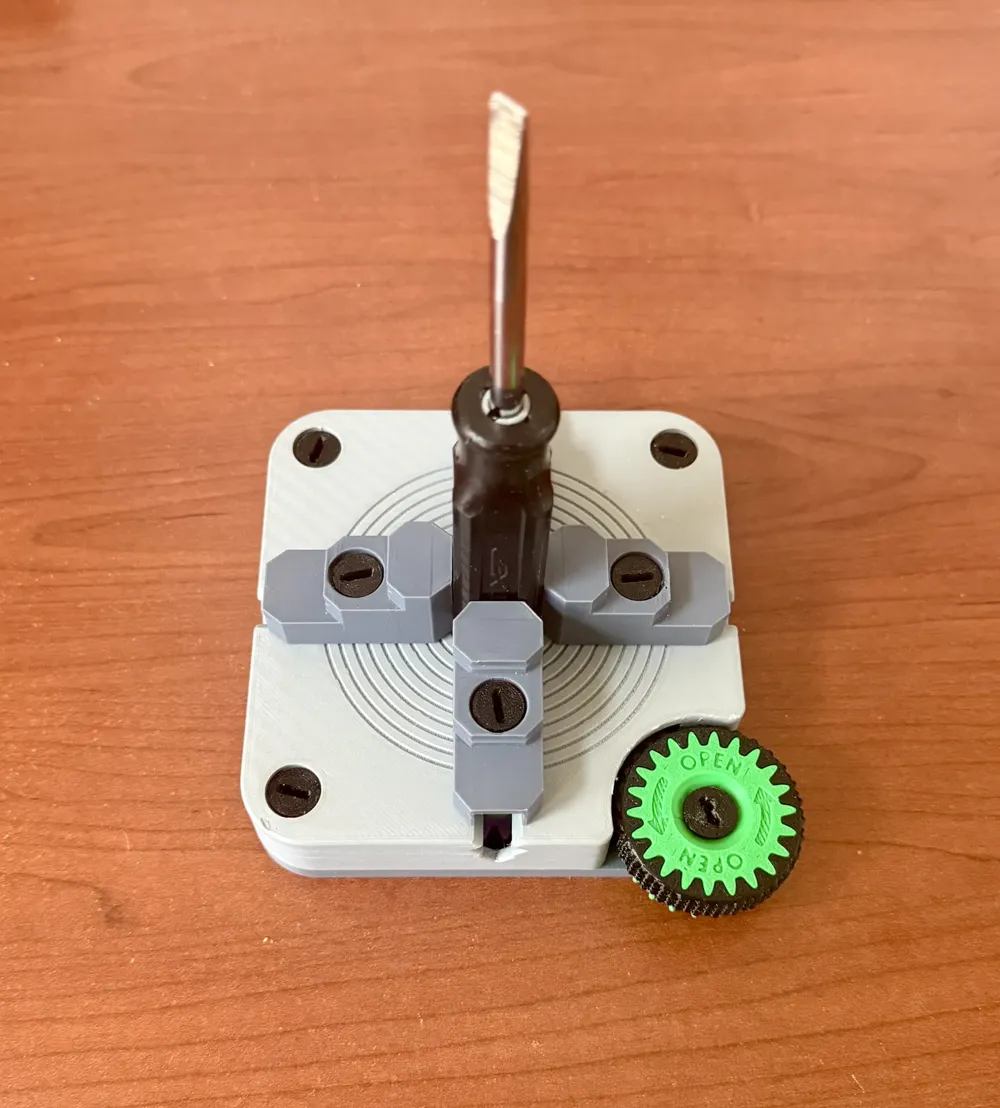

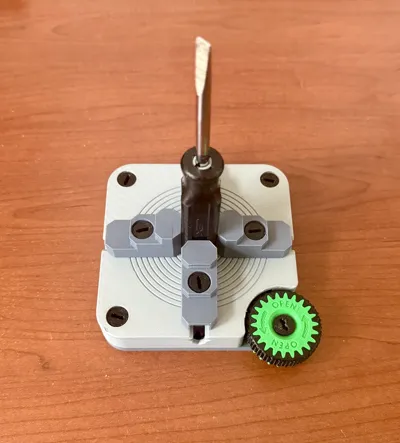

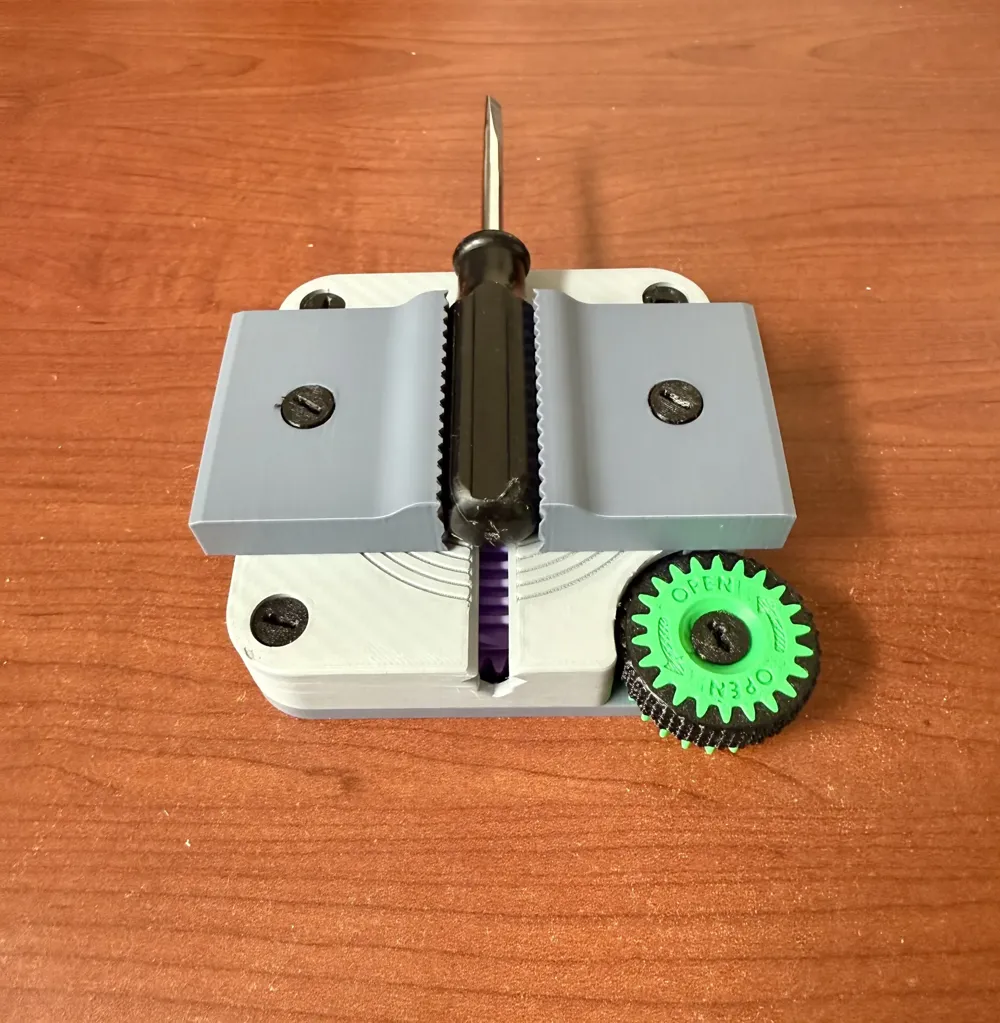

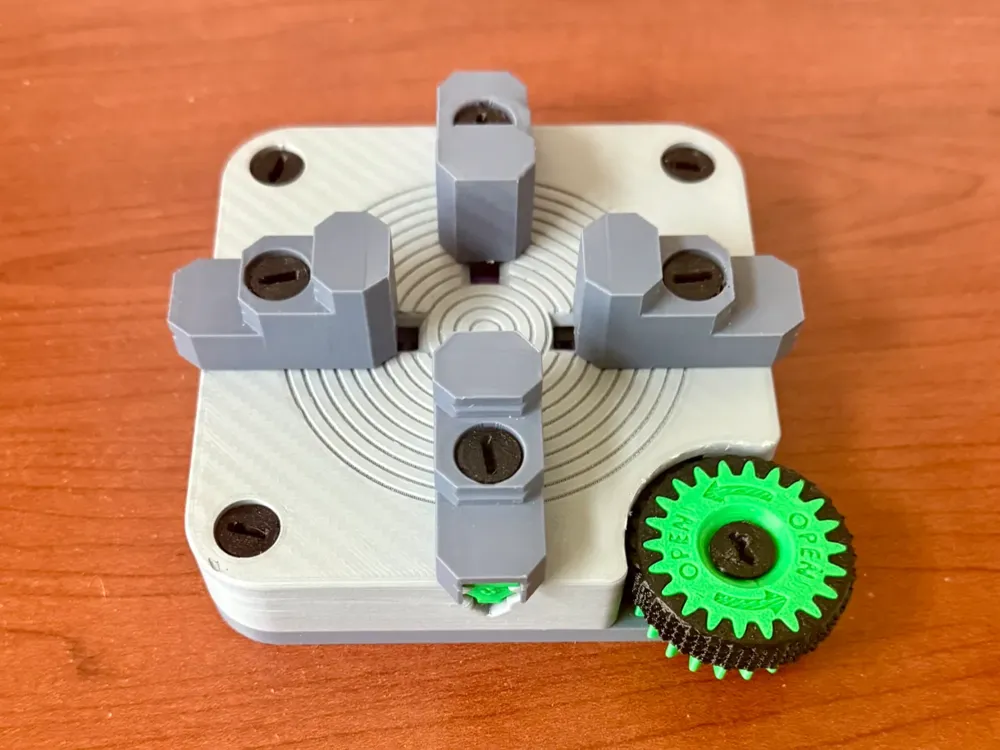

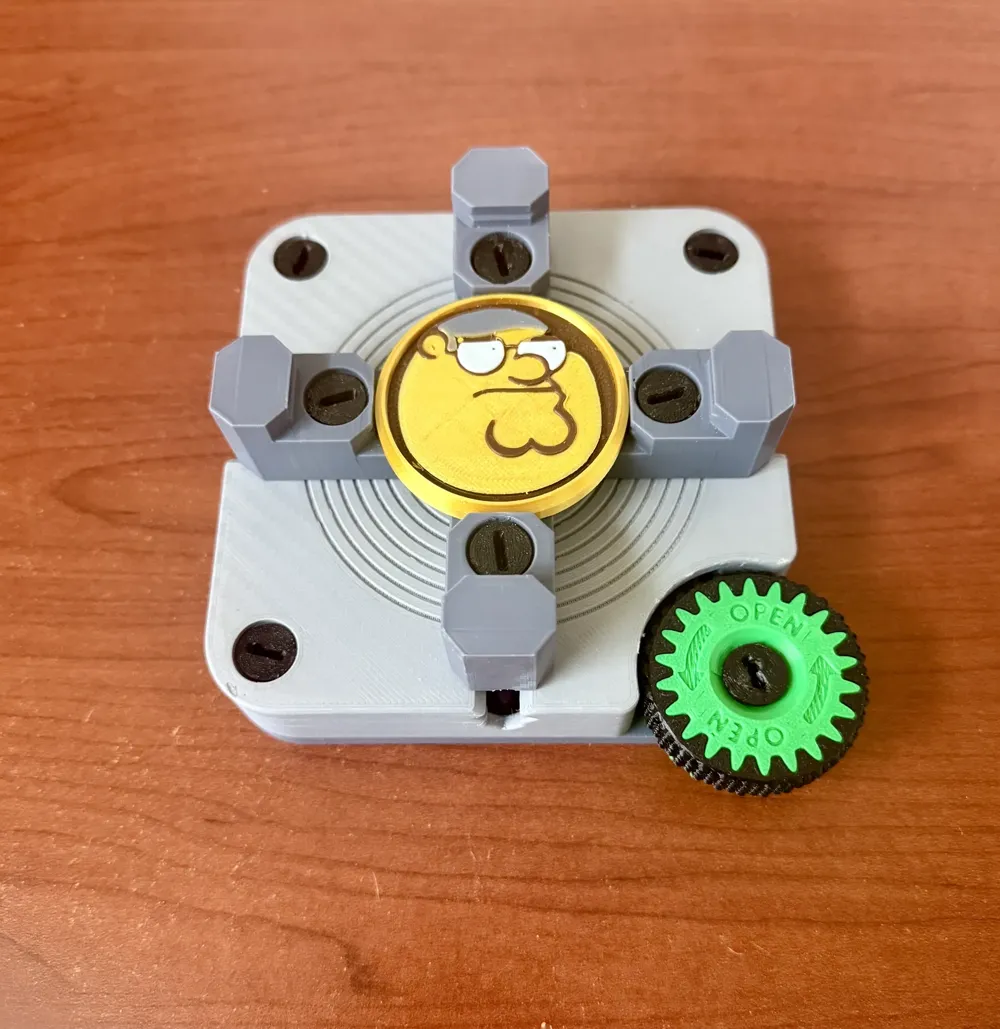

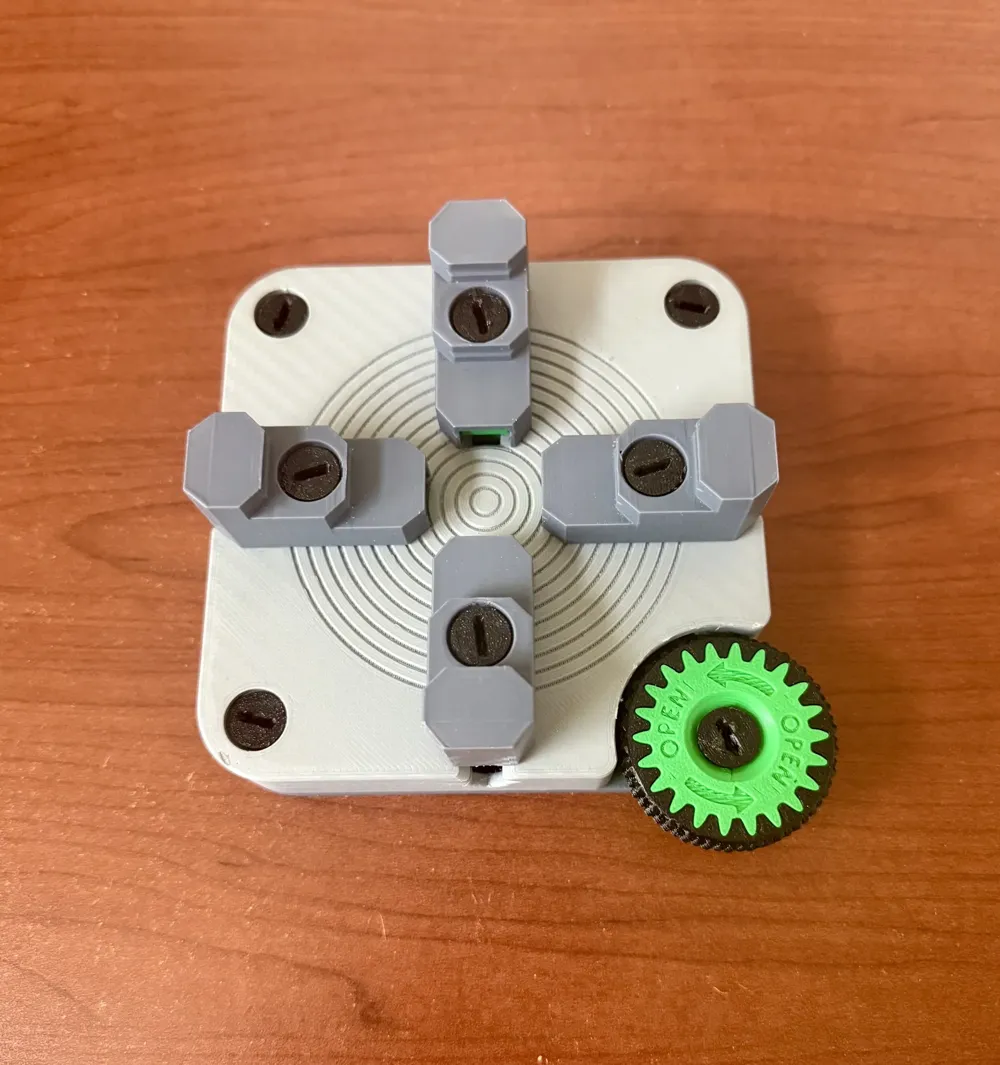

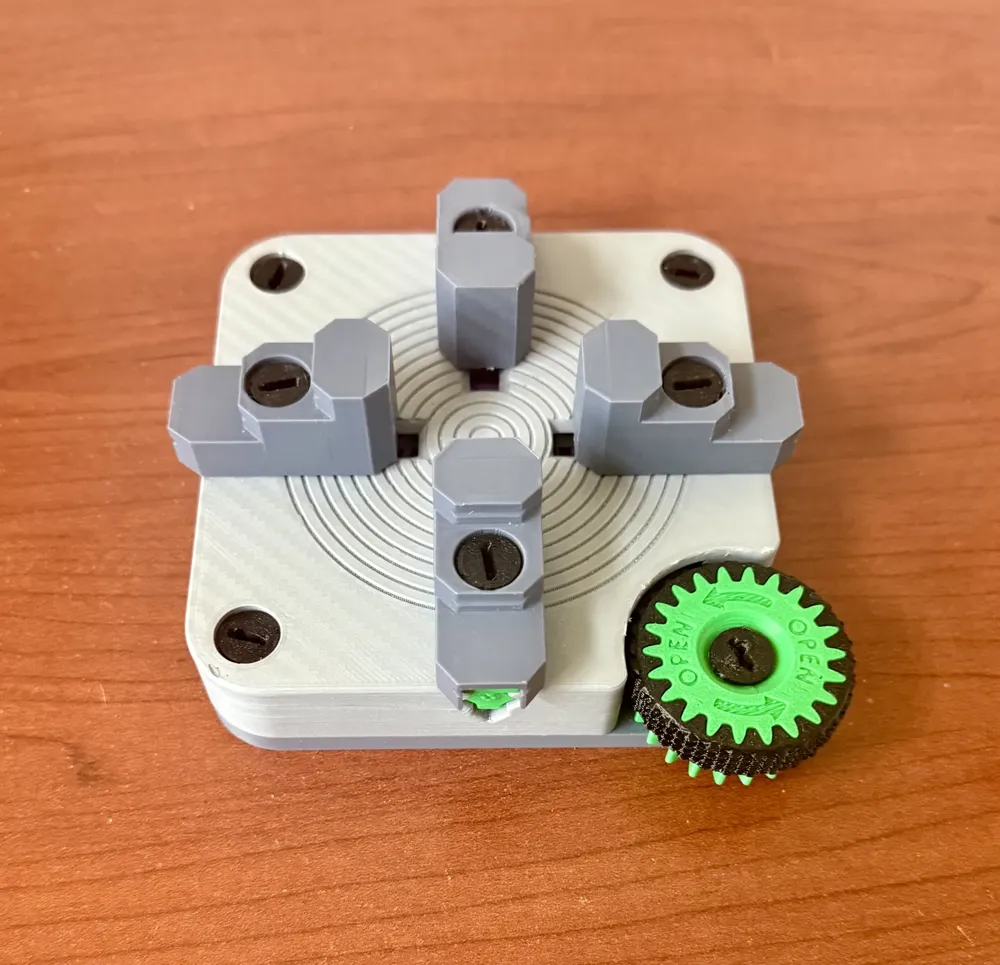

A vice that can be easily converted from 2 to 4 jaw configuration. The 4 configuration jaws are reversible for round flat items.

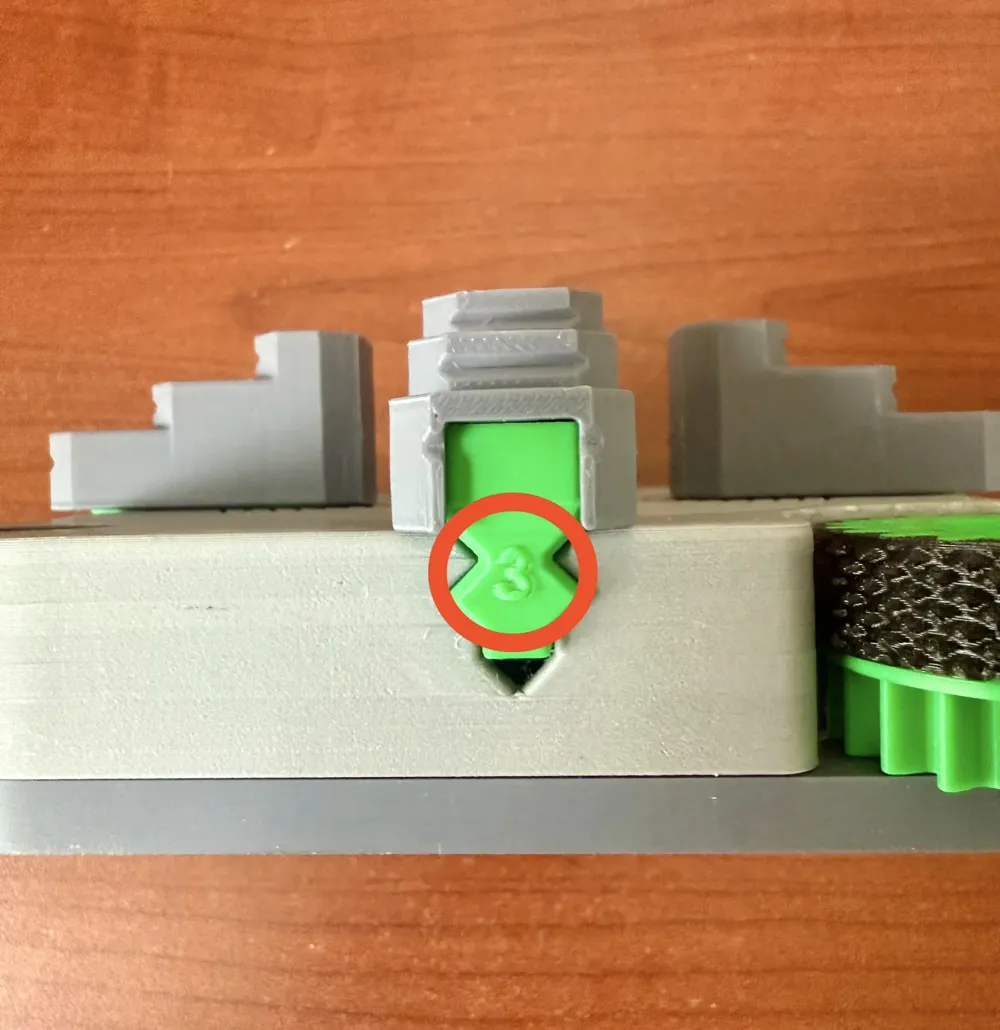

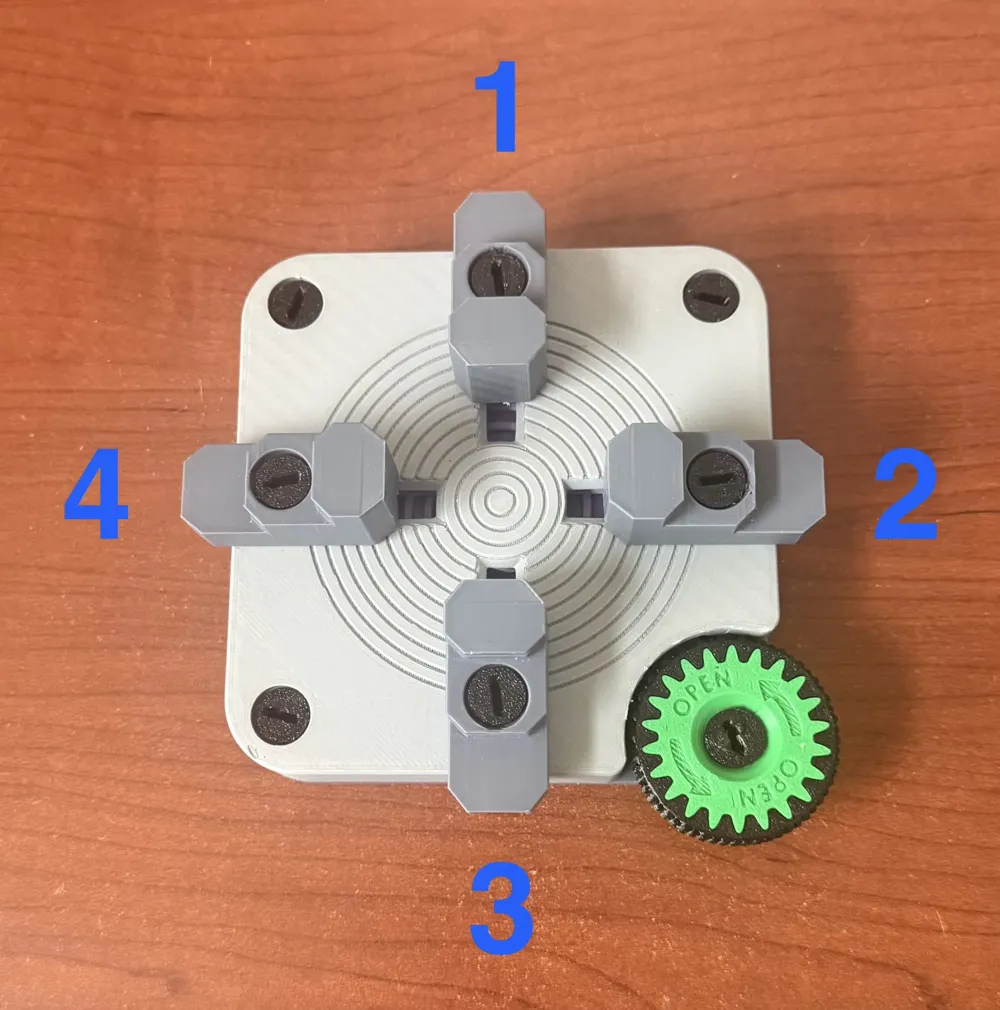

It is recommend to print the bolts from ABS, ASA or nylon for best strength but PLA will also work. The sliders are numbered from 1 to 4 and are to be installed in clockwise configuration according to the diagram with the numbers facing outwards. For the scroll wheel ring TPU for AMS or regular TPU will work. There is an optional bottom plate with external mounting screws, but there are also internal mounting screw holes on the standard plate. Some grease or oil will help with smooth operation.

I changed the geometry of the main body to improve printing quality and arrange everything into an easy to print profile. All the credit for the original design goes to “Sneaks”.

Assembly video link.
