Hello Everyone, this is an original design (NO TREES WERE HURT IN THIS PROCESS) LOL JK

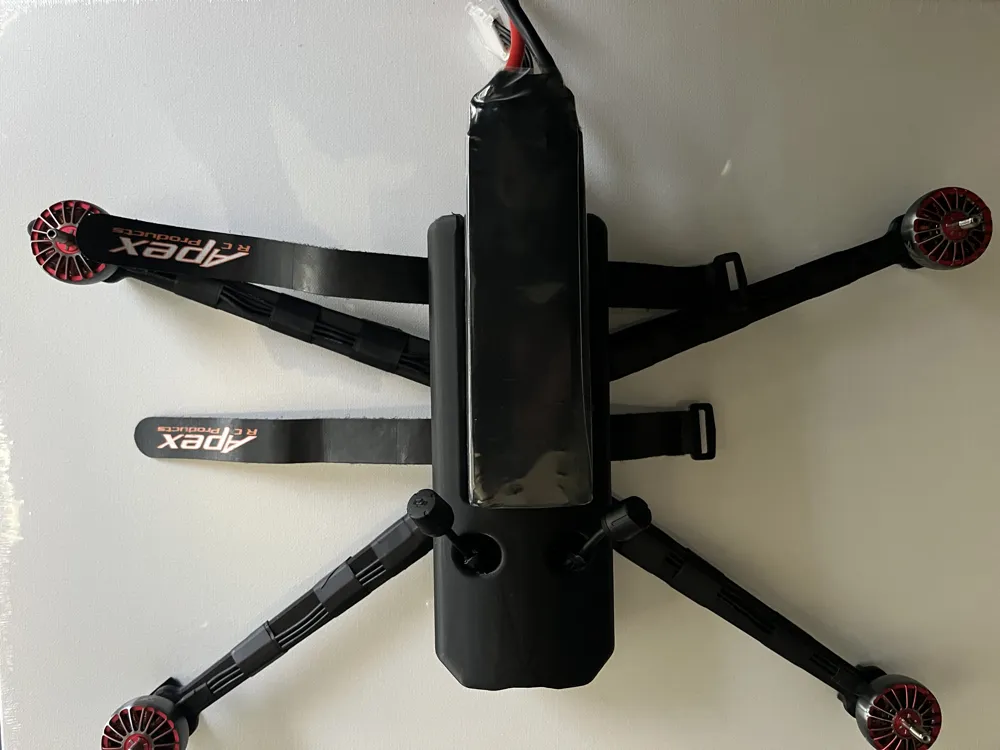

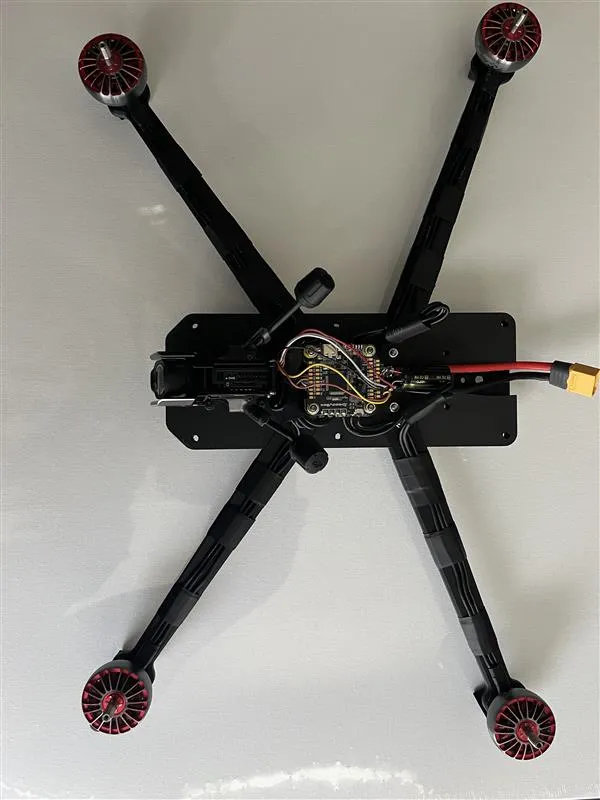

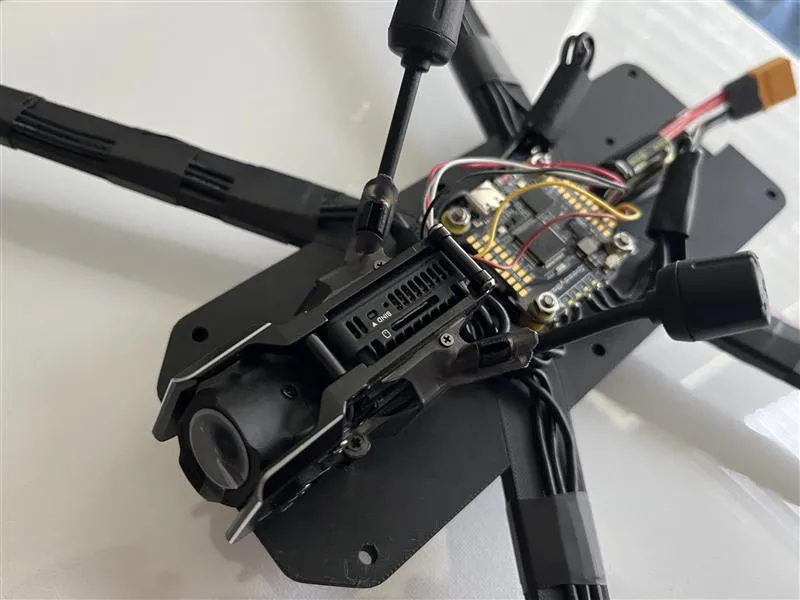

I designed this model as a 8in long range drone. If you need assembly documentation I will provide upon request. If you would like to customize and change out the Legs using STEP, IGES or SLDPRT will be provided upon request. This is not customizable. You will need a parts List to complete this.
listed below.
Parts List:

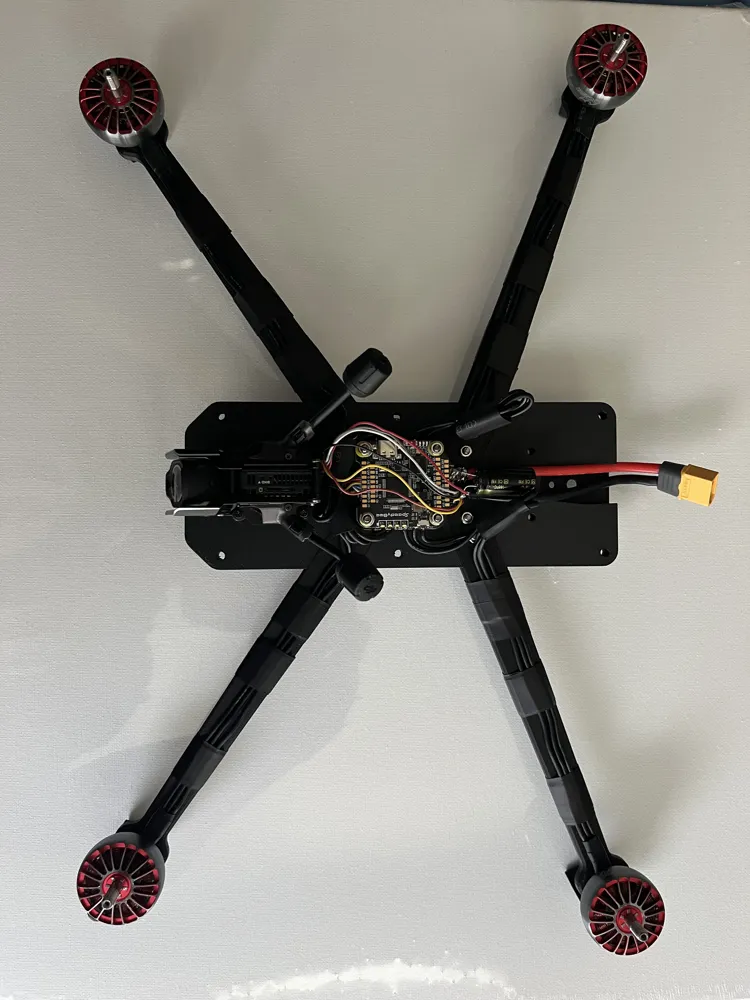

F7 V3 Stack - F722 FC + 50A BLHeli_32 128K ESC - 30x30-1

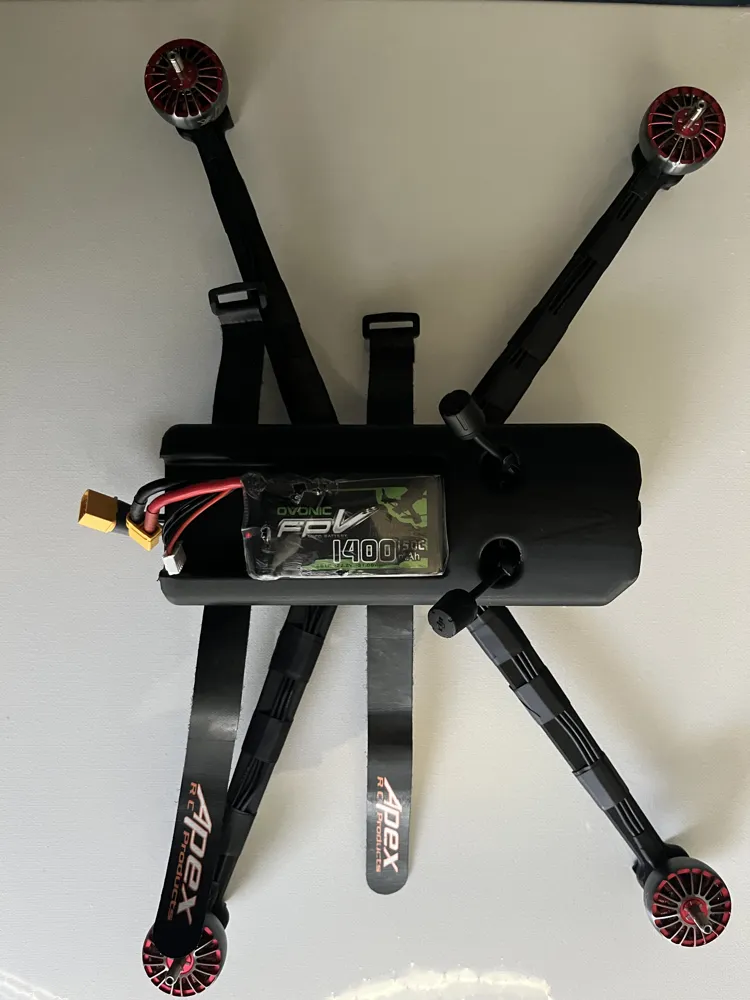

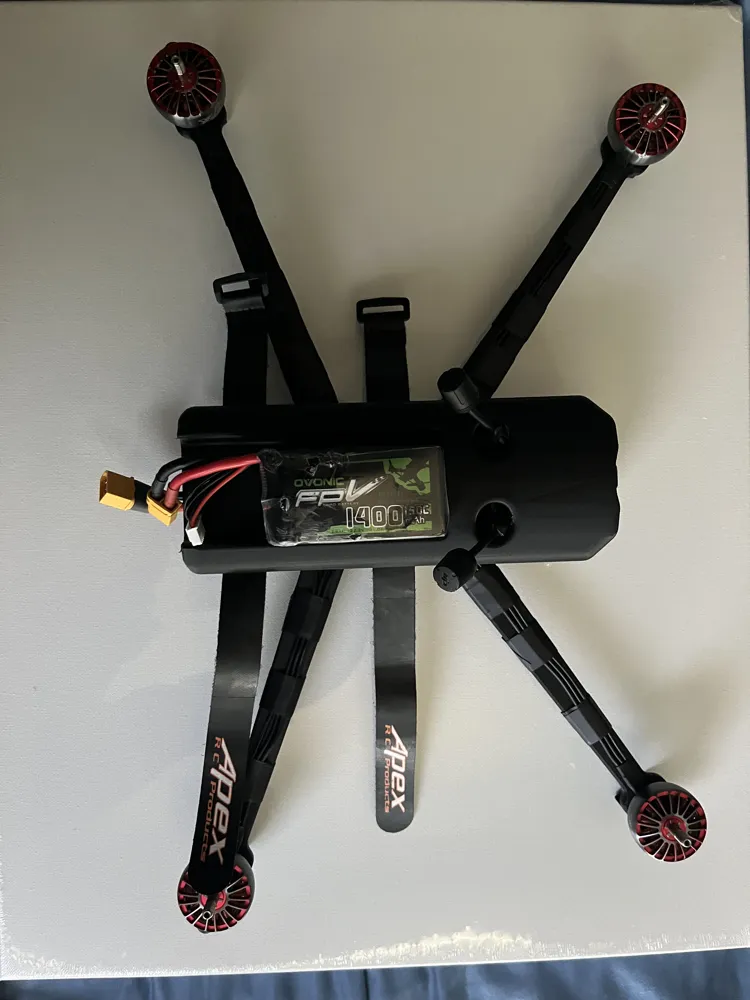

OVONIC 22.2V 150C 1400mAh 6S Lipo Battery with XT60 Plug
tested with ovonic roam 5200mah 150c and battery listed above.
Assortment of M3 FlatHead Machine screws
https://us.store.bambulab.com/products/m3-flat-head-cap-machine-screws-fhcs?id=42376310063240
Brass Spacer Standoff Assortment
https://www.amazon.com/dp/B0BP6P37QY?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Propellers
https://www.amazon.com/dp/B099KCT7V4?ref=ppx_yo2ov_dt_b_fed_asin_title
Apex RC Products 5 Pack 20mm x 300mm HD Non-Slip Battery Straps 3031A
https://www.amazon.com/dp/B01MRJ7BUY?ref=ppx_yo2ov_dt_b_fed_asin_title
5 PC 35v 1000uf Capacitor, Aluminum Radial Electrolytic Capacitors for TV, LCD, Radio, Microwave, Game (10 x 20mm)
https://www.amazon.com/dp/B0B639B7MQ?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
DJI FPV Remote Controller 3
https://www.amazon.com/dp/B0CS6JCX2W?ref=ppx_yo2ov_dt_b_fed_asin_title
DJI Goggles 3
https://www.dji.com/goggles-n3?site=brandsite&from=insite_search

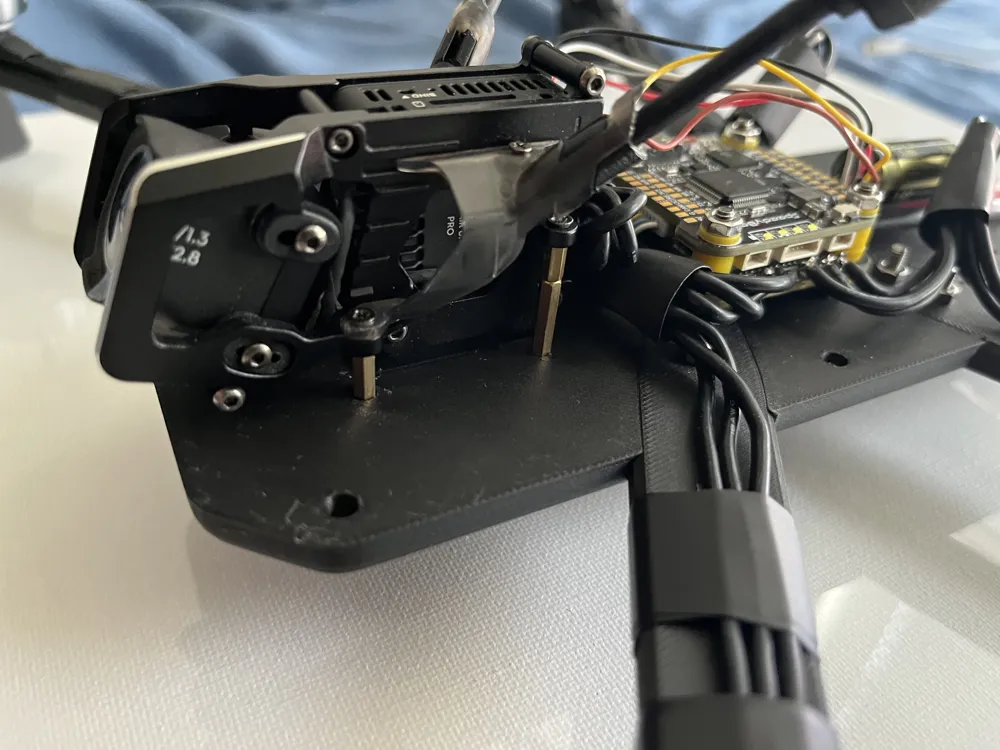

DJI O4 Pro
https://www.dji.com/o4-air-unit?site=brandsite&from=insite_search
I printed this with PLA - CF MATTE BLACK
Everything can be printed at 30%
