Junction Box with Side Bore
Print Profile(1)
Description

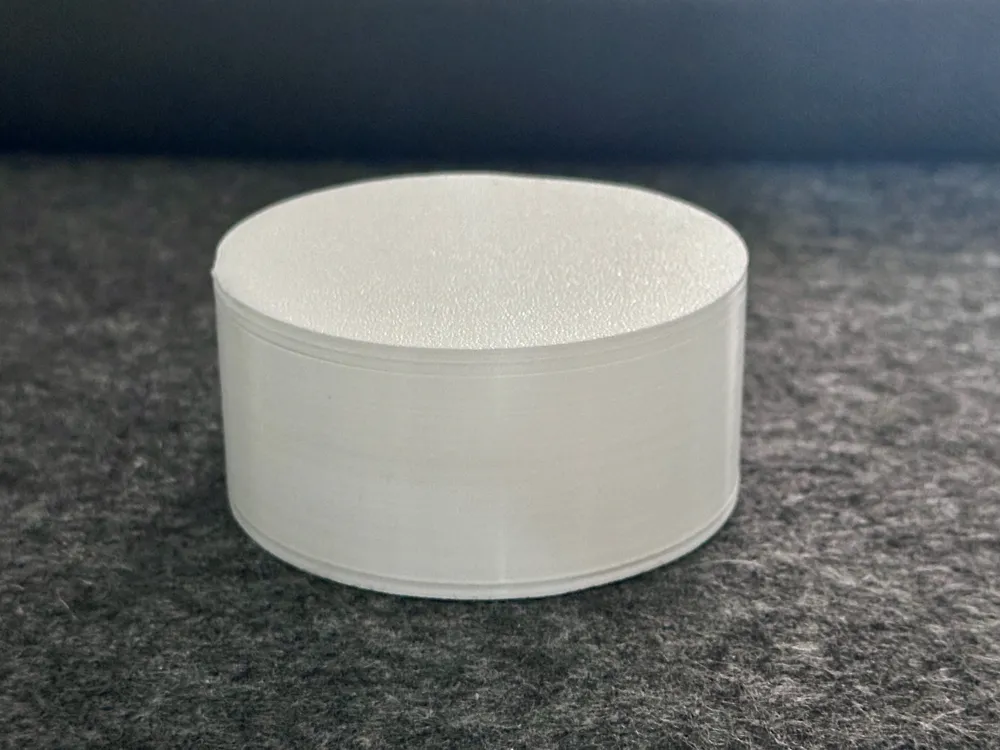

This round distribution box was designed for use in indoor electrical installations. It is ideal for connecting and branching cables and wires in building technology.
Technical Specifications:
- Inner diameter: 80 mm
- Height: 40 mm
- Inner bore (for fastening): Ø 6 mm
- Cable entry (internal): Ø 30 mm
- Cable entry (outer wall): Ø 10 mm
- Lid: screwless, held by clamping mechanism
- Material: PLA
- Print settings: 0.16 mm layer height, no supports
- Print quality: High Quality
This box can be printed without support material. The lid is securely held by clamps.
