O4 Pro Camera Cage for AOS 5 & 5.5 EVO V1.2 Frames

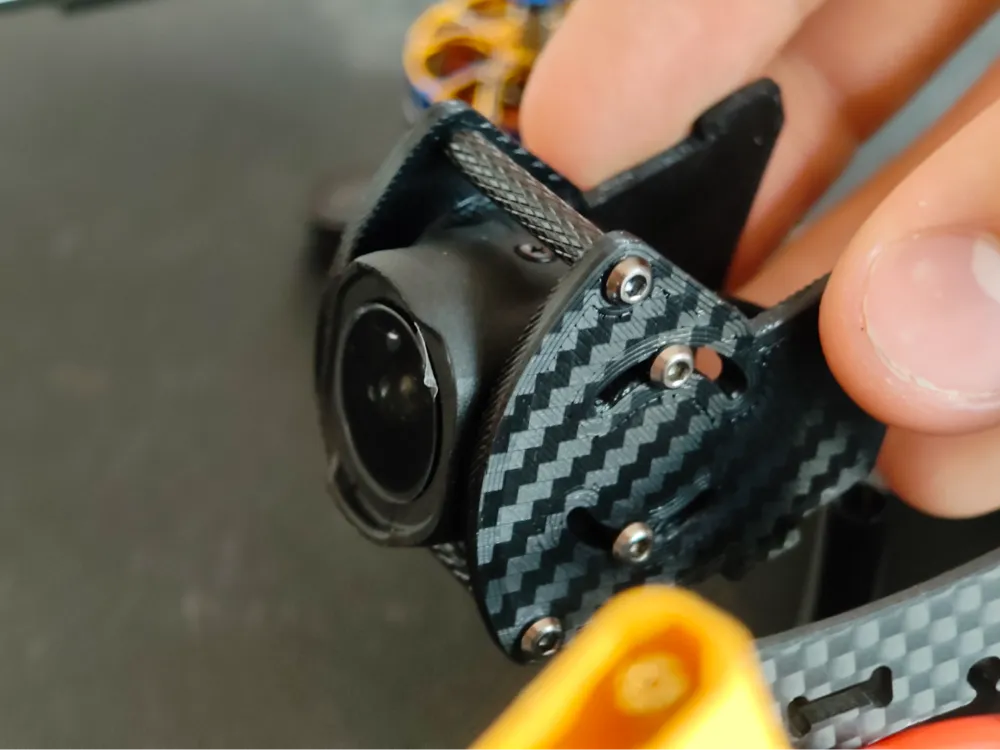

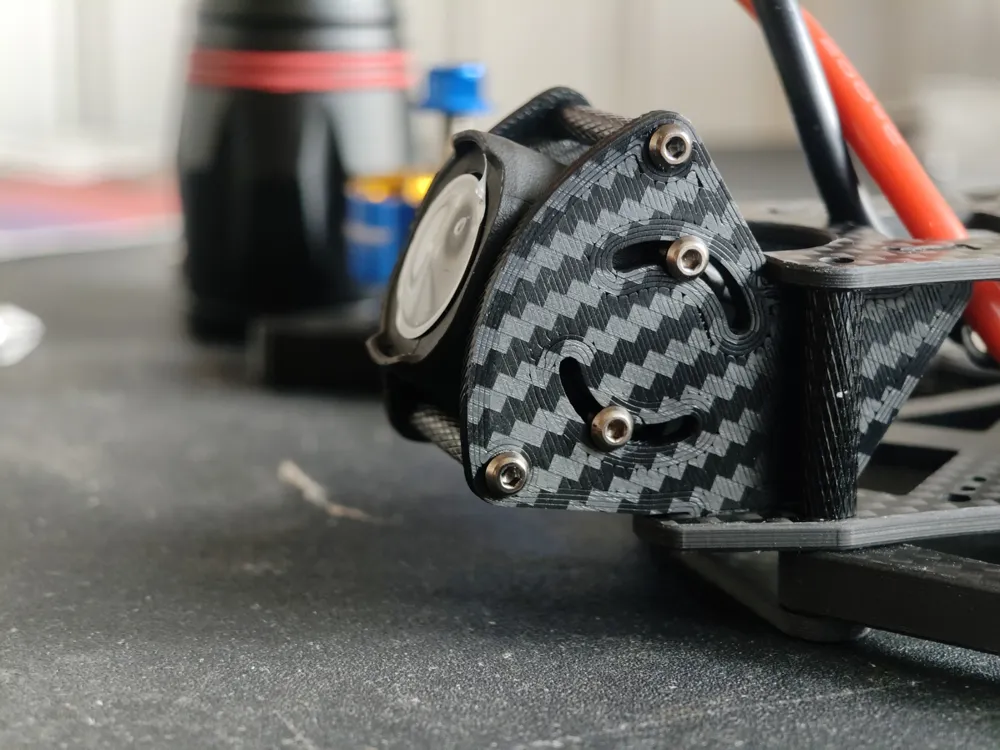

This custom-designed camera cage provides secure mounting for the DJI O4 Pro Air Unit camera module on AOS 5 and 5.5 EVO v1.2 FPV drone frames. The cage offers enhanced protection while maintaining the sleek profile necessary for high-performance FPV flying.

Key Features:

• Perfect Fit: Designed specifically for the DJI O4 Pro camera module (25.55×20×23.30 mm)
• Frame Compatibility: Works with both AOS 5 and 5.5 EVO v1.2 frames with their 20x20mm camera mounting patterns34

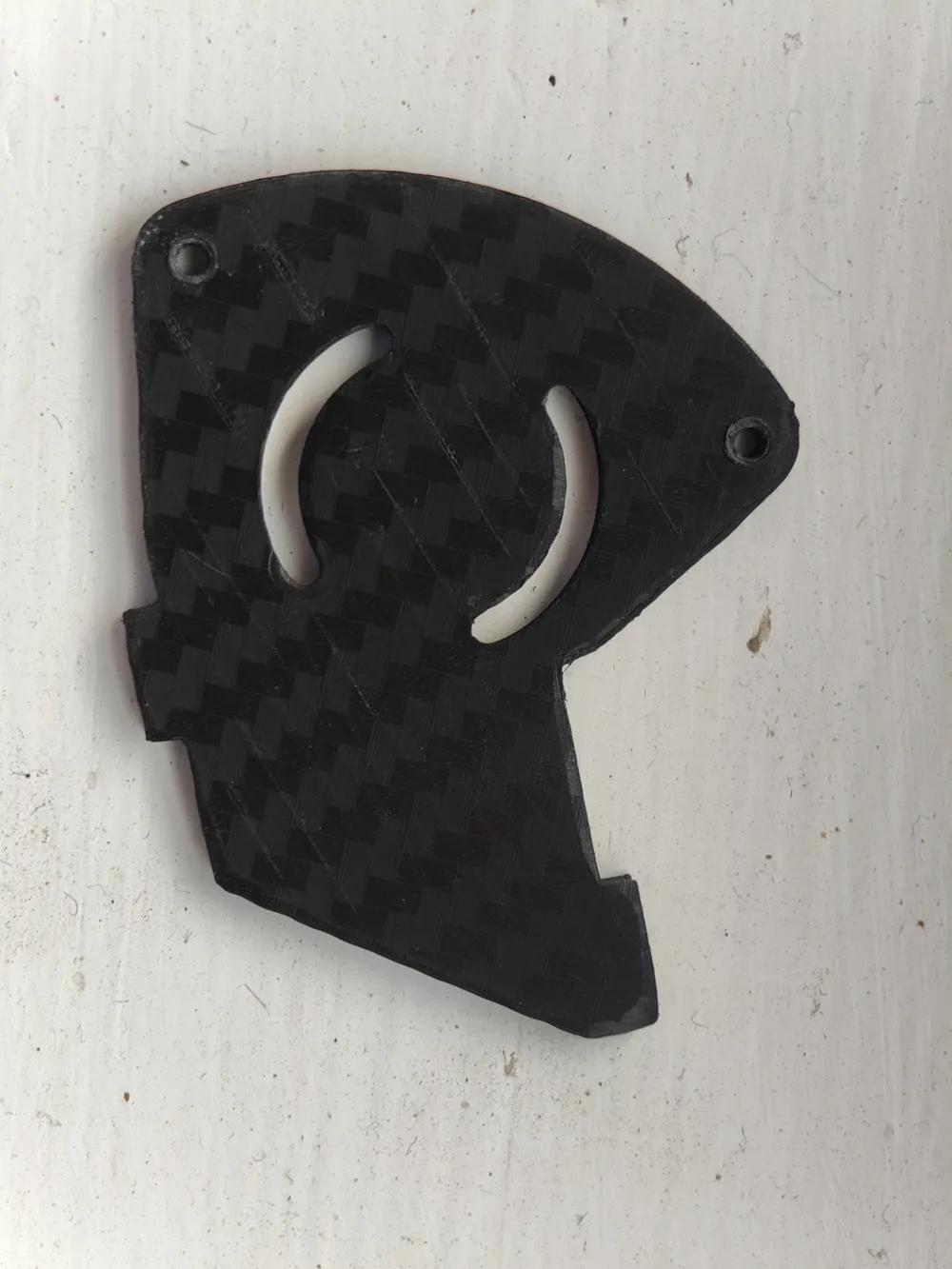

• Enhanced Protection: Reinforced sidewalls protect the camera during crashes while maintaining minimal weight

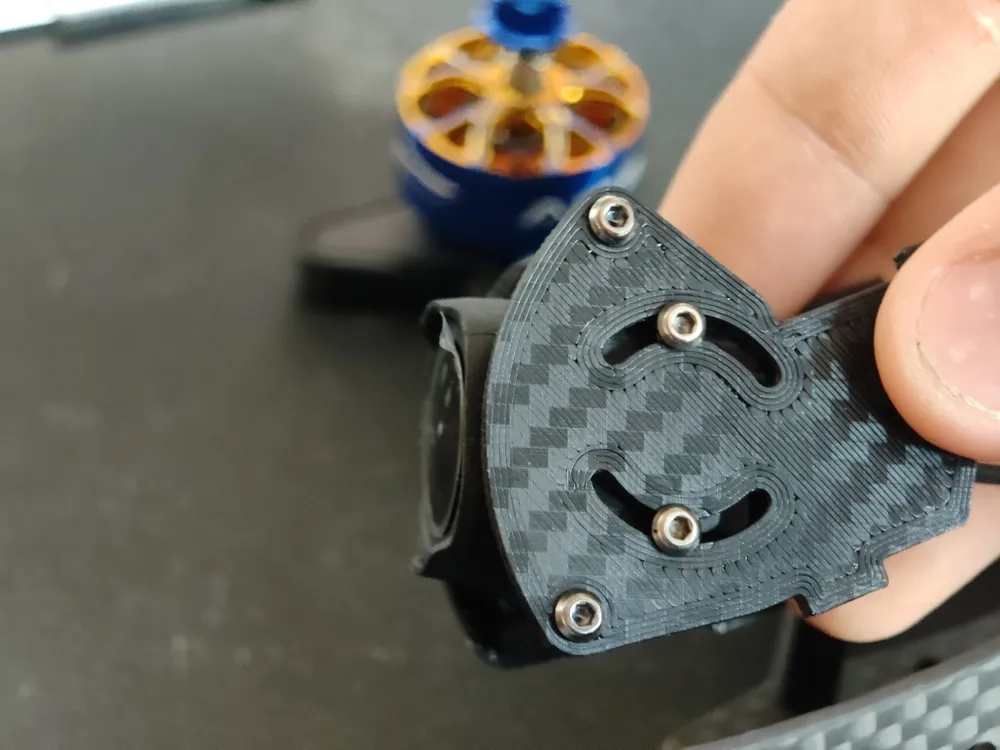

• Adjustable Angle: Allows for precise camera angle adjustment for optimal FPV experience
• Vibration Damping: TPU to reduce jello effects in footage

Technical Specifications:

• Compatible with DJI O4 Pro Air Unit camera (32g total weight)
• Mount the camera using m2x6 screws (x4)
• Fits standard 20x20mm mounting patterns
• Supports camera tilt adjustments from 0-40 degrees
• Print-in-place design requires no additional hardware
• Material: 95a TPU for durability

Why This Design:
The AOS 5/5.5 EVO v1.2 frames are renowned for their exceptional vibration performance and compatibility with digital FPV systems74. However, the DJI O4 Pro's upgraded camera module requires a custom mounting solution that wasn't available with the original O3-focused design. This cage bridges that gap while maintaining the frame's performance characteristics.
