Adapter Plate - Figure Holder

Adapter Plate - Figure Holder

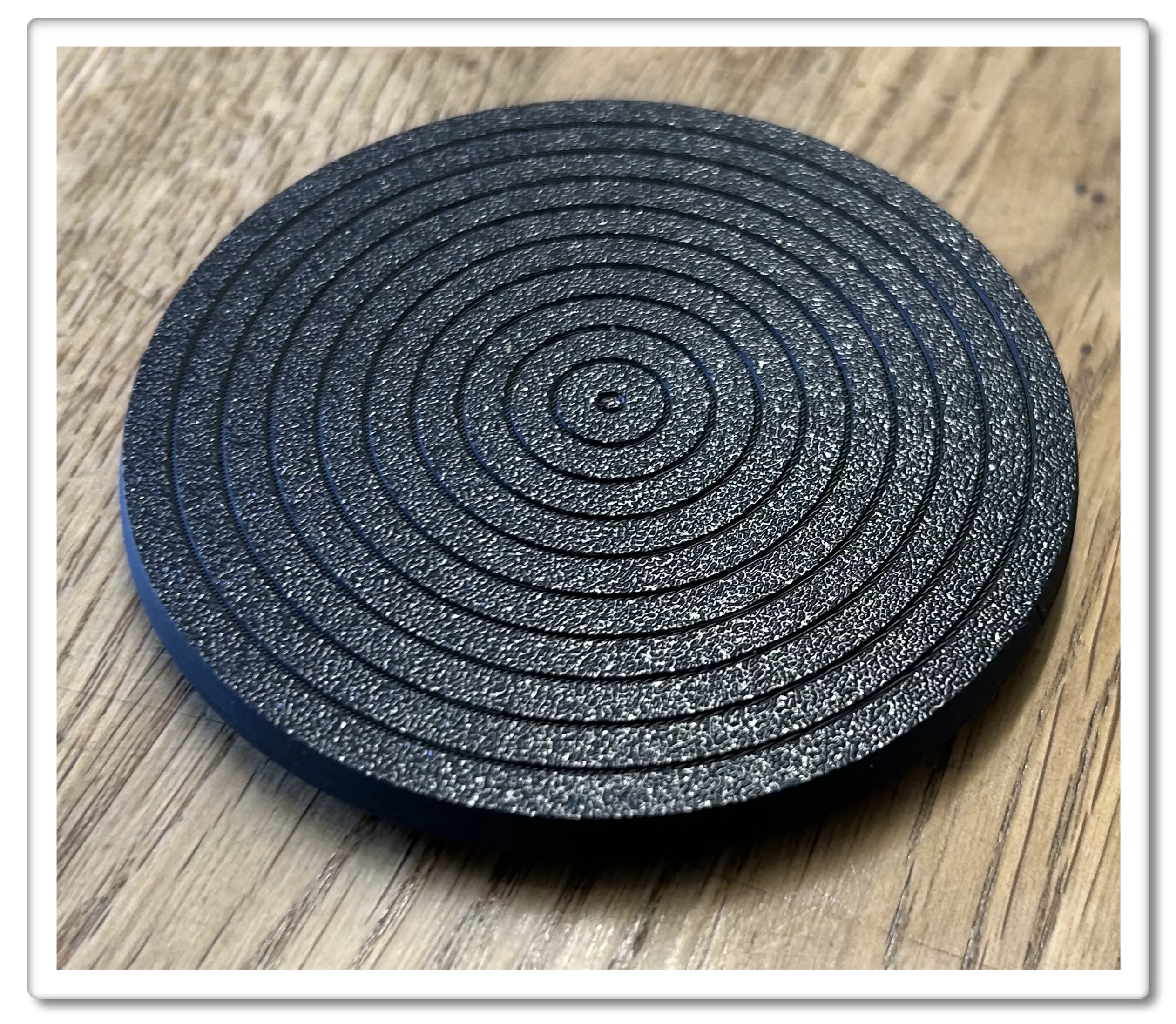

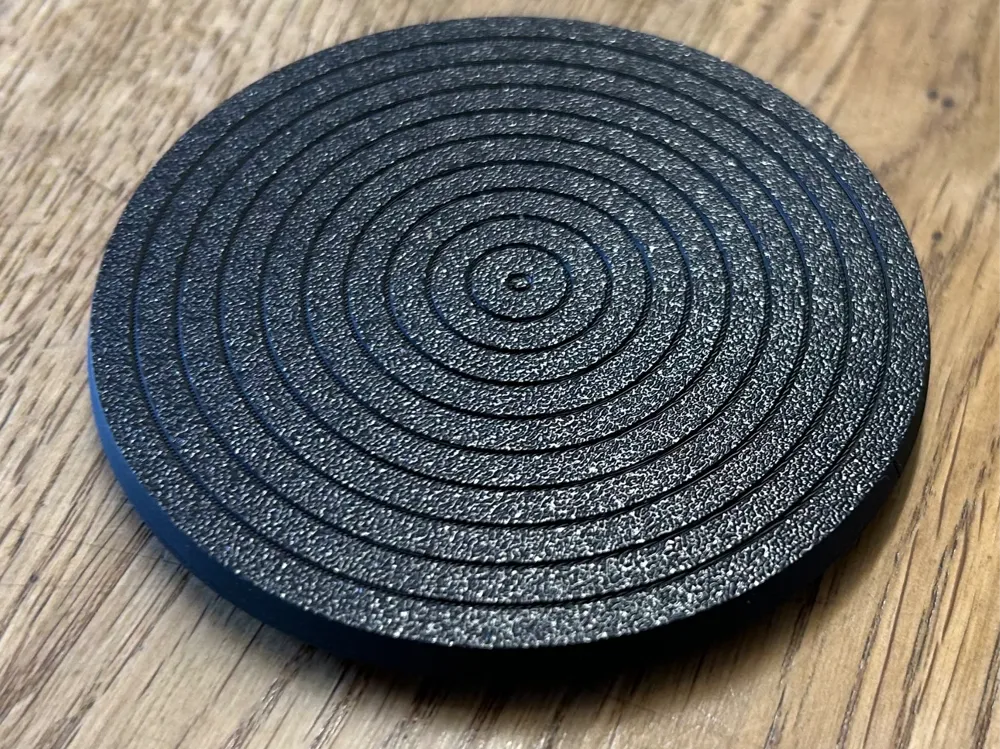

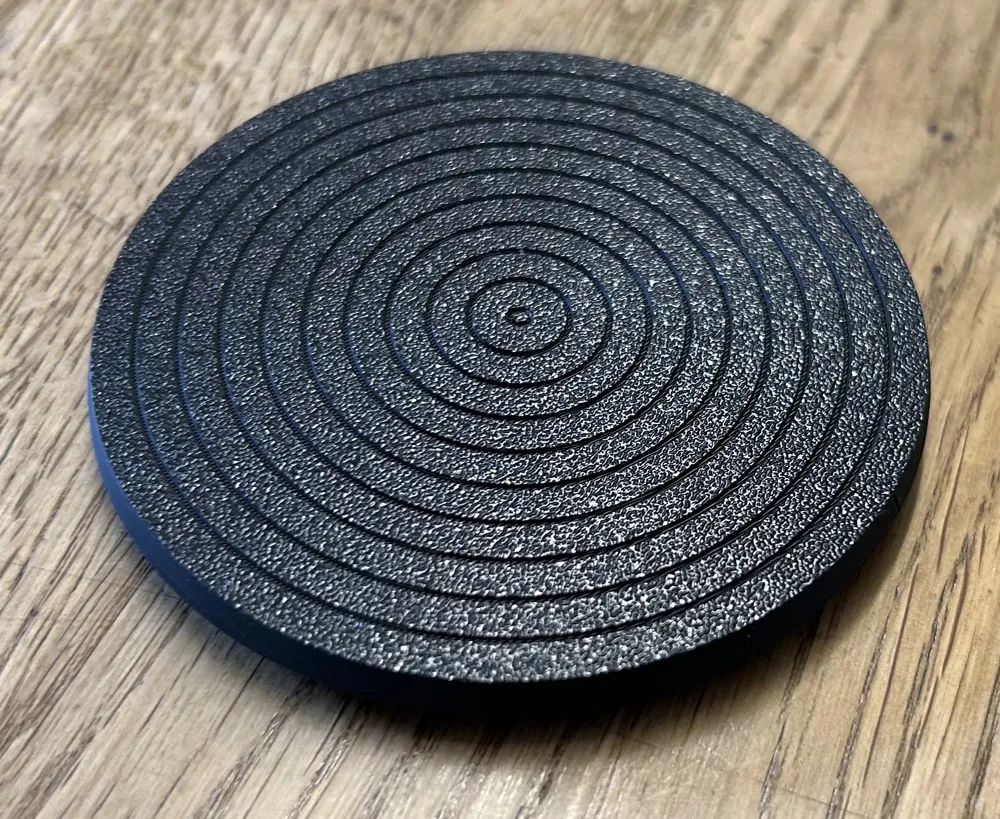

This is an adapter plate for a figure holder I downloaded from Makerworld.

The dimensions of the adapter plate are: Ø80 mm x 8 mm.

I needed this adapter plate to be able to attach larger objects with modeling clay to this miniature holder for painting.

The designer: SHON

Link to it: Adjustable Miniature Holder for Painting

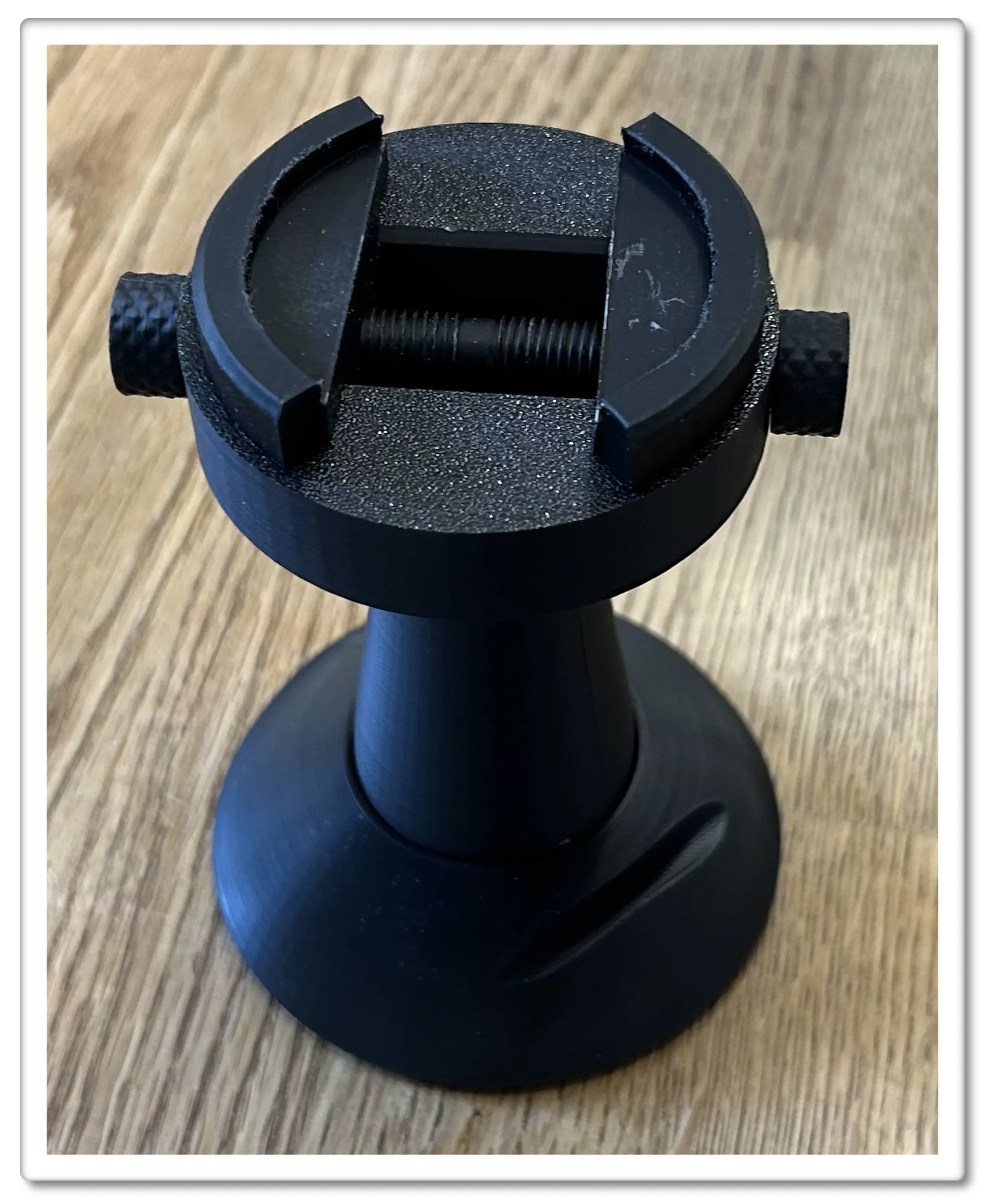

Miniature Holder without Adapter Plate

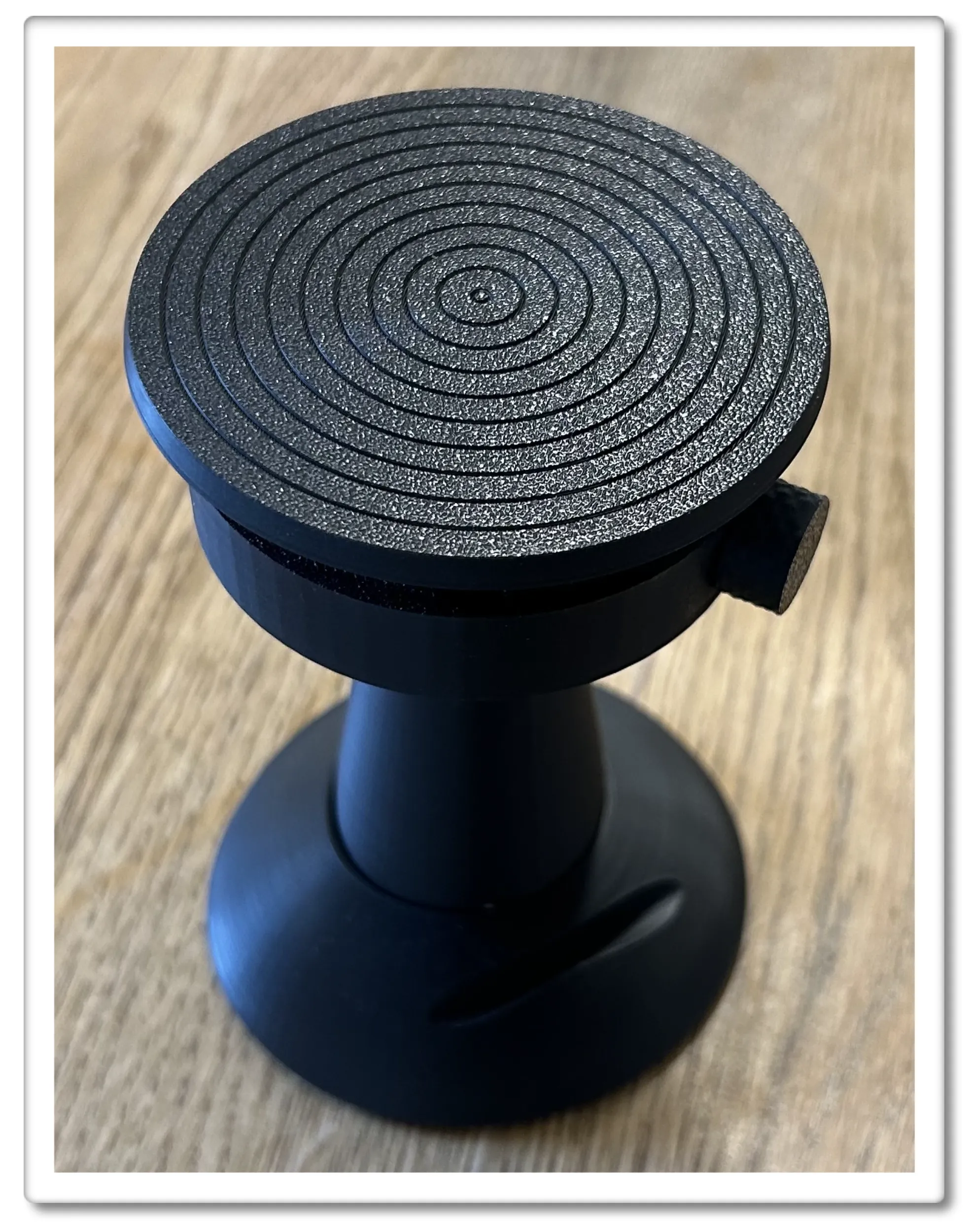

Miniature Holder with Adapter Plate

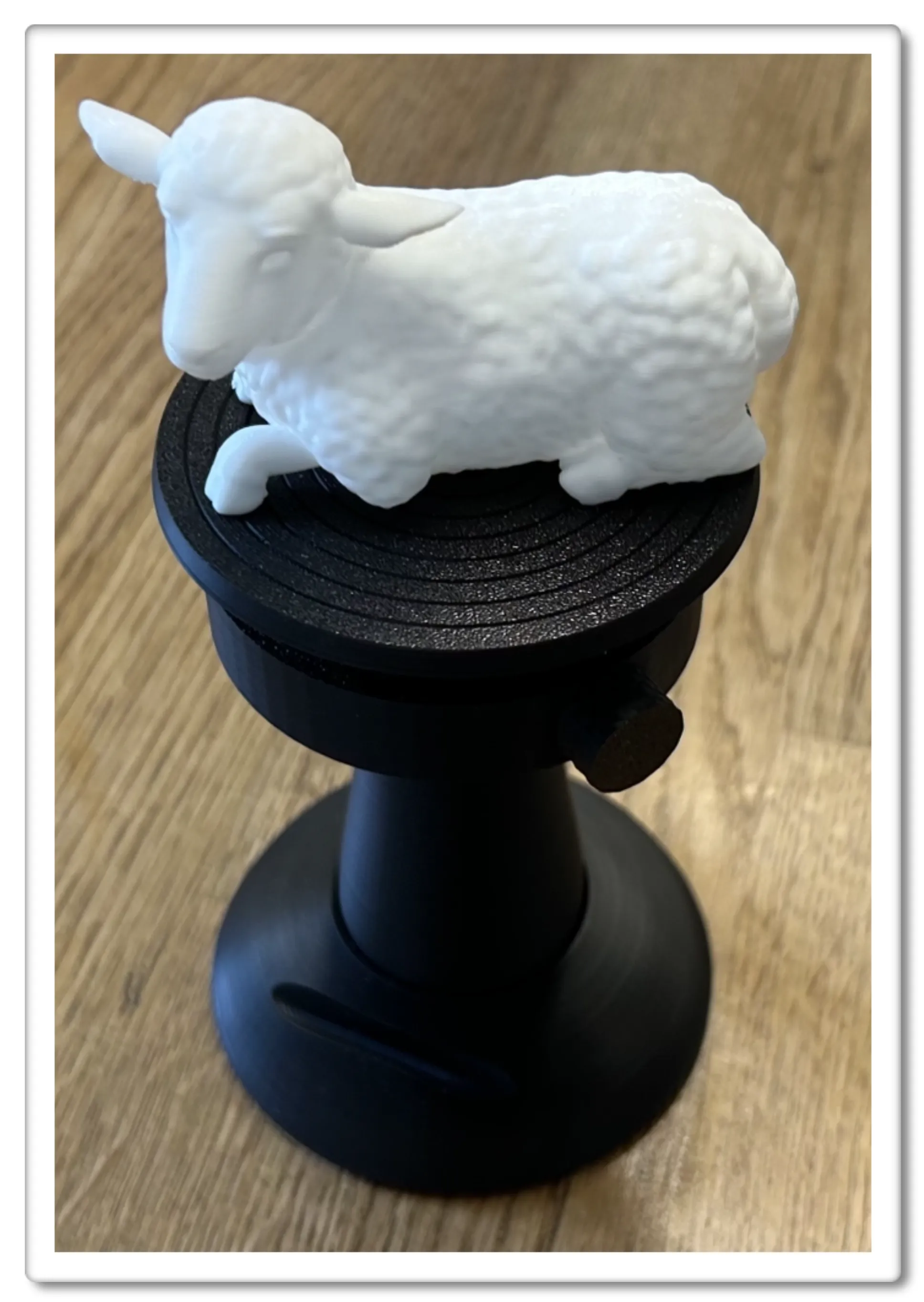

Example of an application with an object

Print Information - Material and Build Plates:

• I used PLA BASIC from Bambulab
• Build plate: PEI plate without adhesive.

Print settings with PLA BASIC:

Wall lines: 4

Layer height: 0.12mm

Infill / Infill pattern: 15% / GYROID

Smoothing type: NO SMOOTHING

Seam position: ALIGNED

Wall generator: CLASSIC

Support type: NONE

All other values remain at default.

Have fun printing and painting the 3D printed objects!!!
