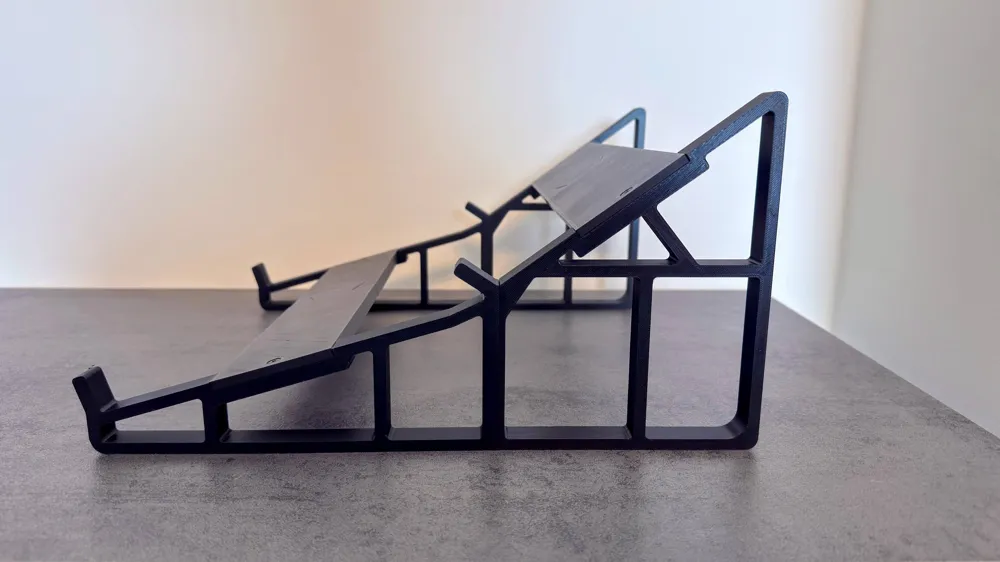

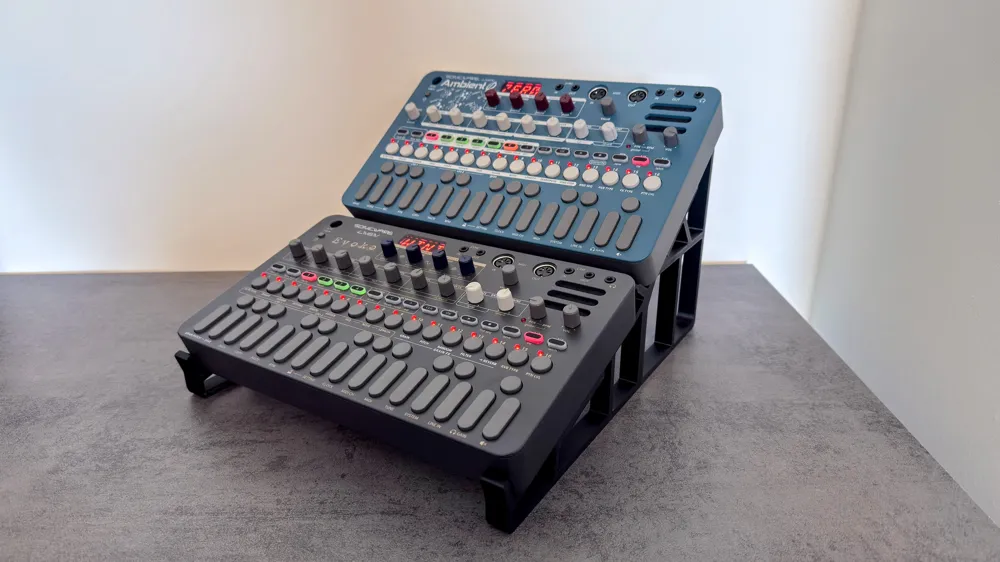

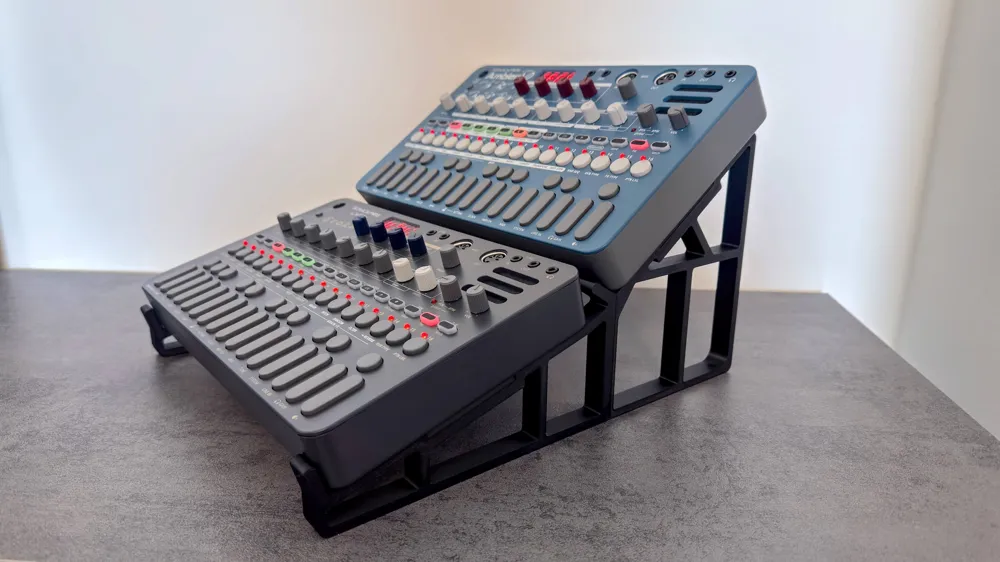

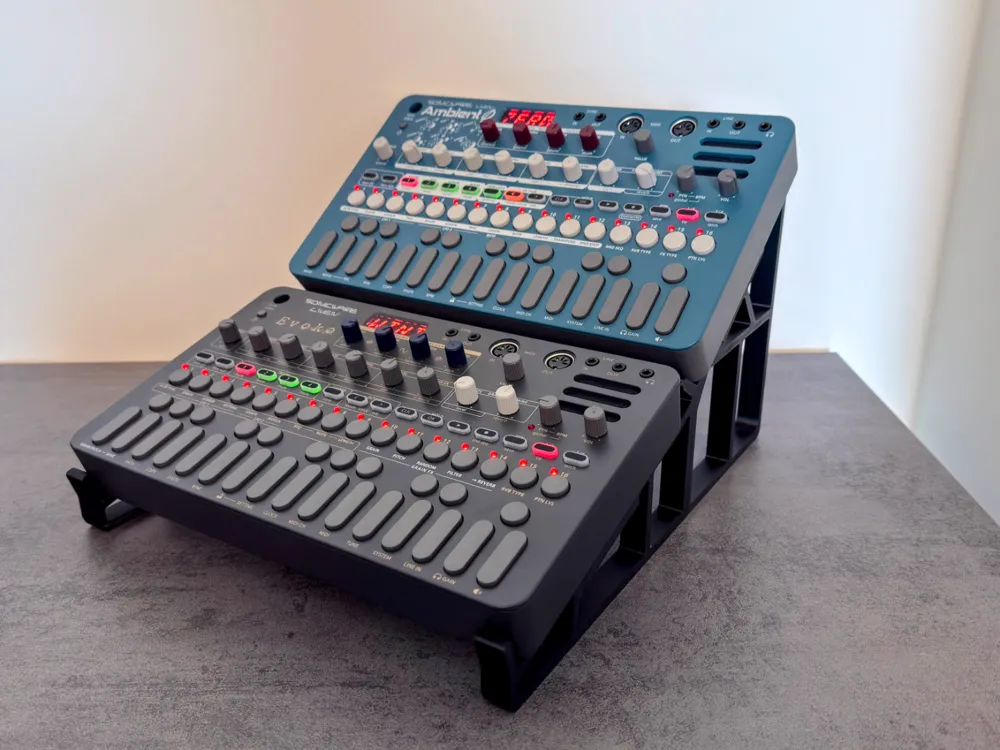

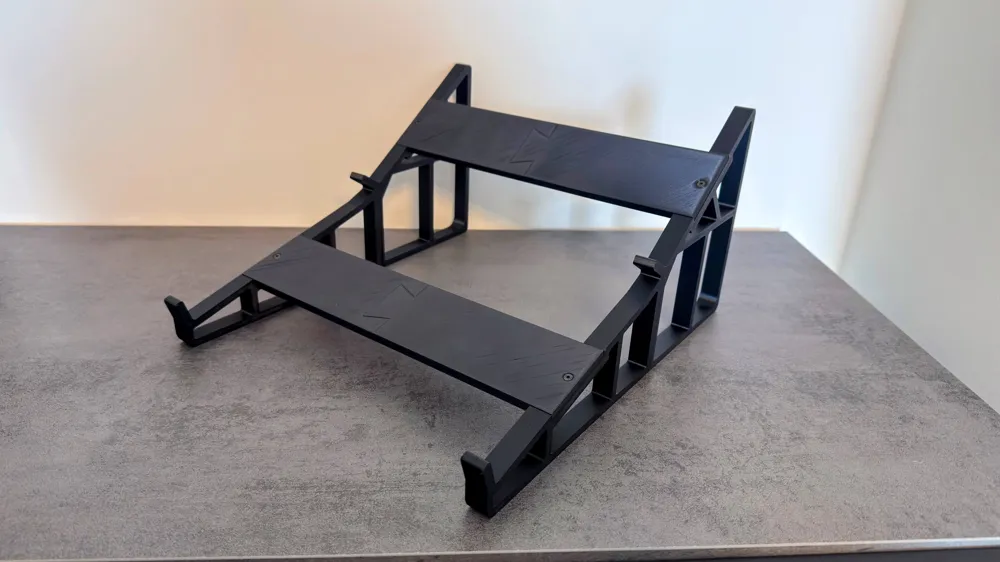

This is a practical stand for Sonicware Liven synthesizers like the Ambient Ø, Evoke, Texture Lab etc. The stand supports two synthesizer modules, but if you only need a single stand you just need to print the lower part of the stand (= Foot B + Support).
Required parts:
- M3 threaded inserts (8)
- Countersunk head screws M3x6 (8)
- Super glue
- Self-adhesive felt (optional)
Instructions:
1) Print all parts using the provided profile

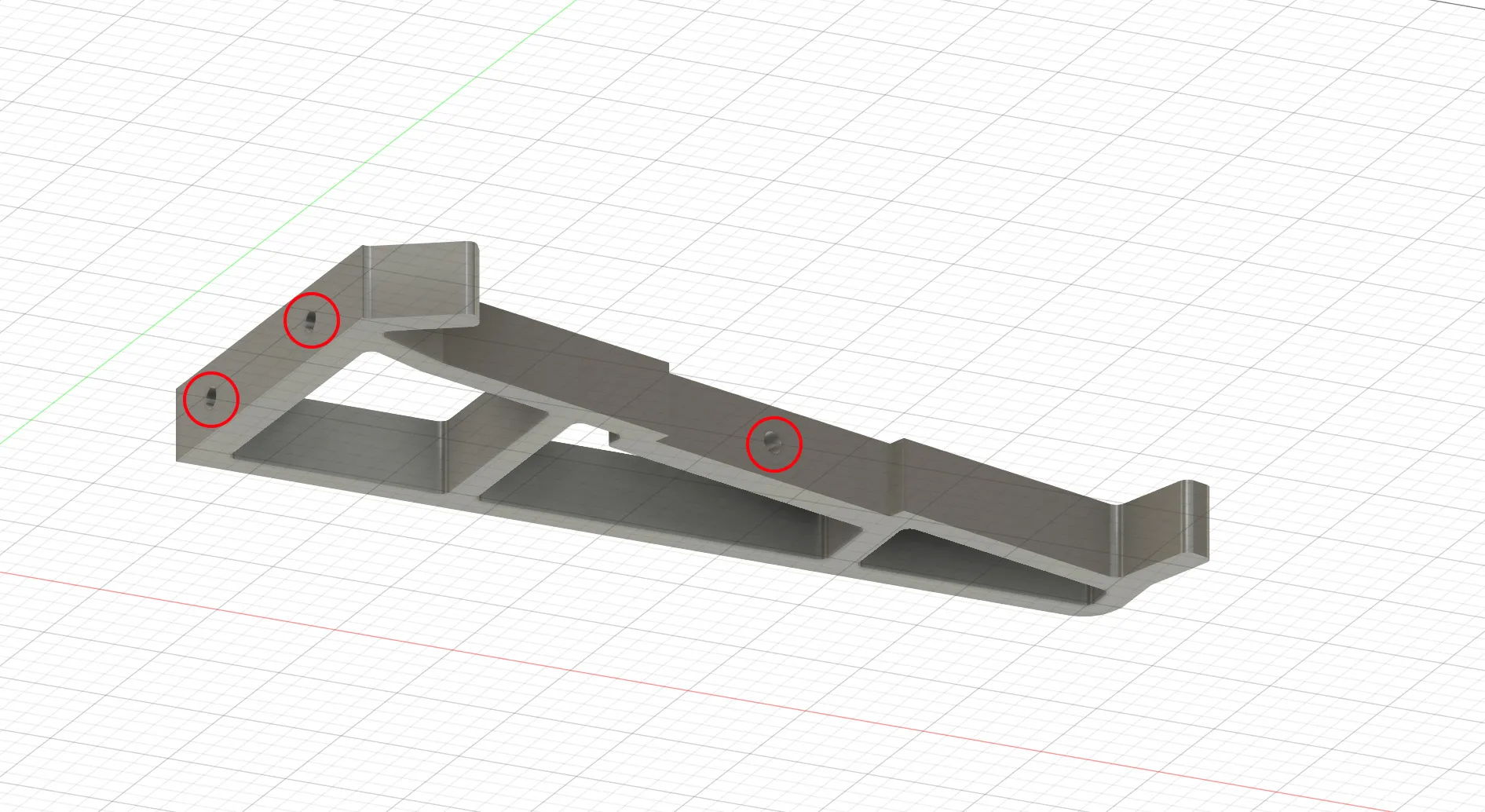

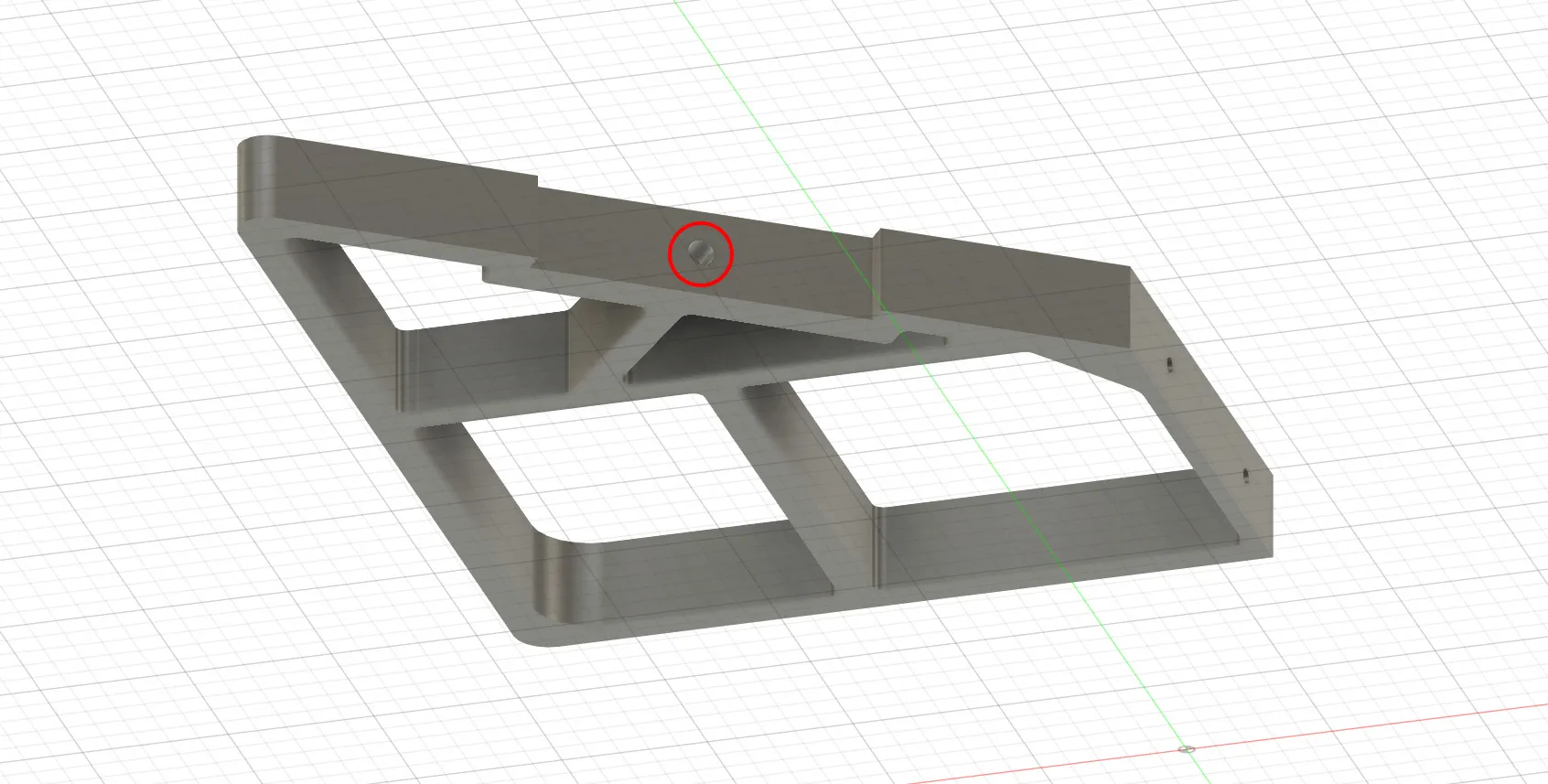

2) Add the M3 threaded inserts (using a soldering iron) to the printed parts as per the below images (see red circles):

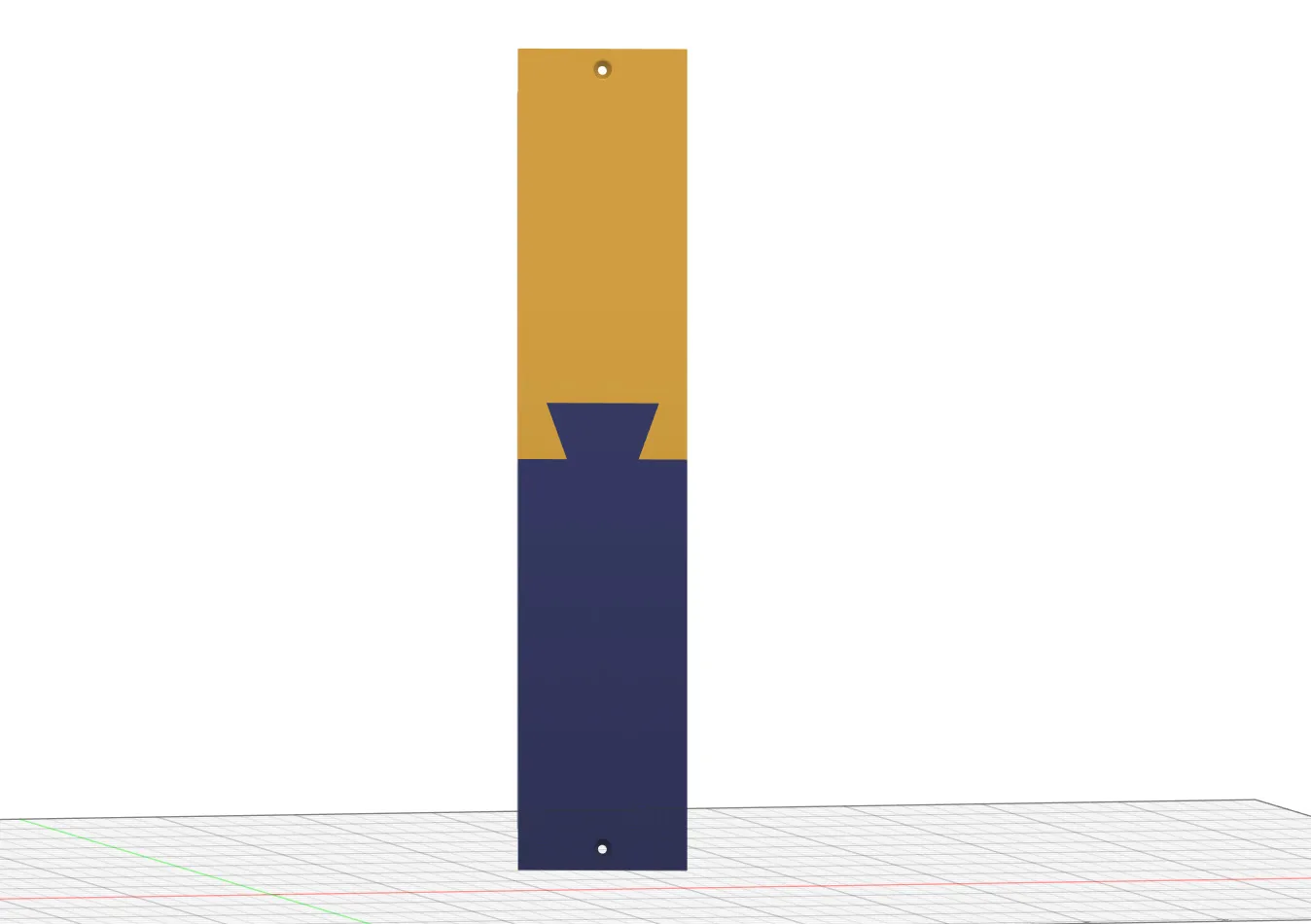

2) Add super glue to the support (see area marked red):
3) Combine support parts and let super glue do its job:
4) Use the M3 screws to put everything together.

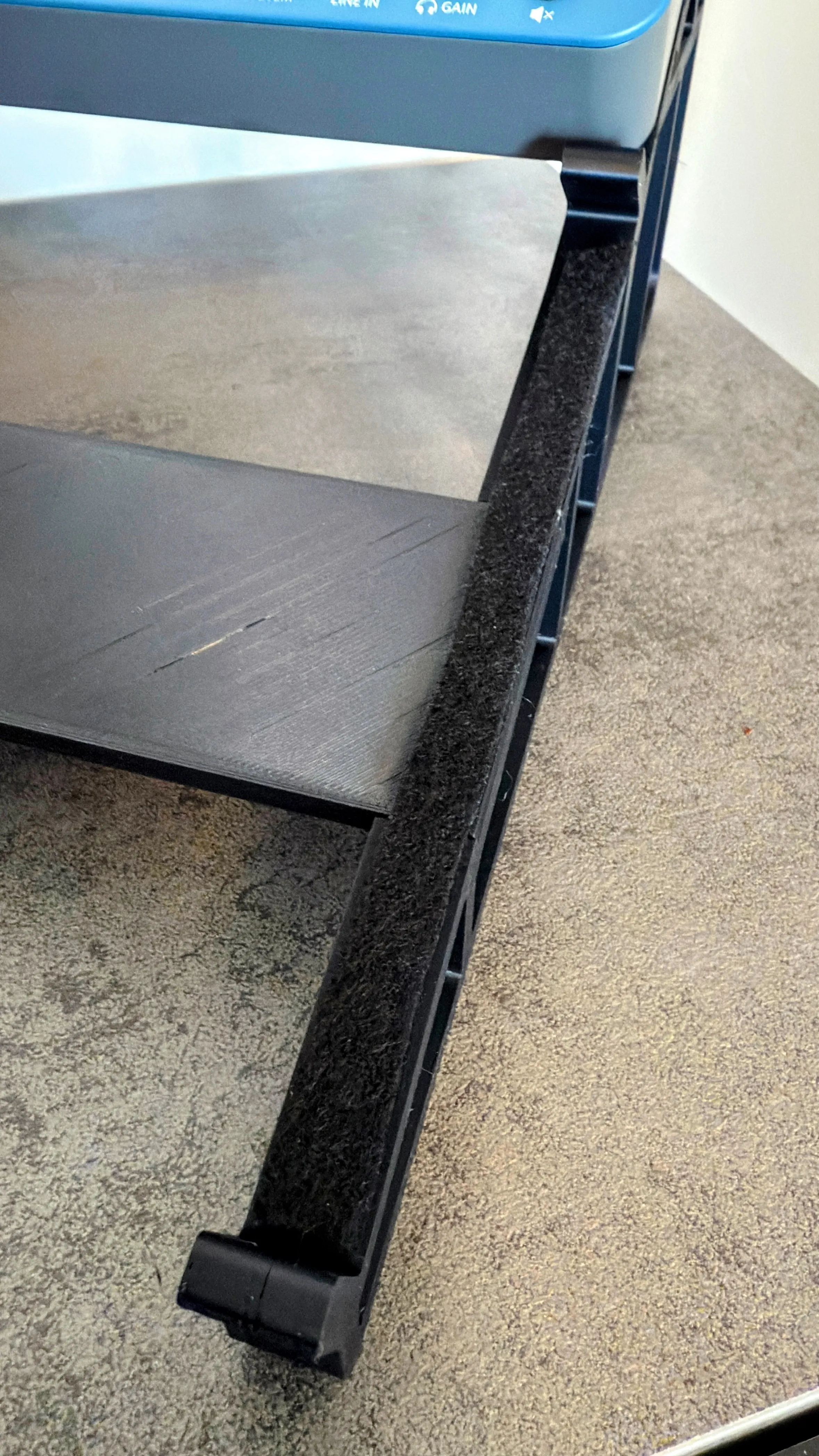

5) You can add seld-adhesive felt to the sides of stand if you like, but it is optional:
Have fun and let me know what you think!
