Corner pads for clamps - Action Clamps 43 x 30 mm
Print Profile(3)
Description
!!! UPDATE - New version !!!
I added a larger version with a height of 60 mm in the new design. The original version with a height of 30 mm has also been redesigned. I optimized the design for smooth and fast printing. I also reduced the volume. Now they are even stronger and lighter in volume.

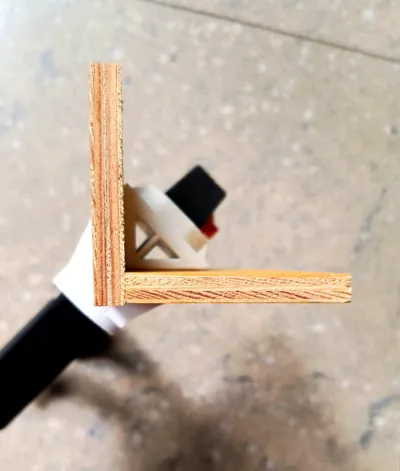

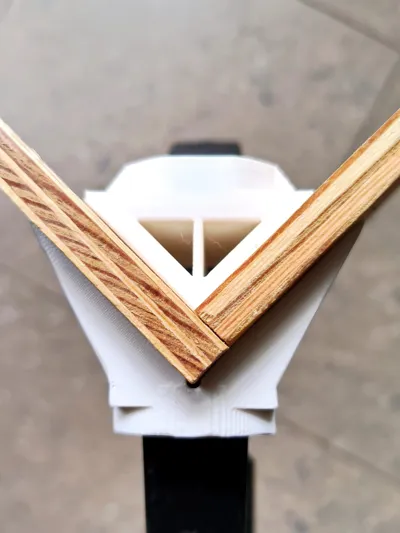

Clamp mounting pads for precise right angle assembly. Made for Action (brand) clamps, but this size will fit other similar ones. Internal dimensions are 30.5 x 43.5 x 2 mm. There are two sizes. The larger one for large parts has a height of 60 mm and the standard one has a height of 30 mm. If there is a lot of interest I can create other models in other sizes.
Print from PLA, PETG.
- Easy to use
- Strong enough
Filament saving
Just print and enjoy it :)
