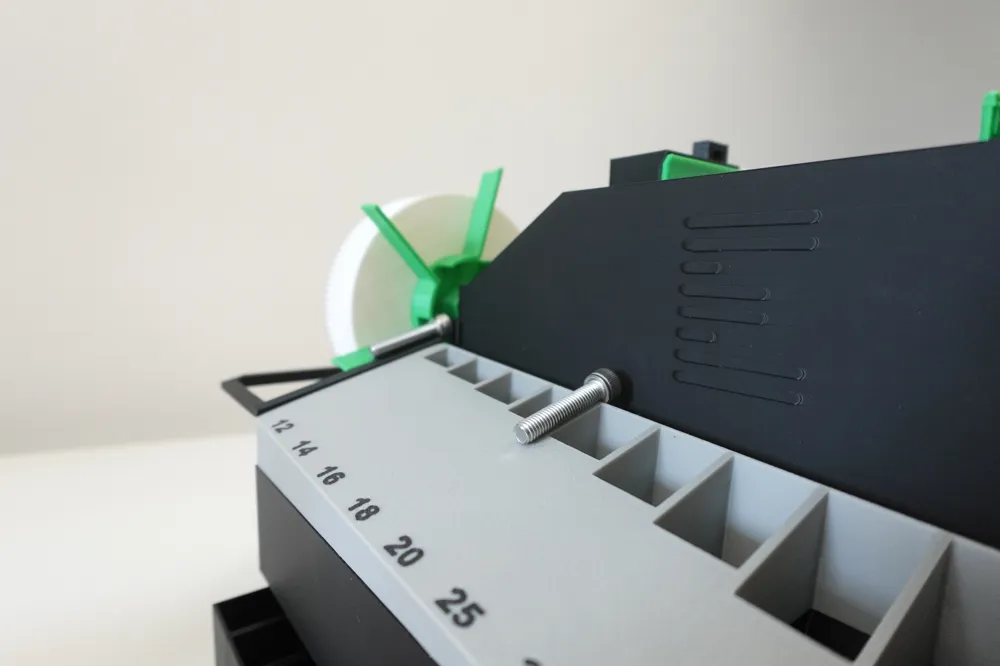

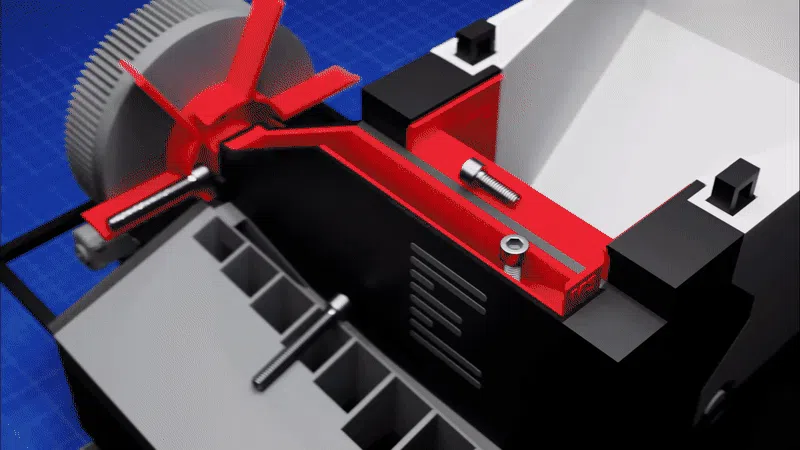

M3-M6 Screw Sorting Machine
Improved Version of my Previous M3 Sorting Machine:
- Support M3-M6 screws

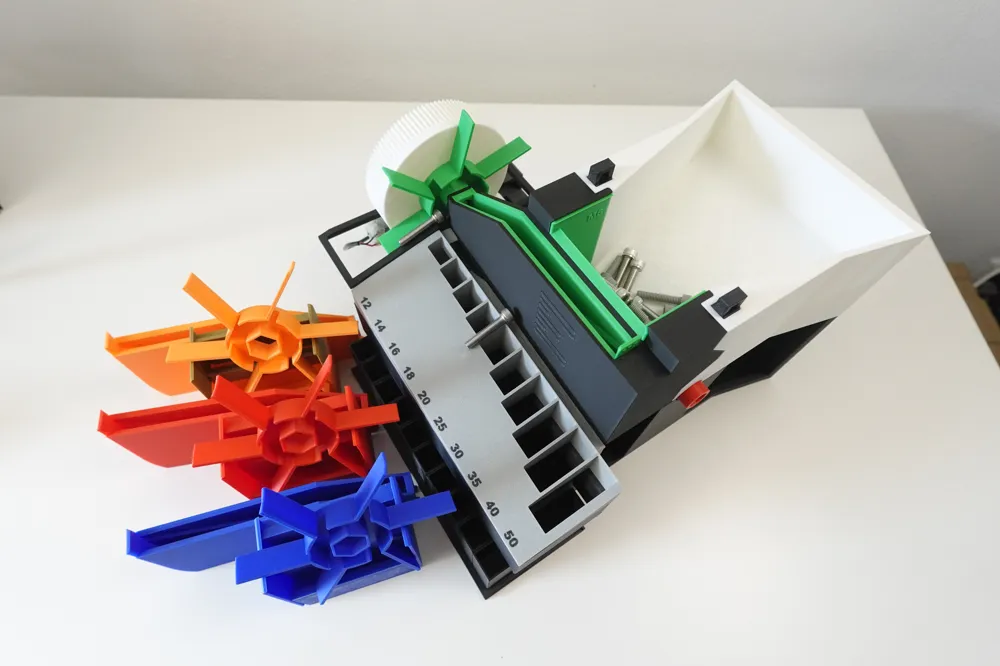

- Modular construction
- Hand operated or Optional Motor
- Fully 3D Printed
- 10 Removable Bins
- High Reliability
Support my work by becoming a PATREON or Buy me a Coffee.
Join our Discord

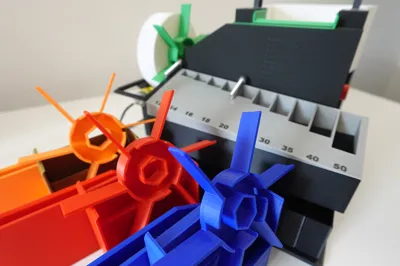

Available Metric Modules:
- M3 (Screws i used)
- M4 (Screws i used)
- M5 (Screws i used)
M6 (Screws i used)
- M2.5 (Made by @jvyduna) Available as its own print profile with a adjusted Ramp for shorter M2.5 screws
Available Imperial Modules In Diffrent Print Profile: (As i dont have Imperial Modules at home i wasnt able to test them like the Metric ones. If you encounter Issues, feel Free to DM me!)
- #4-40
- #6-32
- #8-32
- #10-24
- ¼"-20
PARTLIST:
Everything is already setup in the .3mf File but here is a list of required parts.
Depending on your needs you dont need to print Every part (eg you dont have to print hand operation Parts if you want to use motor or no need to print M4 Modules if you dont want to sort M4 screws)
Required Parts
- Frame
- Fixture
- Connector Short 2x
- ClampingPart
- Hopper
- ExcentricCylinder
- RotatorPin
- Axle
- TrayHolder
- LifterGear
- Trays 10x
- RotaryLock 3x
- RotatorGear
- DriveGear
- Sorter12-50 + SorterText12-50 (Combined)

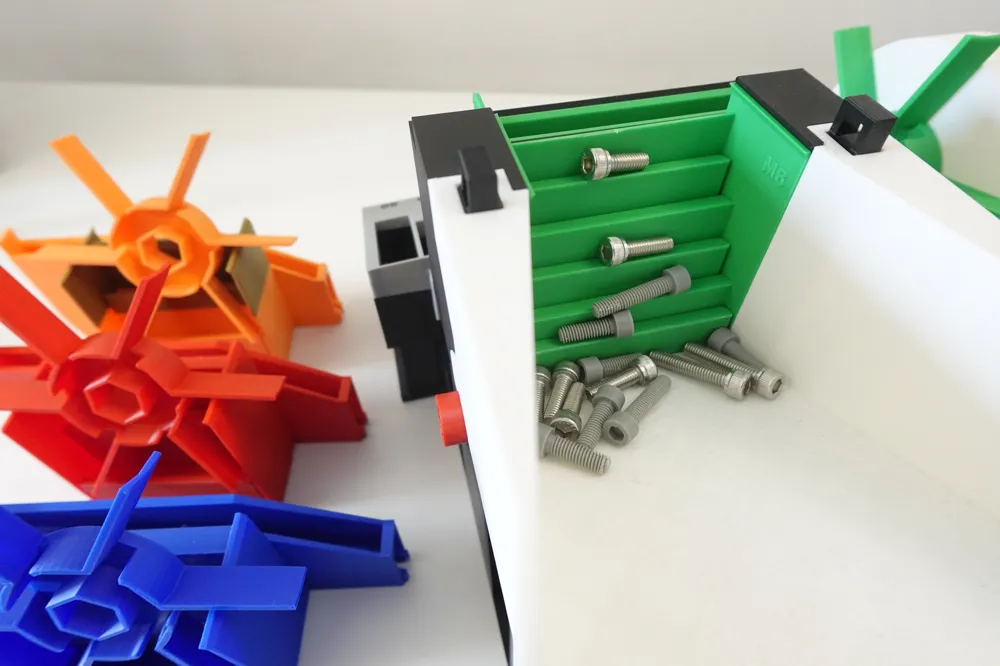

M3 Parts
- SeparatorInnenM3
- LifterStaticM3
- LifterM3
- RotatormodM3
M4 Parts
- SeparatorInnenM4
- LifterStaticM4
- LifterM4
- RotatormodM4
M5 Parts
- SeparatorInnenM5
- LifterStaticM5
- LifterM5
- RotatormodM5
M6 Parts
- SeparatorInnenM6
- LifterStaticM6
- LifterM6
- RotatormodM6
Motorized Version
- Motorblock
- Additonal Hardware Required for the Motorized Version (Linked the Maker supply below) :
- TT Motor DC5V 59RPM CCW Single Axis
- M3x25 Screws 2x
Hand Operated Version
- Handle1
- Handle2
- HandcrankBlock
- HandleClip
FILAMENT
i used this PLA+ but it should work with any PLA or other Materials as well
PLA+ (reflink)
ASSEMBLY
Near the End of the Attached Youtube video on the Top are the Assembly Instructions. Feel free to reach out to me if you are struggling with the assembly
KNOWN ISSUES
The device is reliable but there are some smaller issues that happen very rarely which is why i DONT RECCOMENT LEAVING THE DEVICE UNATTENDED (Leaving the room)
as long as you are near it you can let it run by itself
- Screws dont align properly in the Rail if multiple screws drop down at the same time → Requires Manual fix
- Screws dont get picked up properly from the rotator. manually rotating the rotator back usually fixes this
- Screws dont roll out as intended from the rotator to the ramp
- Screws are too short and tip over on the ramp (too short screws will not work)
