power socket box
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
6.9 h
2 plates
Open in Bambu Studio
Boost
44
101
1
0
29
7
Released
Bill of Materials
List other parts
- power socket mennekes x 4: diameter for fixing holes 38mm
- rocker switch x 2: 30x10.5mm
- screw M5x0.8 x 20:
- cable gland x 1: BGB11
Description

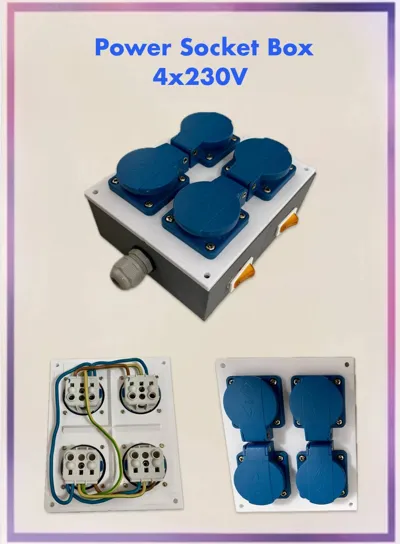

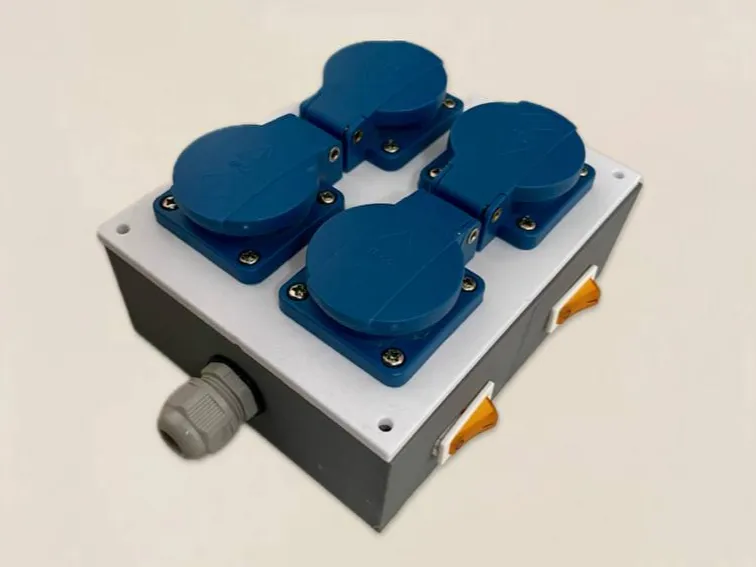

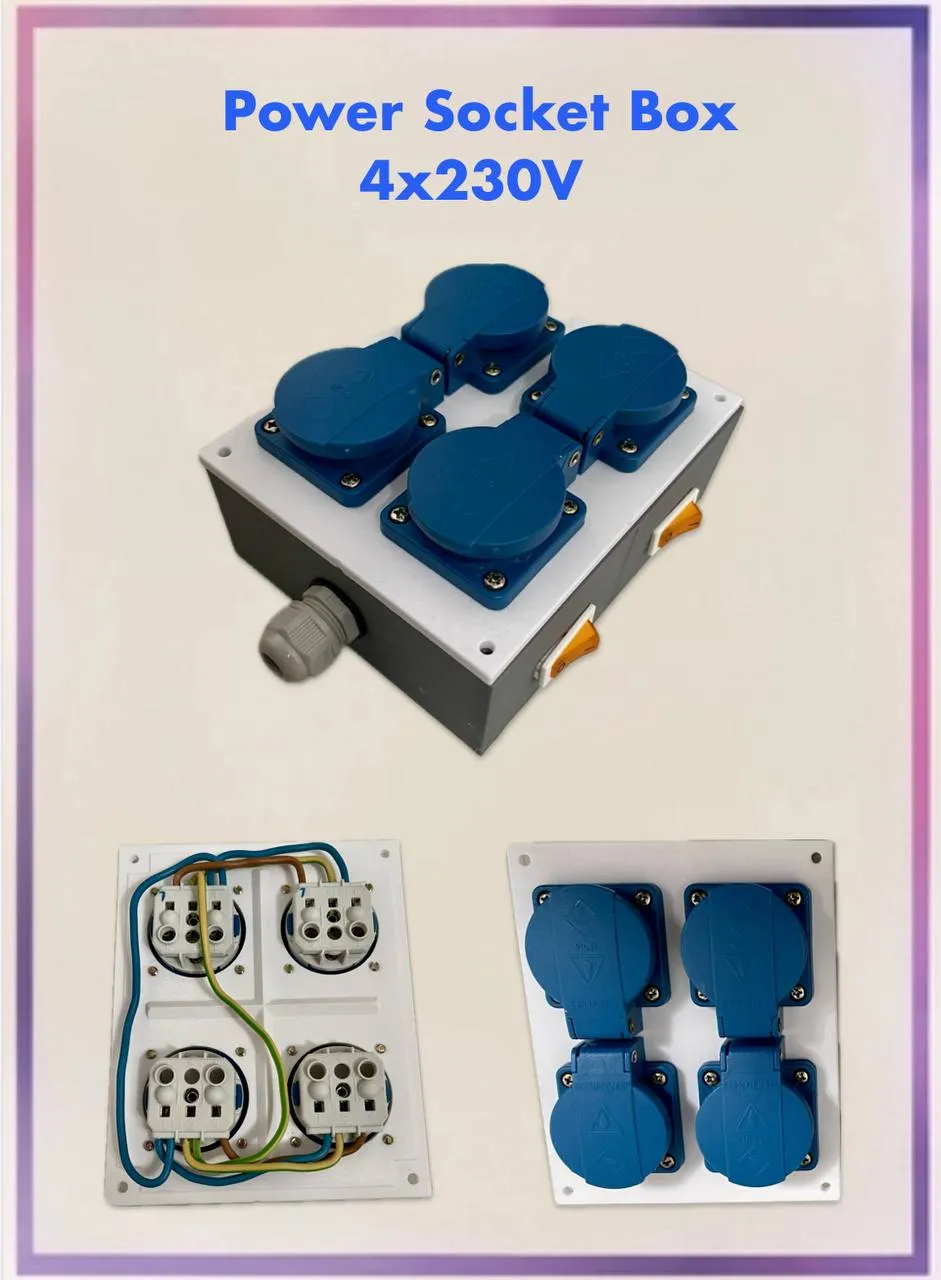

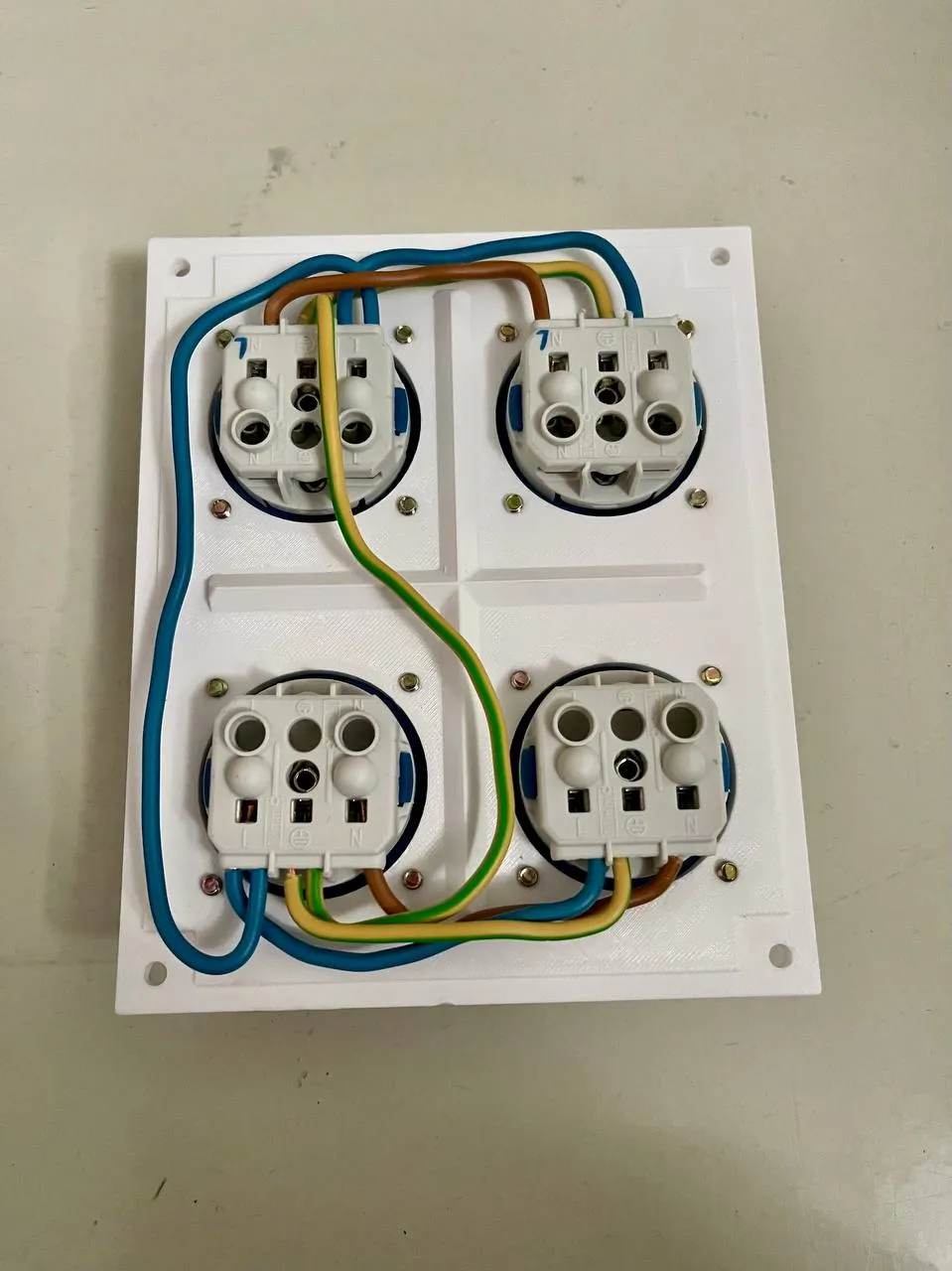

Modular power socket box for electrical distribution. Extension of one inlet 230V to 4X 230V sockets.

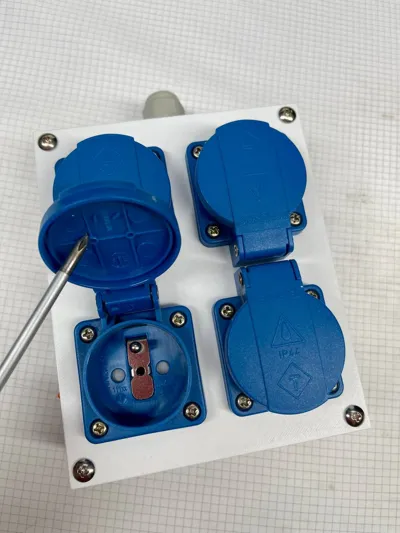

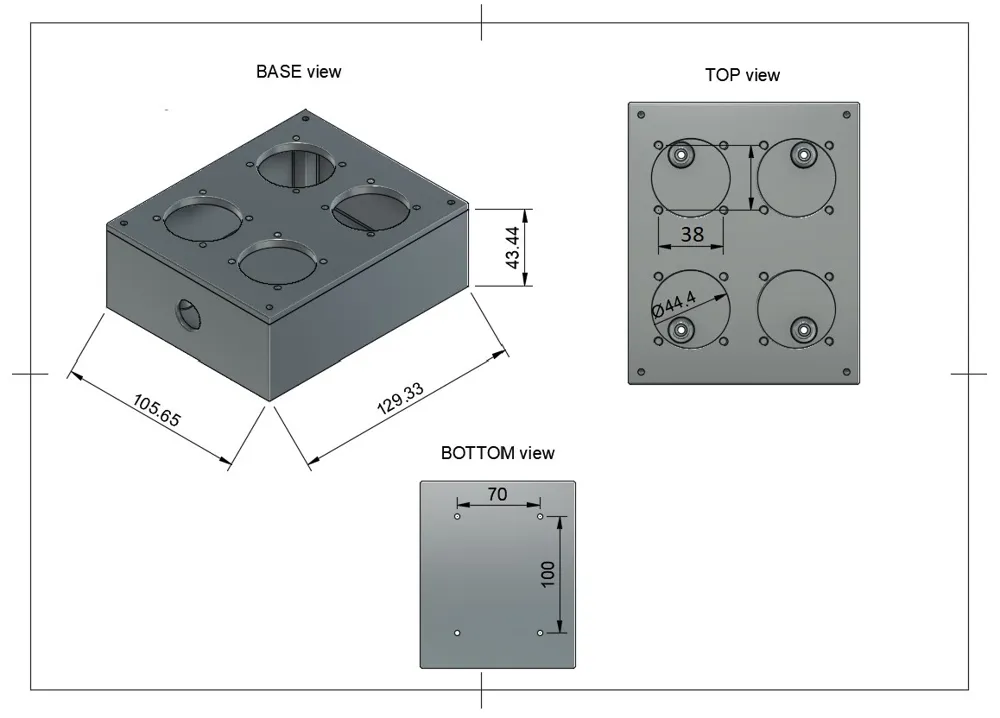

- adapted for socket Mennekes (screw hole 38x38mm)

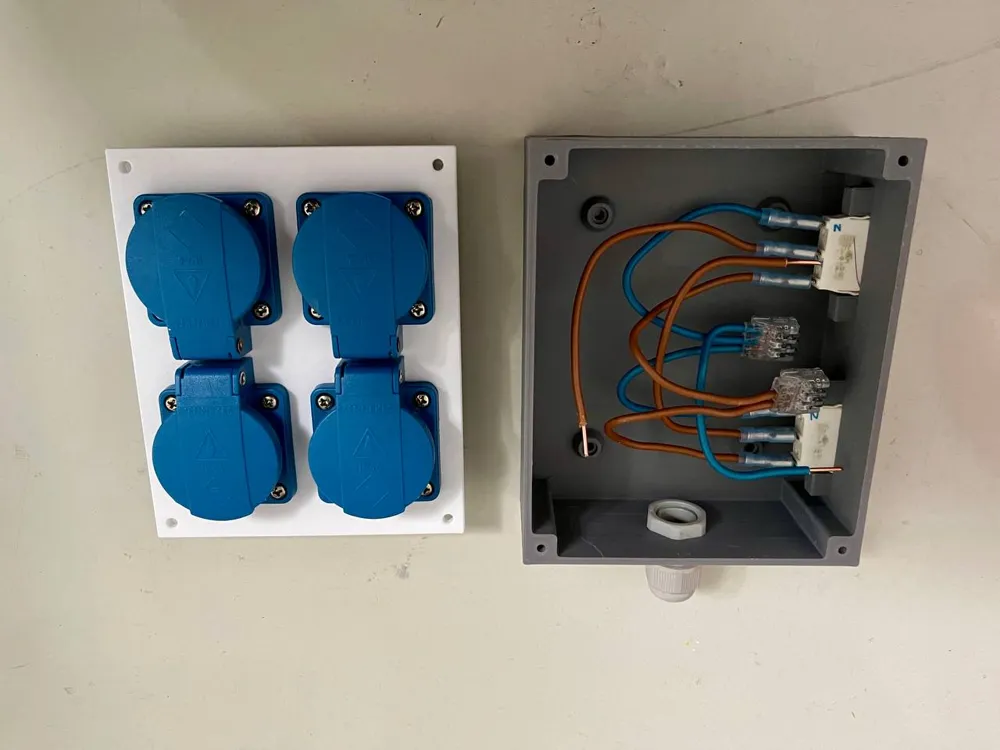

- with two holes on the side of box for rocker switch for separate switching ON/OFF of sockets
with holes on the box for wall mounting
+ (customizable parameters)
additional accessories:
- 4x 230V IP44 socket Mennekes
- 2x rocker switch
- 20x screw M5x0.8
- 1x BGB11 wiring accessorie (cable gland)
