1:9 Model BMX Bike

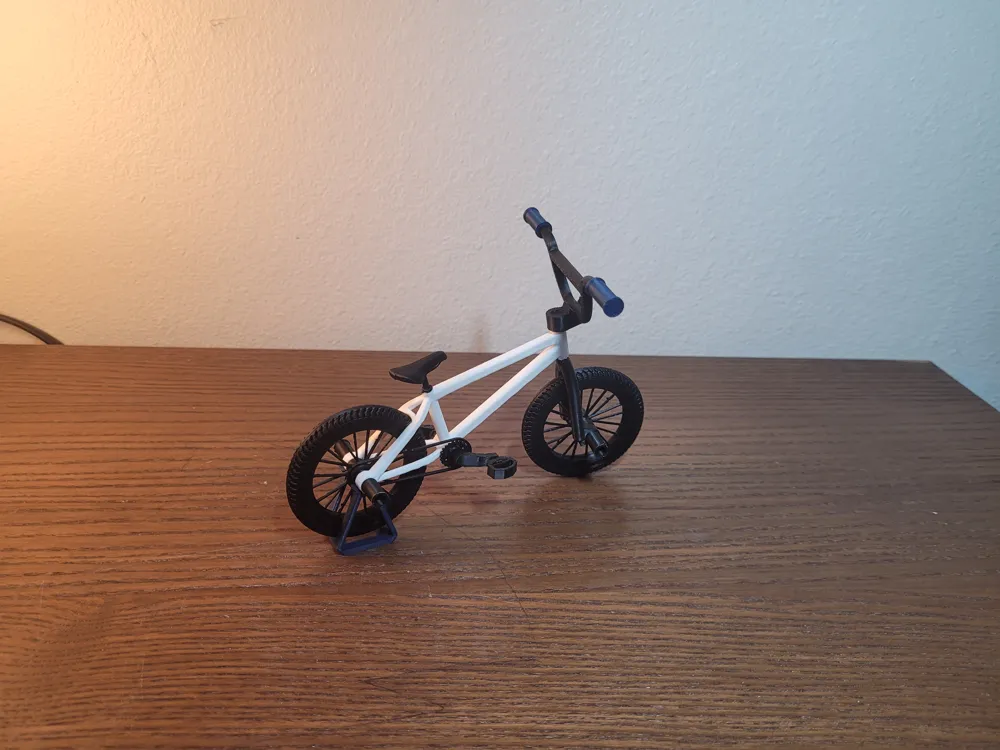

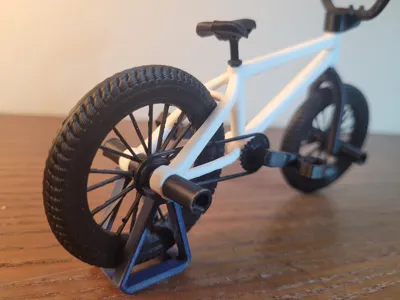

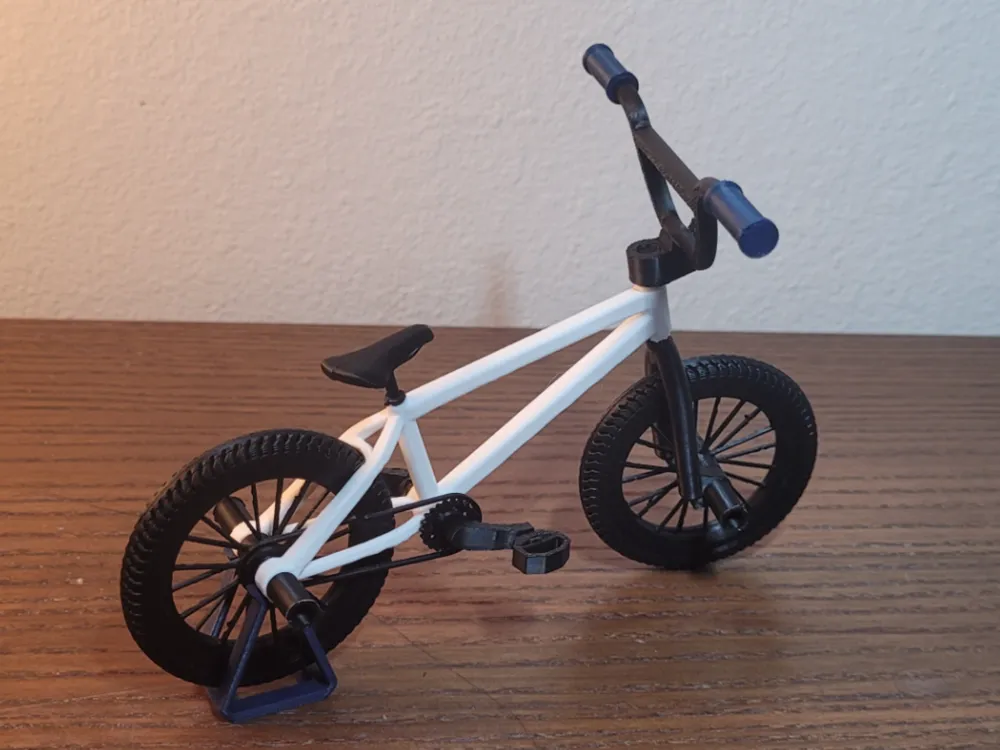

This is a 1:9 scale BMX finger (ish) bike!

• Rotating pedals and cranks
• rotating wheels
• Visual detail and accuracy!

Based on a Sunday Soundwave Special

Feedback is greatly appreciated!

You will need some glue!

CLEAN BUILD PLATE BEFORE PRINTING FOR BEST RESULTS!! :)

ASSEMBLY-

Wheels ASSY -

1.

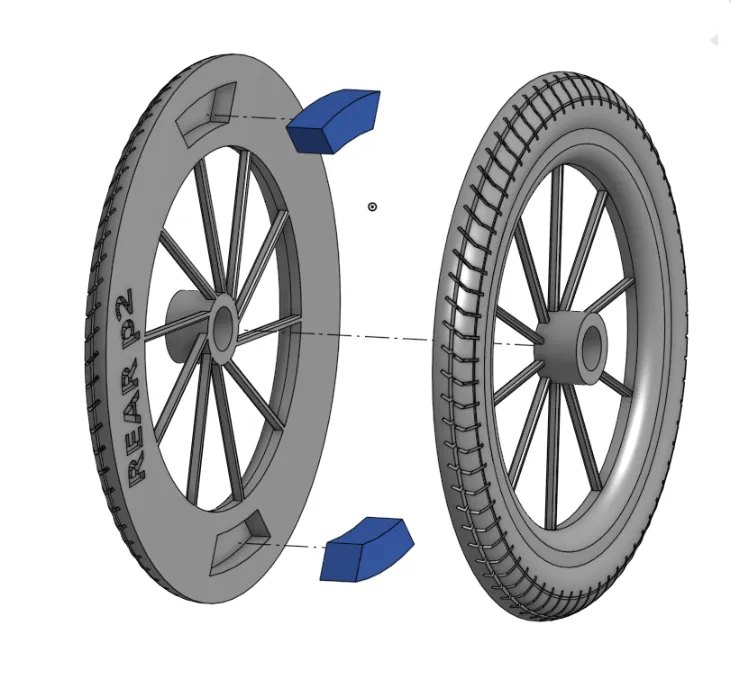

   1. Place the wheel alignment guides (2 small blue pieces) into the grooves on one half of your wheel.
   2. apply glue all around wheel if needed.
   3. Find the 2nd half of the wheel using the text to match - then place the 2nd half of the wheel onto the first. Ensure proper alignment of the tire tread.

   4. Keep pressure on the wheel until glue sets - then set aside (don't mix up front and rear wheels!)



      2. Repeat step 1 for 2nd wheel  (Again don't mix up wheels!)

Front Assy -

    1. Slide your FRONT wheel in-between the fork bodies - secure wheel by sliding in the BMX pegs in on both sides of the wheel (this is also the wheel axle). then set aside

Cockpit Assy -

1. slide grips on both sides of handlebars



   2. snap cockpit (bars and grip) onto the stem - this will be loose so you will need to glue the handlebar in your desired angle



   Main Assy -

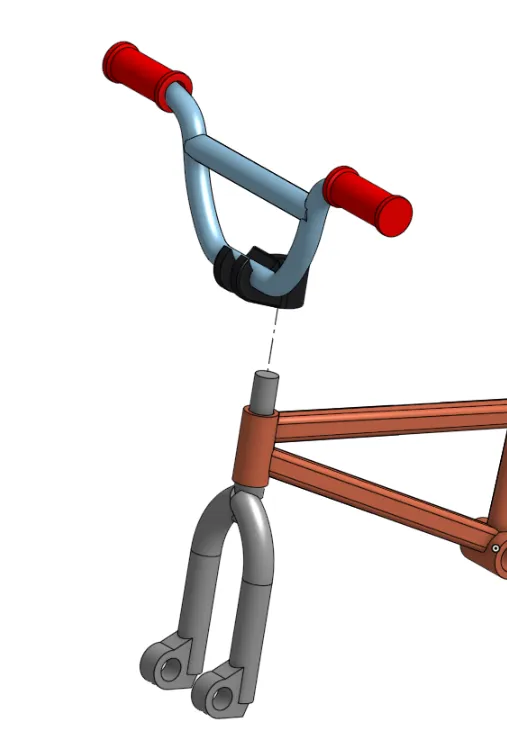

   1. Slide fork through the steerer tube on the main frame. - hold in place



   2. Press on the whole cockpit assembly onto the fork assembly to hold it in place. (ensure your handlebars are straight - then Apply glue)

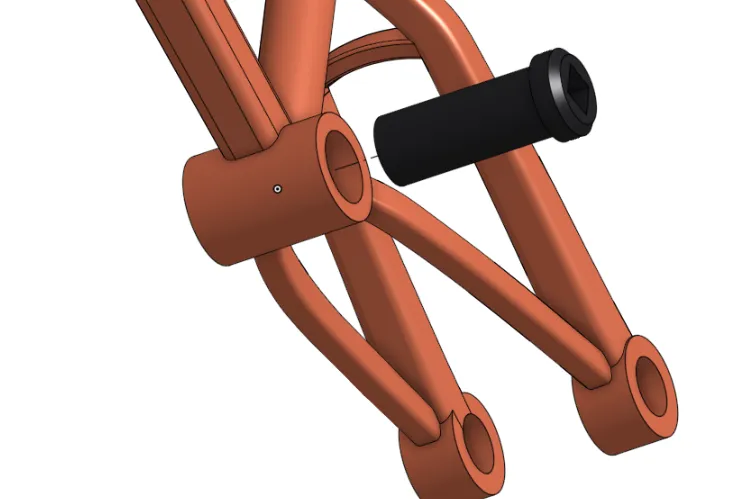

       3. Press in bottom bracket onto the bottom of the main frame

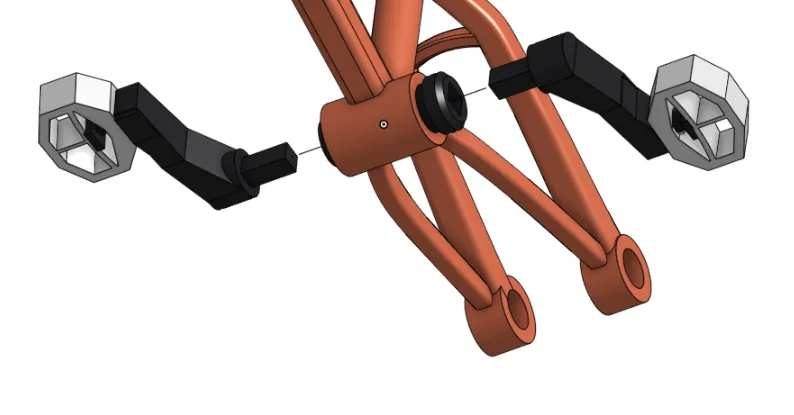

    4. - press in pedals on either side. ensure opposite orientation. Twist on the pedals (grey part in image) to loosen them - the flat part (where you place your feet) should spin independently .

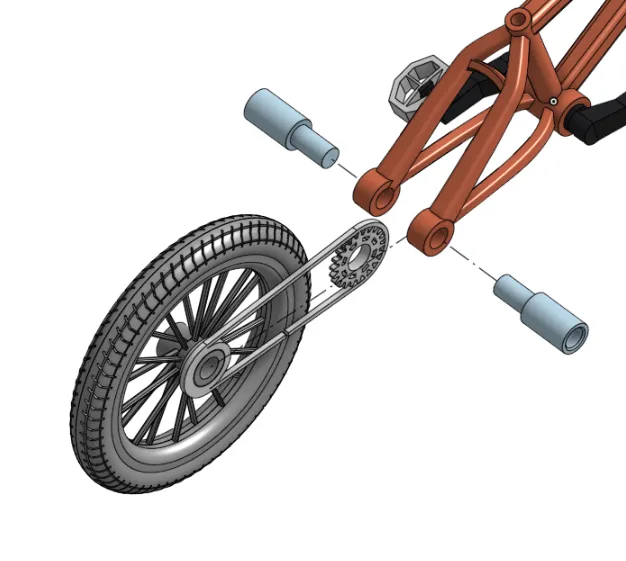

5. Slide the whole rear wheel into place and secure with BMX pegs on both sides (this acts like the axle of the wheel)

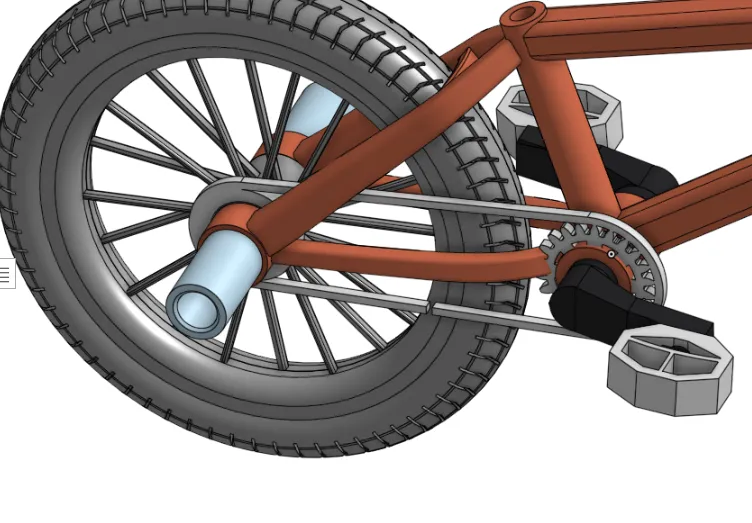

               slide the front circle of the derailleur on the bottom bracket - refer 2nd pic below

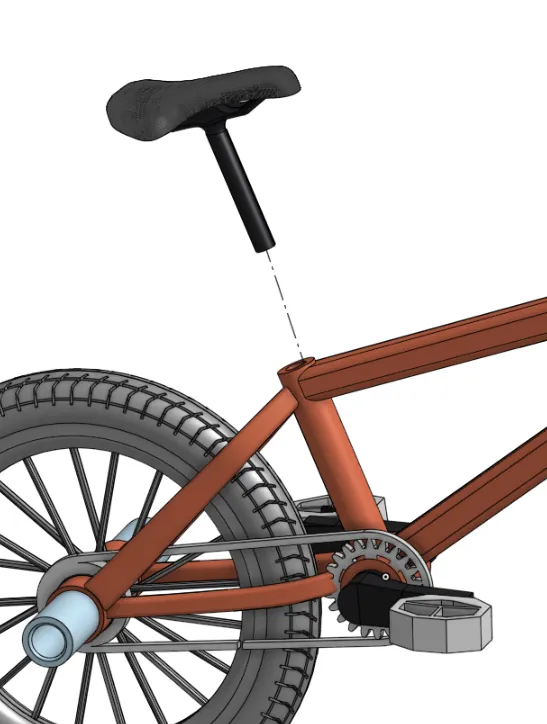

9. lastly - slide in the seat into the seat tube

Enjoy :)
