Revopoint Turn Table and 3D Maker Pro for 3D Scanning
Print Profile(2)
Description

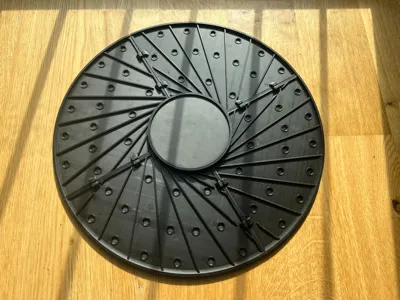

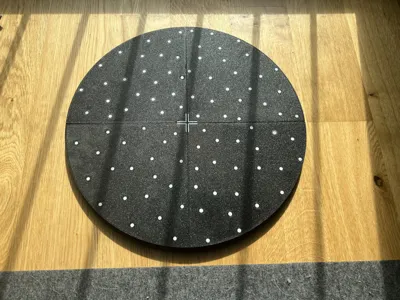

Modular Turntable System for 3D Scanning & Photogrammetry

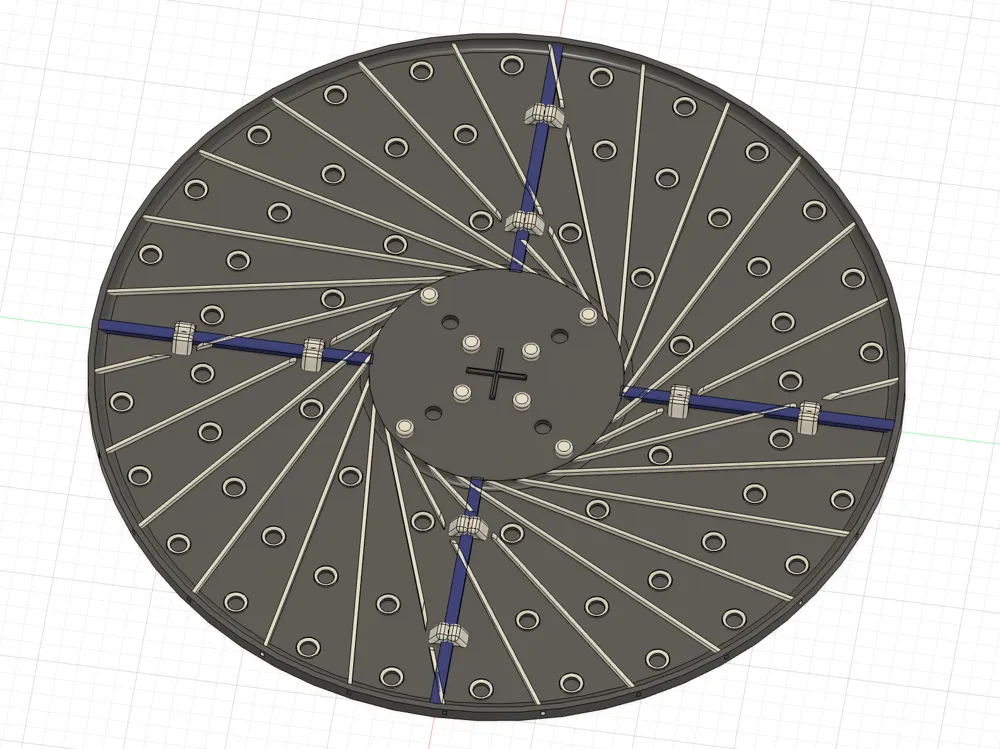

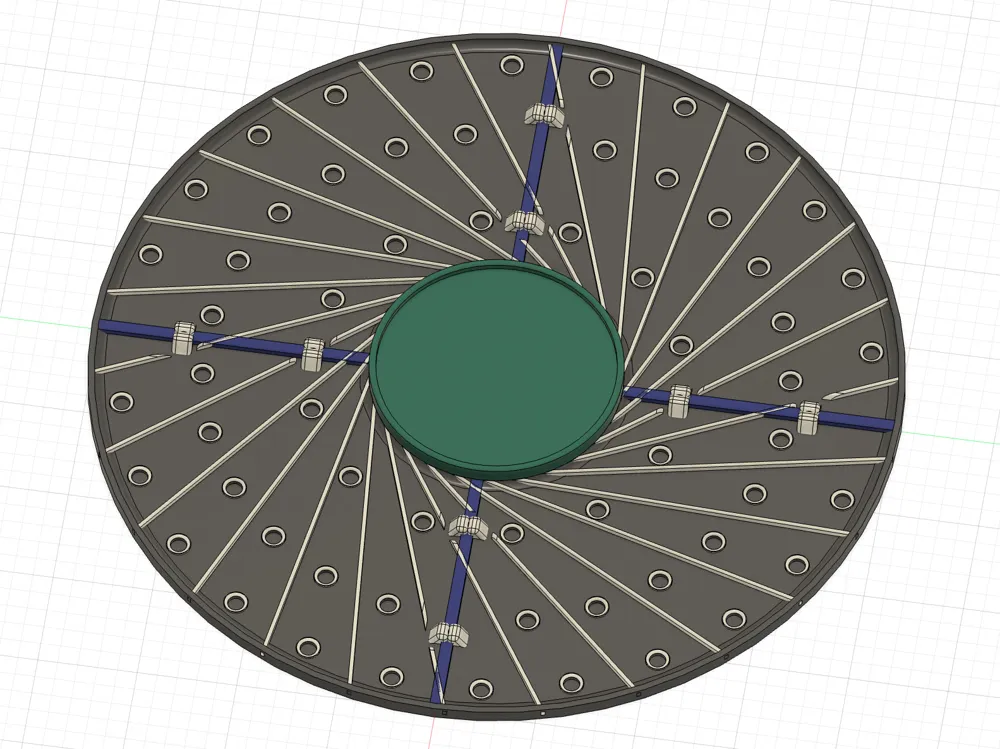

This modular turntable system is specifically designed for 3D scanning and photogrammetry applications. It consists of four segments that securely connect using magnets or printed connectors and a central, interchangeable base plate. Thanks to its split design, the turntable is easy to print, transport, and store.
However, due to the large size, it is recommended to glue the panels together.
STEP files for all parts are included, allowing easy customization.

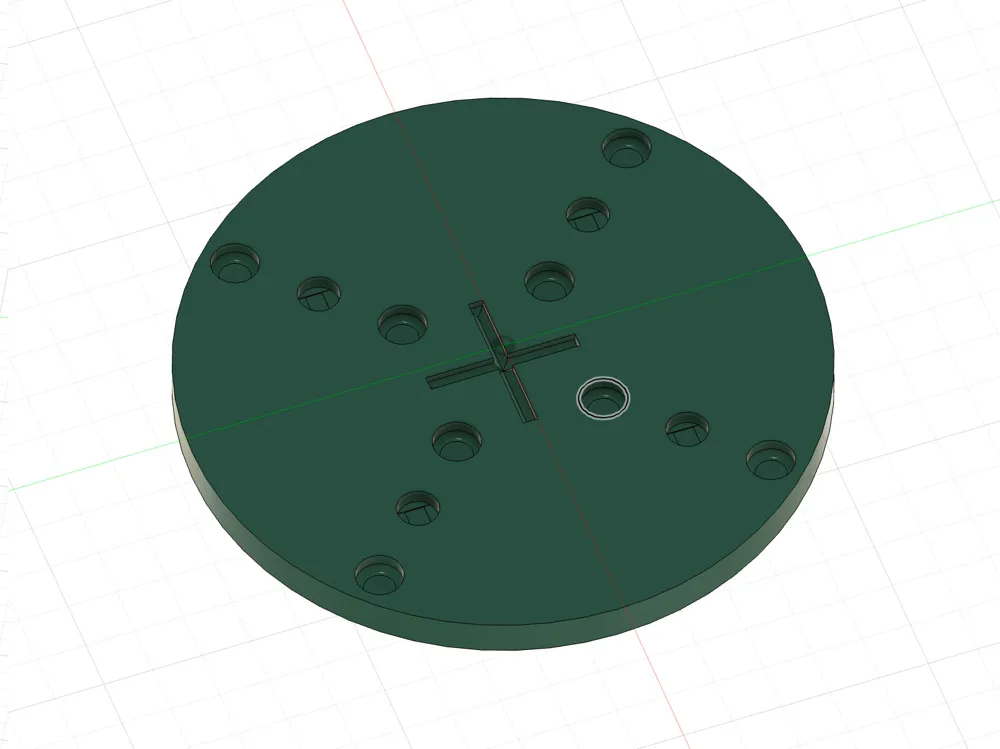

The adapter plate is available in two versions for Revopoint and 3DMakerPro turntables. Print profiles for these are attached.
Dimensions

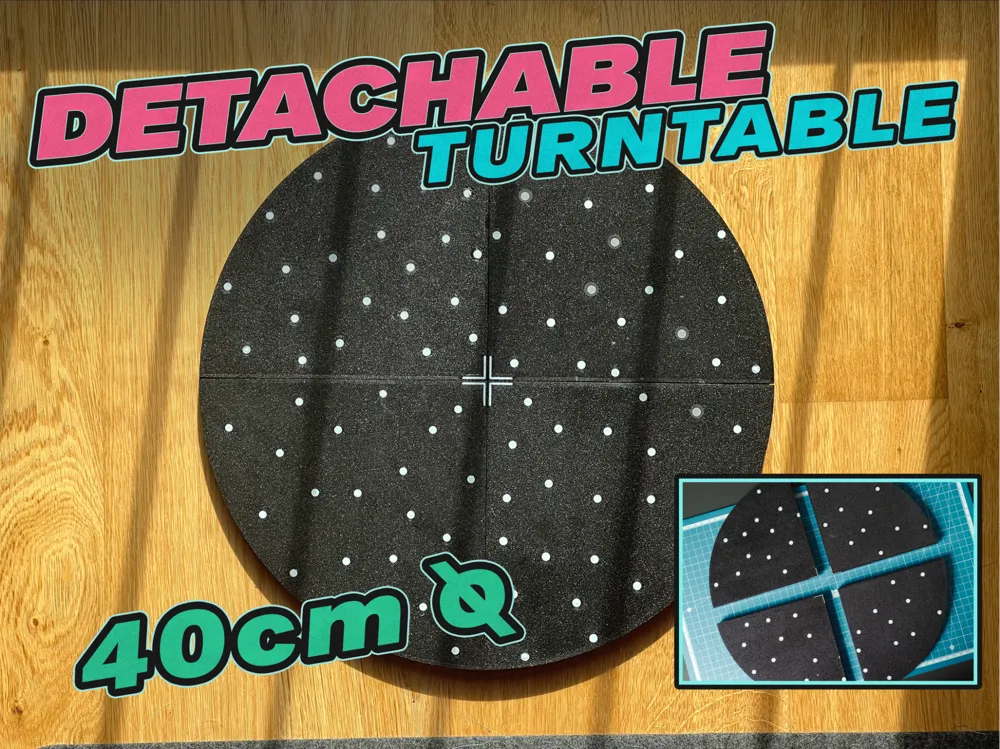

• Turntable diameter: 40 cm

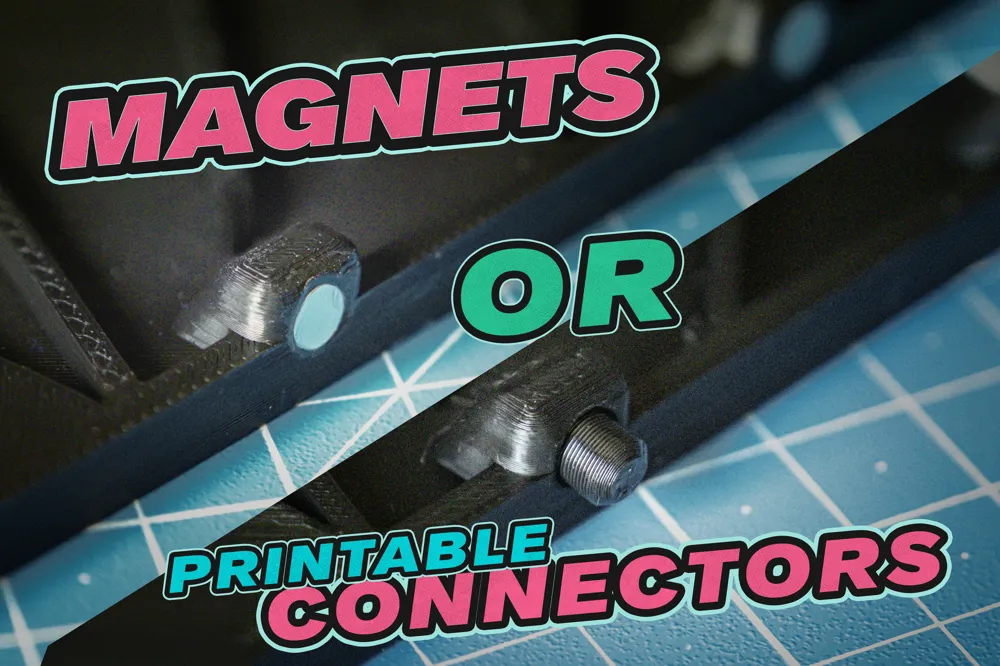

• Magnet connectors: 16× 3 × 3 mm neodymium magnets or printable connectors
• Optional underside magnets: 60× 6 × 3 mm
Features
✅ Modular & compact – Splits into four parts
✅ Magnetic connection – Strong magnets ensure a secure fit between segments
✅ Central base plate – Provides stability and alignment, adaptable to different turntables
✅ Optimized size – 400 mm diameter, ideal for a wide range of scanning scenarios
✅ With alignment markers – No need for glue-on markers
✅ Magnetic accessory attachment – Underside includes slots for magnets to securely hold scan cubes or other accessories
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
