10-inch Rack 1u Twin 120mm Fan Unit - Free 3D Print Model

Search models, users, collections, and posts

SlidingGeneral

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

P1S

X1 Carbon

H2D

X1E

P1P

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 2 walls, 15% infill

Designer

2.1 h

1 plate

5.0(5)

Open in Bambu Studio

Boost

120

487

236

125

Released

Description

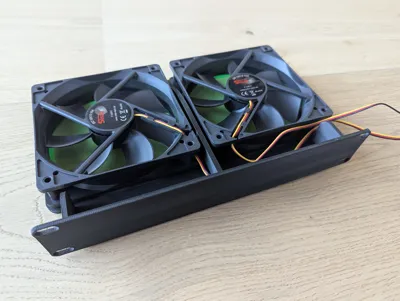

I didn't find a twin fan rack, so I quickly sketched it up myself.

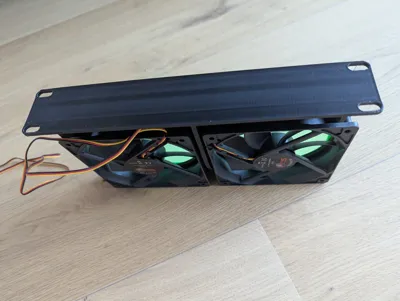

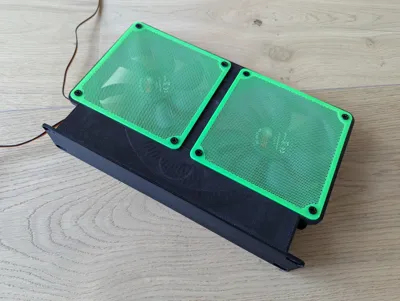

It fits two standard 120 mm fans.

To mount it in the rack, you need to put it in diagonally, so you need space below or above the slot you want to mount it.

For people that want to edit the File: Here is the OnShape Link, where you can grab the File and Edit it yourself! :)

https://cad.onshape.com/documents/2b6ab66374dd14d1193c06e8/w/cc0c17e491d3ee3ca566f021/e/421e08d6b325c684a188101c?renderMode=0&uiState=6908fd904716ebb35b12e5c0

Comment & Rating (12)

@user_1365462744

Boosted

I made a fan control with 5 V USB controller. Thank you!

@user_2471513019

Wow, really cool! Do you happen to have instructions for it

Show original

@user_1365462744

Boosted

Replying to @user_2471513019 :

You only need a USB fan controller. The rest is USB

Show original

@OmasPrintfarm

Print Profile

0.2mm layer, 2 walls, 15% infill

Thanks for the print, I bought two fans and 2 controllers from Ali, cut out the hole for the controllers, and mounted them in my 10" cabinet. Grandma's Printfarm

Show original

@user_3924978558

Any chance there can be a remix of this with the two fans side by side? I'd like to mount an AIO. I have printables for rear support. Just need this with the fans closer to each other.

The designer has replied

@SlidingGeneral

Sorry for the Delay. You can grab the File on OnShape and make your additions. If you want you can share the Link here or post a remix.

@foggy0140

this is amazing, adding to both my server racks. 1 point, is there anyway of beefing up the bolt holes? it is a bit delicate where the holes are, not a complaint, just an observation 👍

The designer has replied

@SlidingGeneral

Thanks for the Observation. We could make the Frontplate thicker, but the contour around is pretty limited because of the 10inch Rack. I dont see that much space around there on my setup. What do you think?
