Nintendo Switch 1 Big Buttons Adapter
Print Profile(1)
Description
Boost Me (for free)
I looked everywhere for something like this that didn't fundamentally alter the main JoyCon controller and couldn't find one! This is the most complicated original project I've attempted so far, and I hope it helps others enjoy gaming easier! Thank you!
V1.0

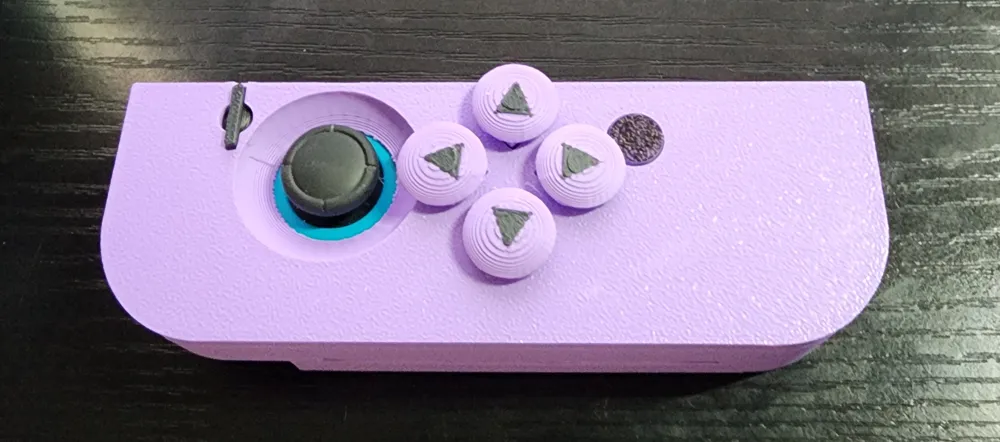

This is a JoyCon controller adapter for the original Nintendo Switch. Originally designed for persons with mobility issues and larger hands! This is version 1.0, and will be modifying it more in the future. Works fine with PLA, but a stronger material may be desired!

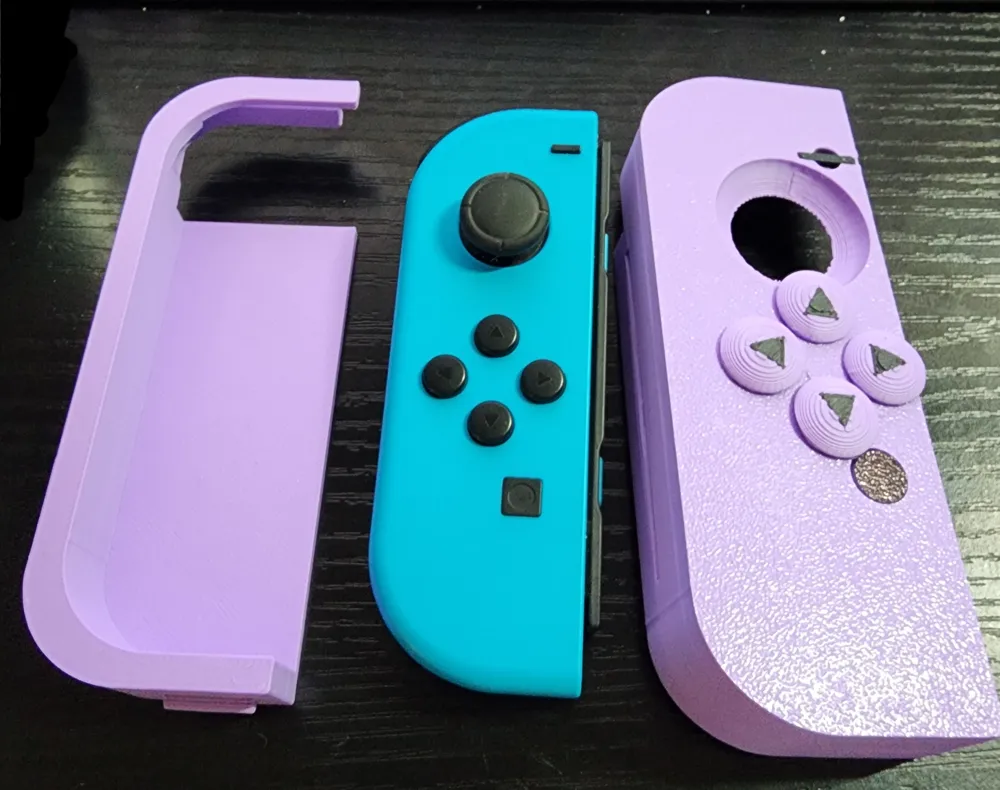

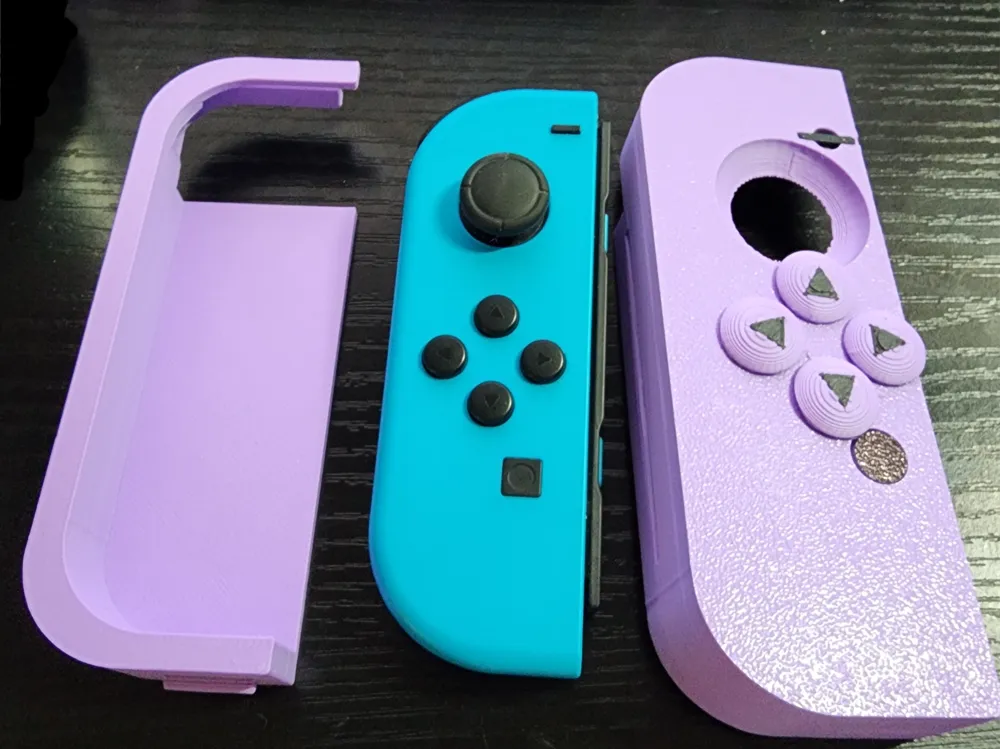

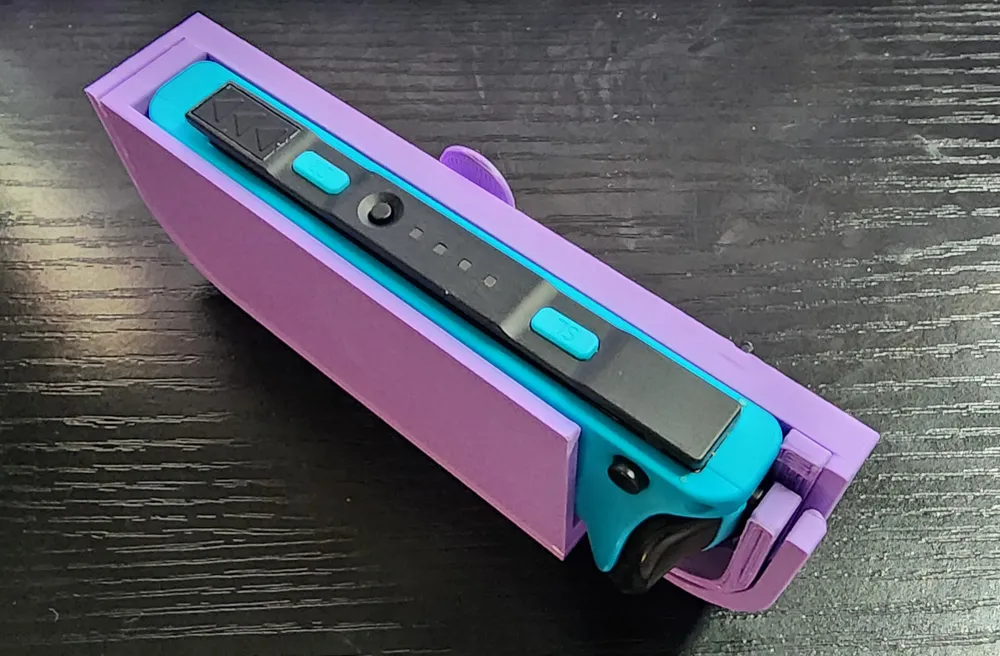

Superglue is needed for assembly. Push the button actuators in through the top of the top of the adapter and glue the corresponding circles/squares to the bottoms of the button actuators. Place the JoyCon into the bottom part and the top part should clip on over everything. Feedback is welcome and appreciated!
***Known Issues/Future Update Plans:
- Letters on Red Joycon buttons too thin to print with a .4 nozzle. Will increase size of letters in next iteration.
- Shoulder Button actuator can split easily.
- Smooth down edges and corners.
- Make it easier to glue circles/squares to the center by adding guide pegs.
