Bosch GKS 18V-57-2 guide rail adapter
Print Profile(3)
Bill of Materials
Description

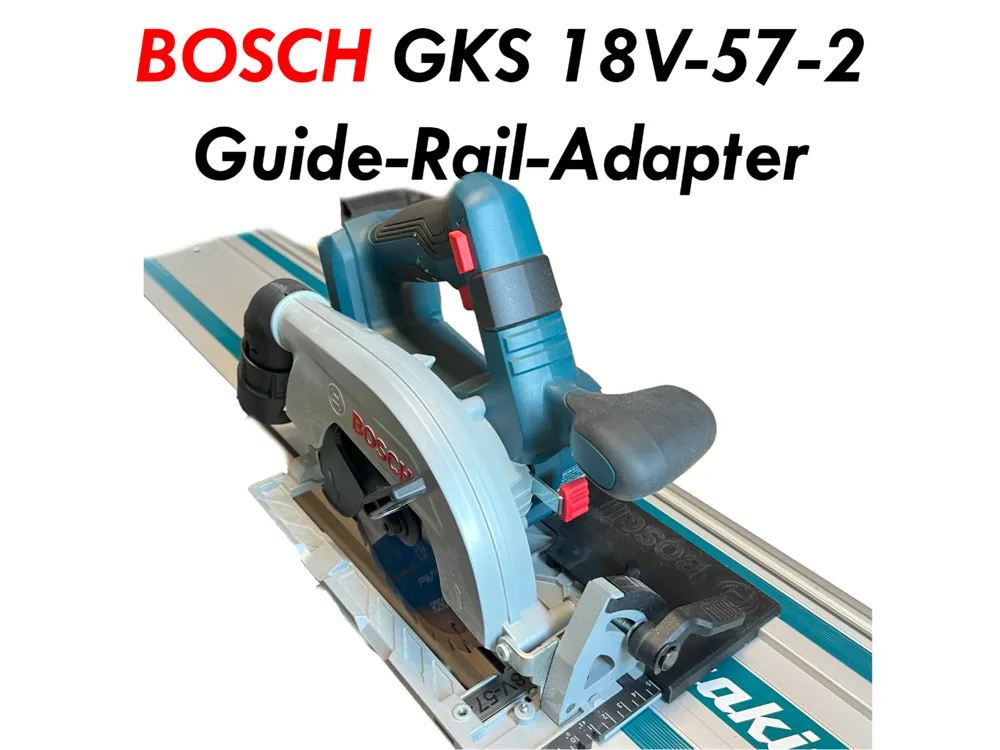

A adapter for the Bosch GKS 18V-57-2 cirular saw to use a guide rail.

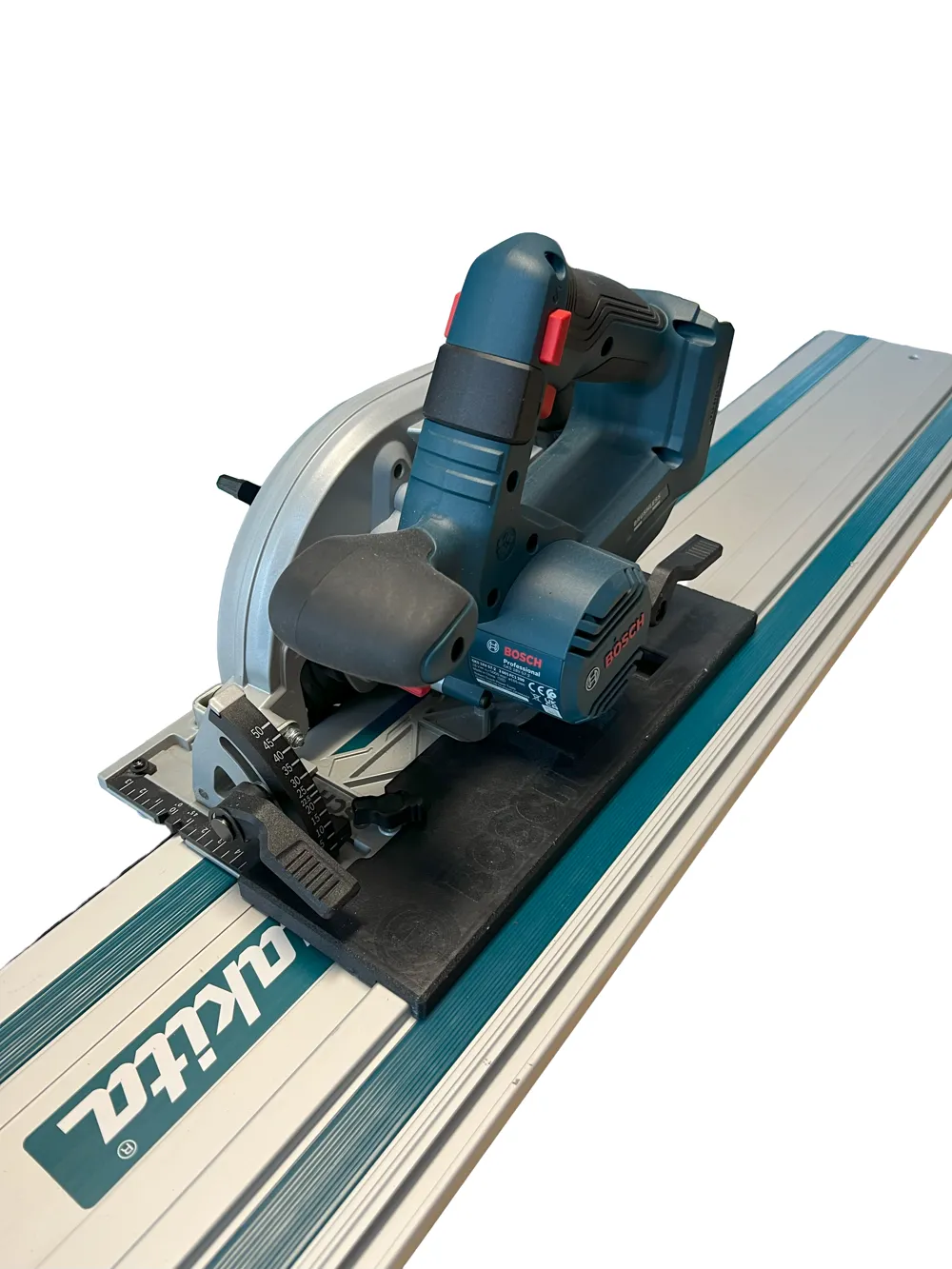

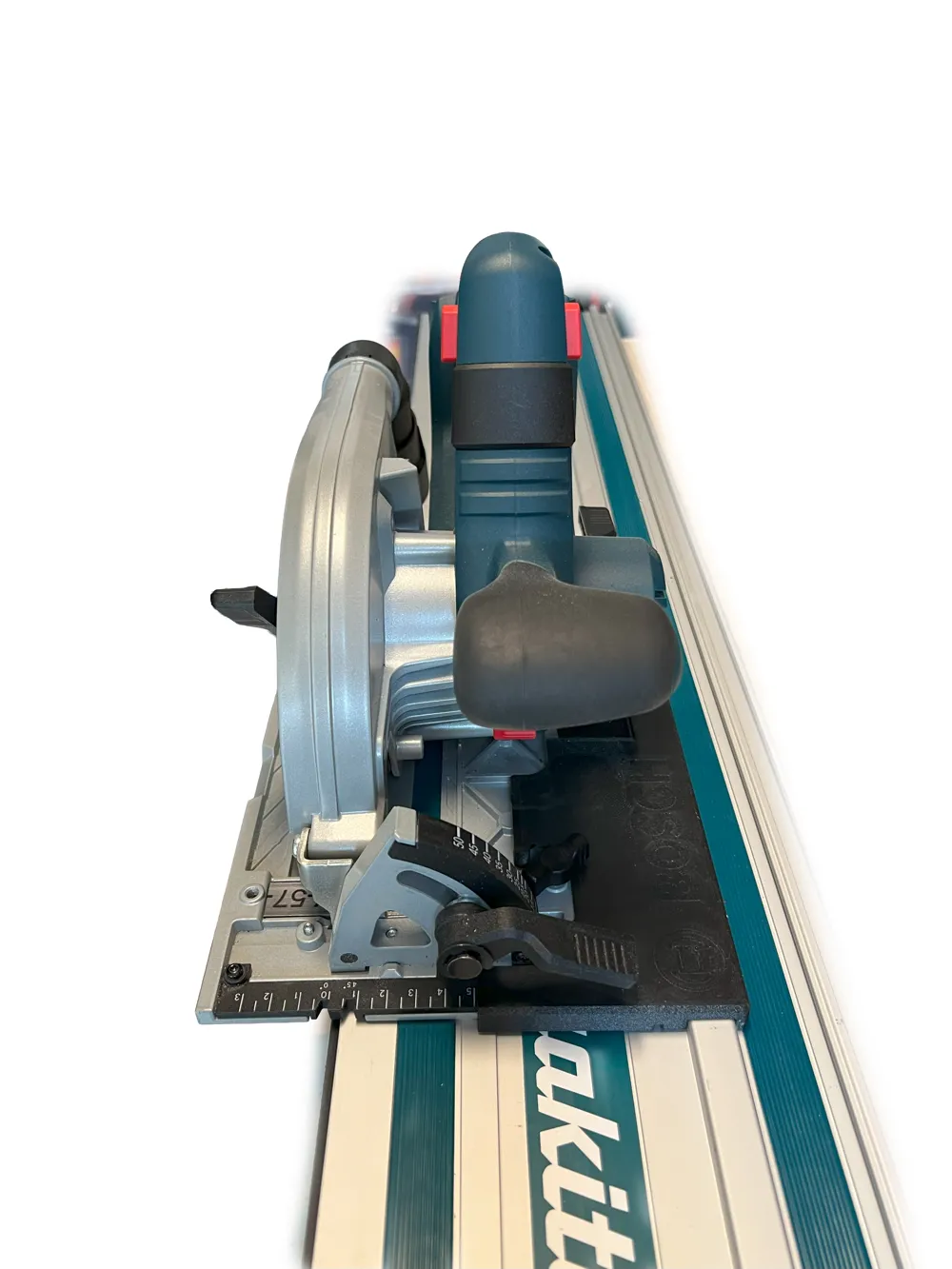

Easy and fast to install . Just click it on the left side of your saw and use a flat rod / or the parallel guide to secure the adapter. Compatible to Bosch FSN and Makita, Festool etc. guide rails.

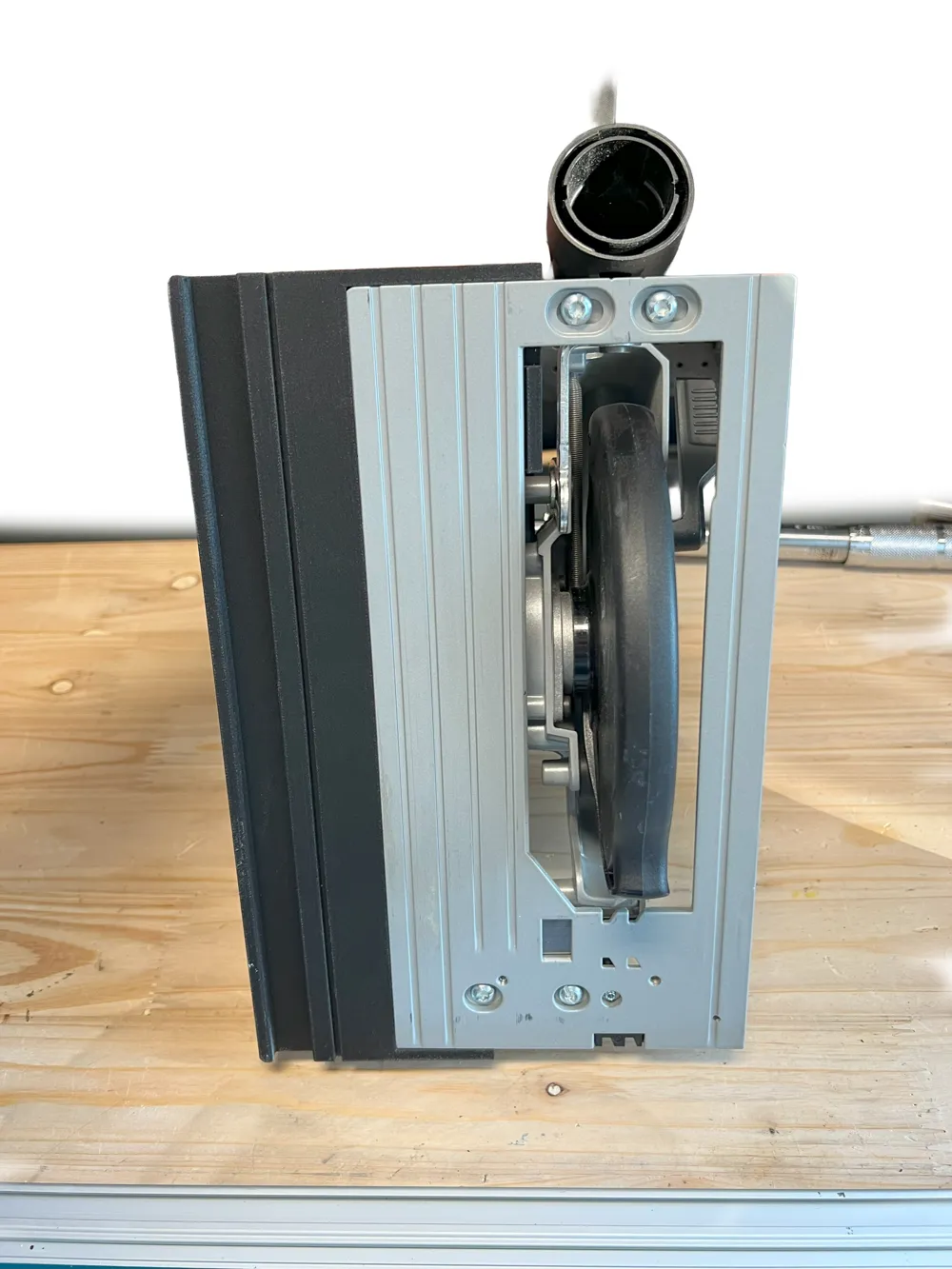

No loss of cutting depth - cut as deep as without the adapter !!
The two part Version needs to be glued together. !! I didnt tested the two parts version yet - I added some tolerance to fit the part together. I really would like to hear some Feedback about the two parts Version. !!

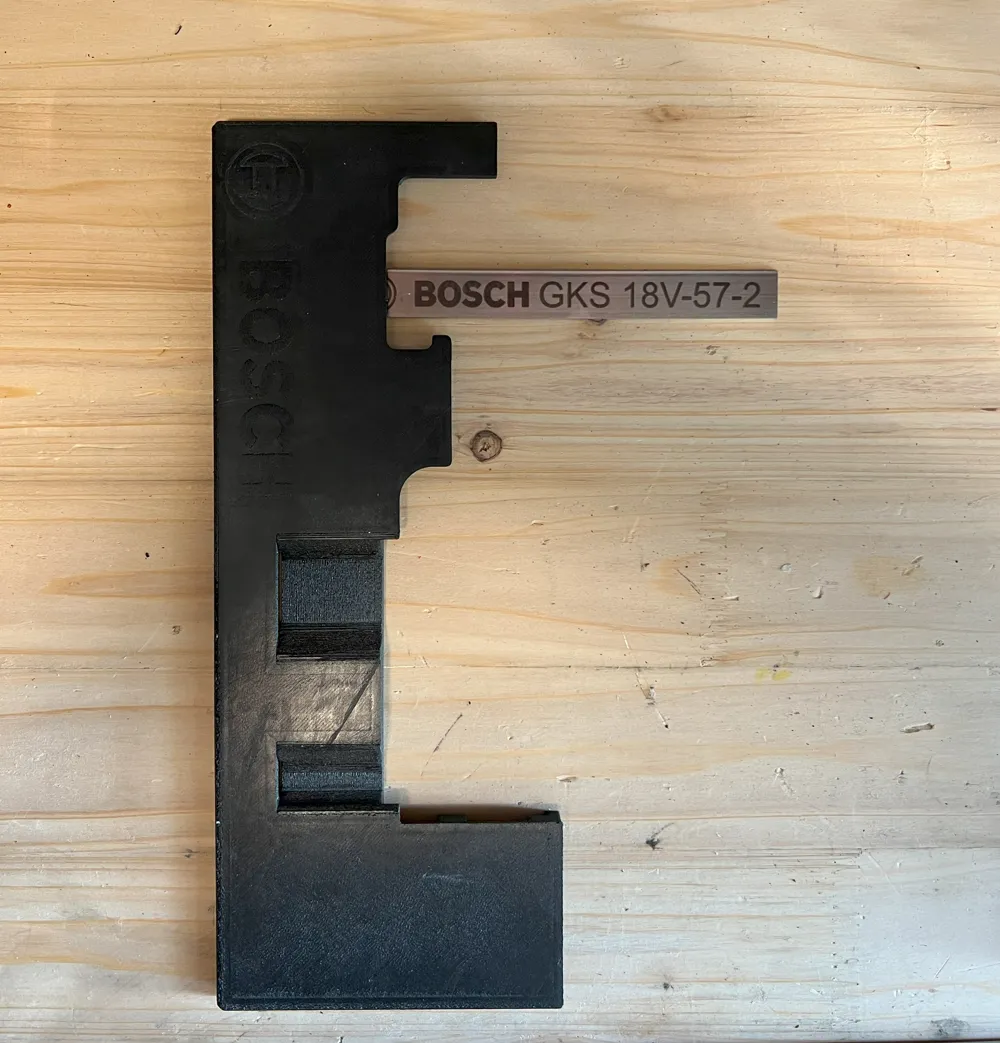

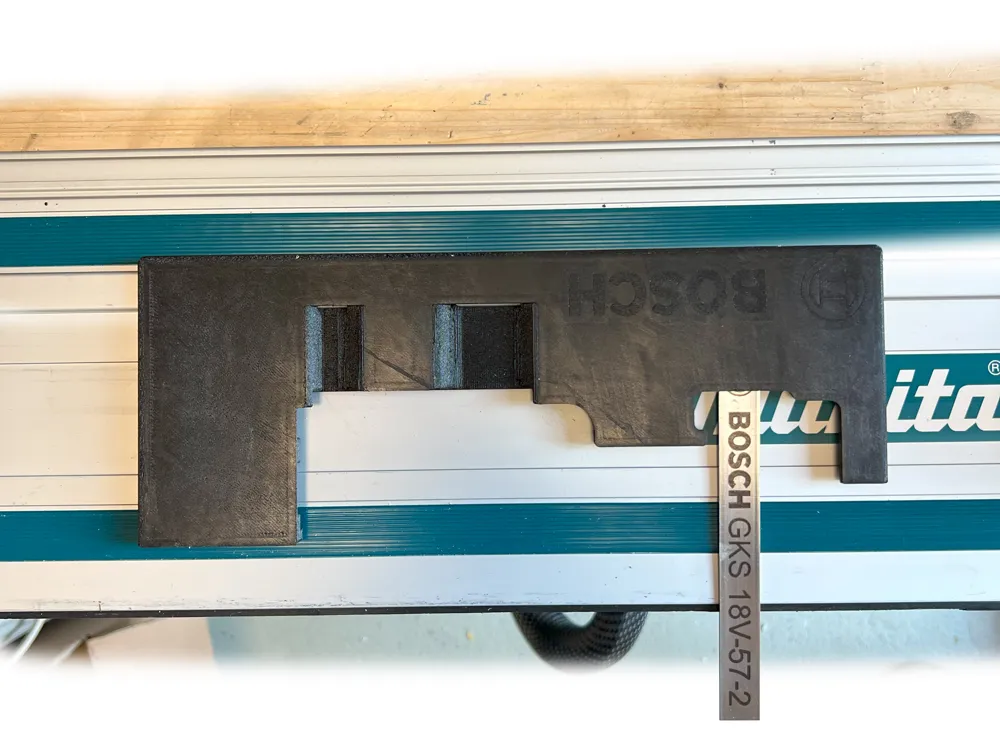

The adapter is desinged to be fixed with a flat rod ( 16 mm x 2 mm; lenght 145 mm) in the tray of the parallel guide.
