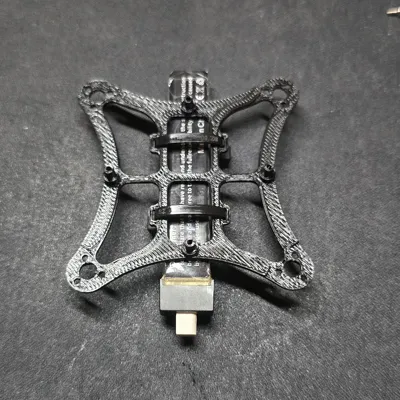

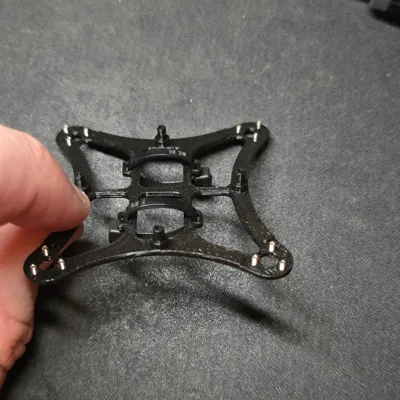

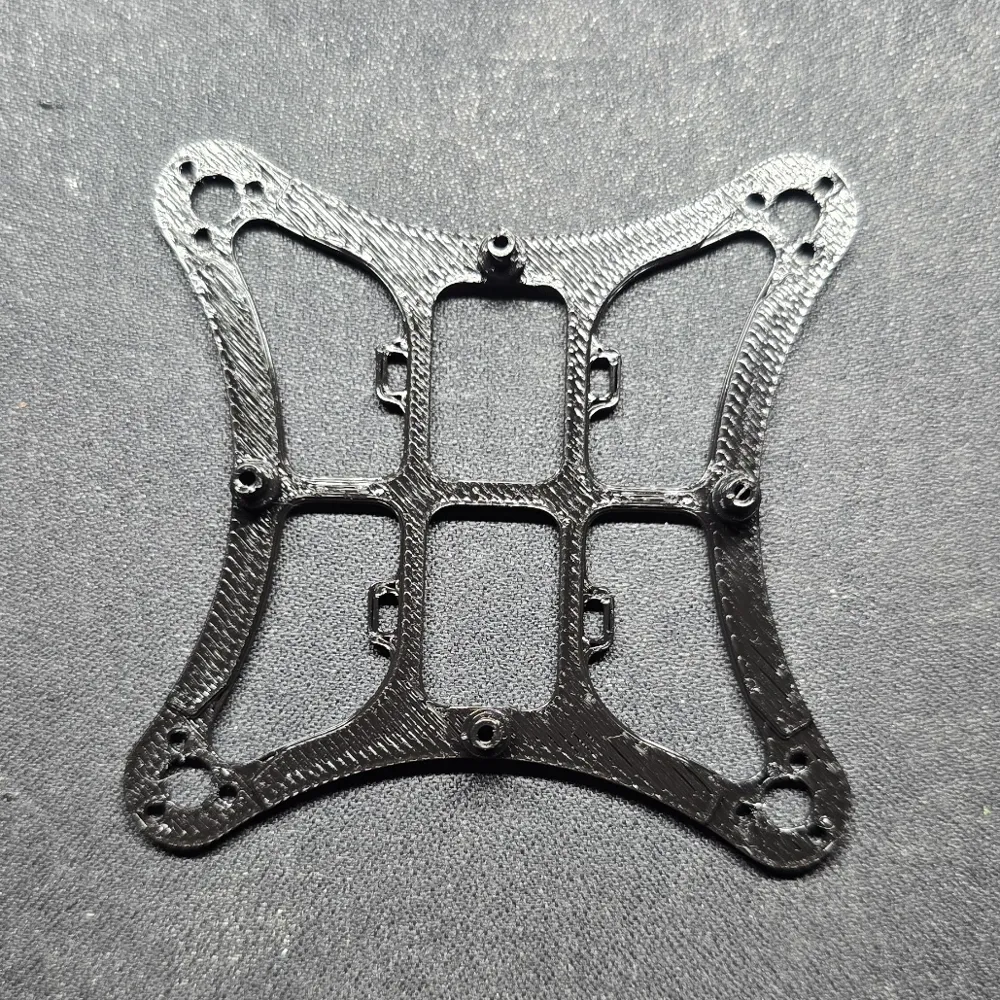

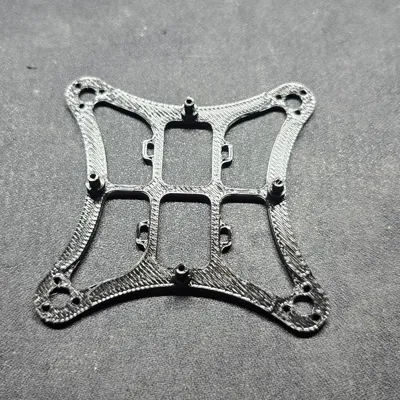

Ductless 65mm Whoop Frame

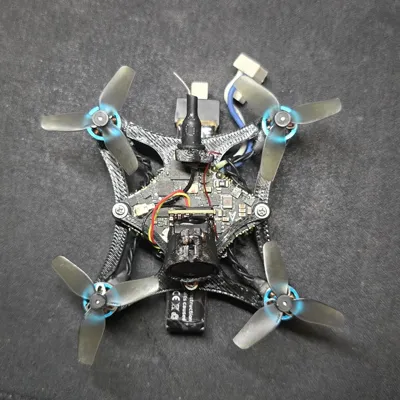

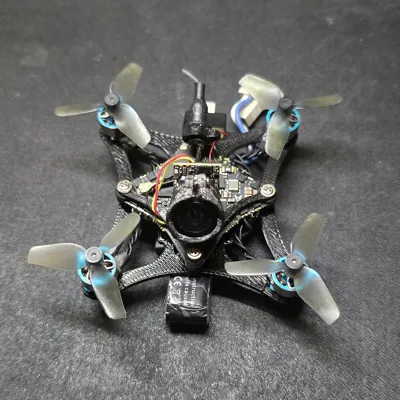

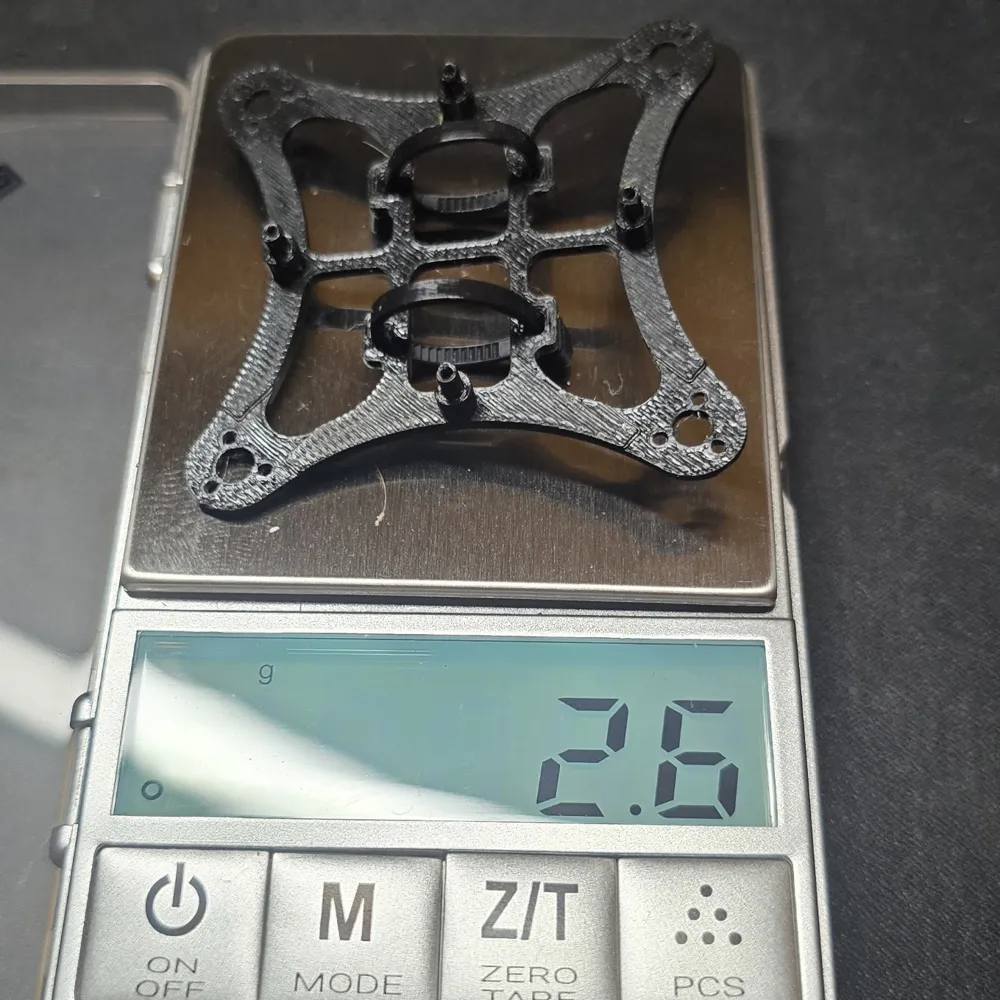

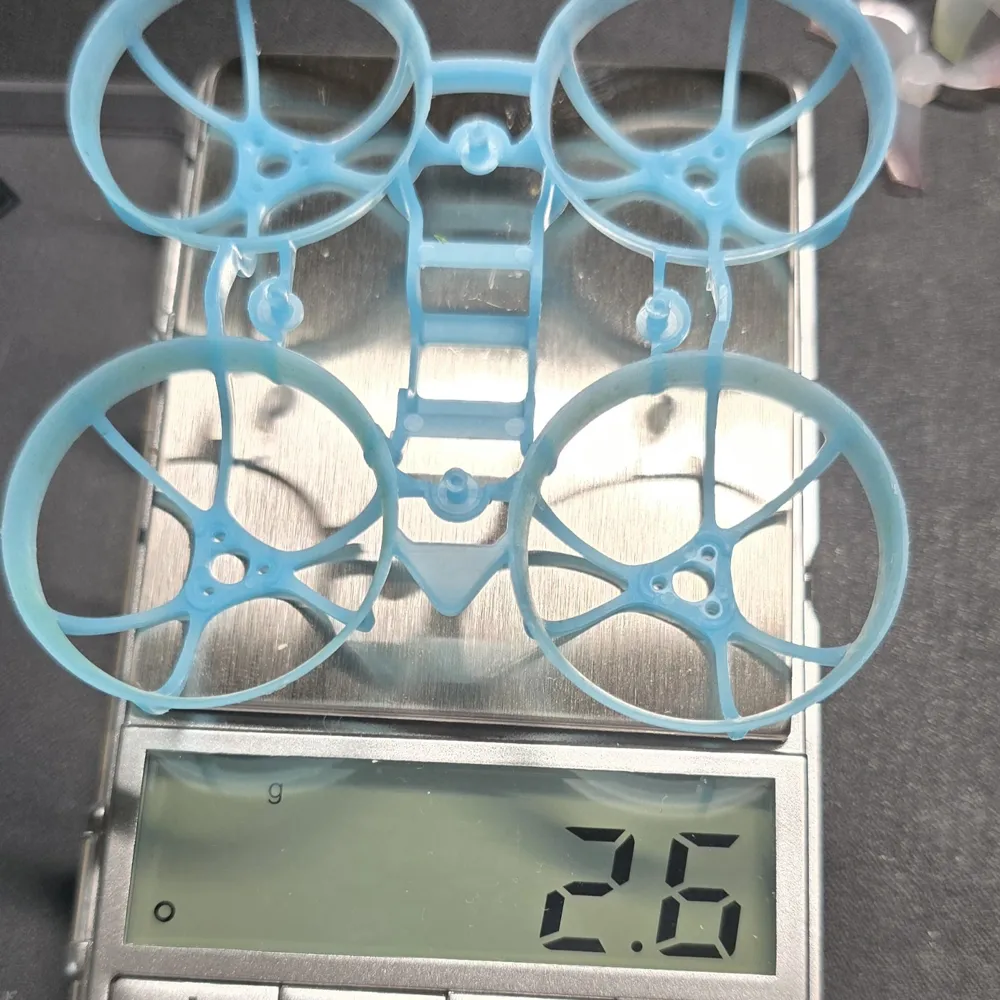

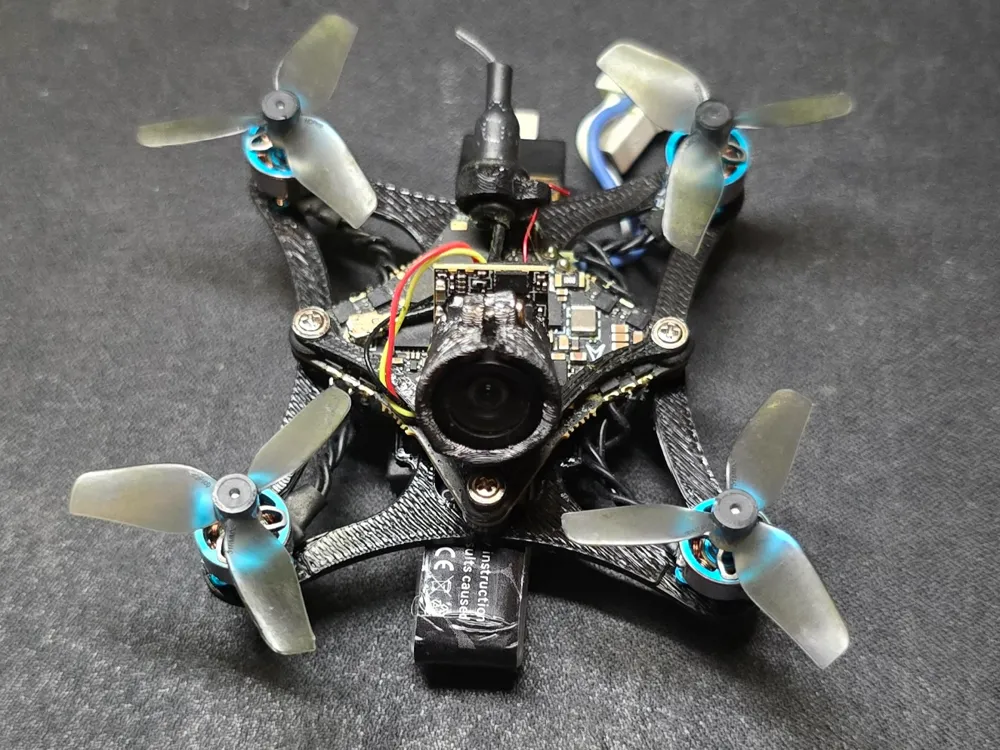

I designed this for my Air65 but it should work with other brands. I have weighed the frame at 2.6g which is the same as the oem air65 frame.

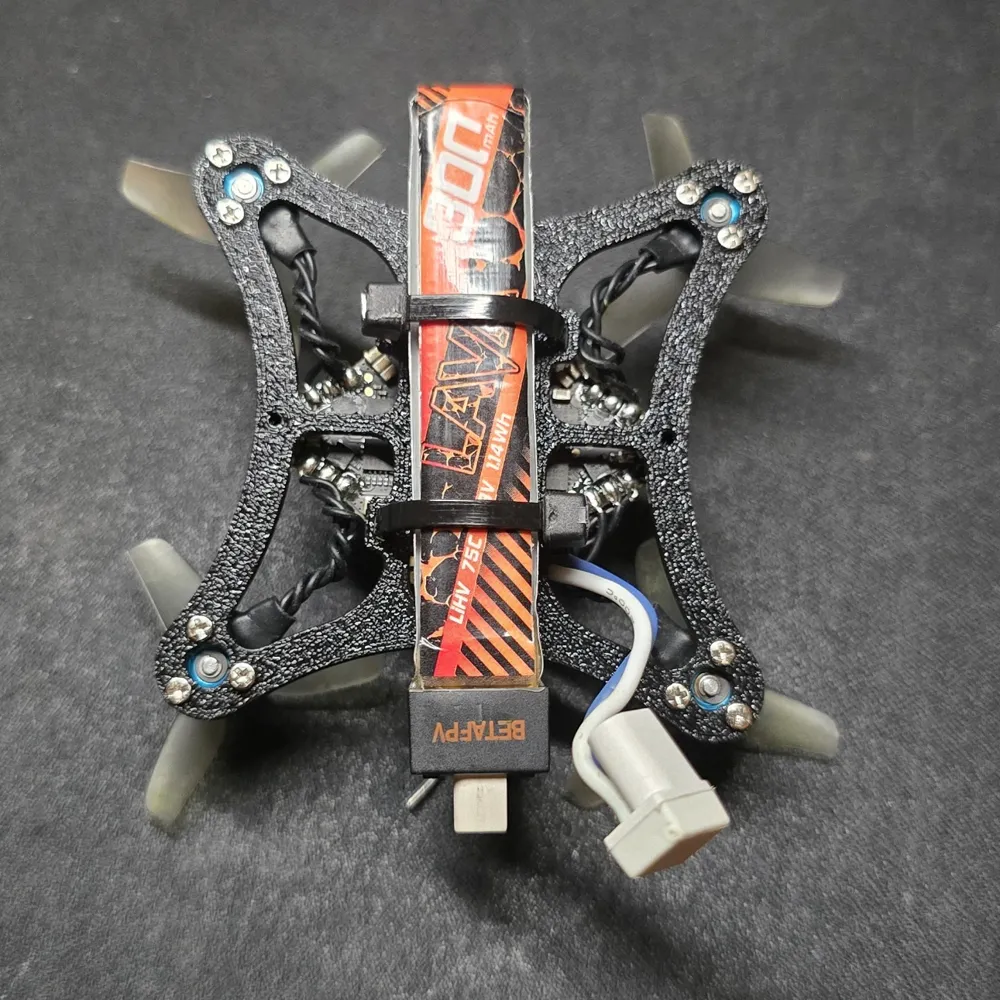

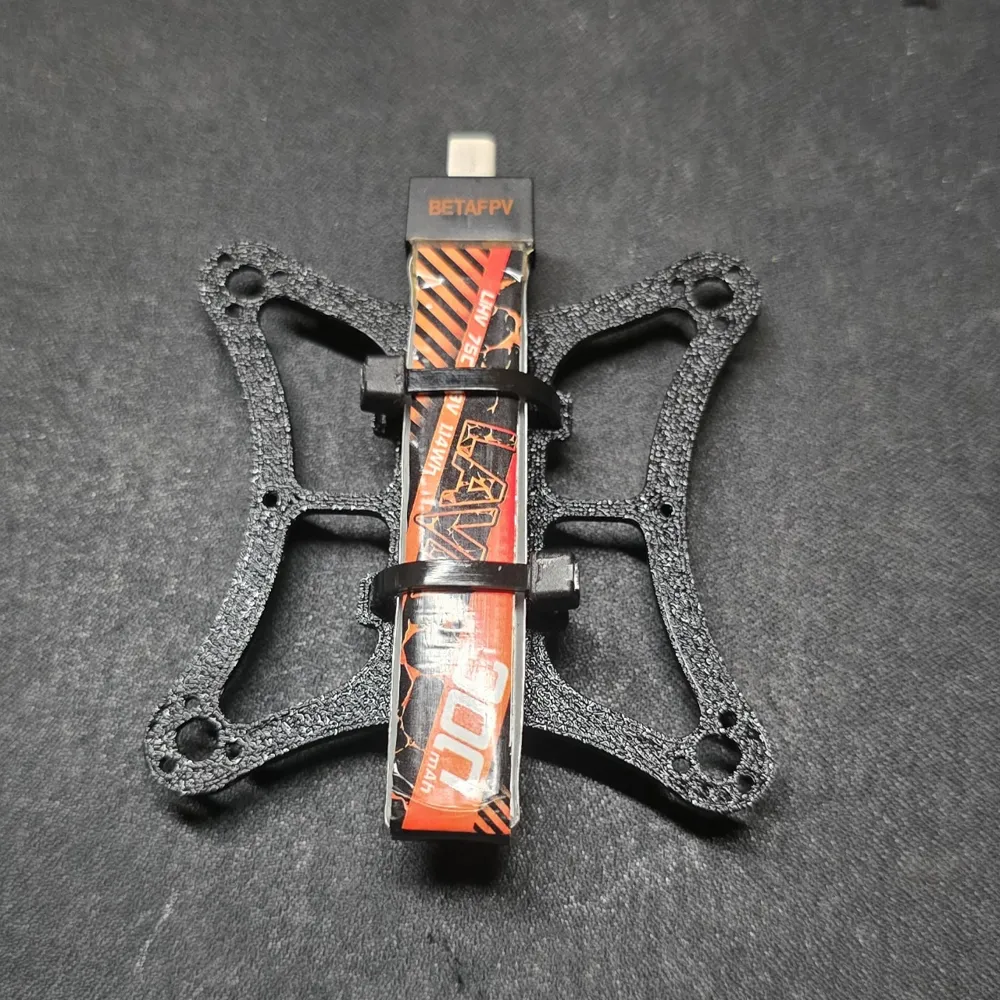

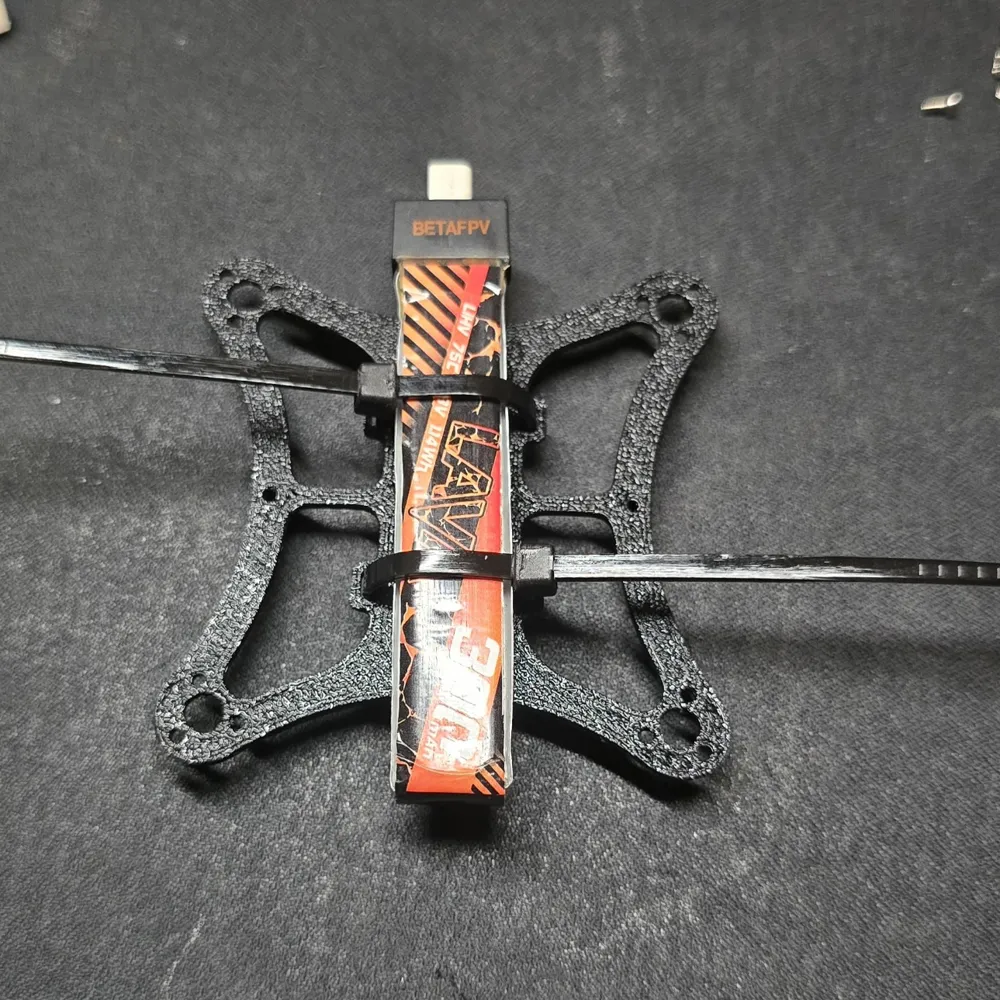

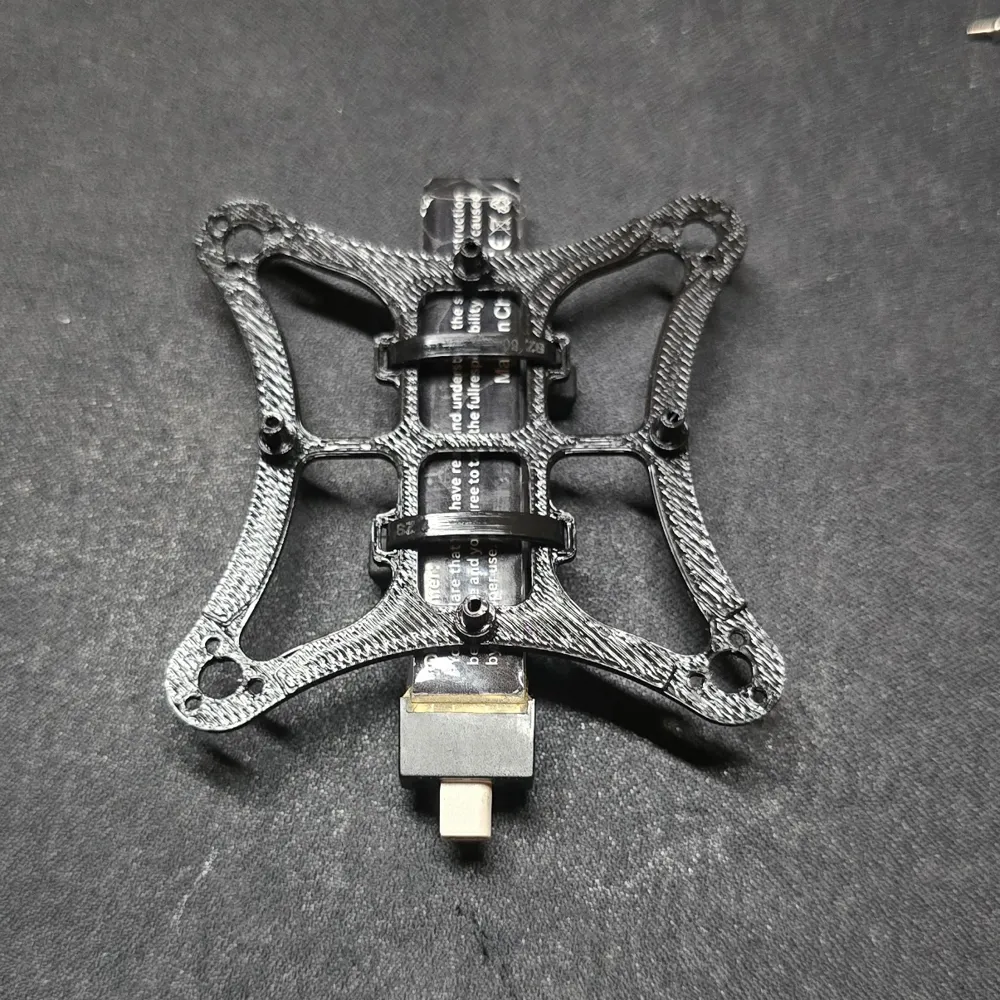

I recommend printing slowly in PLA with default 0.2mm layer height profile and Arachne wall generation. It requires 2 small Zip Ties to hold the battery and I highly suggest putting them on the frame before the AIO, as it is much more difficult after it is on there.

I started this project just for fun and to see if it would work and after a few failures, it turned out pretty good. This version is not my lightest, but it is the strongest and flies the best. I initially started with a ducted design but that was way too fragile and broke immediately. My other lighter designs either had vibration issues and/or were too fragile.
