Description

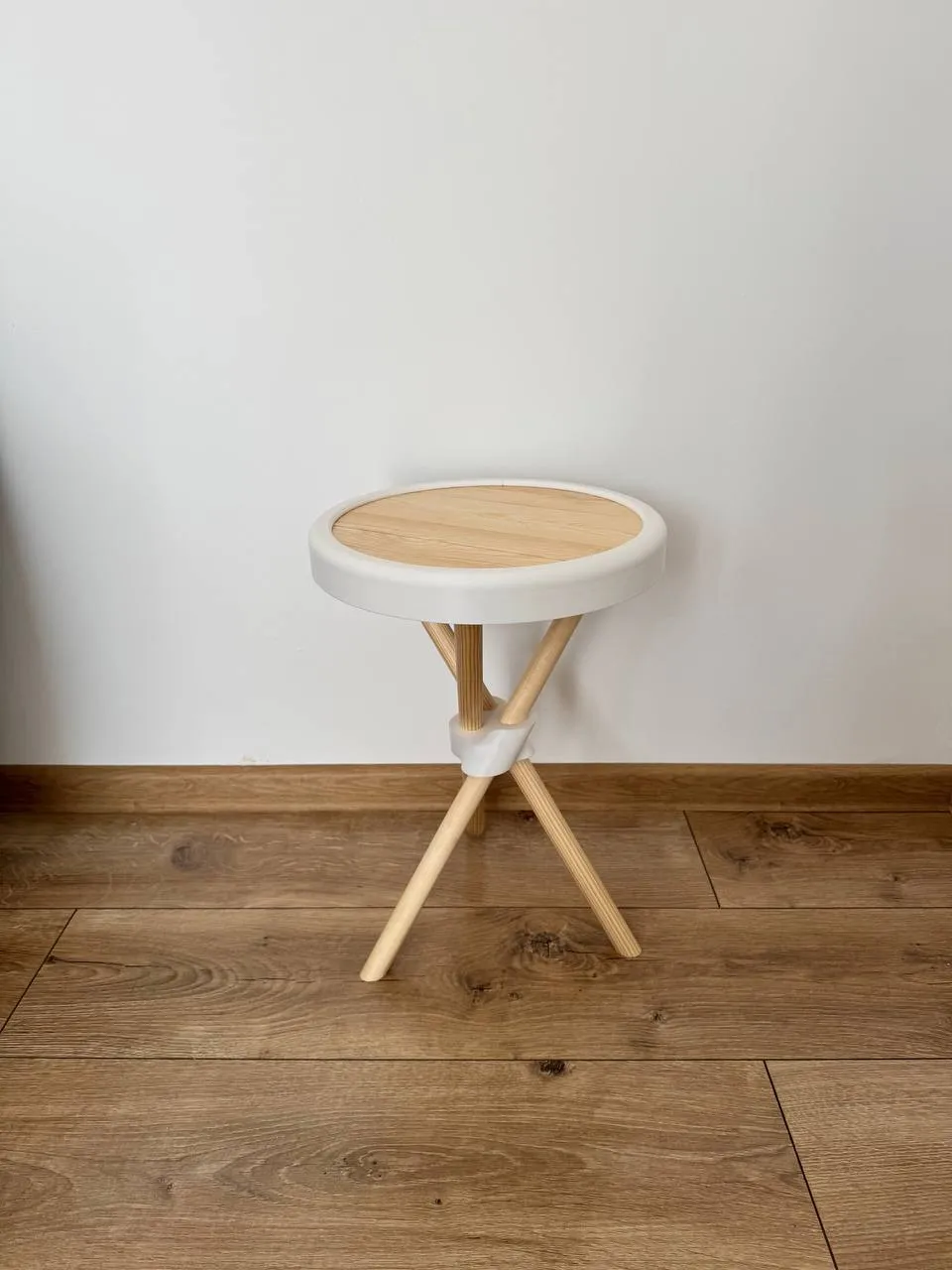

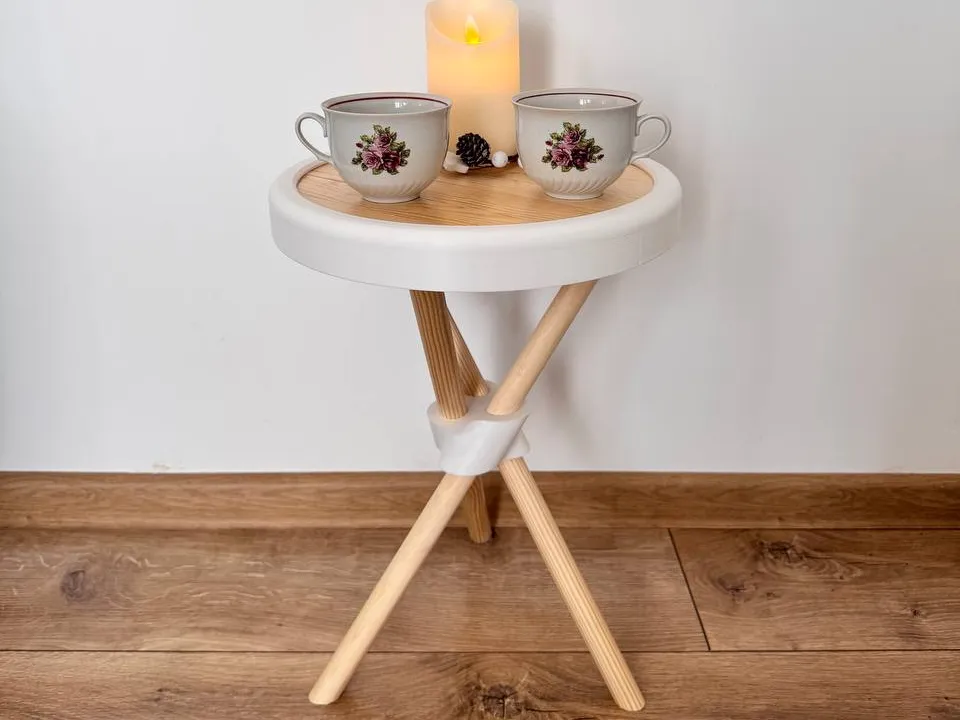

A great idea how to combine materials like plastic and wood to create an aesthetic coffee table. It is easy to assemble and fits very well with any furniture.
Notes !

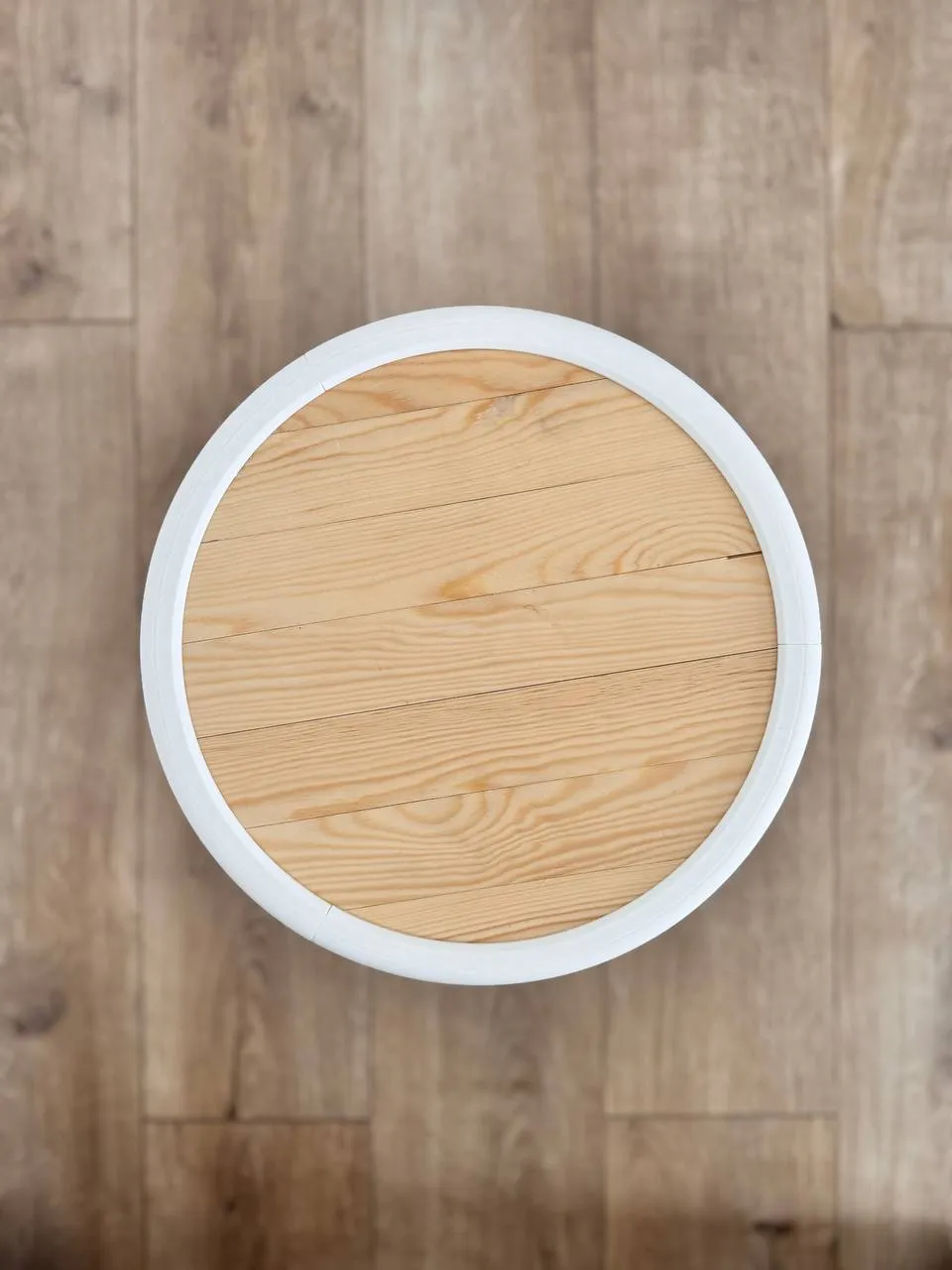

For this table can be used wood sheets(7mm) and round bars(22/23/24/25 mm). Wood sheets must be cut round - 285mm
If you like this design - you can…
Boost Me (for free)
Assembly details

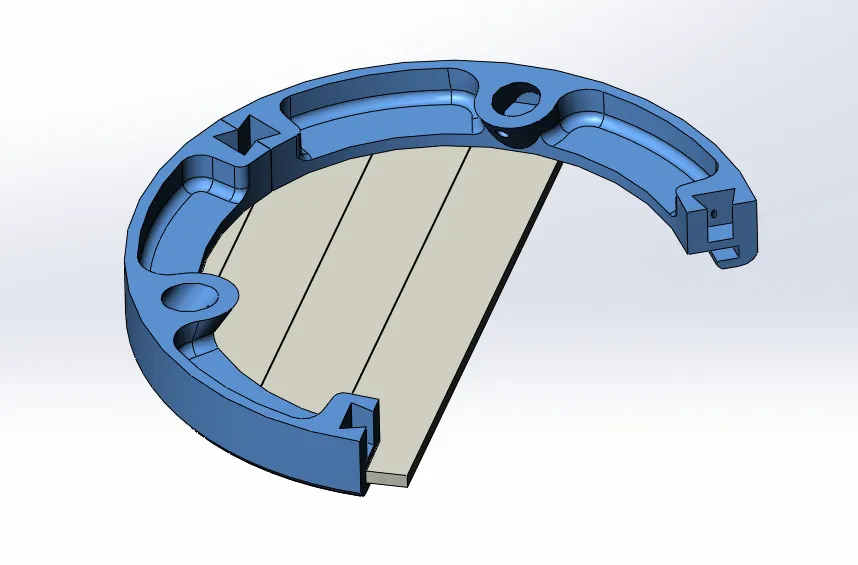

1. The table casing consists of 3 identical frames. According your wood bar diameter choose your frame.

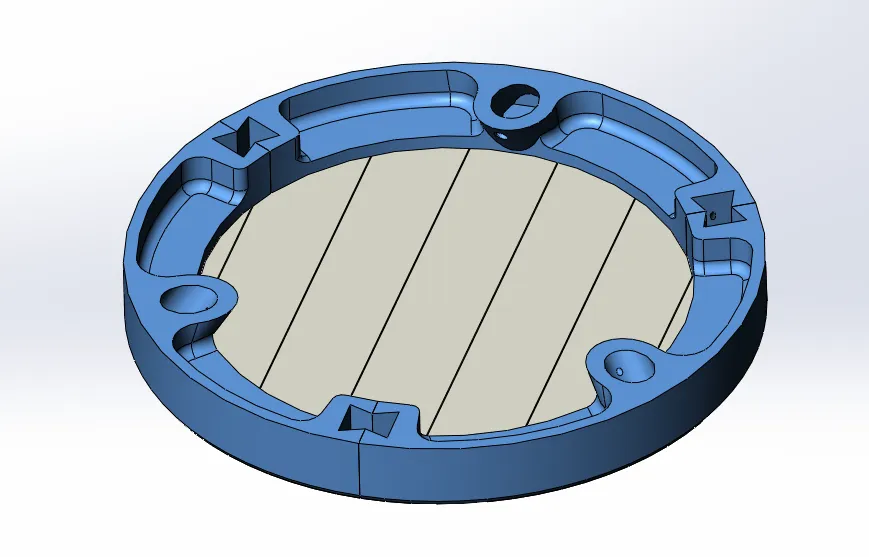

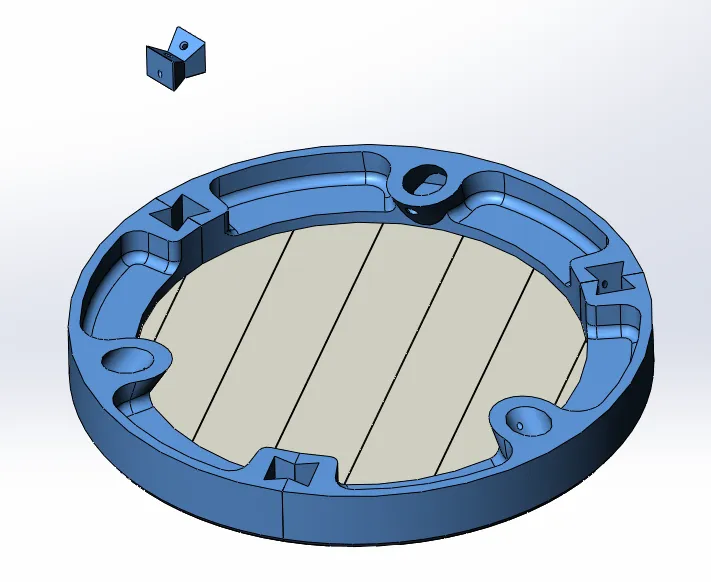

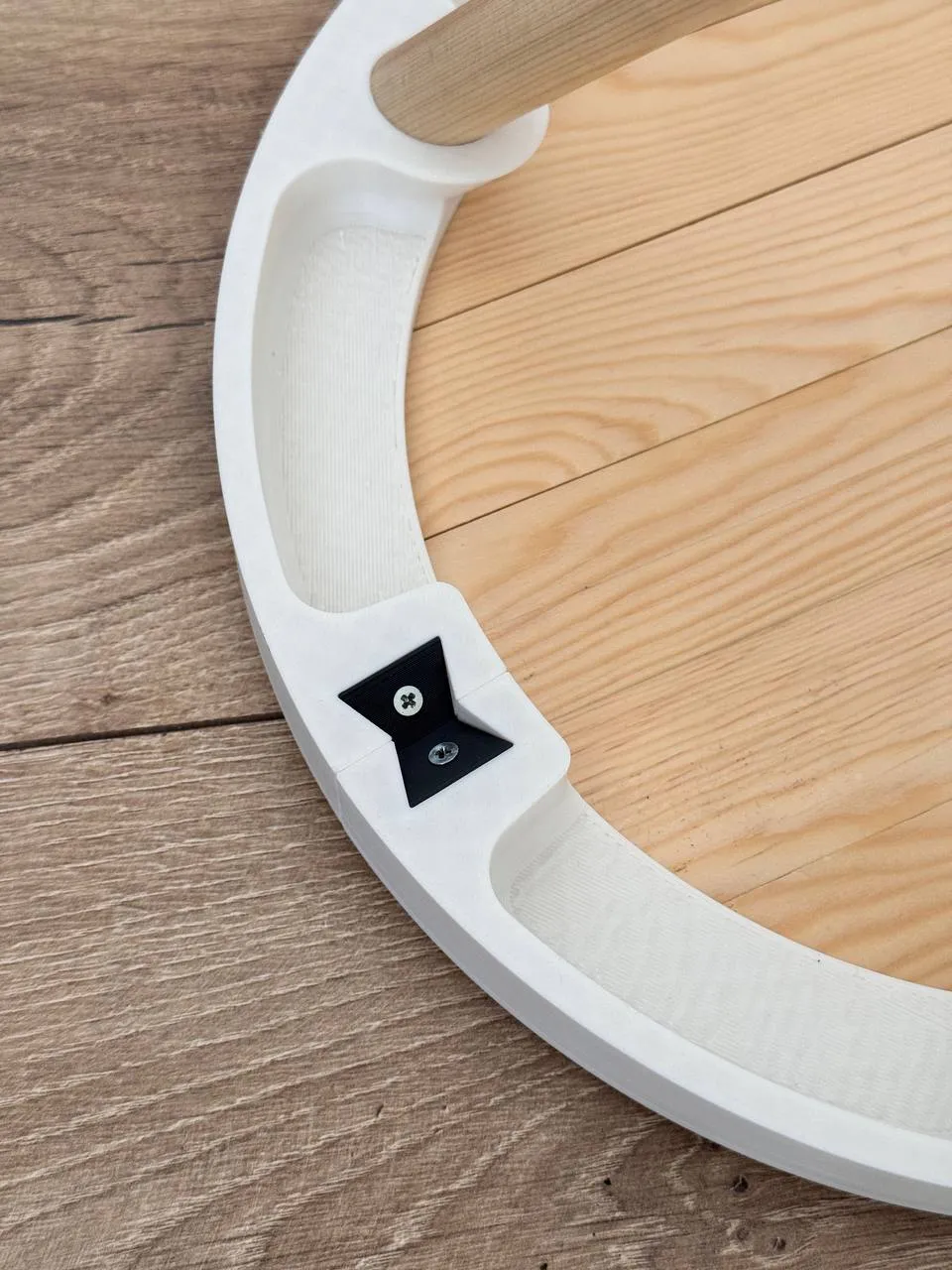

2. After inserting sheets in frame, use connector(3.pcs) to fix it together

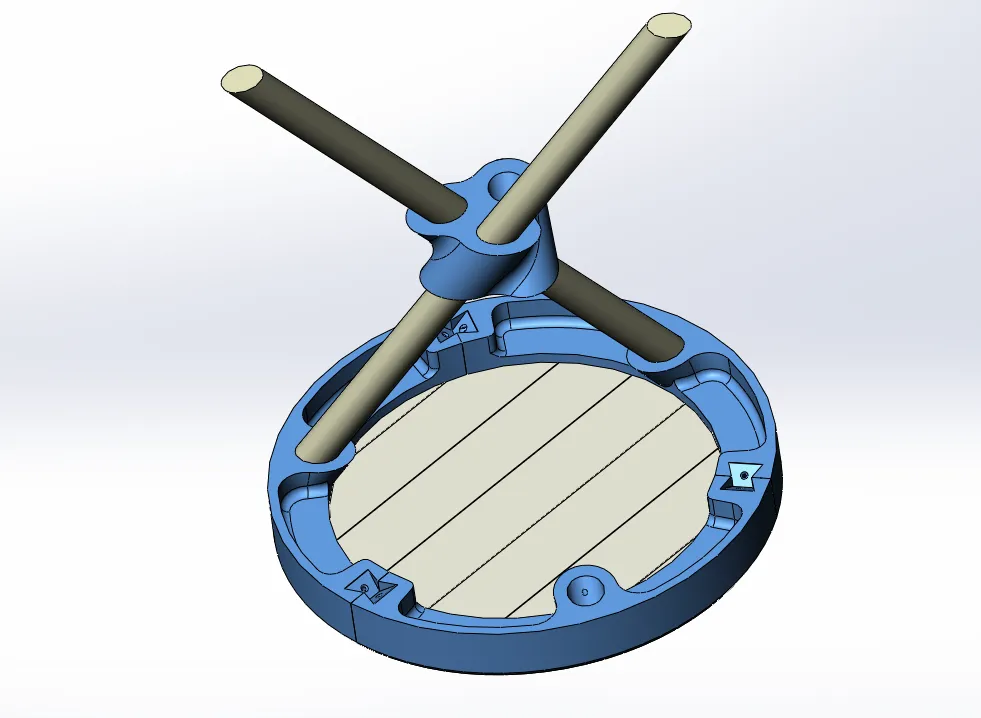

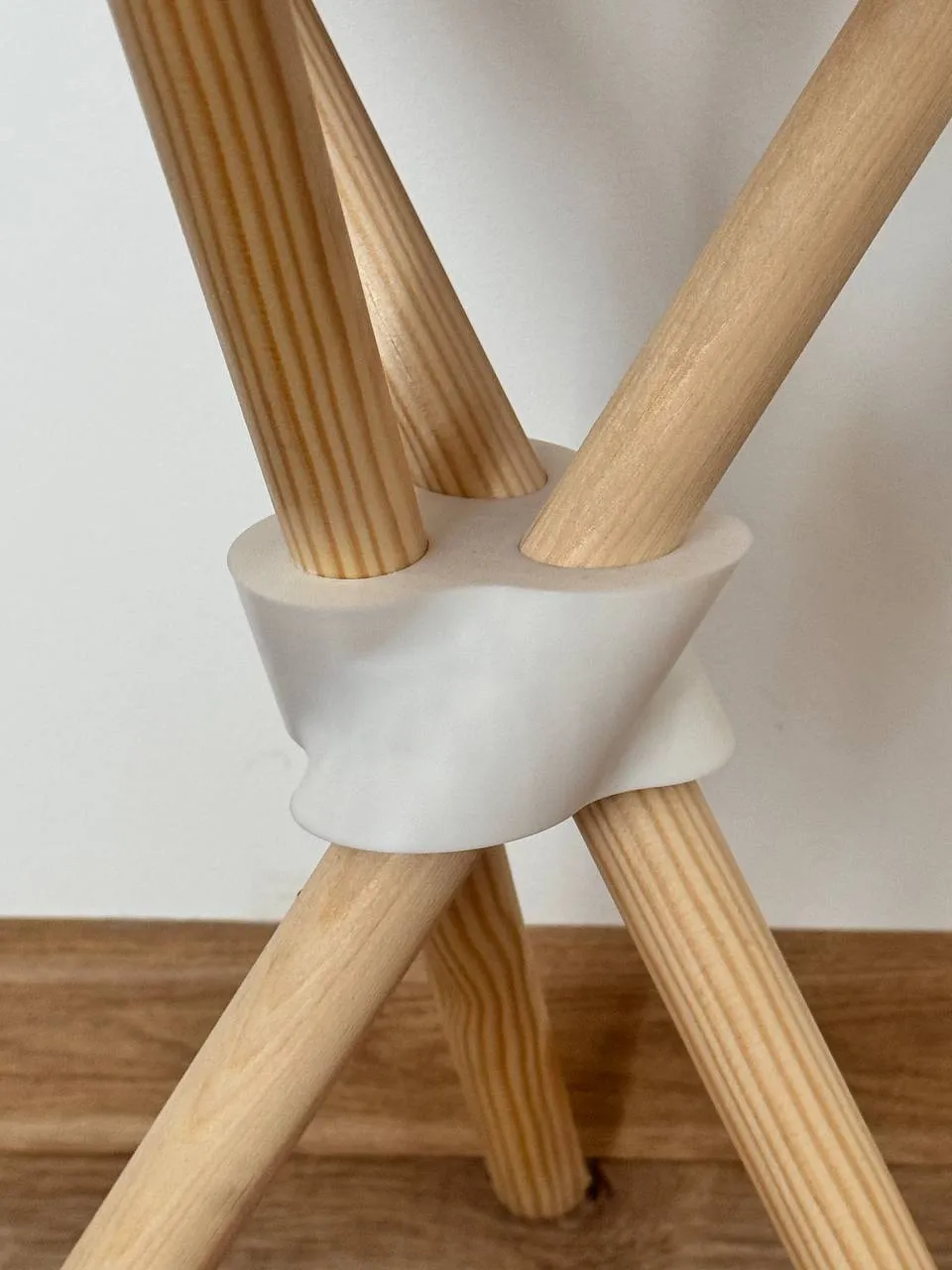

3. Insert legs into frame and legs_connector

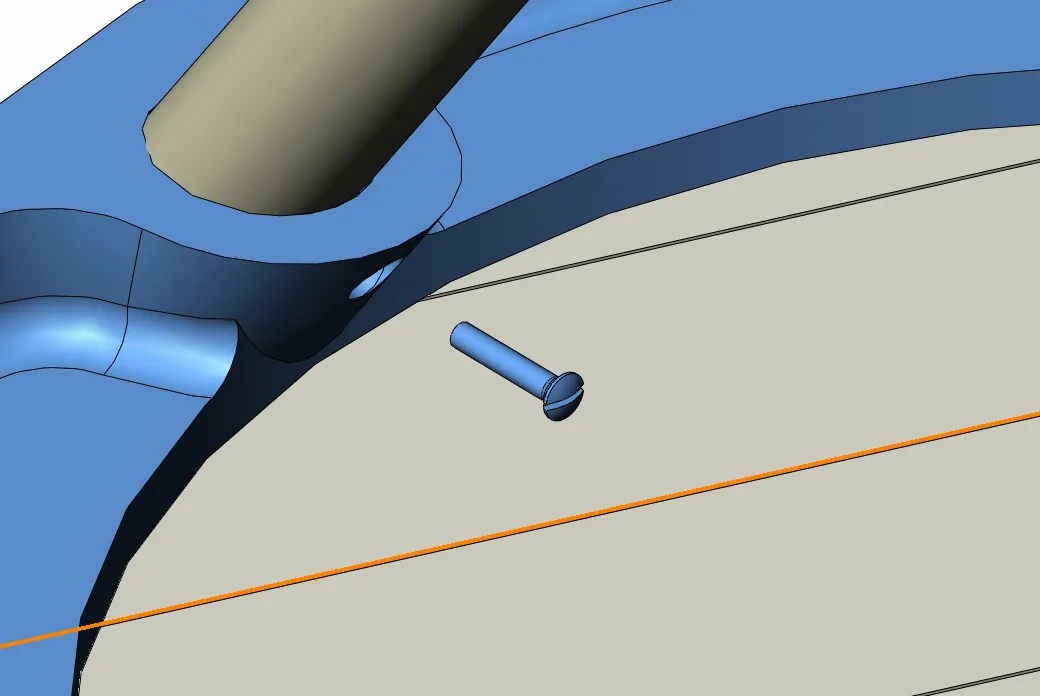

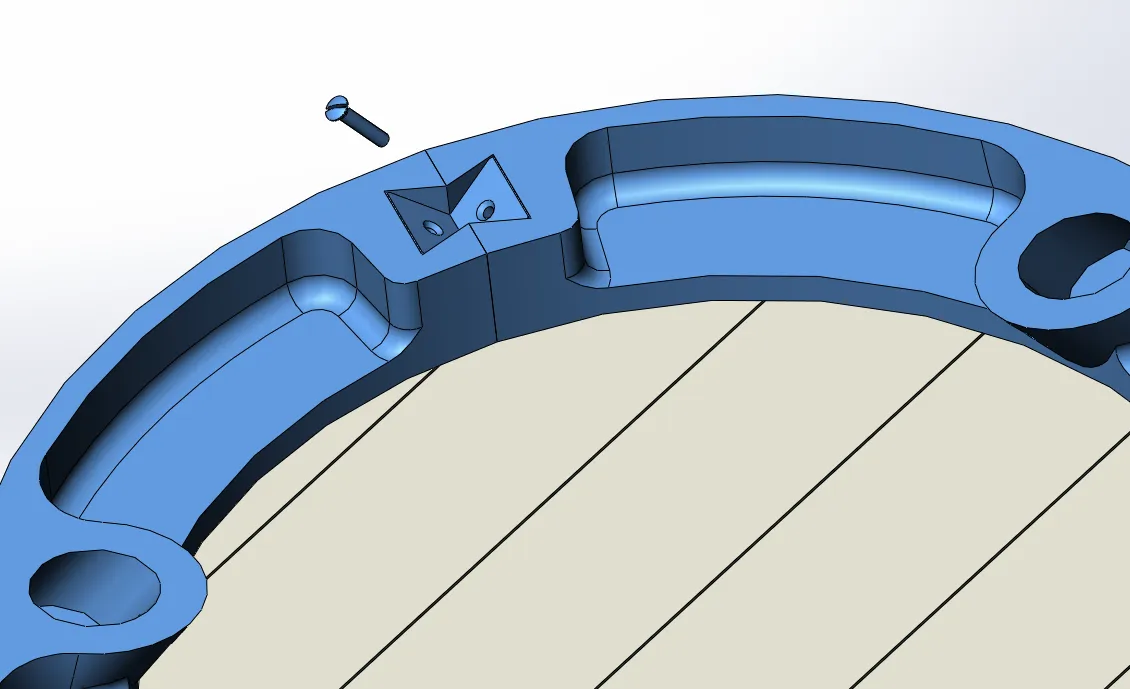

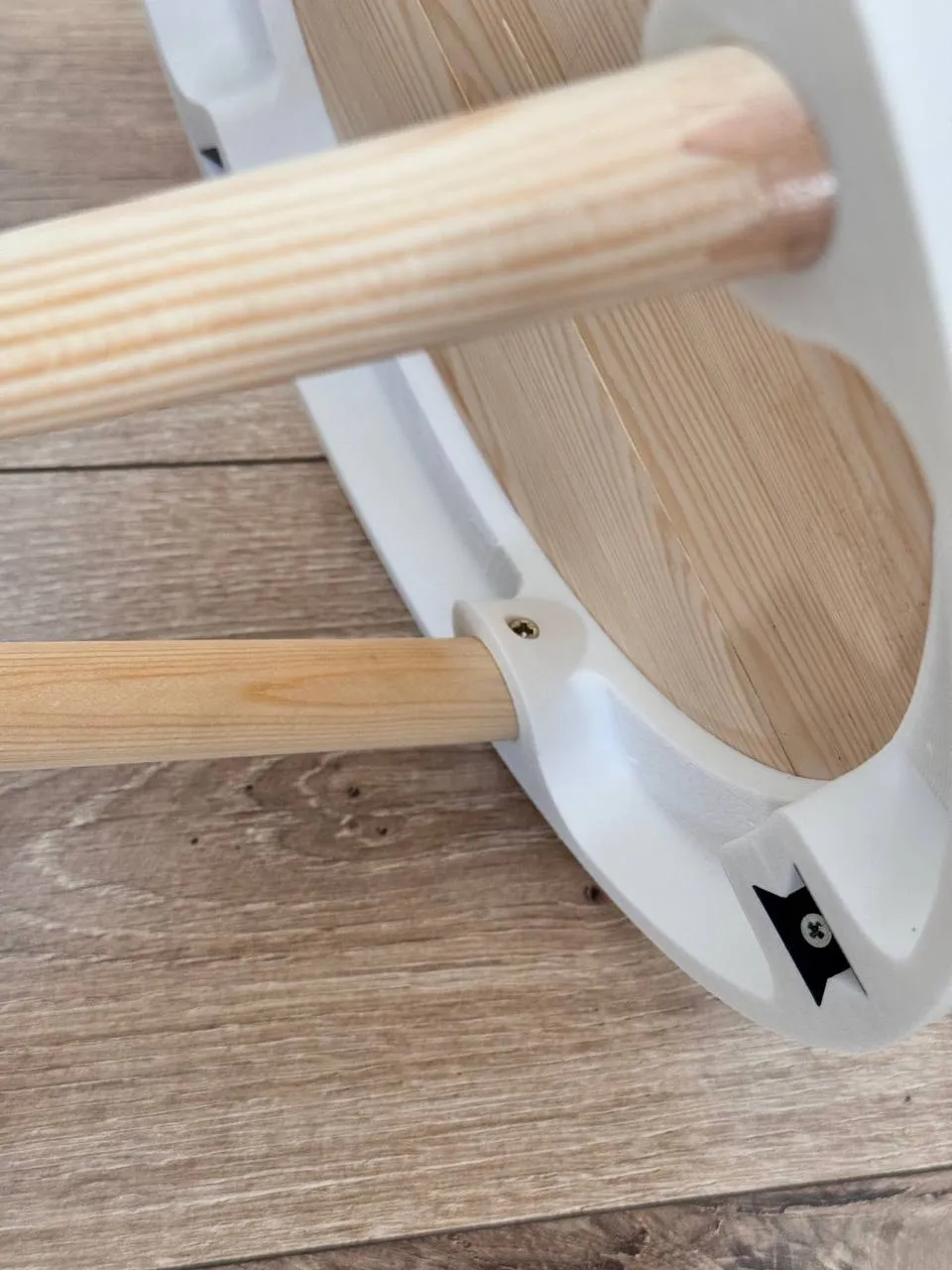

4. Use Philips screws to enforce frame and Wood screws to enforce legs.
Assembly steps
Details about materials:
| 3pcs. – Self-Tapping Small Wood Screws M3x16mm |  |
| 6pcs. - M3x16 Phillips Screws 304 |  |
| Artificer Pine Wood Sheets, 16x16 Inch 2 Pack 7 mm Thick |  |
| Round Bar - Planed Oak - Ø 25 x 300-1000 mm (600 mm) |  |
1. x3 22/23/24/25mm diameter wood bar x 454mm(length)
Example(https://www.amazon.se/-/en/Round-Bar-Planed-Oak-300-1000/dp/B0B4KMG4GS/ref=sr_1_1?crid=1XCQBBOWDZXR0&dib=eyJ2IjoiMSJ9.b8r2BuICE1Ye7NkClzY-OEmuoyos5koE6zqa79HnSG85PvwqeGRZJvz72KRw8ZQ3kgDOCaHk2yzdKGZjp-HPESEuXAPc8WLwa3wxR3cLw81AL1YxAFEGNm-FKAXi7gTrTQewQfRR1o7E6F-mQsVDmPZmCrQkcZ_orrTf4wUqVMJrw1yBDq5XqI_AKYHfLtzxjjFktHptj2rGfCOf4JRxhKFxsjT5McFTNZQfvkaghog.rScqIRIzpqSi6krqWCLdG5RGmtast5x0nKmqaEVpbjw&dib_tag=se&keywords=round+wood+profile+25mm&qid=1751884924&s=home-improvement&sprefix=round+wood+profile+25mm%2Chome-improvement%2C84&sr=1-1)

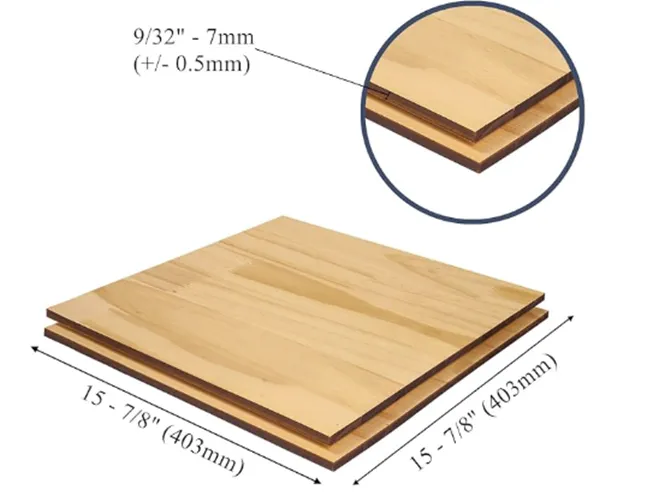

2. 7mm wood sheet(can be used multiple boards) - cut 285mm diam
Example(https://www.amazon.com/Upgraded-Unfinished-Coasters-Projects-Pyrography/dp/B09H6PWZCN?th=1)

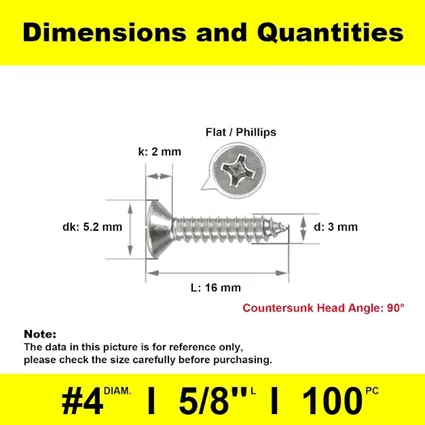

3. x3 – Self-Tapping Small Wood Screws M3x16mm
Example(https://www.amazon.com/Self-Tapping-Stainless-Countersunk-Repairing-Furniture/dp/B09VH2XWW1/ref=sr_1_8?crid=1P4QNZF719H8M&dib=eyJ2IjoiMSJ9.k1smQ7T_ZrQhviO1nqXmPTJzf2cCPyVklcMfgJIt1MmtjNFSR7Lo8_VzbS7vuksUid_lh4uJjIPEzjNAvsfRsURUoTttfFRqnSjqTwiF2lwjJJAufJP_xKlTjxVykiZeffkiDuAc8E4YM3xLnWSxpc33cf0ylUK7EfYP7vDe36Mk0SDnmDZcv-jUluitcnsbz85_Y9N-M3wRVqxd7KMRexktxkEqM6YBV4rgCAsgrTw.bJ7A0T60Fkv81b3oyIJ8t5LxHQ2K9zi7XM7AZN-sVbQ&dib_tag=se&keywords=Self%2BTapping%2BScrews%2Bm3x16mm&qid=1751882684&sprefix=self%2Btapping%2Bscrews%2Bm3x16mm%2Caps%2C166&sr=8-8&th=1)
*4.6pcs. - M3x16 Phillips Screws 304 *
Example(https://www.amazon.com/Phillips-Screws-Stainless-Machine-Countersunk/dp/B07Q3KXZ4G?th=1)
