Pork3D

cover

DSC07969 Wrist Rest Support Pork3D.jpg

DSC07974 Sliding Wrist Rest Support Pork3D.jpg

DSC07980 Wrist Rest Support Pork3D.jpg


DSC07968 Wrist Rest Support Pork3D - Copy.jpg

Printing No supports needed

0.12mm layer, 2 walls, 15% infill

DSC08200 Flat Bottom Wrist Rest Support Pork3D.jpg

Flat Bottom Version

MiK*


Smooth surfaces are ensured by a vertical print profile.

Vertical - Right hand

Vertical - Left hand


Vertical - Both hands


Flat - Right hand


Flat - Left hand


Flat - Both hands


Cliffback



I wanted one for my left hand as well, so I created a profile for being able to print for both hands (left hand is mirrored), as well as the choice between printing flat or vertical

Both hands (both vertical and flat)

user_2892786965

Bildschirmfoto 2025-12-15 um 18.37.25.png


The inner edge of the left pad was digging into my palm, so I flattened it slightly.Prints vertically for smoother surface.

Softened edge - 0.12mm layer, 2 walls, 15% infill

Jean-Mi



Screenshot 2025-08-08 233221.png

<ul><li>bottom layer in PETG  only 1.5mm to glide easily on the desk. -→ Better if printed on </li><li>Top layer in TPU, 2 walls and 3D honeycomb 10% fills so the result is a bit soft (at least on the left side). Printed vertically for better quality. Support tricky to remove, but on the side closer to the mouse so less visible day to day. </li></ul>

TPU top layer, PETG bottom and snap connectors

Hannah_S


Shrunk to 90% original size to be more comfortable with my smaller hands.

10% smaller, for female/small hands

zsyazwan83

Screenshot 2025-11-15 104945.png

Improved wall strenght and Infill to 20%.Also make it more smooth

0.12mm layer, 4 walls, 20% infill

Closed Bottom

Open Bottom

TPU Pad

_rorschach.eth

Screenshot 2026-01-11 205557.png

This profile includes a TPU top pad and PETG bottom, with versions for both closed and open depending on preference. TPU pad has 1 wall, 1 top shell, and 15% infill to give it a squishier feel.&nbsp;If you go any lower on the TPU pad infill, rotate them and print with supports otherwise you may get bridging artifacts on the top of the pads.&nbsp;For a smoother surface, rotate TPU pads -90-deg on the X axis with supports.&nbsp;Plate 1: Closed bottomPlate 2: Open bottomPlate 3: TPU Top Pads

TPU/PETG Open + Closed Bottoms

Screenshot 2026-01-15 224032.png

Plate 1: PETG Closed BottomPlate 2: PETG Open BottomPlate 3: TPU top pad, printed flatPlate 4: TPU top pad, printed on it&#39;s side with supports&nbsp;Note: You only need one top and one bottom.&nbsp;---&nbsp;I wasn&#39;t happy with how soft and squishy the TPU pad was. If the infill got below 15%, the top layers were rough, but any higher than 10% and it just didn&#39;t have enough give. I could get away with lower infill by printing on it&#39;s side, but my TPU support interface is always hard to remove.&nbsp;So I did some custom manual infill work. On Plate 3, I lowered the overall infill of the top pad to 5% and set it to an angle that aligned with the direction the filament is laid down. I added two cone-shaped modifiers which add 25% infill only where sagging occurs, which also adds a little support to the edges of your palm. The TPU pad also uses 2 wall loops and 2 top shell layers to make sure it&#39;s flexible.&nbsp;There&#39;s also a TPU pad rotated to print on it&#39;s side with supports, which gives a smoother finish on the palm rest at the expense of having to remove supports.

TPU Pad (Super Squishy) + PETG Bottom (Open & Closed)

knockwar



Screenshot 2026-01-31 185607.png



Wrist Strap added with pause for inserting 8x2mm magnetsVertical Printed with holes for 8x2mm magnets&nbsp;&nbsp;

8x2mm Magnet Wrist Strap

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

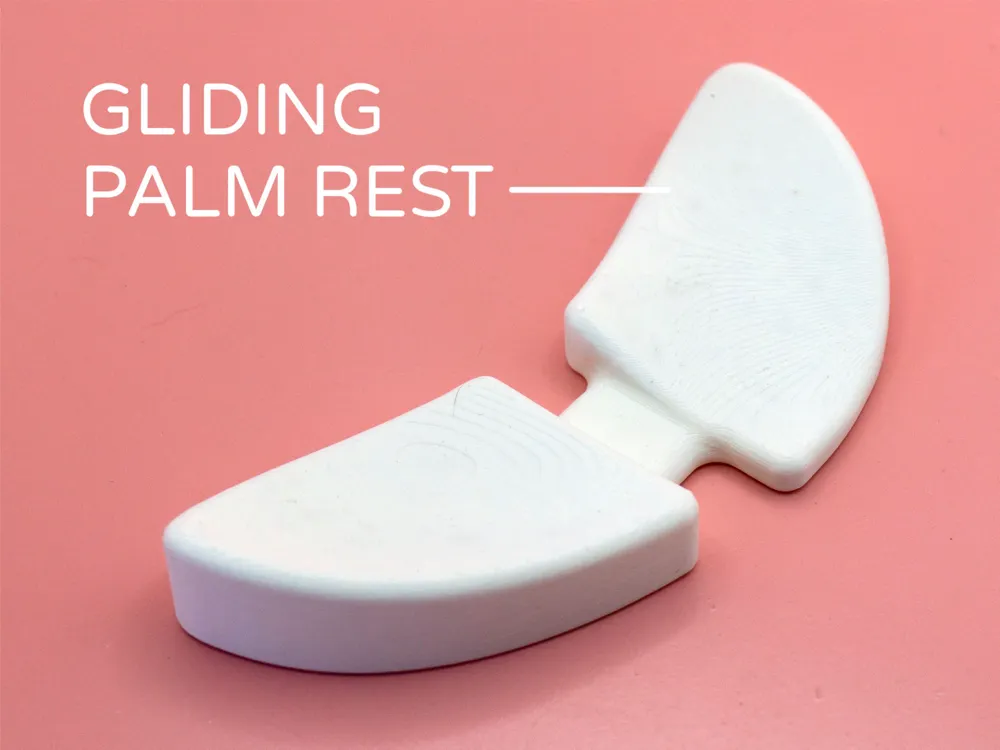

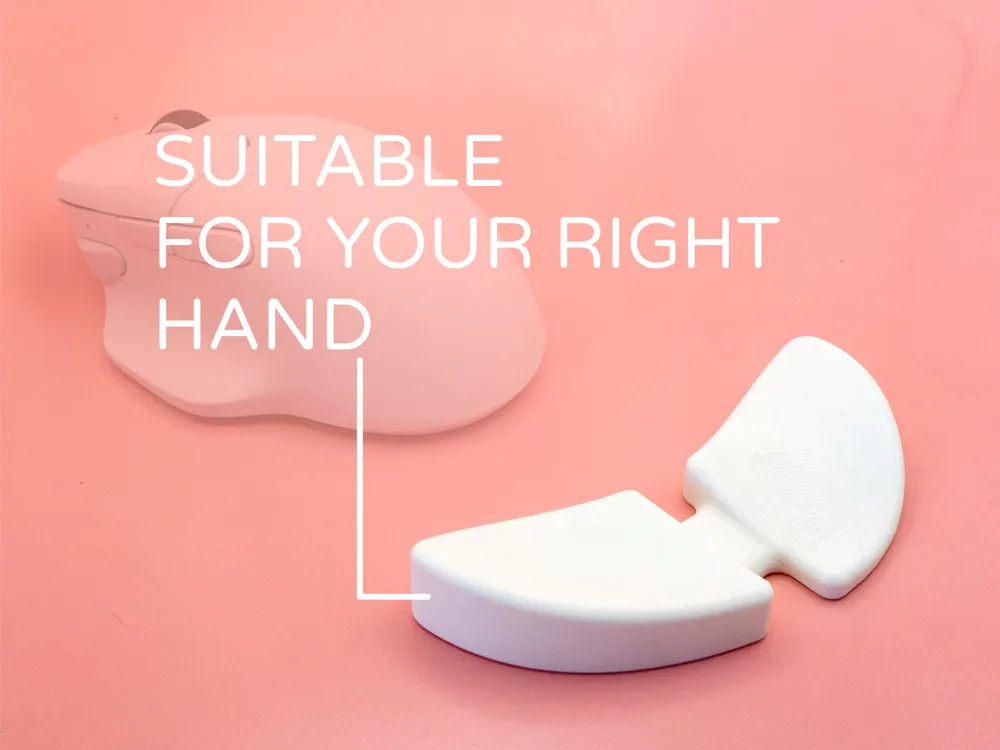

This isn’t your average wrist rest. Designed to glide effortlessly with your mouse hand, the Gliding Palm Rest offers continuous support, reducing strain and improving comfort during long hours at the computer. Features:🖱️ Moves With You Unlike static wrist rests, this one glides across your desk, keeping your palm supported through every movement.✋ Right-Handed Comfort Shaped to match the contour of your right hand, providing ergonomic comfort and a natural resting position.🧩 Low-Profile, Minimal Design Compact and stylish, it fits seamlessly into your workspace without getting in the way.💪 Supports Your Hand, Reduces Fatigue Helps alleviate wrist pressure and encourages better posture during long work sessions or gaming marathons. Printing No supports needed
