homematic HM-CFG-LAN usb-c power adapter
Print Profile(1)
Bill of Materials
- 5V USB-C Steup Converter x 1: https://www.amazon.de/dp/B082KL813Z?ref=ppx_yo2ov_dt_b_fed_asin_title
- Senkkopf Schraube 3x10 x 1: https://www.amazon.de/gp/product/B0DNMS2PJH/ref=sw_img_1?smid=A1H972ZHCNA0OM&th=1
- Hohlstecker 5.5 x 2.1 x 1: https://www.amazon.de/dp/B0CX49CNRC?ref=ppx_yo2ov_dt_b_fed_asin_title
Description
homematic hm-cfg-lan usb-c power adapter (POE 5V splitter also possible)

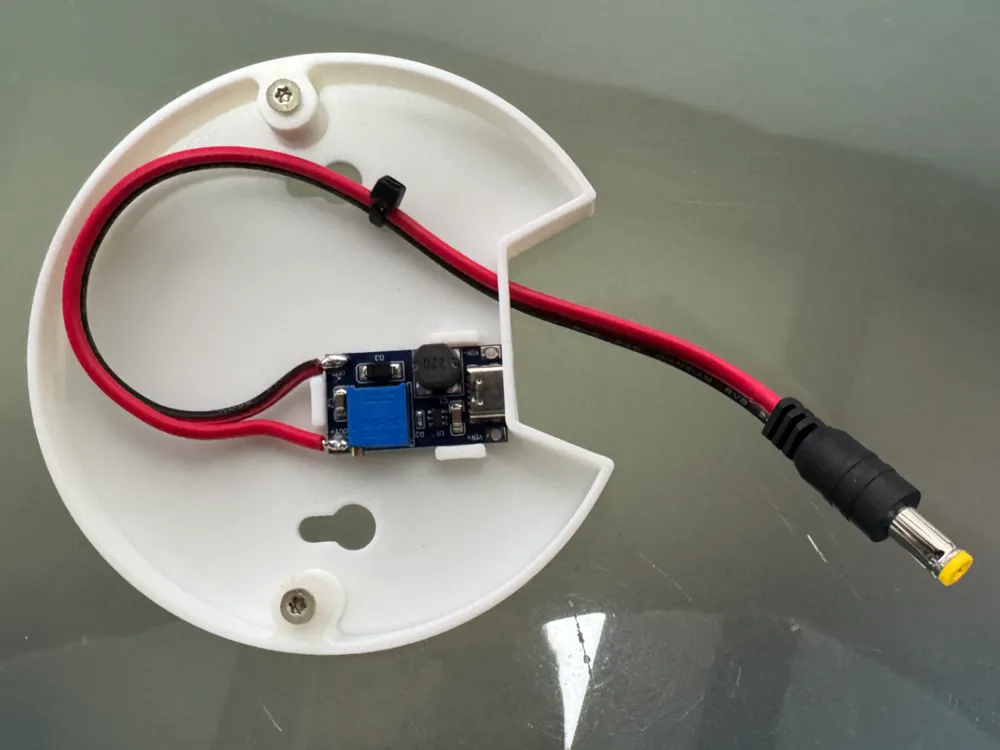

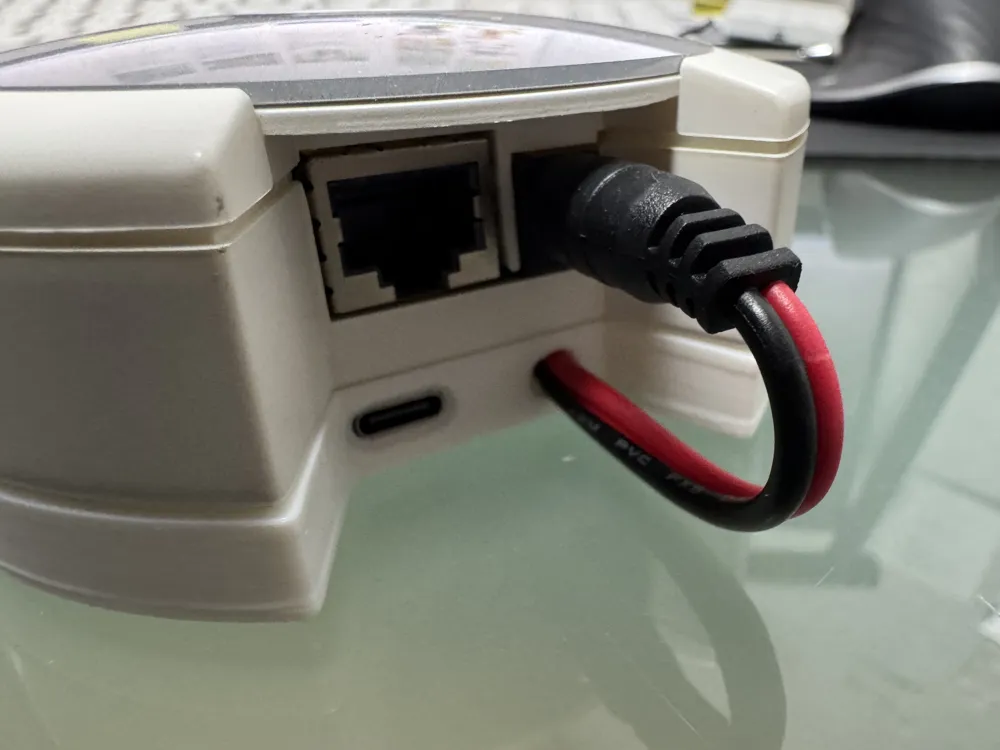

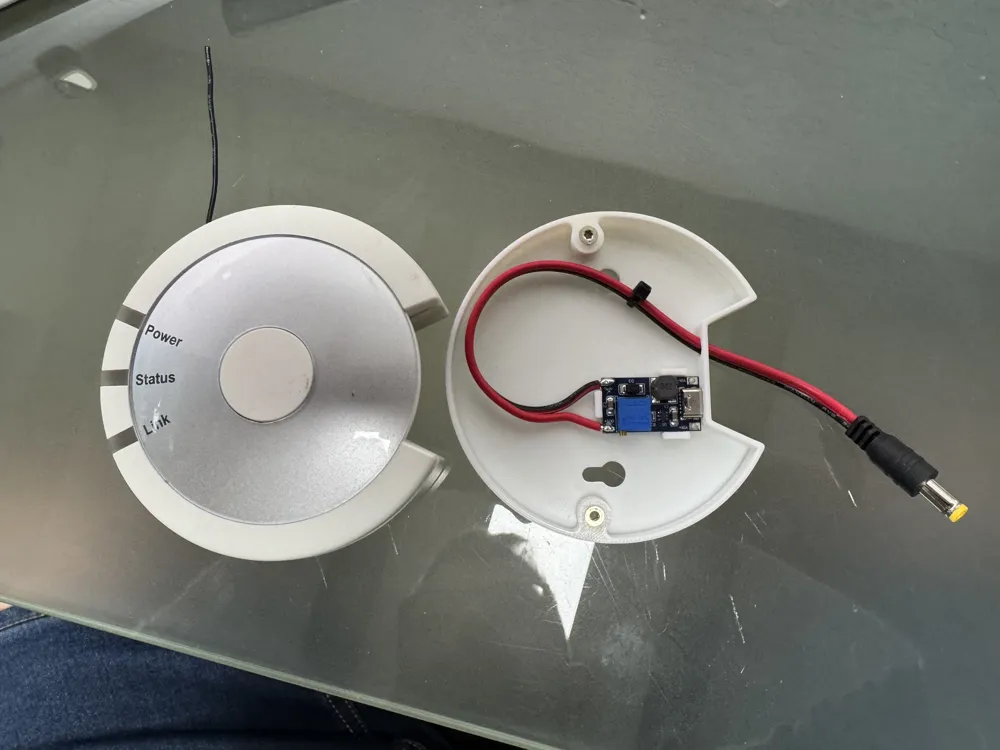

This is a USB-C 5V power adapter for the Homematic IP HM-CFG-LAN adapter
I was tired of having more and more power supplies with cables in the outlet
Personally, for me, no USB power adapter is used here in the end, but a POE 5V splitter
Warning: the adapter may only be operated with 5V voltage
The output voltage must be adjusted manually on the StepUp converter
If the voltage is not set, the HMLAN adapter can be damaged!!!!
Printed with PLA in white, PETG should also work (not tested)
What you need
1x USB-C 5V Step converter
2x countersunk screw 3x12 (3x10 should be better)
1x barrel jack cable 5.5 x 2.1
Happy Printing
