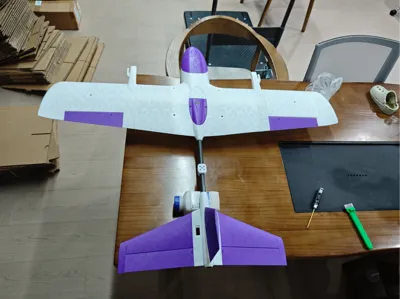

Titan Bumblebee Y3 Canard Fixed Wing

The above 3MF print file has been configured with Bingjia's ASA material and can be printed directly.

It is not recommended to use PAL or PETG materials for printing.

It is recommended to use pure ABS enclosure printing for the motor mount to ensure sufficient heat resistance.

Note: Please apply glue to the build plate before printing with ASA to facilitate part removal after printing.

1. Electronic components are as follows

Kuai Feng F405 Wing Mini Flight Controller 251GPS
2812 Brushless Motor ×3
Lan Bird 45A ESC ×
Yin Yan ESO8MAI Servo ×4
Yin Yan ES09MD Servo ×2
ELRS 2.4g Receiver

2. Carbon tube specifications are as follows

Diameter 16 mm, length 500 mm, inner diameter 14 mm (1 piece) - Tail arm
Diameter 8 mm, length 800 mm, inner diameter 6 mm (1 piece) - Front wing spar
Diameter 8 mm, length 600 mm, inner diameter 6 mm (1 piece) - Rear wing spar
Diameter 4 mm, length 300 mm (2 pieces) - Wingtip support
Diameter 2 mm, length 300 mm (2 pieces) - Aileron hinge
Diameter 3 mm, length 230 mm (4 pieces) - Horizontal stabilizer
Diameter 3 mm, length 130 mm (2 pieces) - Vertical stabilizer support

3. Heat-set nuts and screws, magnets are as follows

Several M3*30 screws

Several M3*25 screws

Several M3 nuts

M3*8 M3*10 M3*12 screws

M3*8*5 M3*10*4.2 M3*7*5 M3*8*4.5 heat-set nuts

An M3 drill bit is required to drill holes in the carbon rods.
