Wall Mounted Floor Jack Hanger
Print Profile(2)
Description

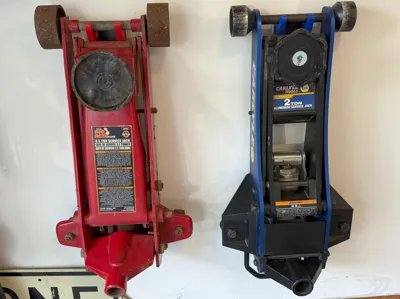

Clear up floor space with this wall mounted floor jack hanger.
I'd recommend only using these will floor jacks that are rated for 2-½ tons or less, but I've had a 3-½ ton jack on one for several weeks, with no signs of bending or breaking. To be safe, I'd recommend placing these away from vehicles or anything that could get damaged in case of an accident.
The Standard version will accomodate floor jacks with wheel diameters up to ~3-½ inches (90 mm) with ~3 inches (74 mm) between wheels.
The Low Profile version will accomodate floor jacks with wheel diameters up to ~2-½ inches (65 mm) with ~3 inches (74 mm) between wheels.

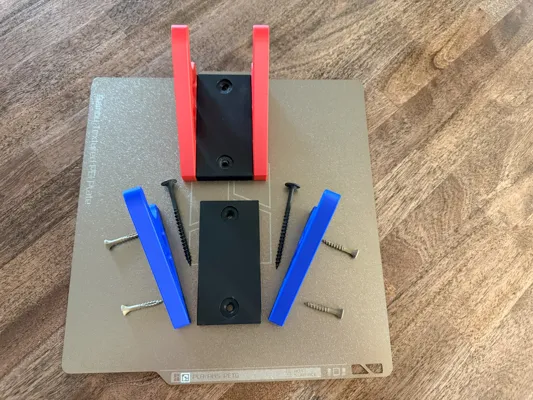

In addition to the printed parts, you will need
- Qty 4 - #8 or #10 x 1-¼ inch construction screws
- Qty 2 - Cabinet screws (prefered) or long construction screws
When mounting the hanger to the wall, be sure to screw the hanger directly into a stud. Drywall anchors probably won't be strong enough or may pull out.
