Photographic adapter for Svbony SV406P spotscope
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.2 h
3 plates
Open in Bambu Studio
Boost
12
28
1
2
22
8
Released
Description
Content has been automatically translated.
Eyepiece projection adapter with T2 mount (42mm thread diameter, 0.75 pitch)

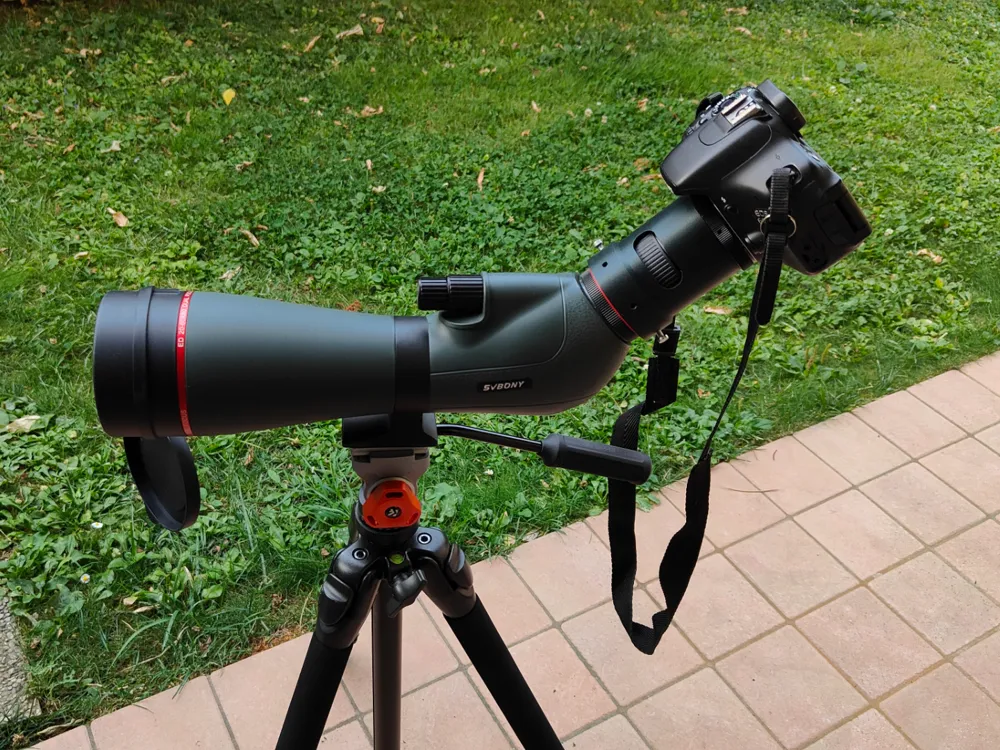

Tested on Canon APS-C 600D
Installation procedure:

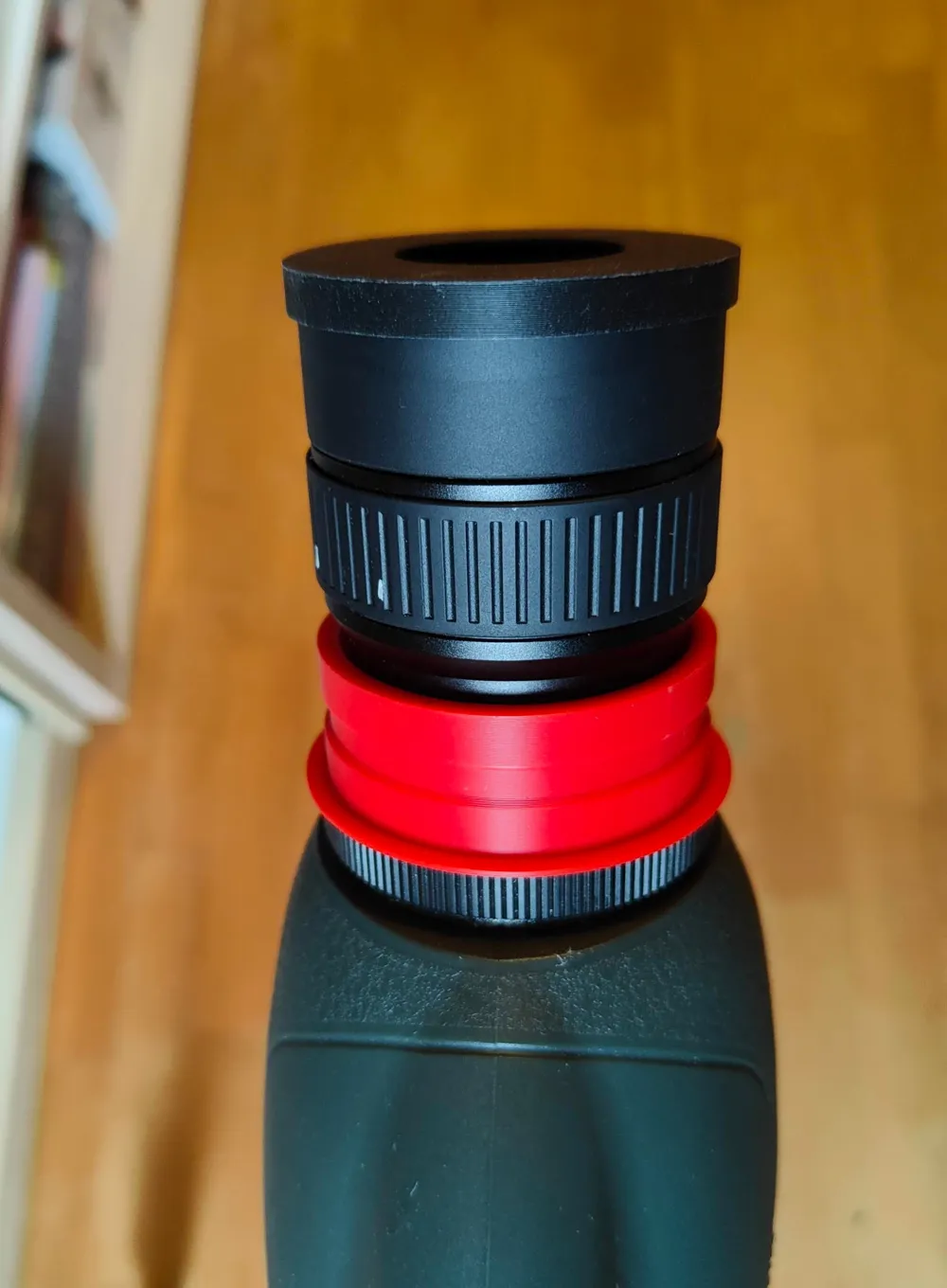

1 - The red insert must be inserted into the eyepiece before inserting it into the spotscope
2 - insert the second insert above the eyepiece (this serves to maintain alignment)

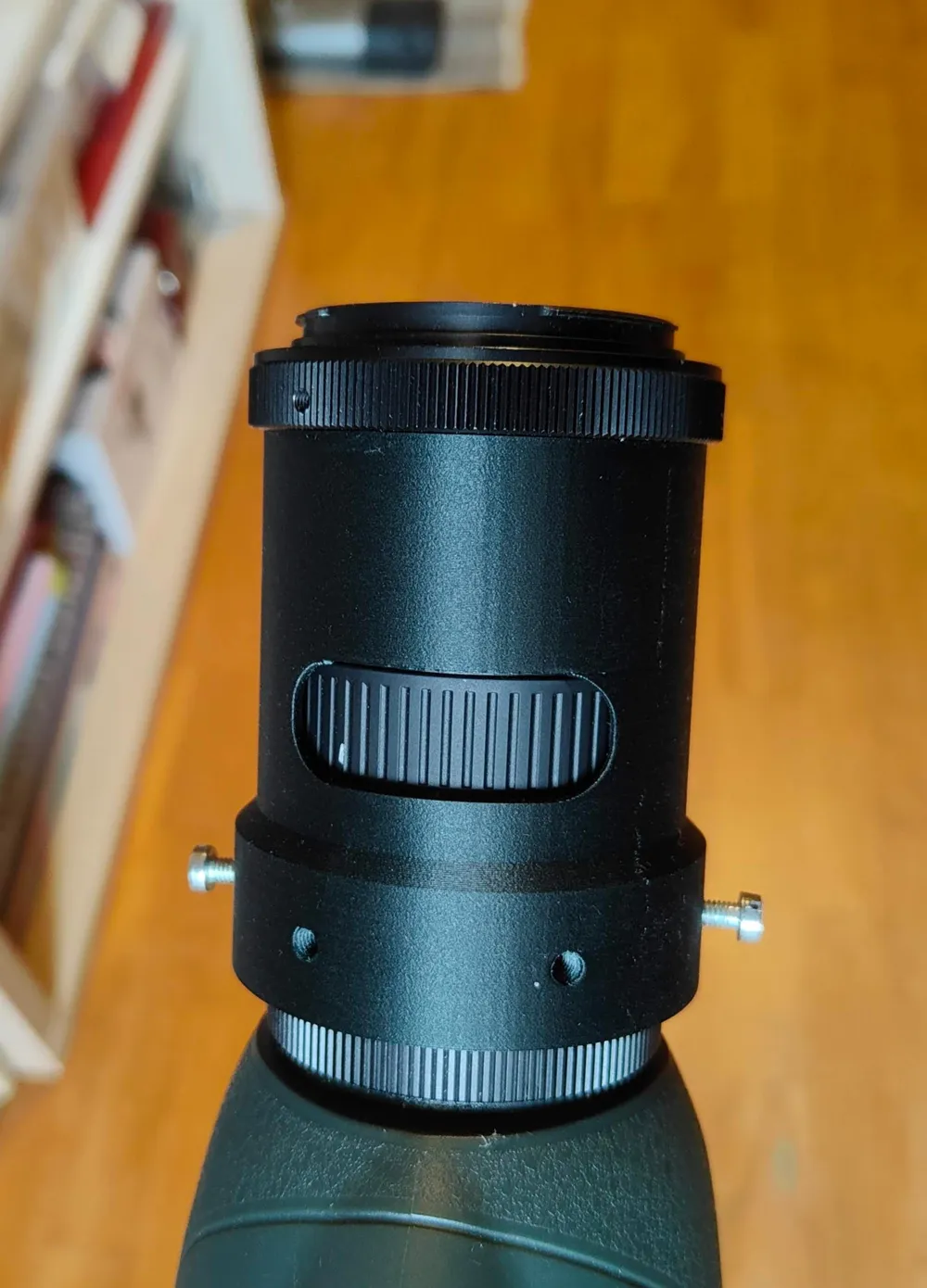

3 - screw the T2 adapter (to be purchased separately) onto the adapter body
4 - attach the camera to the adapter
5 - insert the adapter over the eyepiece and secure it with the M4 screws
It is recommended to print the adapter in PLA-CF or PLA+ for greater strength, especially regarding the 42mm thread
