Ultimate Cable Management Kit with Connectors

This cable duct set includes channels of varying lengths, connectors, elbows, end caps, and wall-mountable connectors. The connecting elements, which join the cable ducts, simply snap together without adhesive… and can therefore be reused repeatedly. Simultaneously, these connectors prevent cables from slipping out of the (open) underside of the channels.

The interior cavity of the cable duct measures 15mm wide and 12mm high.

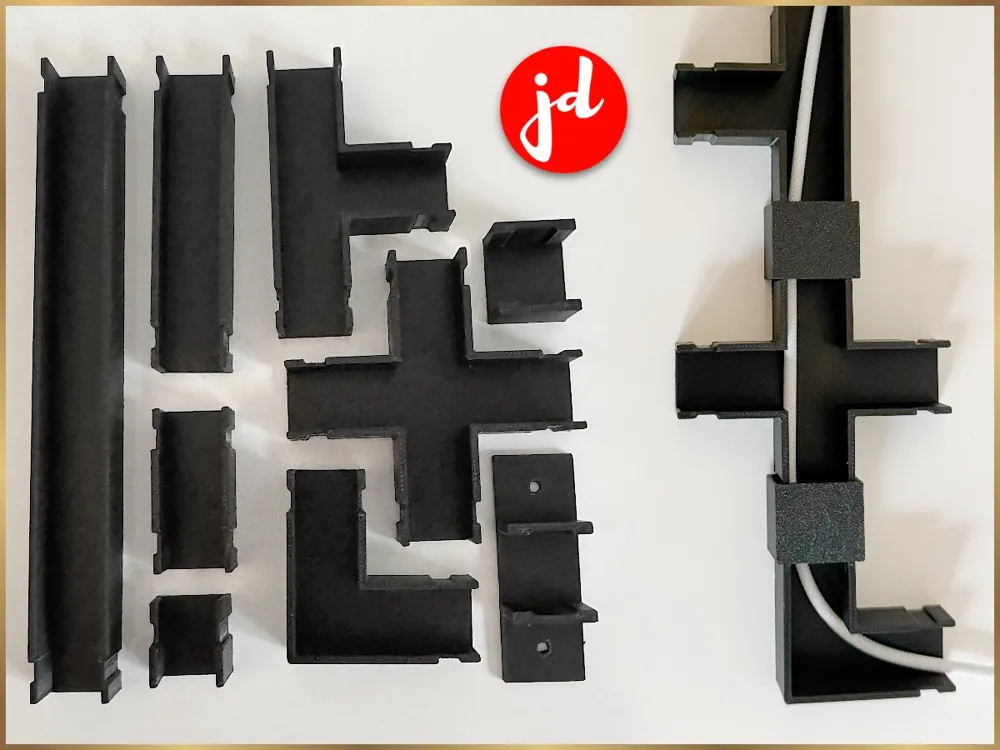

I have created a separate print plate for each component, allowing you to easily clone/duplicate the required number of each part for your project:

• Print Plate 1: 40mm Cable Duct
• Print Plate 2: 160mm Cable Duct
• Print Plate 3: 80mm Cable Duct
• Print Plate 4: 90-Degree Cable Duct Elbow

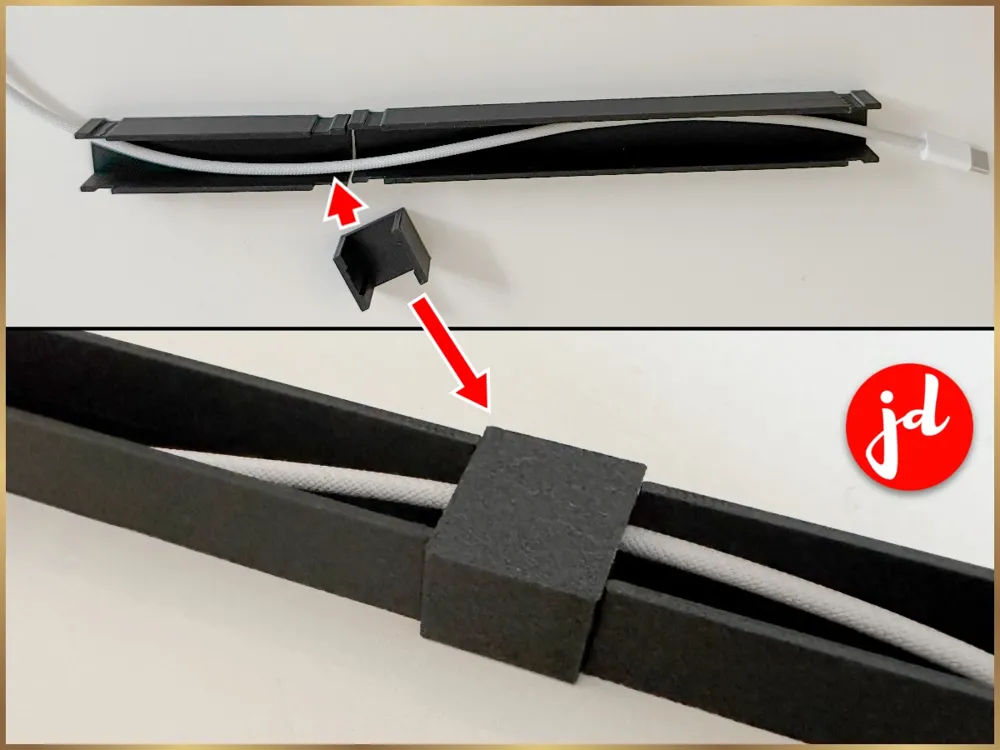

• Print Plate 5: Connector (to join two cable ducts)

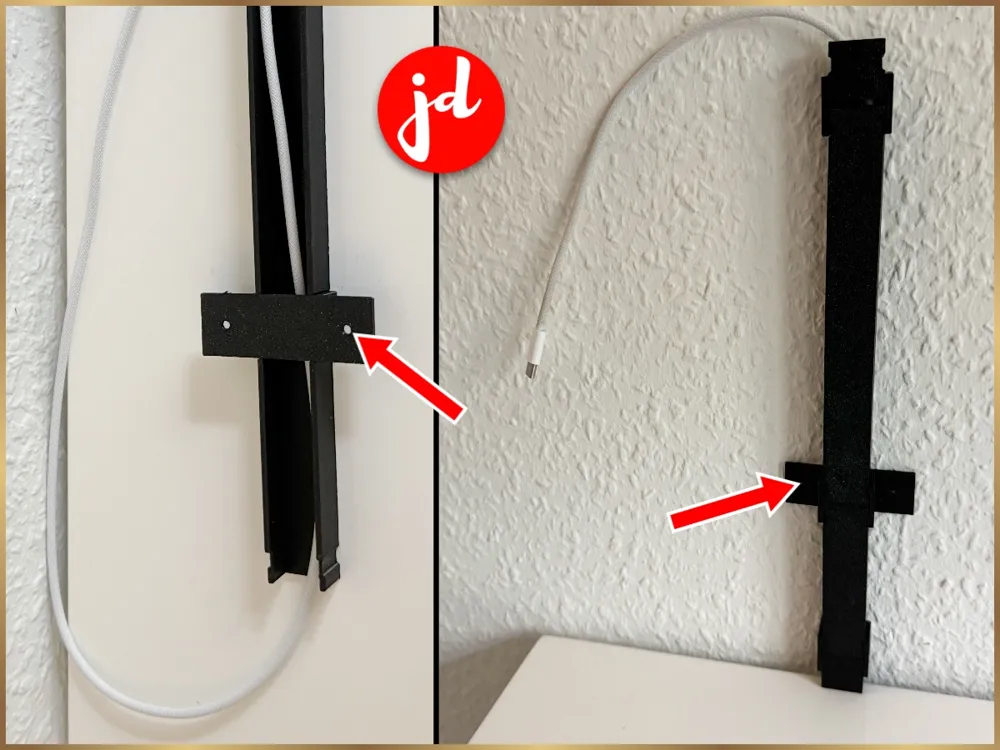

• Print Plate 6: Wall-Mountable Connector
• Print Plate 7: Cable Duct End Cap (for both the beginning and end of the duct)

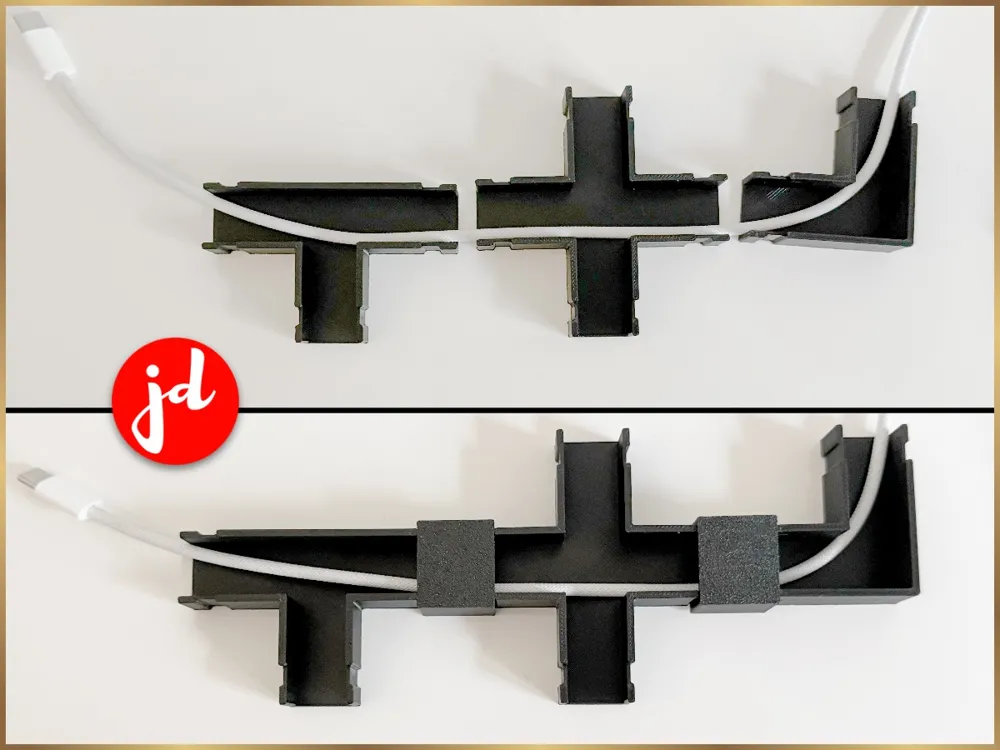

• Print Plate 8: Cable Duct T-Piece (Splitter)
• Print Plate 9: Cable Duct Cross-Piece (Splitter)

A small tip: If you frequently use the connectors (Print Plates 5 and 6), they may become slightly loose over time. However, you don't need to discard and reprint them immediately: In many cases, gently squeezing the open ends of the connector with your thumb and forefinger, slightly angling them inwards, suffices.

I am happy to answer any questions about the cable duct set and can also add further components as needed.

I welcome all feedback. Feel free to upload photos of your printed cable duct in the comments.

These print templates are exclusively for personal use.
If you wish to acquire a license for commercial use, please contact me.
