Infinite stackable U profile rail channel
Print Profile(1)
Description

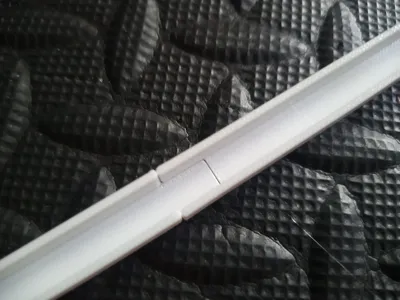

Stackable U profile designed for my automatic roller blinds (mosquito net)
https://makerworld.com/en/models/1554914-roller-blinds-mosquito-mesh-automated-beta
If you will using it also for mosquito net, I advice to scale it by Z axis at least to 30mm
Or ask at comments for non scaled 30mm deep version after subscription.
Used PETG material
Stacks better, than I expected.
10x10mm profile

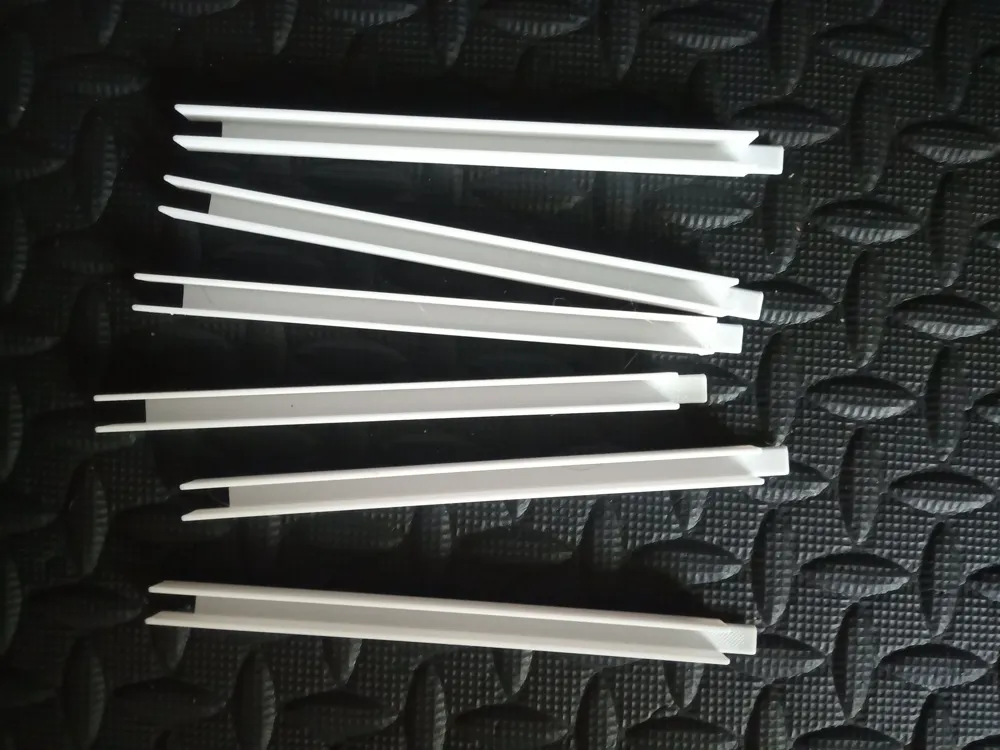

Length:
160mm (without joint)
170mm (with joint)
Added one side ends:
90mm (one side without joint)
100mm (one side with joint)
110mm (one side without joint)
120mm (one side with joint)
For second side end or other sizes or modifications - subscribe and comment.
Update:
Added Female end
