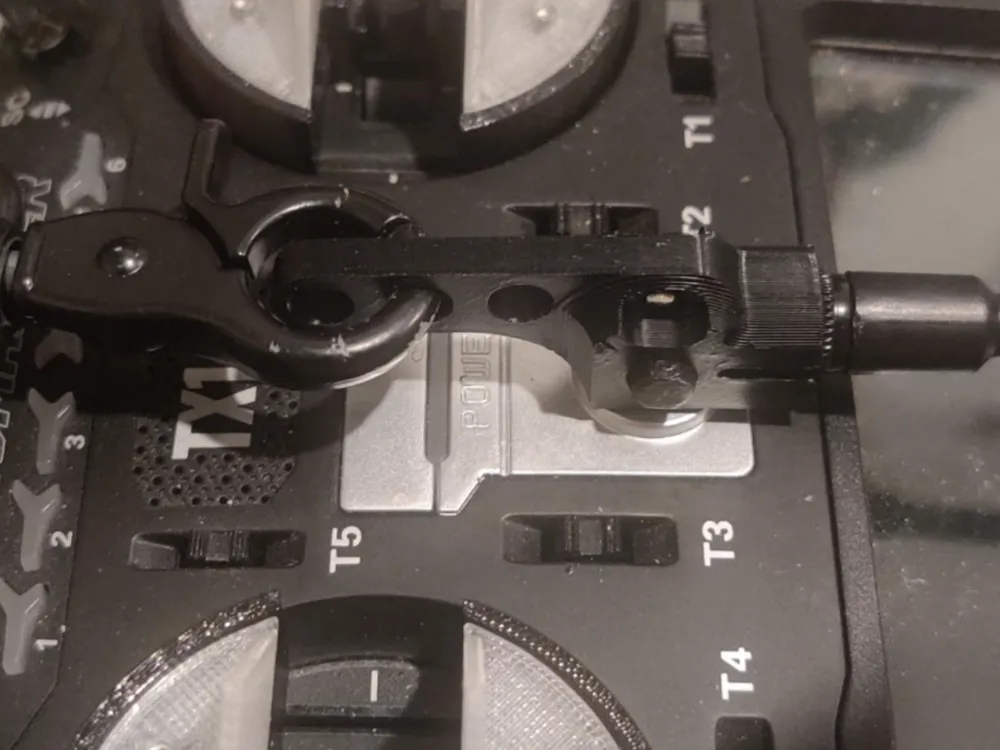

V2 available! I made it shorter as I found I don't really need any holes beyond the third one, and thanks to Geko.Forge, I put a storage stub below the mounting point for the ELRS external module antenna. Especially, when you have the T-shaped one, which doesn't fit in the box when mounted on, but this allows you to storage it safely in the box separately and reminds you to put it on.

Jan 17 2026

********************************************************

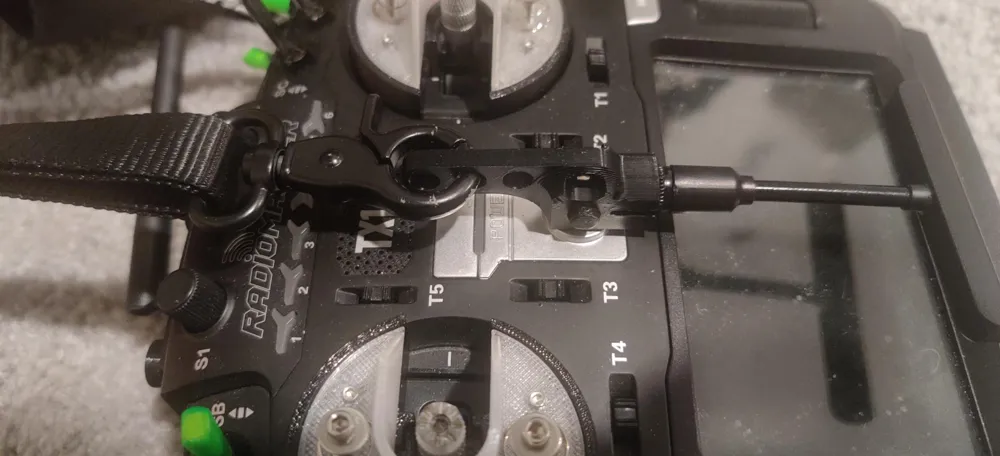

Found the CG is not right for putting on the lanyard on my TX16s with an FPV screen on top, so I made this to keep the lanyard on the CG of the transmitter.

Based on the existing design, which is made with aluminum, but this is a lower profile in height and specifically designed for TX16s and you don't have to take it off when putting the transmitter back in the box. There is one slot right above the pin position, for attaching the lanyard with the stock configuration and CG location.

It is strongly recommended to be printed with PETG or a material stronger and tougher, and I used Polymaker's PolyMax PC, but samples printed with esun's PETG HS also work. Print direction matters to prevent snapping along layers when loaded.
