Description

Background

This is a box I designed to house the OEM tools provided with the H2S/H2D combo as well as an additional tray to hold 6 hotends (enough for 2 of each size, minus what's installed on the printer already).

The box is a variant of Hugo's Parametric SnapLock Storage Box:

https://makerworld.com/models/377006

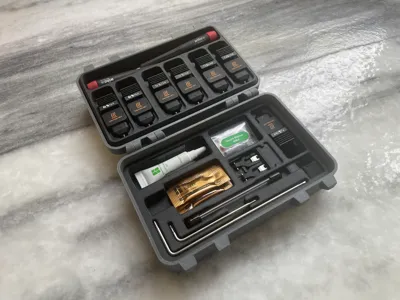

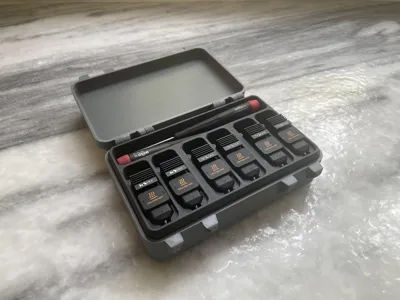

I reverse engineered and integrated the black plastic tool holder from Bambu Lab into the boxes base and added a separate hotend tray that sits on top of the tool holder. To gain access the tools, simply lift the hotend tray out and place in the lid.

Comment & Rating (481)

@MuckijuDesign

Print Profile

2-Color, All Components

I am very excited. 😍👌 Clean print, fits perfectly. Thank you very much for this great file 🙃 printed on my H2D with PLA Matte Black and PLA Basic Multicolor

Show original

@hareb.alsuwaidi

Boosted

Hi what green is this?

@MuckijuDesign

Replying to @hareb.alsuwaidi :

Hi, the color is PLA Basic Gradient Mint-Lime (10904)

Show original

@hareb.alsuwaidi

Boosted

thank you so much great design bery nice colors 🫡

@hilburn

A nice design overall I reworked it slightly, pulling the lower tray out into a separate insert (with a couple of snap-fit clips to mate it into the case) which let me limit the amount of material changes to just the logo on the lid and speed things up a fair amount Also very happy with the orange and black I shamelessly copied off @DocWalt

@Emmo213

Could you upload your remix please?

@hilburn

Replying to @Emmo213 :

I've uploaded it as a print profile

@Emmo213

Replying to @hilburn :

Thank you!

@DocWalt

Boosted

Print Profile

Modification with H2S logo

Beautiful design, easy to assemble, and looks fantastic!

The profile uploader has replied

@samfantaisy

The orange is pretty!

(Edited)

Show original

@user_2697987610

I'm getting some really weird slicing action here where it is using the main color for the infill in areas that are fully white. I'm already printing so I'm just going to hope the color doesn't show through the white but I want to make aware future makers maybe you can fix this before you send to the printer. I wonder if this is due to the way it was designed by sending models with native color maps from your cad program into bambu studios, where it might have been best to paint the colors from bambu studios internally?

(Edited)

The designer has replied

@user_2697987610

I think next time I'm going to plate out the white objects to print on their own

@BrandonRaineri

Hmm, I used the Bambu Studio paint tool (paint bucket fill command) on this design so not sure. I will play around with it when I get some free time.

@user_2697987610

It's probably my settings then. It looks like my white is opaque enough not showing through so everything is fine

@user_1584597926

Boosted

Print Profile

2-Color, All Components

Very high quality print! I used Bambu Labs Matte White and Matte Blue PLA.

@user_2971795503

Boosted

Hi, thank you very much for the project. This is one of my first prints as a newcomer to the 3D world. 😊 Everything went great, the hinges fit perfectly and the closure works as it should. The design is well thought out. After removing it from the build plate, I noticed a visually strange surface on the top and bottom parts. What could be the reason for this? Printed with PLA. Thank you for sharing.

(Edited)

The designer has replied

Show original

@BrandonRaineri

Those are stress marks from shrinkage. A couple of passes with a heat gun or torch will remove them.

@user_2971795503

Boosted

Great, thank you very much! 😊 🤩

Show original

@smallgnome

Print Profile

Modification with H2S logo

Awesome kit for the H2S

@Ashers_Pokemon

Print Profile

Modification with H2S logo

Fantastic design and print. Feels very study and substantial. I chose a basic clear PLA and a blk/blue accent Very well thought out and love the tray for additional hotends

@Bumblebee66

Print Profile

Modification with H2S logo

Good work, very nice and fits perfectly, thank you very much

Show original

@Brucie_93

Print Profile

H2D Logo - Minimal AMS

Really like this remix, no waste from a lot of color changes and fast print. Printed with my H2S, I highly recommend 👌
