HOOKII Neomow X caster wheel fix and upgrade

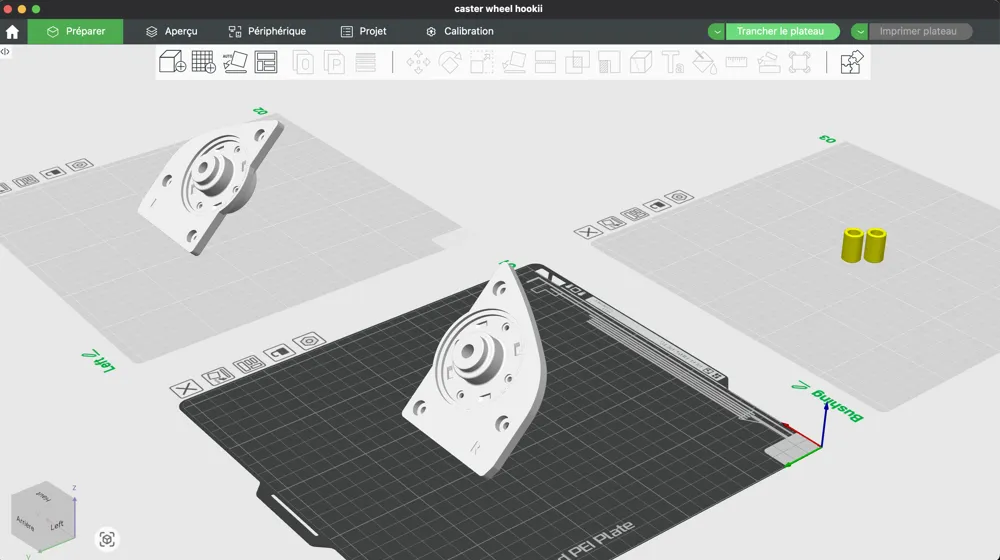

Print Profile(2)
Description

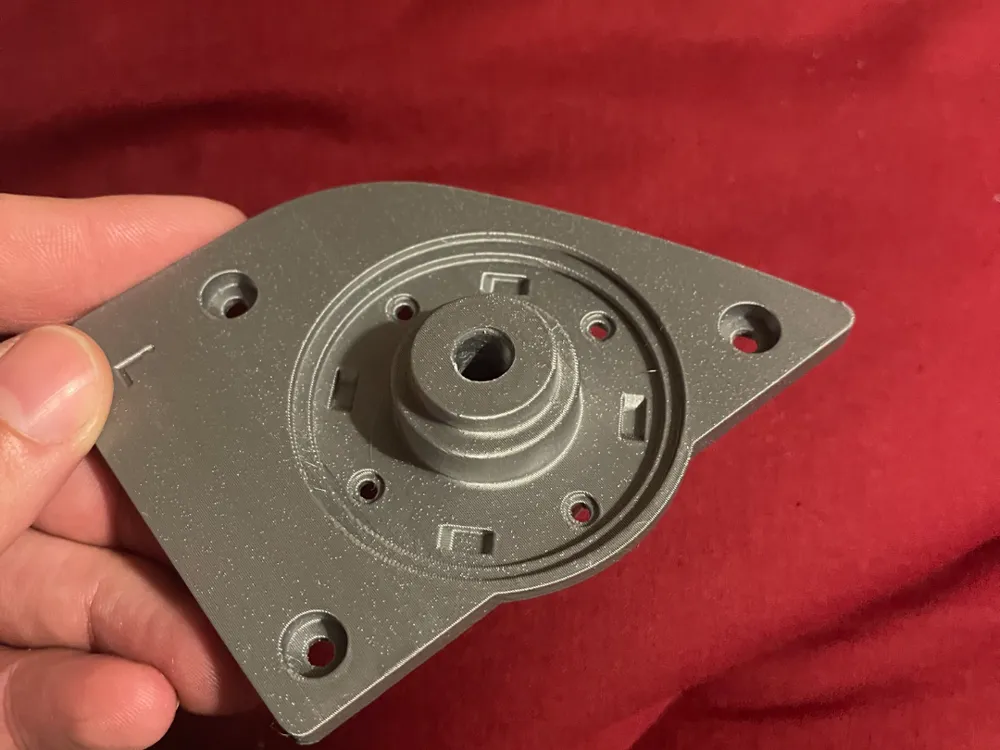

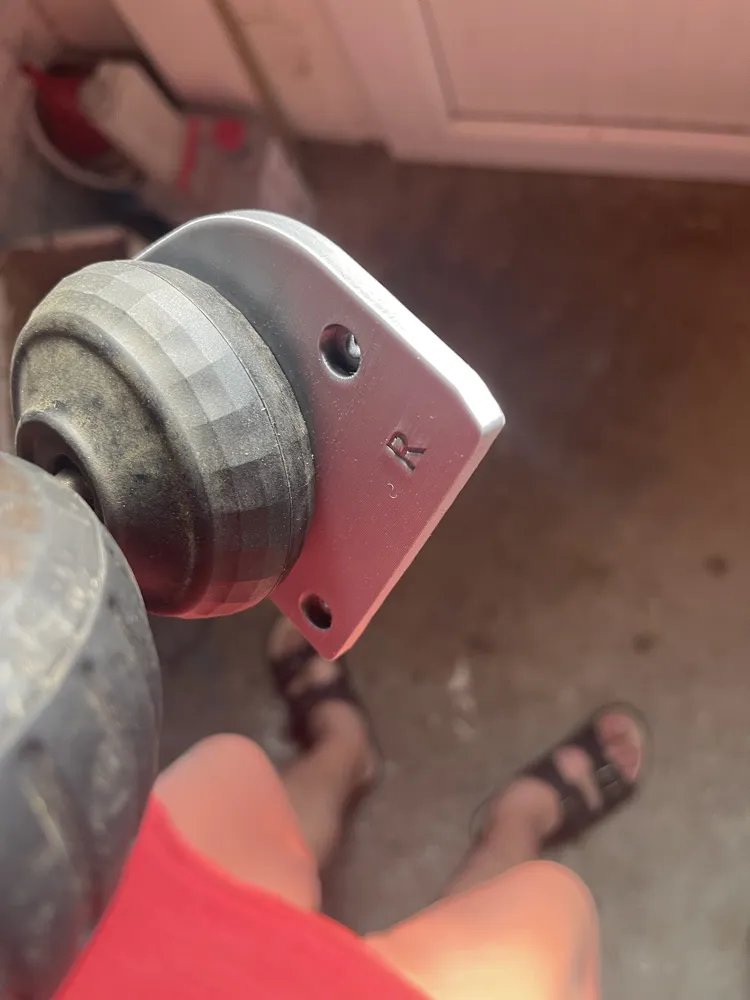

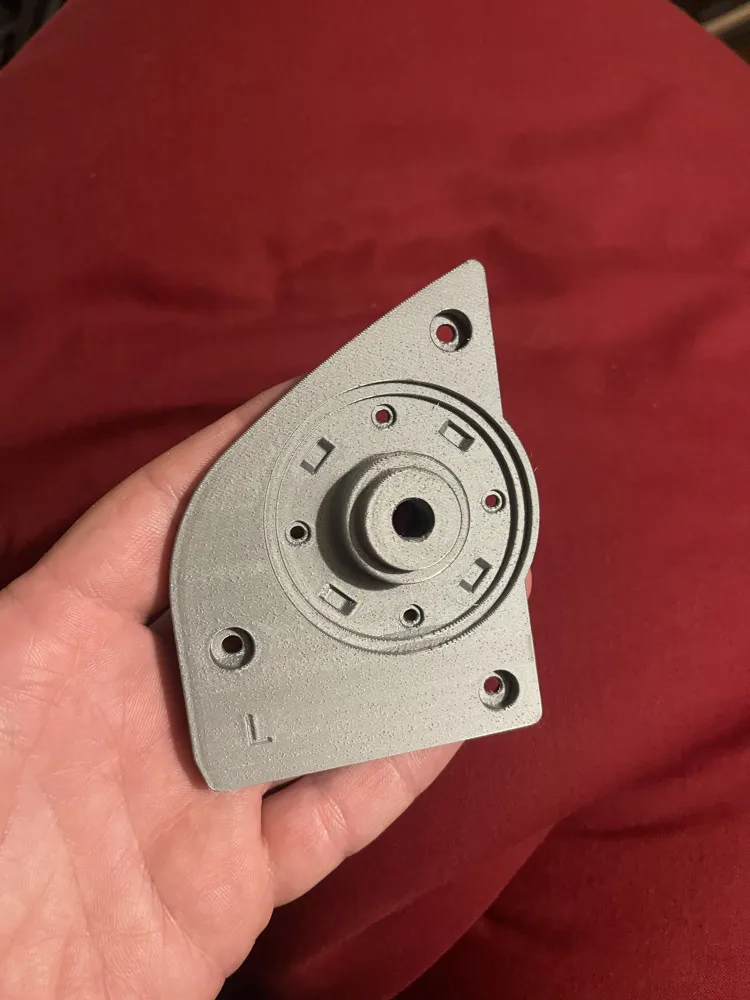

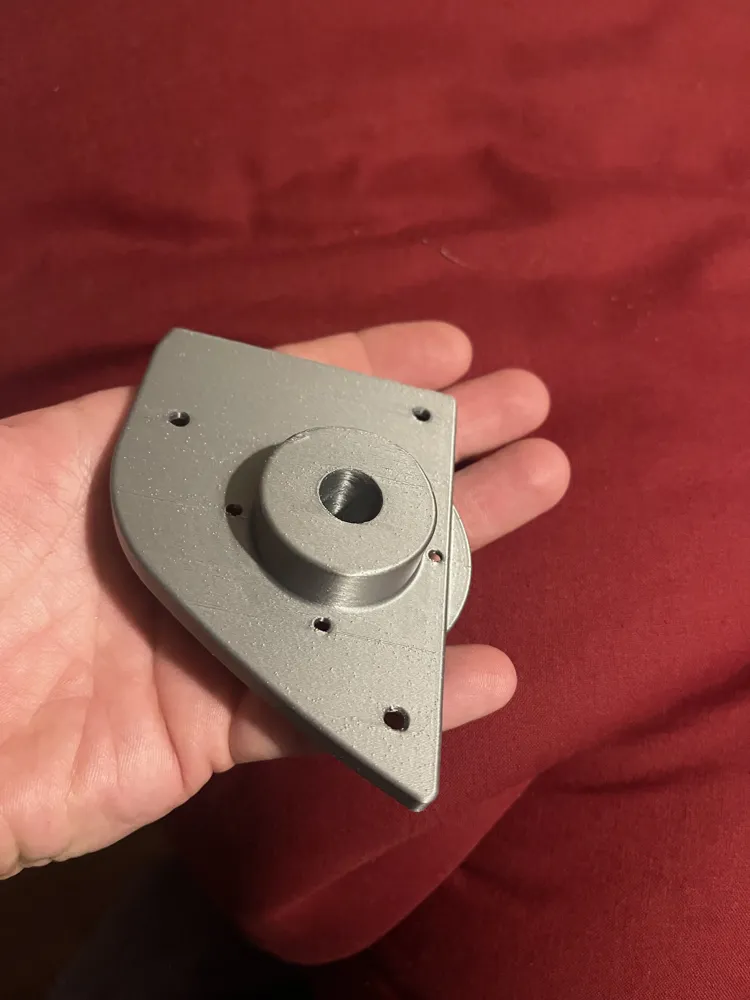

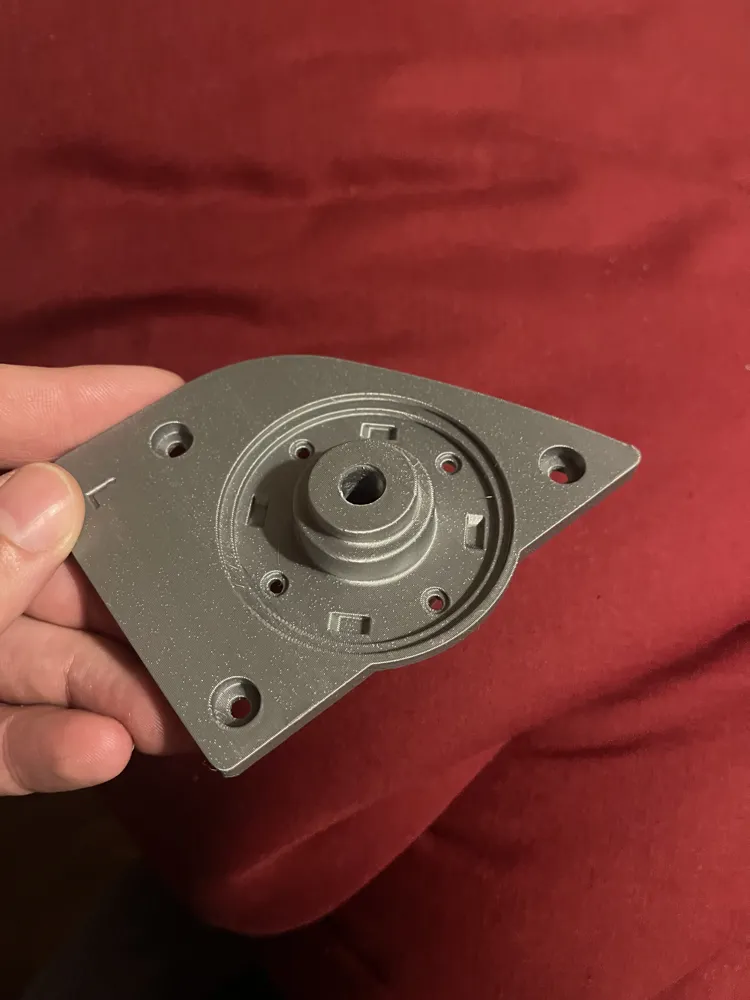

RIGHT AND LEFT rear wheel repair plates for Hookii Neomow x robotic lawnmower
this is an upgraded version of the original ABS design with reinforced thicknesses

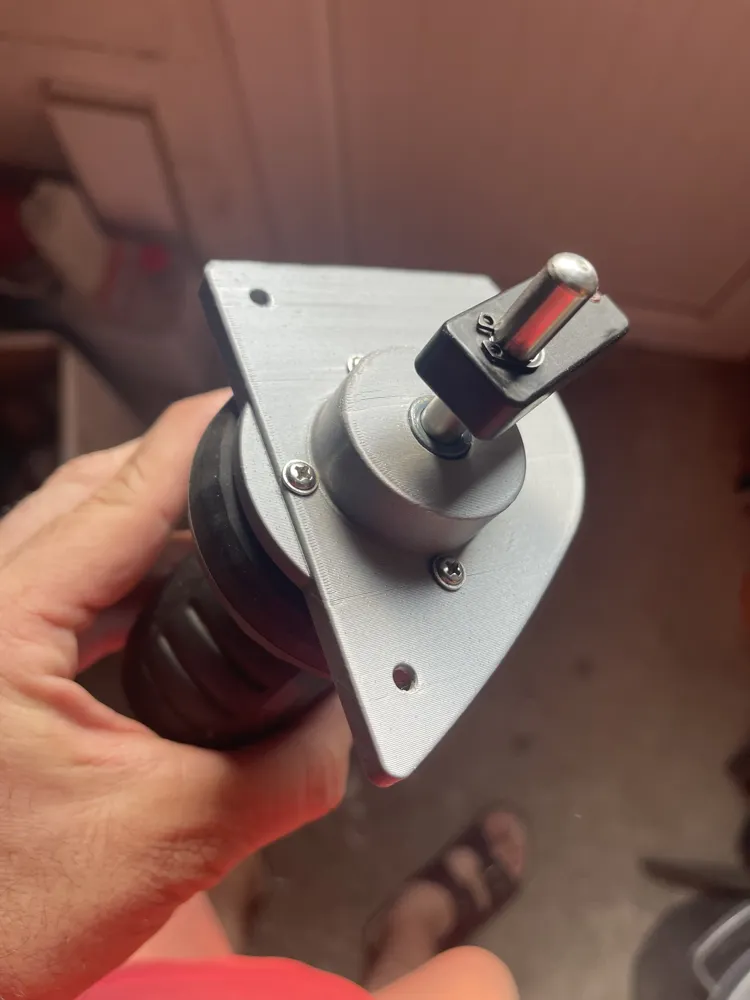

the plate can accommodate a ceramic guide bushing with an outer diameter of 12.7mm, an inner diameter of 8mm, and a length of 19.8mm
This bushing can be printed in PETG or other low-friction material
It is also possible to glue 2 IGUS Iglidur J bushings (JSM-0812-10) or any other guide as you prefer
for the plate, PA6-CF can be an option to optimize strength but should not be used for the sliding bushing
V2 with slight design correction!
- Use V2 if you do not have bushings but pass an 8mm drill bit after printing and use a little oil or grease during assembly for optimal sliding
