PD140w快充模块外壳
Print Profile(1)
Description

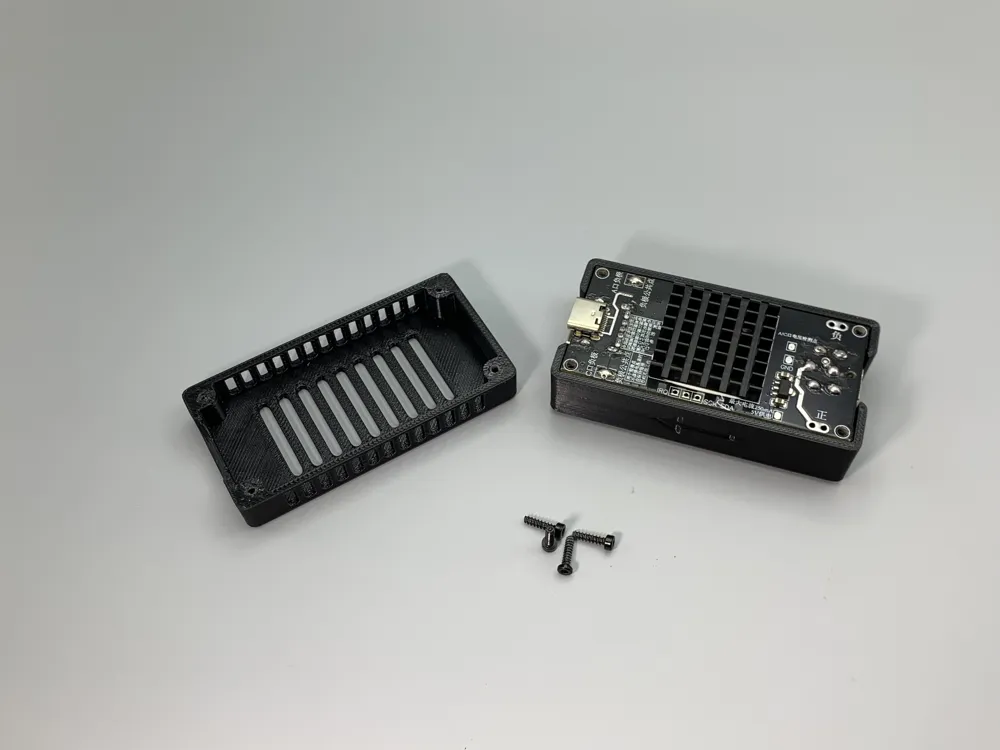

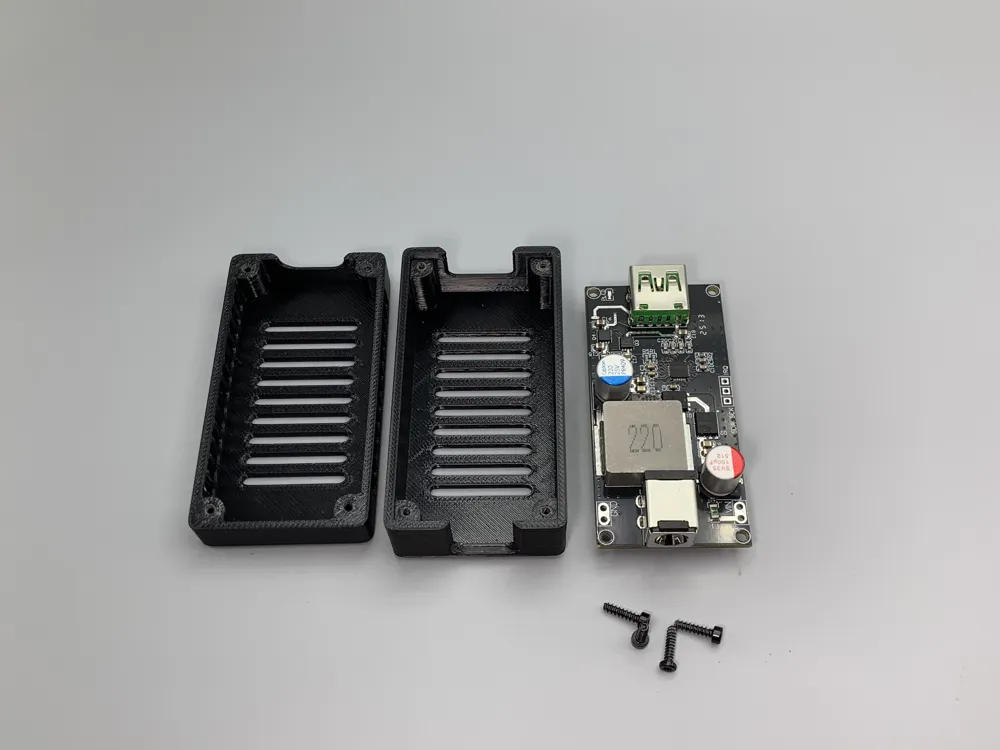

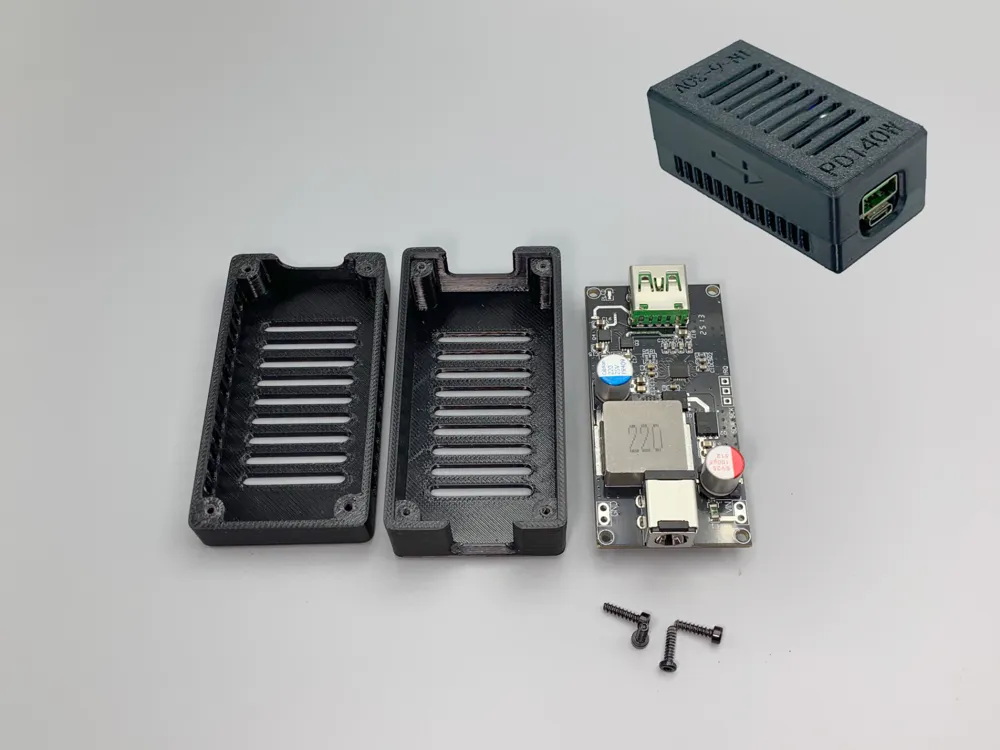

Housing compatible with popular 140w charging boards online, secured with four M2X8 socket cap screws.
High-power operation over extended periods generates significant heat; the design incorporates large ventilation holes, but requires high-temperature materials such as PETG/ABS for printing.

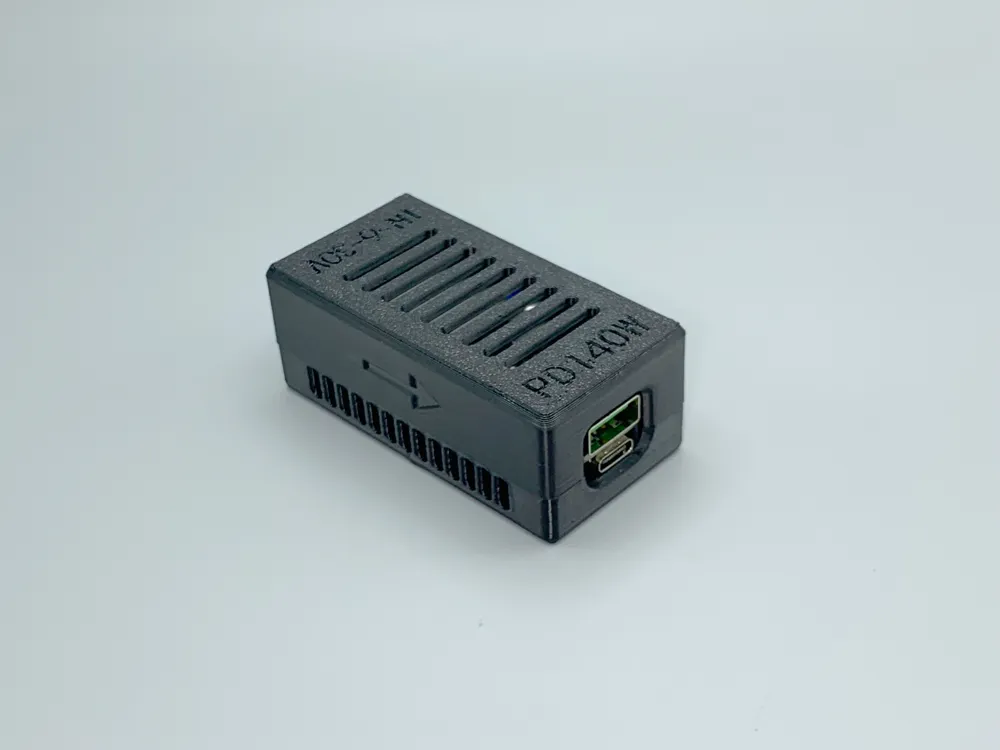

Compact and ideal as a desktop charging station, featuring accurate circuit board modeling and indicator light holes.
I use a 24v power supply with a current exceeding 5A.
Due to printing precision variations, screw holes might require minor adjustments, though this is rarely necessary.

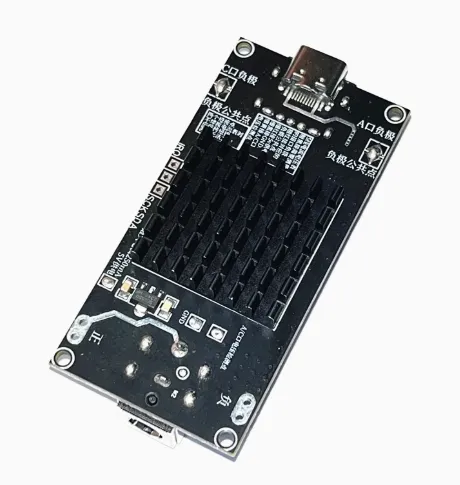

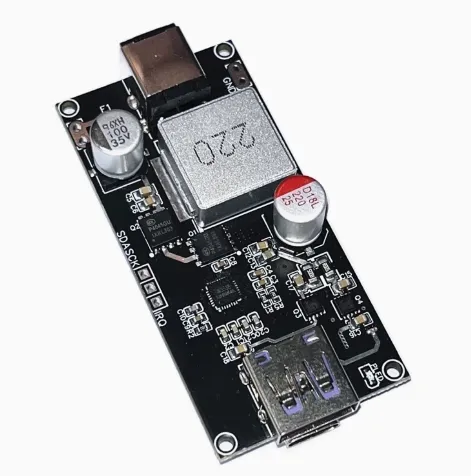

Charging board purchase link: https://item.taobao.com/item.htm?id=752022568745&spm=tbpc.boughtlist.suborder_itemtitle.1.73072e8dAs7v2W
M2X8 socket cap screws:
Power supply: 6-30v power adapter (5521 interface), 24v recommended, with a current exceeding 5A.
