Gutter Rainwater Diverter with Built-in Reservoir
Print Profile(1)
Description

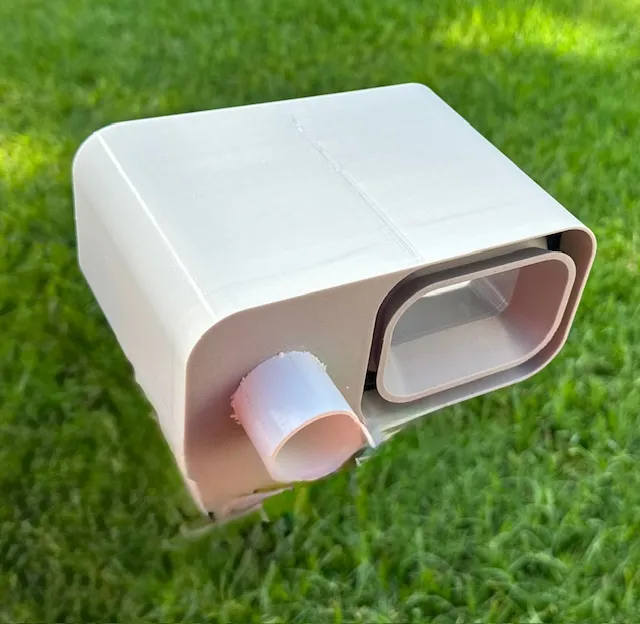

An efficient rainwater diverter for 3”x4” rectangular downspouts and 1” PVC systems. It features an internal mini reservoir that boosts pressure during heavy rain, helping jump-start water flow to your barrels. Designed to fit directly into a gutter seam, no screws or zip ties needed.
Note: this model has no leaf filter, ideal for gutter systems already protected with gutter guards.
✅ Tailored for 3"x4" rectangular downspouts
Filament: PETG (recommended for UV and outdoor exposure)
Features:

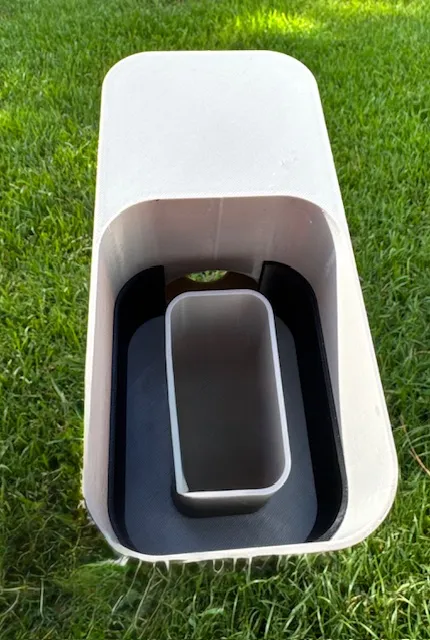

- ✅ Built-In Reservoir: Generates pressure for quicker barrel fill during heavy rain
- ✅ 1” Pipe Port: Compatible with standard PVC piping
- ✅ Fits 3”x4” Gutters: Slides into the seam—no mounting hardware needed
- ✅ No Internal Filter: Best used with gutter systems already covered by leaf guards
- ✅ Weatherproof: Built tough for outdoor use in PETG
Installation Tips:

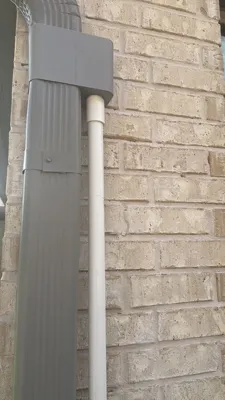

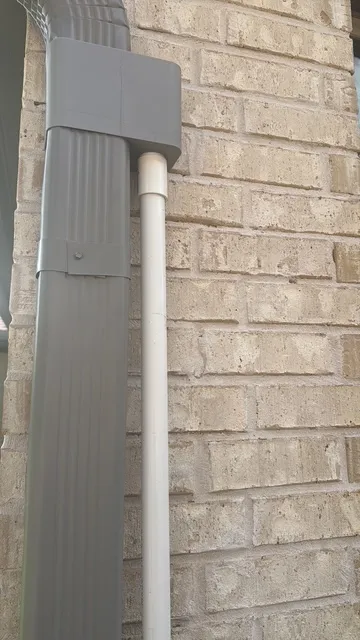

- Insert into the joint of your 3”x4” gutter downspout
- Connect 1” PVC pipe to guide water into barrels
- Use silicone around pipe connection for leak prevention if needed
Use Case:

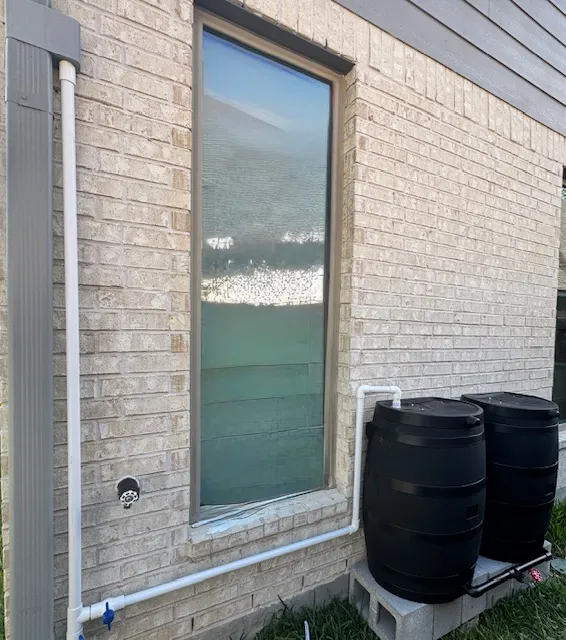

Tested in a dual-barrel system in Texas. The built-in water chamber helps speed up collection during brief, intense storms.
