SCART-SnapFit for Gscart 8:2

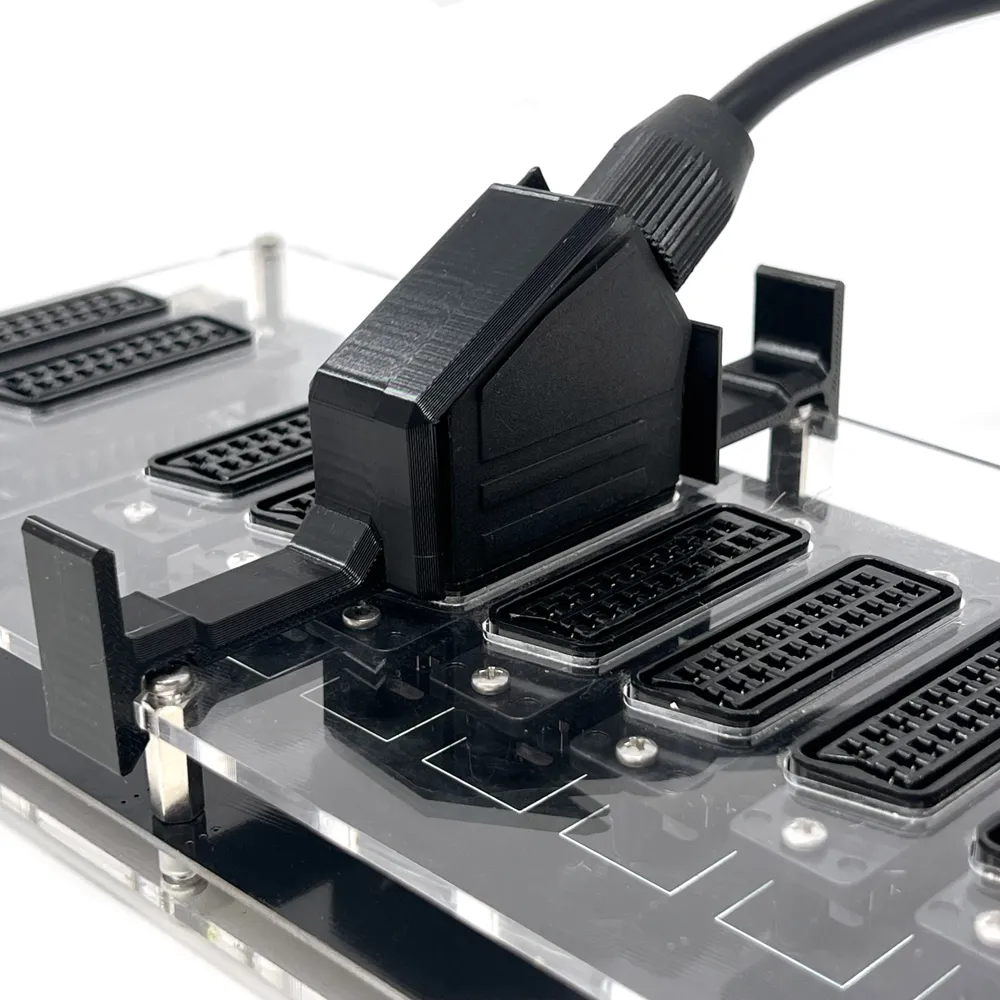

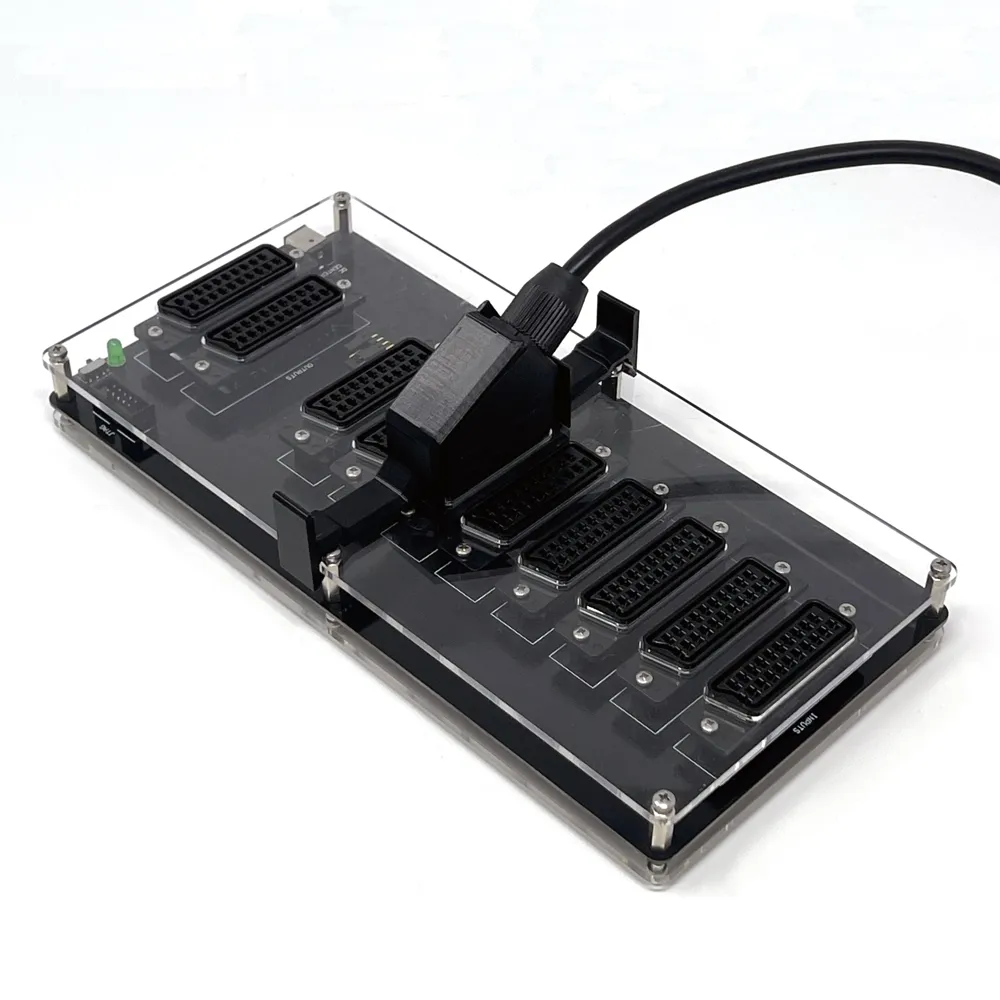

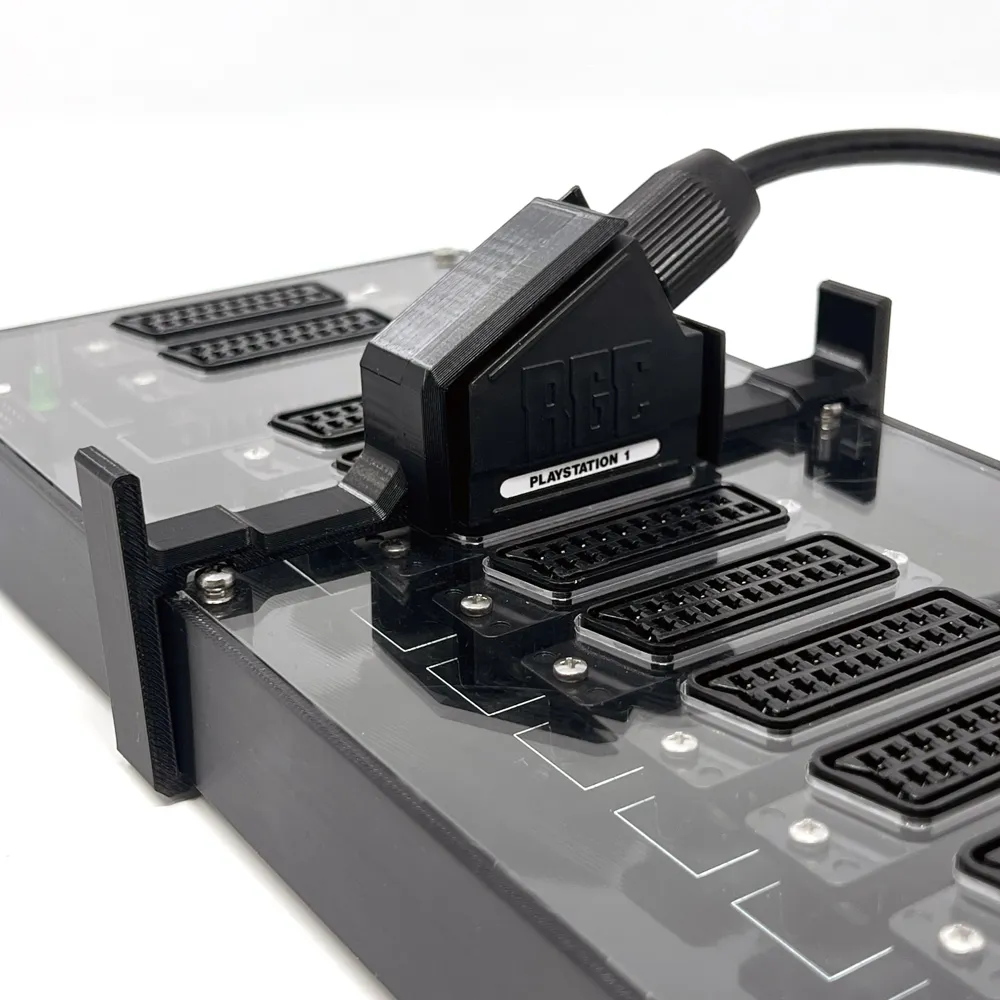

SCART — it delivers fantastic crispy video, but the gentlest breeze will knock the connector loose. Securely snap the male SCART connector in place on your gRetroStuff LLC (“superg”) gscart 8:2 (aka “gscartsw”) Automatic SCART Switch with the SCART-SnapFit™.

This is designed to be compatible with standard generic SCART heads. It will not fit over larger heads such as those held together with screws, and metal heads.

The SCART-SnapFit for Gscart 8:2 is available for purchase on the Kytor Industries Store.

Printing:

• Use Elegoo Rapid PETG or alternate PETG
• PLA, ABS and ASA are not recommended
• 0.4mm nozzle, 0.2mm height, minimum 15%+ infill, 2+ walls
• No brim or supports necessary

Assembly:

• Insert your male SCART cable into the gscart.

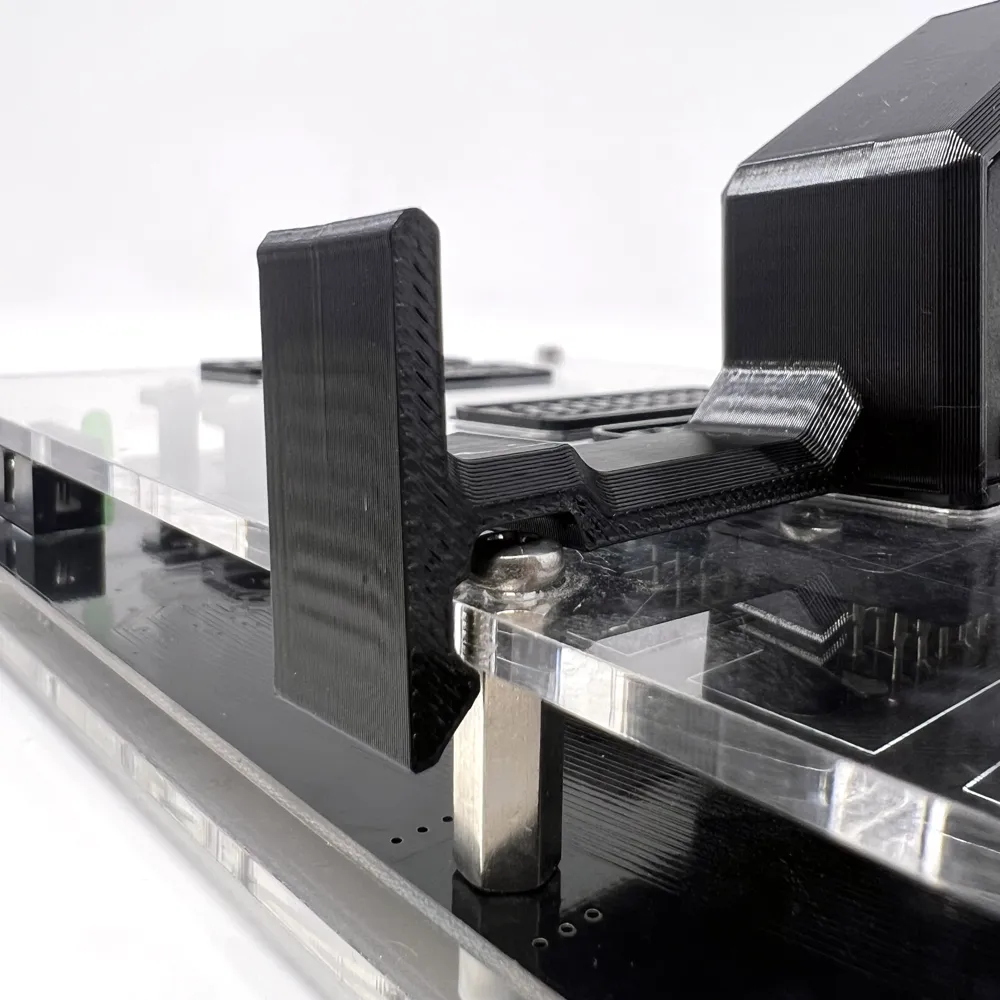

• Drop the SCART-SnapFit over the top and snap into place.

Variants:

• -00 is for the standard gscart 8:2
• -30 is for the Laser Bear Industries Bumper Case.

Revision Log:

• Rev0 - Initial release

Note: Amazon links are affiliates.
