Injora IR60 Truck Bed, compatible with TRX4M and REDCAT ASCENT18

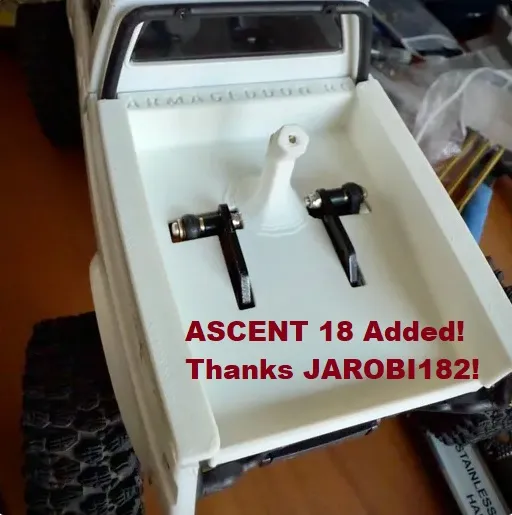

Edit January 12 2025 - Thanks to the generosity of JAROBI182 remixing my design, this truck bed is now ready to fit your Redcat Ascent 18 as well!

Designed for the Injora IR60 truck body as an attachment. No charge! Just enjoy my design! :)

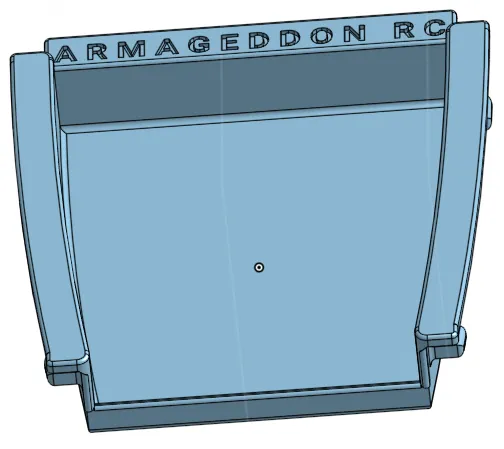

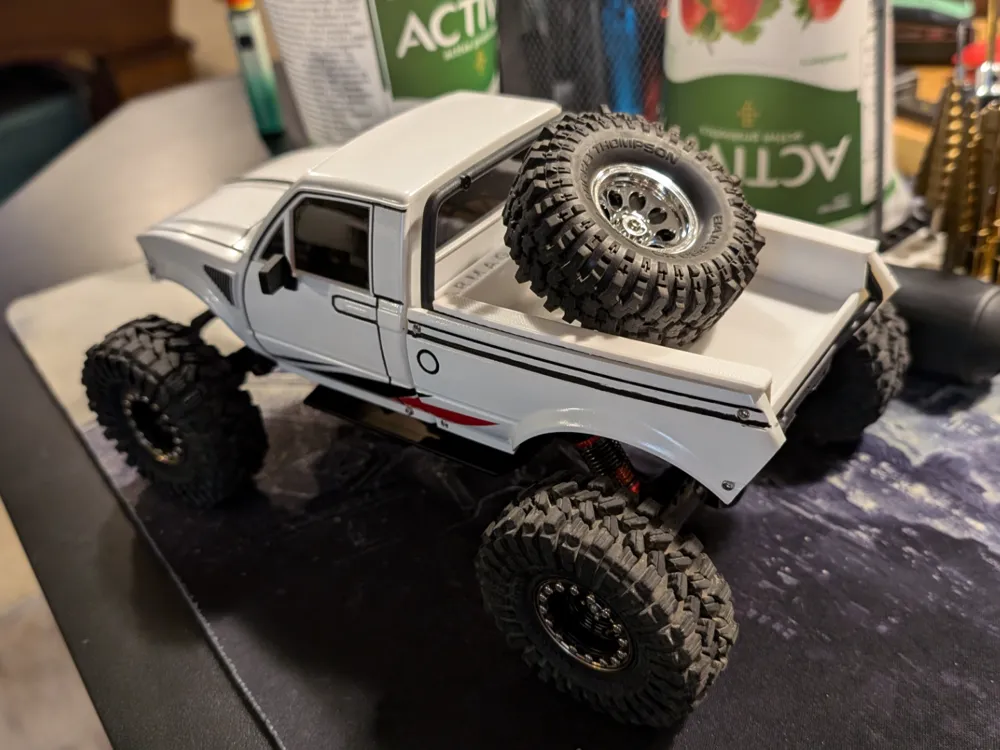

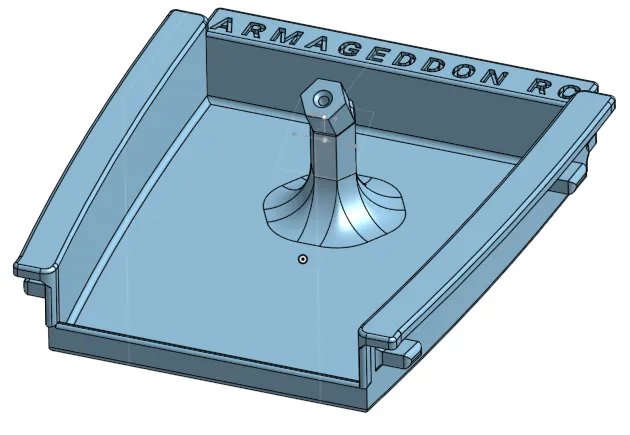

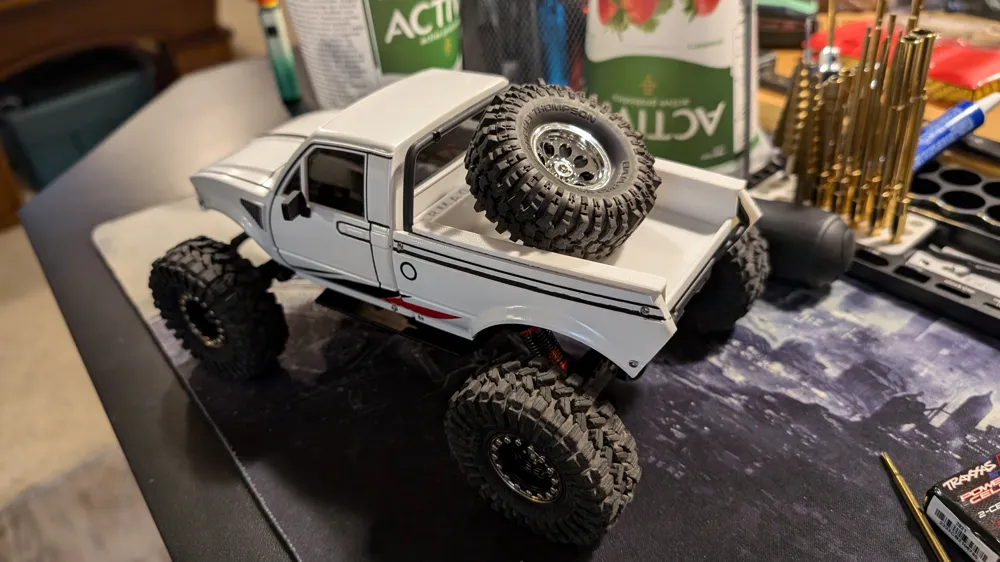

I have attached two models - one with a spare tire mount, and one without. This is designed to be installed without screws inside the IR60 rear body cage (Used with the Injora LCG Universal Chassis). The truck bed has just enough clearance to stay above the rear shock towers - I have my battery installed underneath the truck bed, and all wiring and hardware is below the top edge of the carbon fiber.

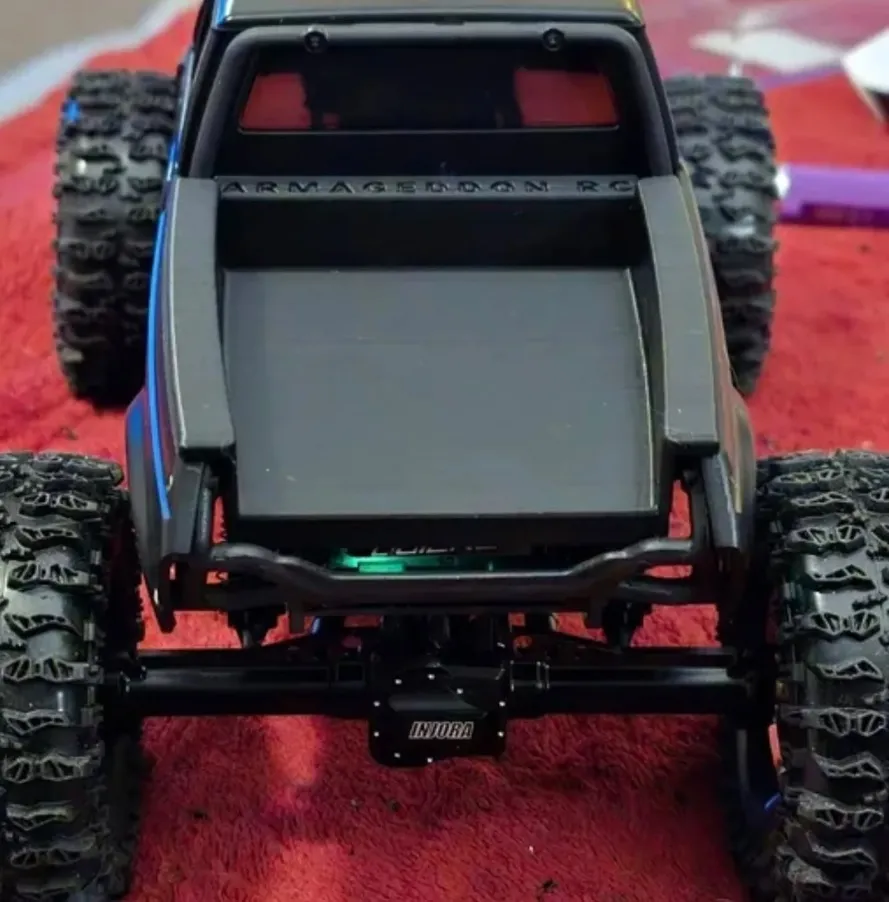

To install, remove the left and right rear body panel so that the upper roll cage bars can be removed. Unscrew the rear bumper from one side so that the body cage can splay open. Then, simply slide & snap into place the truck bed before reinstalling the rear screws. The nubs on the side and front of the bed should hold on to the cage to keep it in place - make sure it is snapped all the way forward to ensure everything fits. Went together flawlessly as you can see from the photo!
