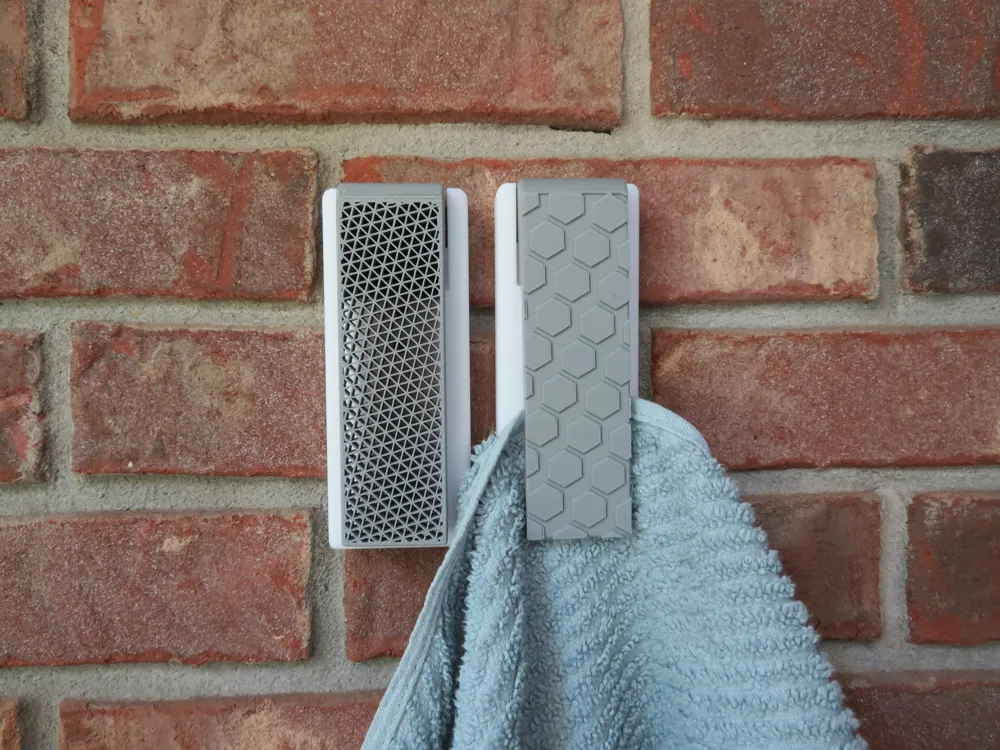

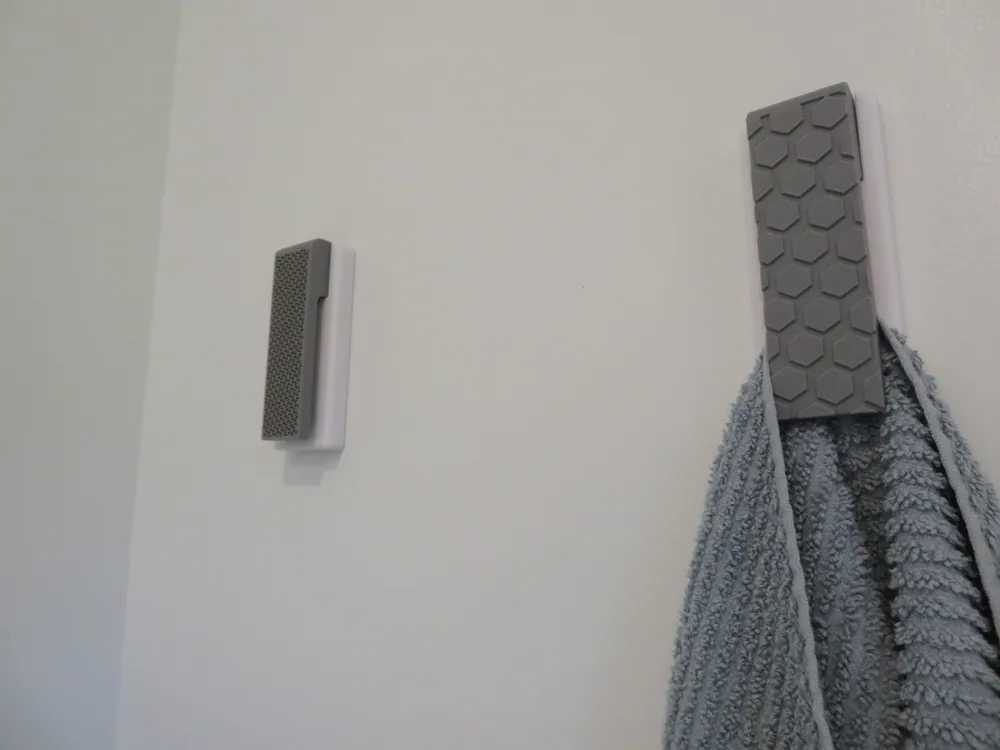

Gravity Hook | The BEST Towel Hanger
Endless Customizability for Your Pattern | Prototyped this design 10+ times | Sleek & Aesthetically Modeled Design
I saw this design when I was looking for an accessory for one of my printers and I thought it was pretty cool to see and it looked modern and functional and it certainly ended up being quite the time consumer. I spent an off and on month and a half working on different versions, pattern choices, and testing. So I give you one stock pattern of hexagon's, and the option to customize it with only a few clicks in your slicer.

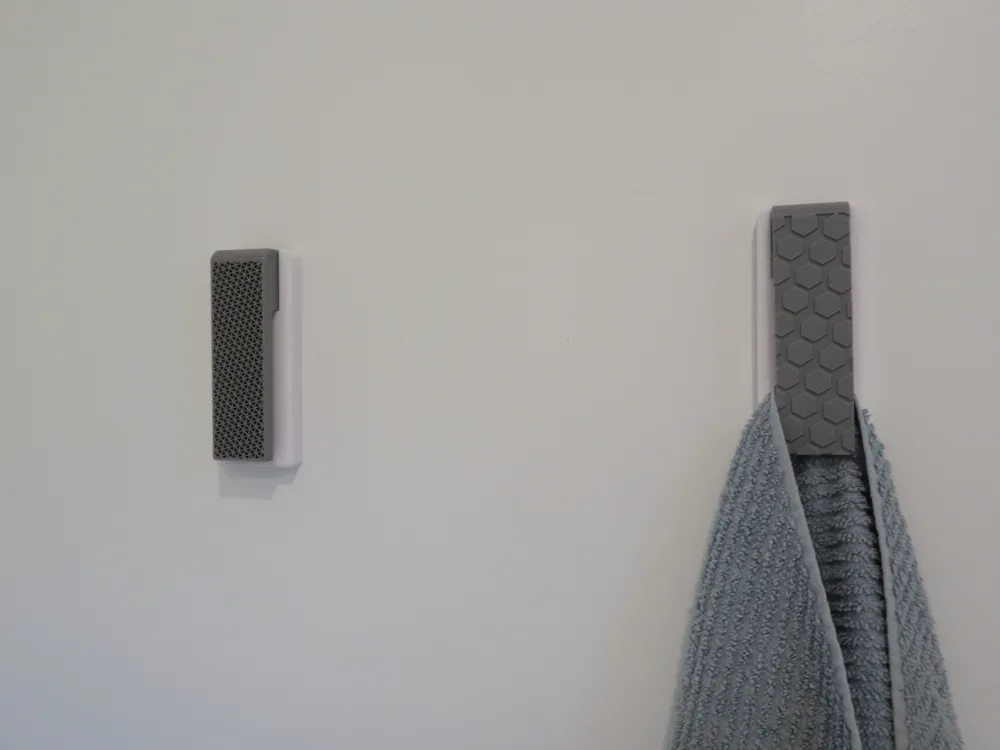

IMPORTANT: This is meant for hand towels and lighters ones, I don't recommend heavy towels, but if you do just curve the top of the towel so when you let go it sits on the marble and doesn't slip.
The BEST Parts of this Design:

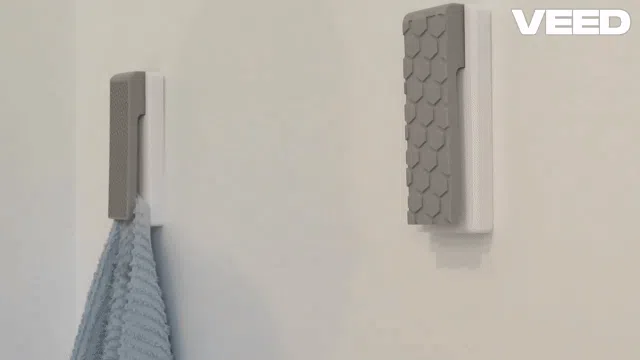

✅Gravity-Activated Grip - Automatically clamps when weight is applied, no springs or latches needed

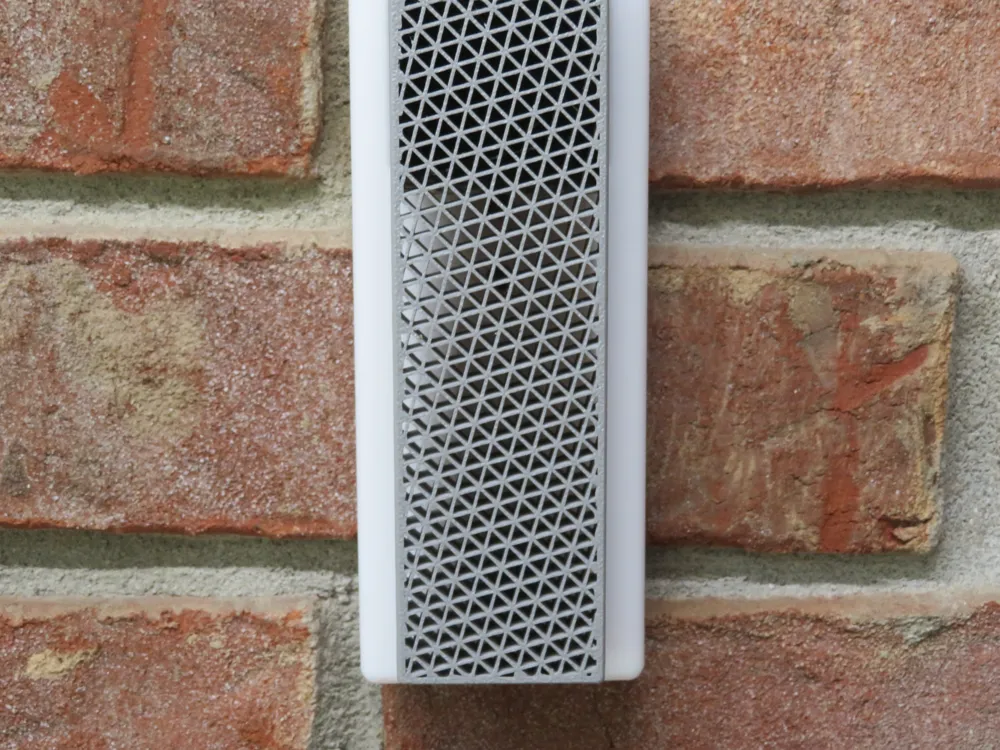

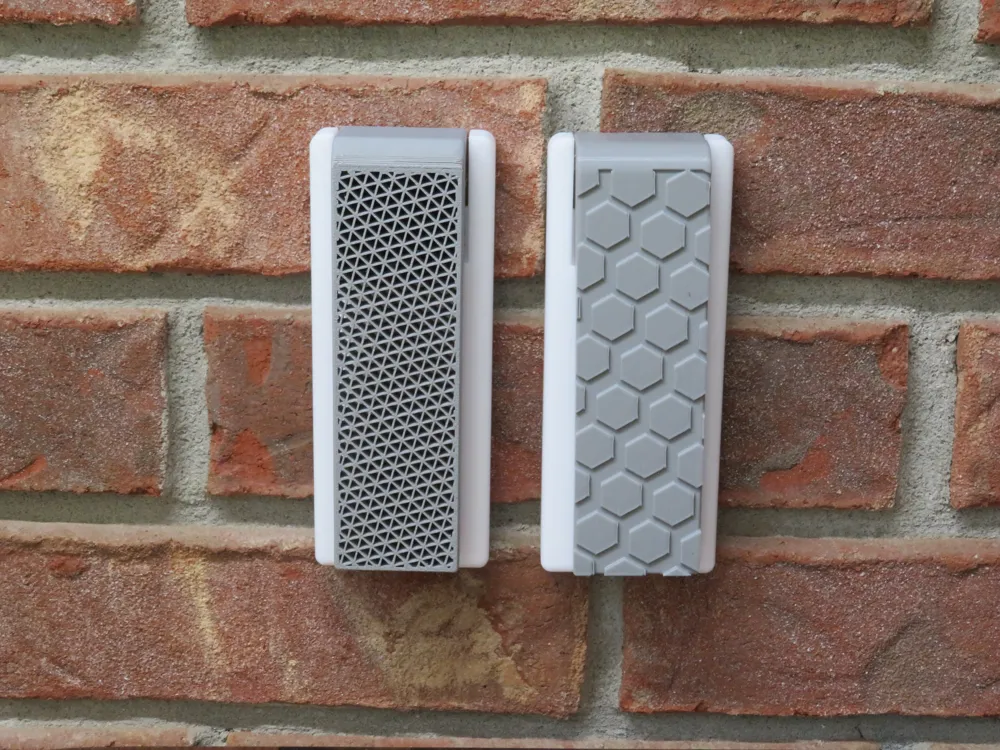

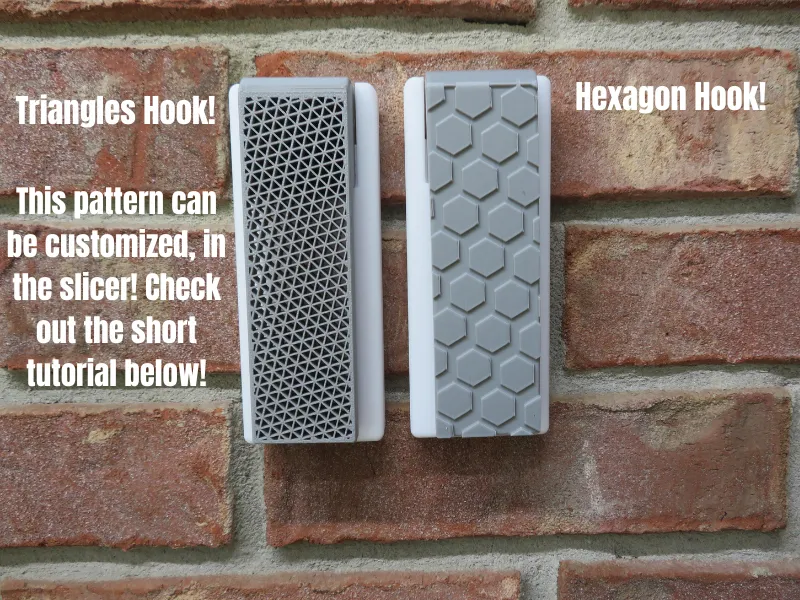

✅Customizability: Easily change the design pattern in the slicer
✅ Strong & Snap-fit: Simply Snap the Parts Together for A Strong Sturdy Design
✅ Profiles: .3MF Print files for Prusa Slicer, Bambu Studio, & Anycubic Slicer Next
✅ Modern & Aesthetic: A Sleek design that you'll instantly want to print
✅Attachment Made Easy: Two Ready made screw holes the ideal size to attach to you wall
✅Non-Damaging Hold: Firm grip without tearing or pinching fabric
✅Durable Construction: Withstands daily use in bathrooms, kitchens, garages or outdoors
Free Patreon Members got access to the .F3D File since they were exclusive members! Make sure to join!
Make sure to check out my patreon page! If you join for free you can receive (free) exclusive models only on my patreon! Also have access to more updates, polls, requests, and many other benefits! My Master Printer Patreon
Make sure to check out my designs: Printables | Makerworld | Makeronline
Boost Me (for free)
One boost equals a bit less than 50 grams of filament, and I usually use 50 grams per project! So every boost matters and means a lot! Thanks & Have A Great Day!
Customization Tutorial for Patterns: (Prusa Slicer, Bambu Studio, Anycubic Slicer Next)
Follow this tutorial if you don't use any of the provided profile.
Step 1: Import the file to your slicer.

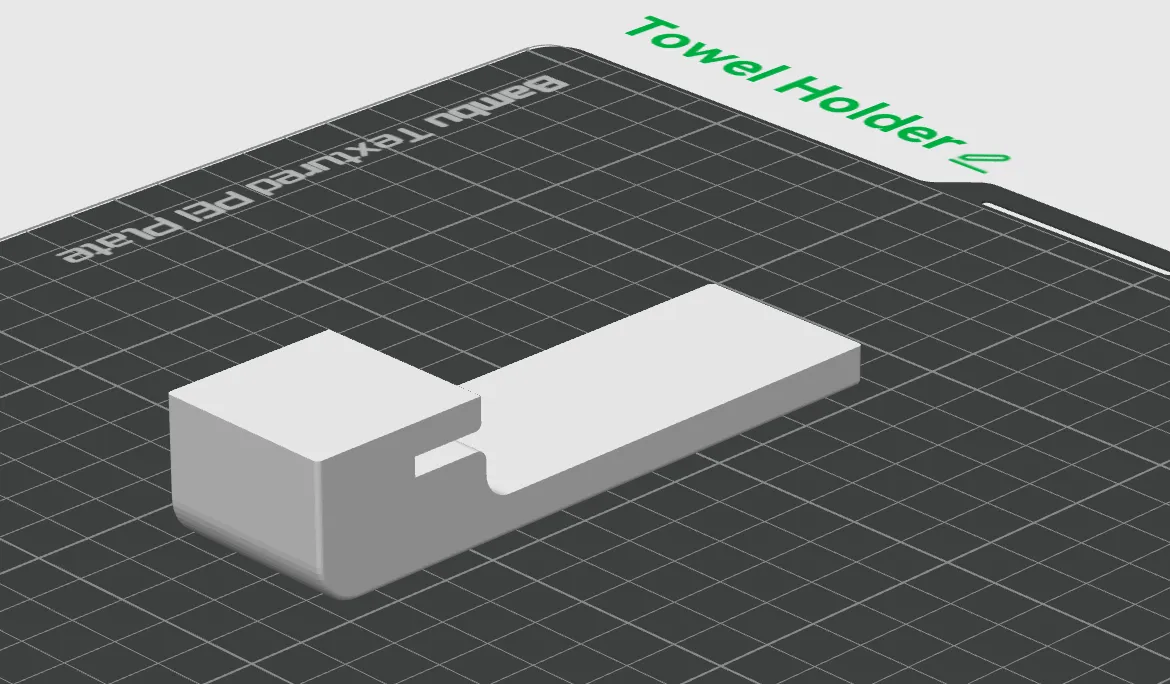

Step 2: Place it on the face like so in the photo.

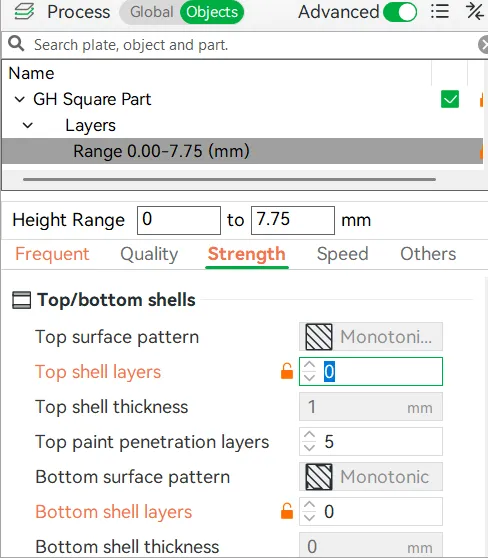

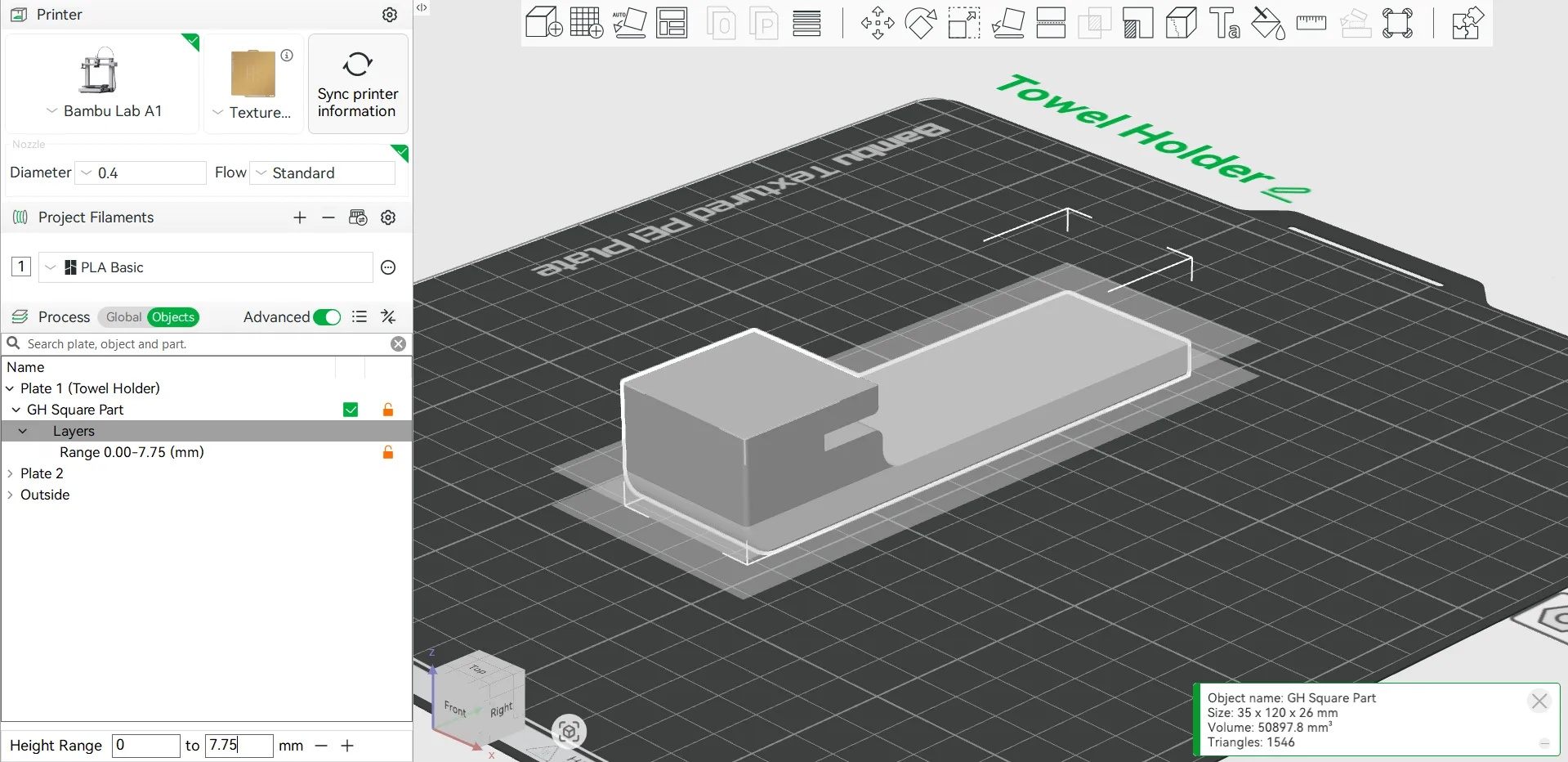

Step 3: Right-Click & Add a Height Range Modifier, set from 0 to 7.75 for the best results.
Step 4: Click Range in the sidebar, and turn top and bottom shell layers to 0.

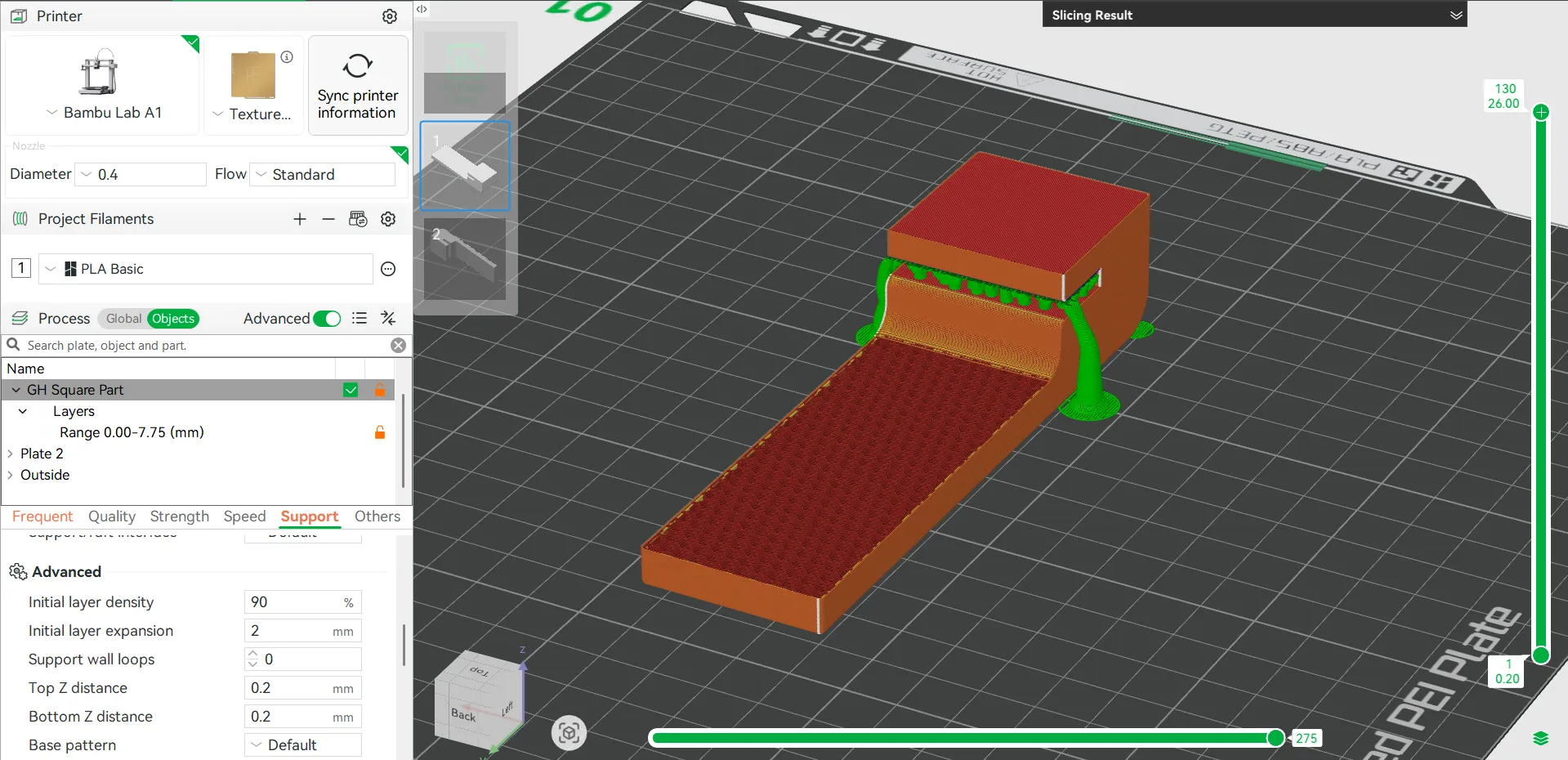

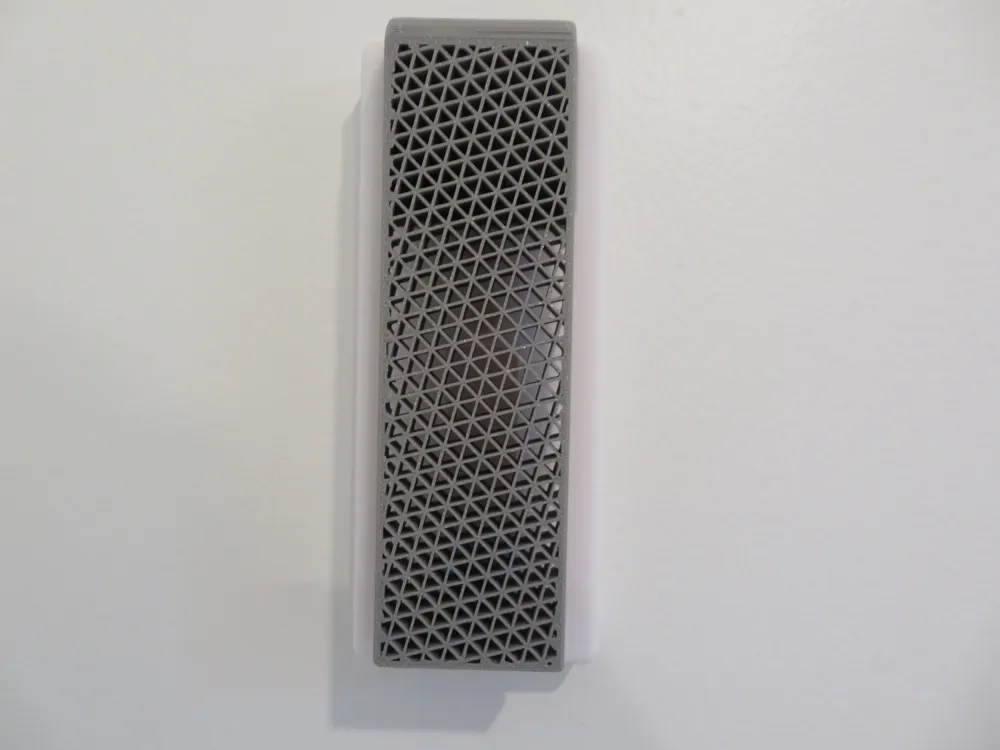

Step 5: Go to infill and infill pattern choose which pattern and which % of infill that you want. (I recommend honeycomb or triangles, at 25%-40%) Then enable supports (tree auto) for the best results!
Print & Enjoy your custom pattern!
Reminder, the customizable pattern is only visible when you slice the blank patterned design profile or follow the tutorial above!
Size: (±1 mm)
Base Part: 50 x 125 x 13 (mm)
Hook/Top Part: 35 x 120 x 26 (mm)
Together: 50 x 125 x 26 (mm)
Screw Hole Size: 5 (mm)
Print Settings:
Infill: 25%
Infill Type: Up to You
Perimeters: +2
Filament: PLA or PETG (You really choose whatever suits you)
Brim/Raft: NO
Supports: YES/NO, Yes if you are doing the custom pattern choice.
Enjoy & Have A Great Day!
