x-sense heat detector xh02s-m magnetic mount
Print Profile(1)
Bill of Materials
- M3x4 counter sunk screw x 2: https://www.amazon.de/dp/B0713SSDVX
Description
Magnetic mount adapter for X-Sense xh02s-m

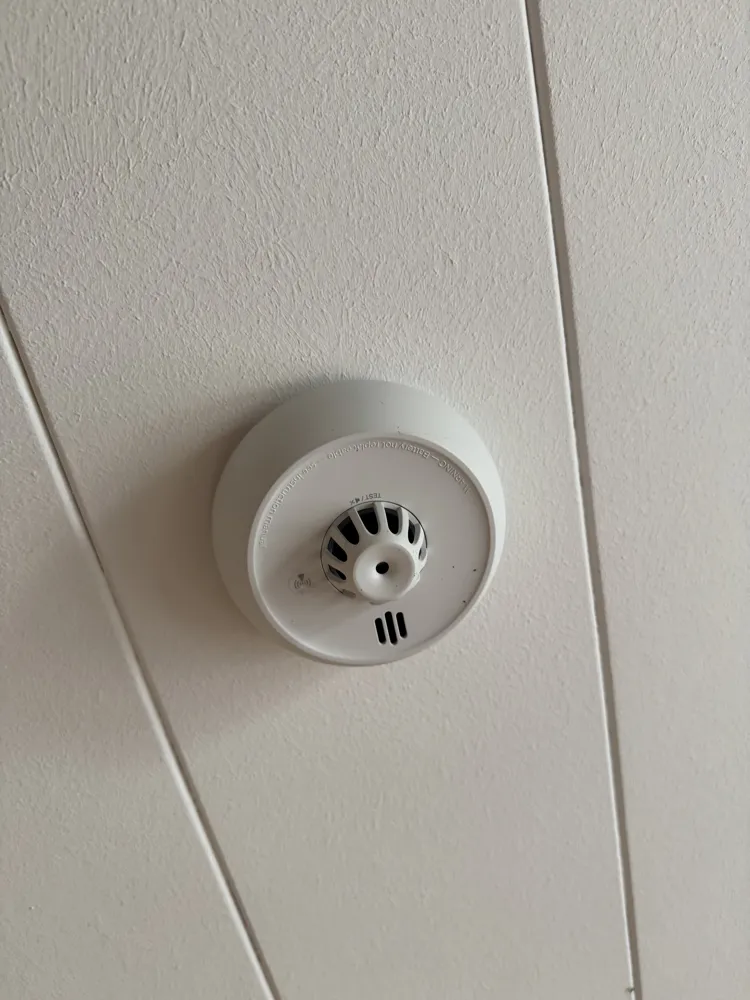

Adapter to mount a x-sense heat sensor by magnet on the sealing
what you need: (for each adapter)
2x countersunk screw m3x4
2x melt insert m3 short (4mm)
3x magnets 20x2,5mm (7kg) (be aware added the bambu 20x3mm should also work, didnt test it)
1x magnet smoker detecter mount (see amazon)
insert the melt m3 insert in the adapter

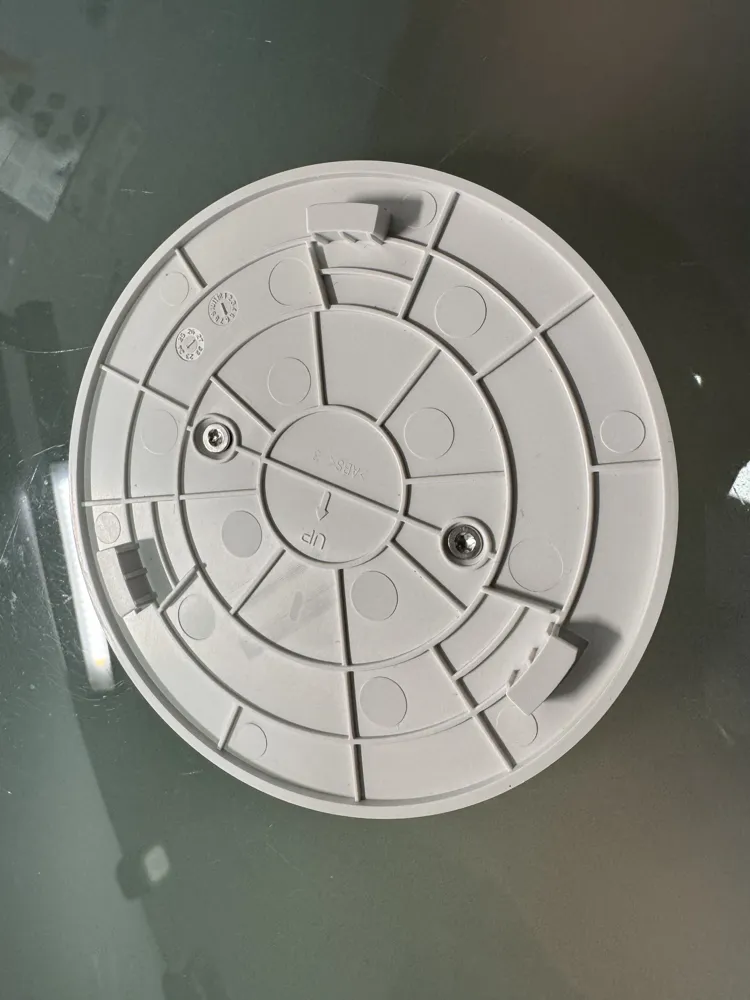

mount the original xsense mounting adapter with the 2 m3 screw onto it.

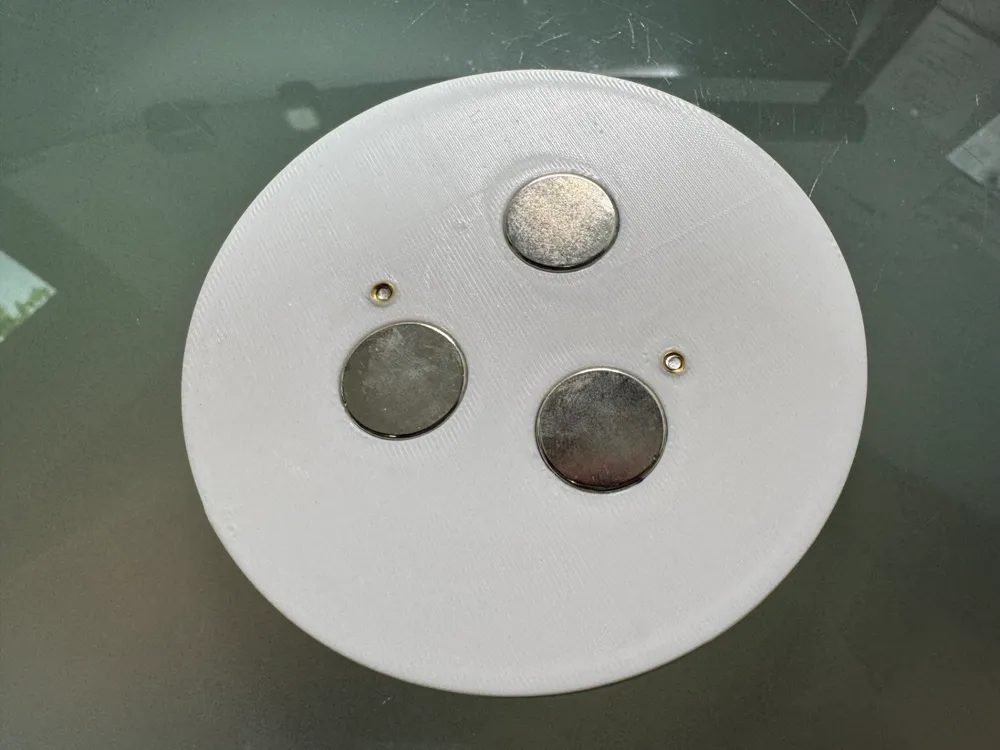

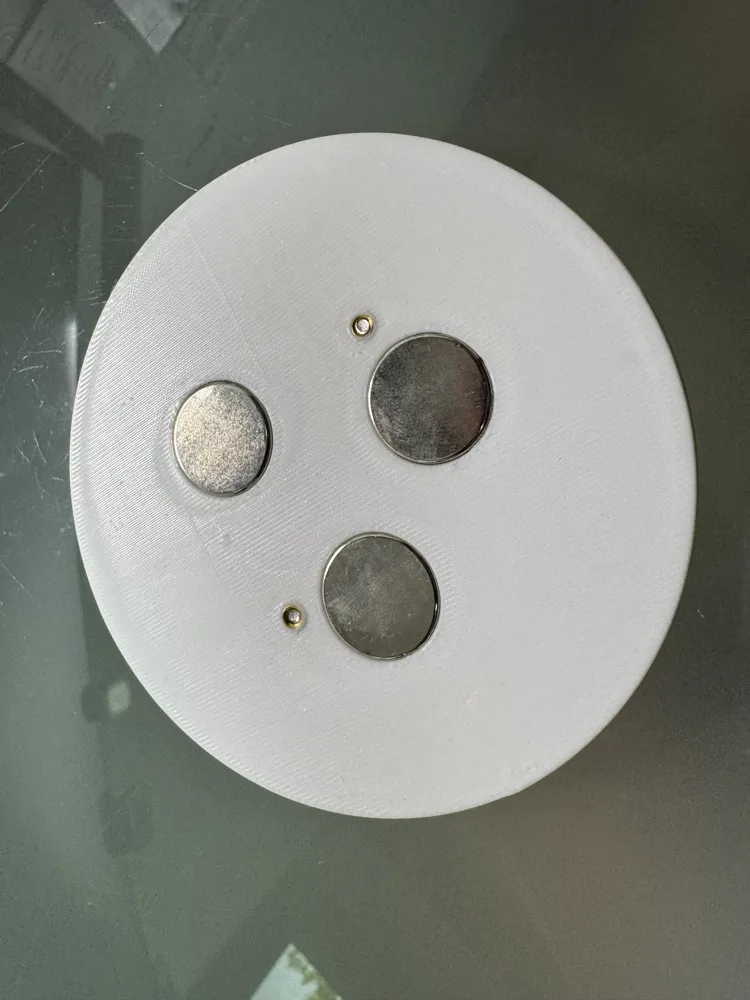

glue the magnets into the adapter
recommend to use white filament color.
only checked petg, pla could also work (please check it)
Happy printing.
Cheers Robert
