Dock Arcade - New Nintendo 3DS

Charging Dock for NEW Nintendo 3DS

The first arcade machines appeared approximately 50 years ago, and the Nintendo 3DS emerged 14 years ago!

Who would have thought it possible to carry all those arcade games in your pants pocket?

With this charging dock and custom stick, evoking that arcade nostalgia, we elevate the gaming experience.

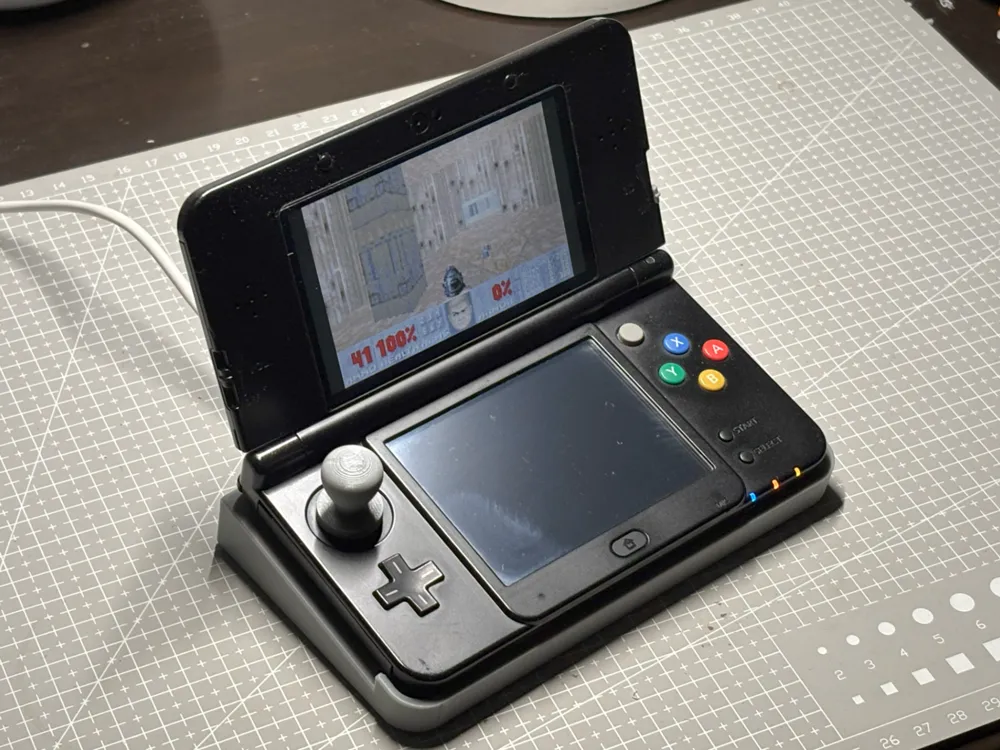

A charging dock reminiscent of classic arcades.

Simple, functional, and elegant design

• Designed to repurpose the electronic component from the CTR-007 charging dock.

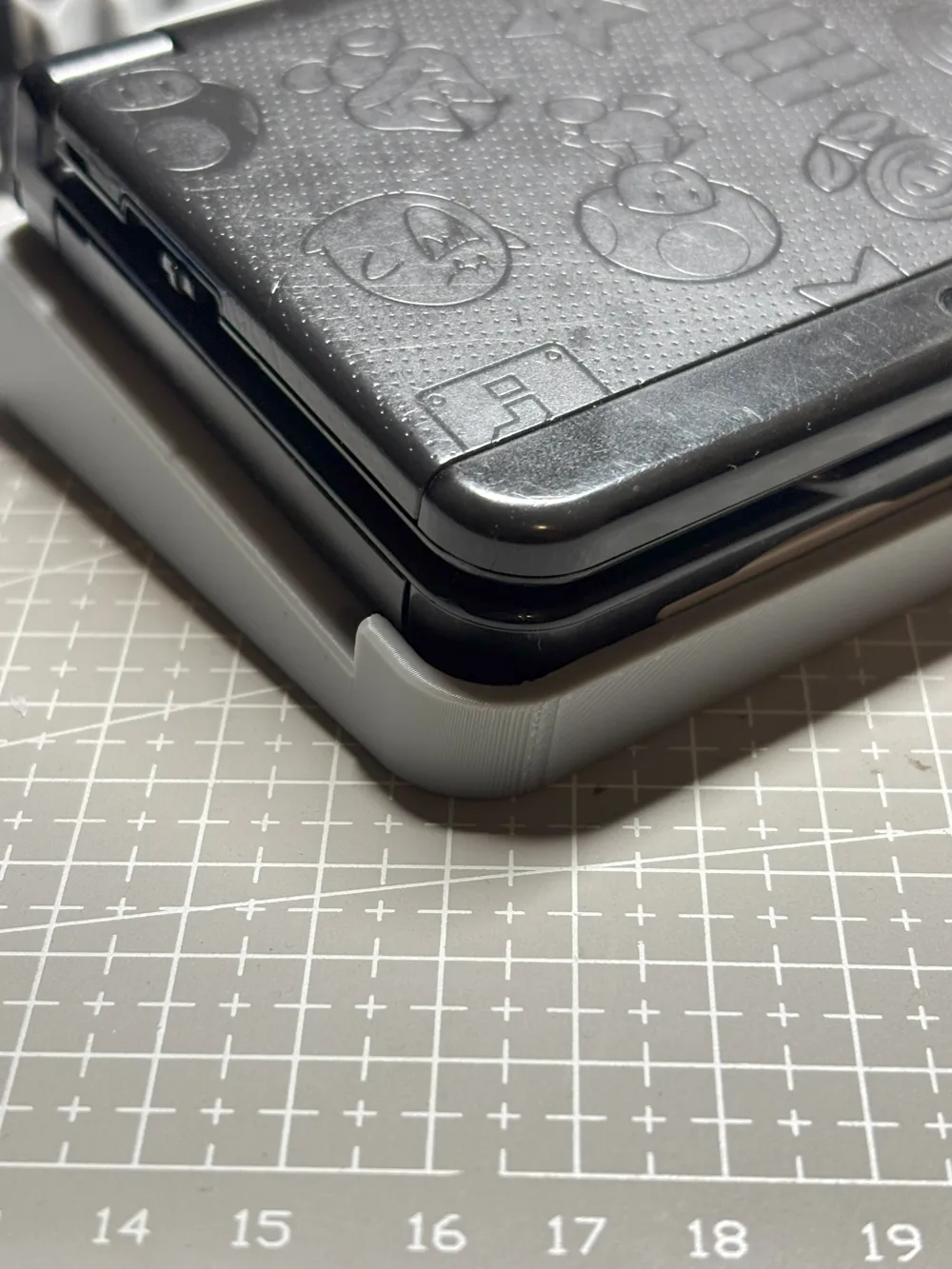

• The NEW Nintendo 3DS fits perfectly.

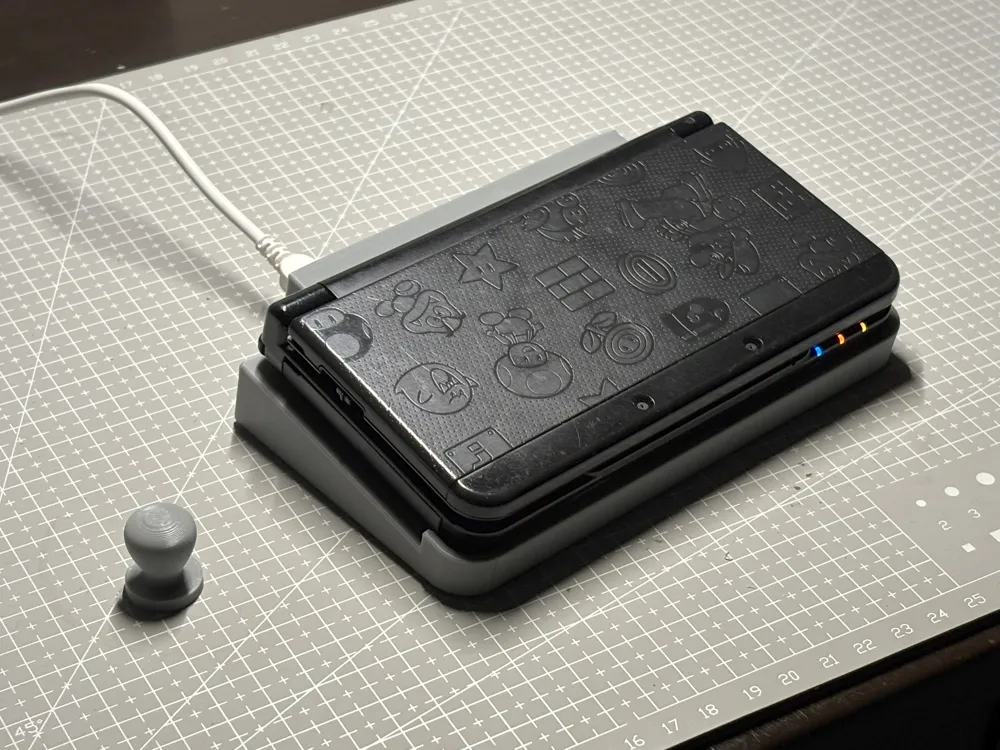

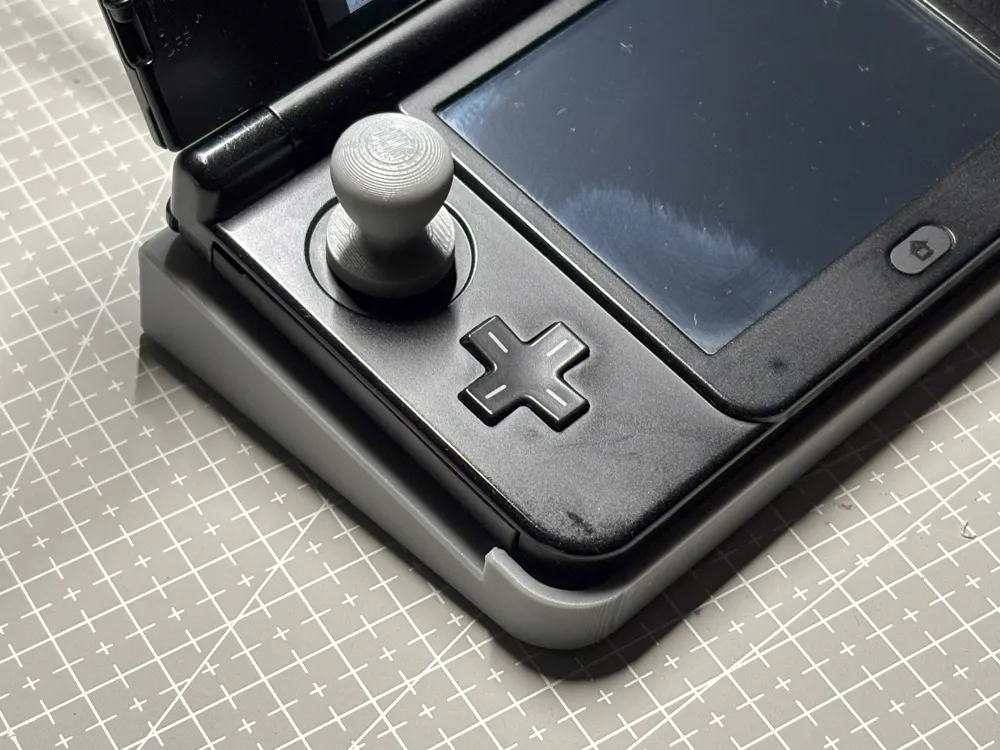

• Utilize the stick to simulate an arcade feel while your console charges.

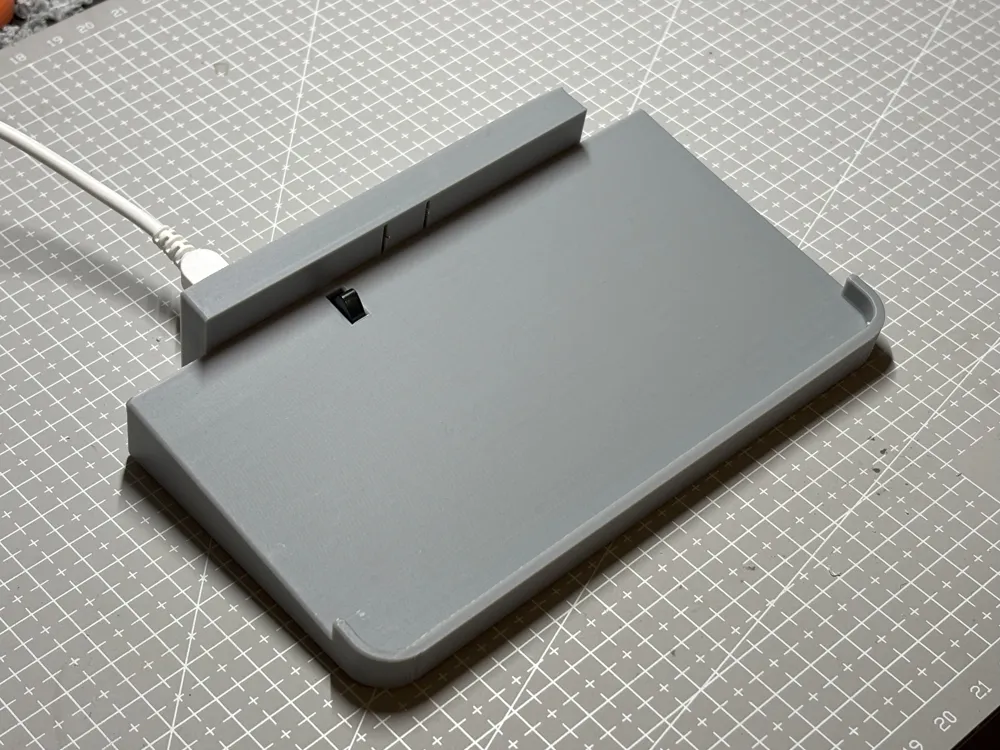

• Without the electronic component, it serves as a stylish console stand.
• Inspired by the original dock model.
• The original charging dock's screws can be reused.

IMPORTANT: To function as a charging dock, you must repurpose the electronic component from the CTR-007 charging dock, belonging to the Old Nintendo 3DS model.

Assembly

1. Remove the bottom cover of the CTR-007 charging dock.
2. Release the electronic component and carefully remove the mechanism connecting the cables to the console; it's a single piece and easily removed. Tip: If you don't want to pull the piece back into the dock, gently shake it; the piece will fall out.
3. Place the components into the newly printed dock.
4. Replace the cover and tighten the screws.
5. Use fine-tipped tweezers to adjust the wires, ensuring contact with your console. Tip: Do this by pressing the button, which will expose the wire pins. Once the pins are out, use the tweezers to gently pull them down and test.
6. Connect your console's charger to the dock, and you're done!
