Jaw Protectors for Vise
IP Report
Print Profile(2)
0.2mm layer, 3 walls, 30% infill
Designer
2.1 h
1 plate
0.6mm nozzle, 0.3mm layer, 3 walls, 30% infill
Designer
4.6 h
2 plates
Open in Bambu Studio
Boost
37
141
3
2
79
28
Released
Bill of Materials
Bambu Filaments
Select all
Description
Content has been automatically translated.
Vise Jaw Protectors

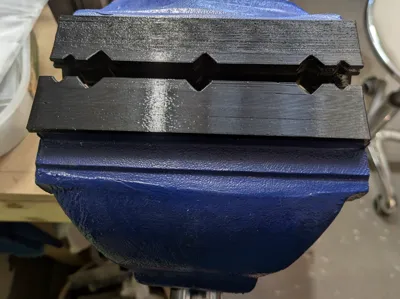

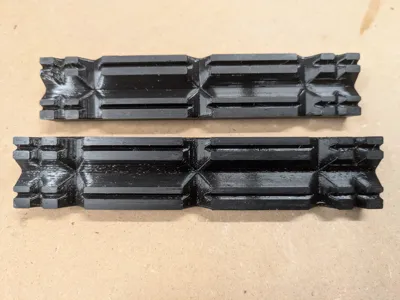

Two versions are available. One version features a smooth surface for clamping workpieces, and the other incorporates recesses for clamping round materials

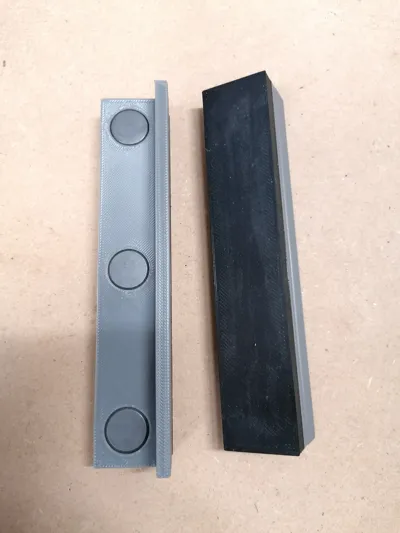

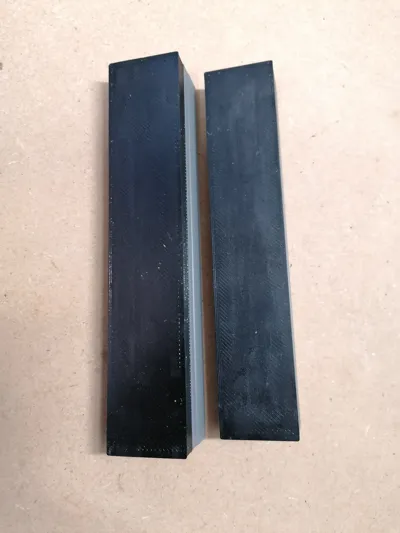

Depending on the version, two TPU parts and two base supports, for example, made of PETG, are required. The TPU jaw protectors are glued to the base supports using instant adhesive. Three round recesses on the back of the base supports accommodate 18x5mm magnets. These magnets secure the jaw protectors to the vise.
EDIT: Dimensions are (width x height) 155mm x 30mm
