Screw set for Steiner Prop Gun

Update 4-4-2024

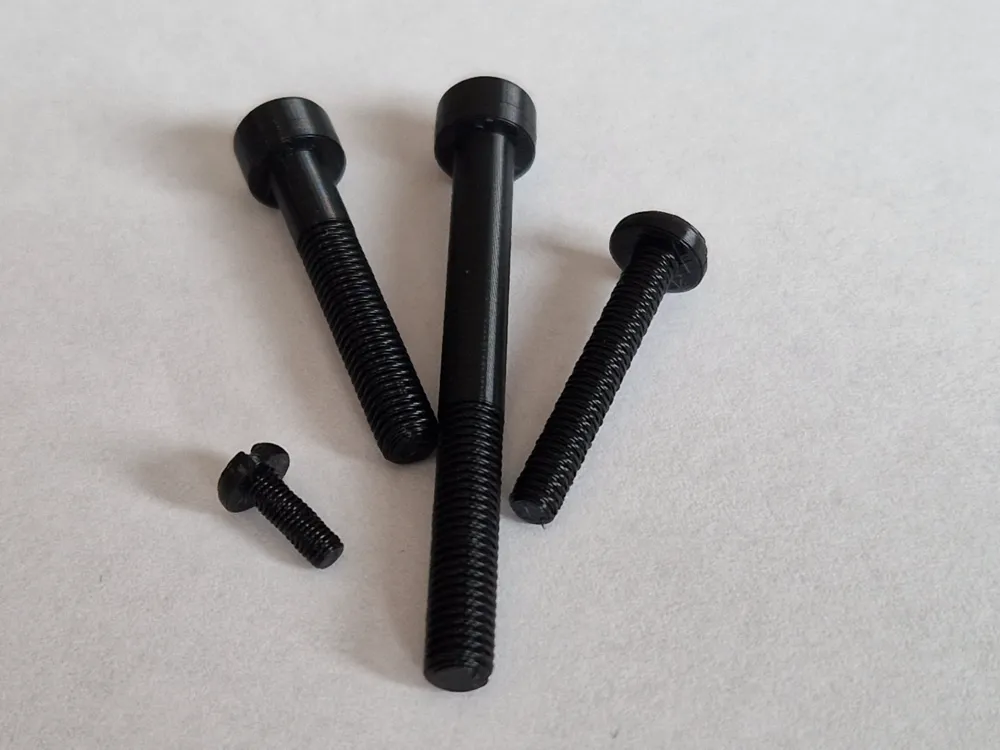

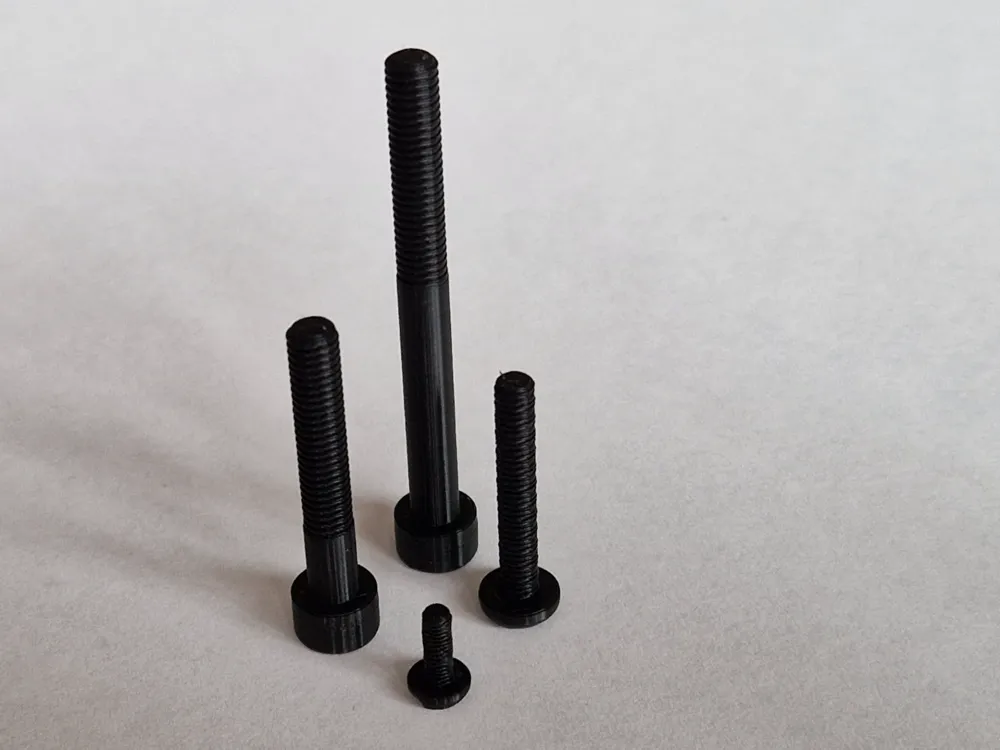

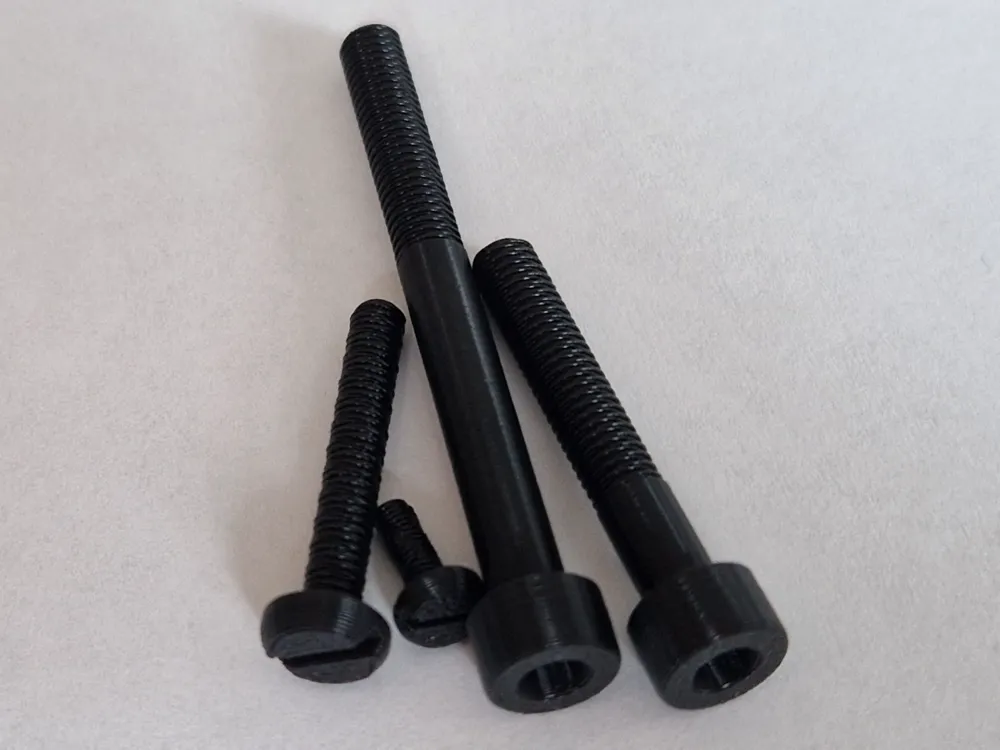

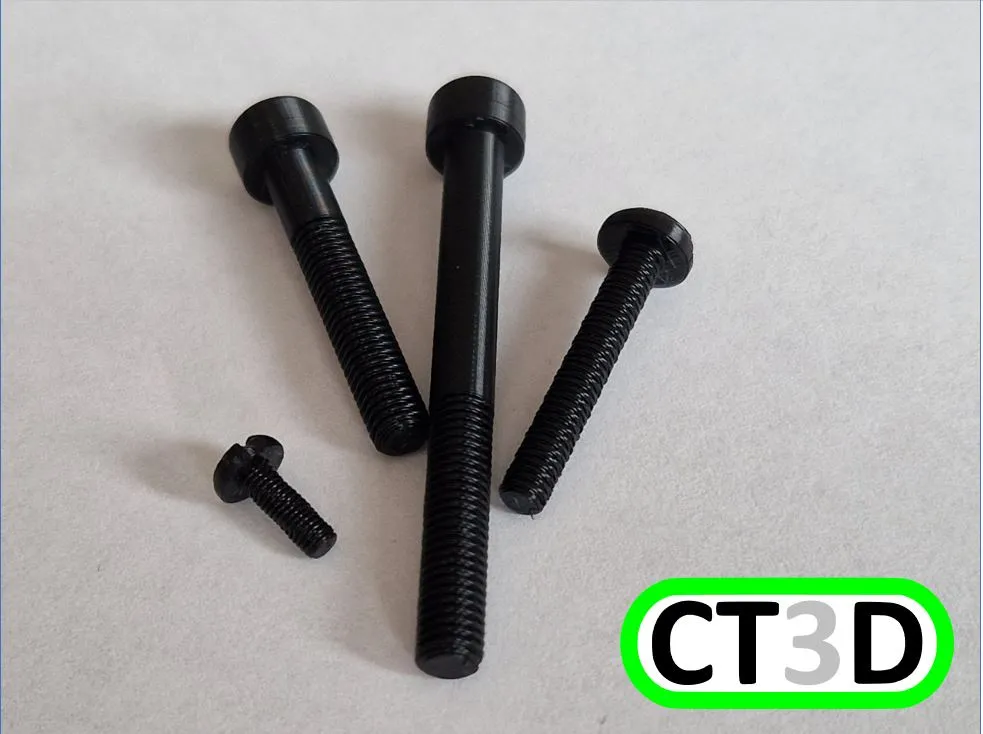

I have uploaded aditional foto's of the actual screw set. Note that this is only the screw set and nothing else. The prop gun the screws are for can be found via the link below.

You need:

• 1 piece M5x50 screw (Plate 1)
• 1 piece M5x30 screw (Plate 2)
• 11 pieces ST4.2x20 screws (Plate 3)
• 1 piece ST2.9x7.5 screw (Plate 4)

Refer to the guns build instructions for further details.

Summary

This is the Gun the screws are for:
Steiner Prop Gun Revolver Single Action
https://www.printables.com/model/276918-prop-gun-revolver-single-action

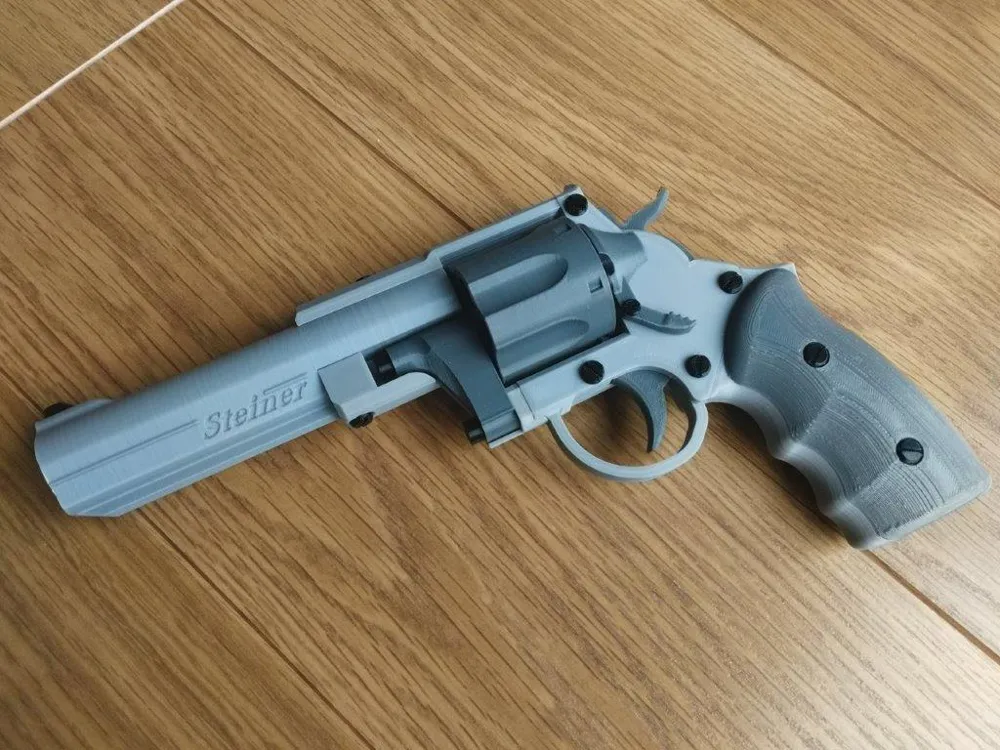

I printed the great Steiner 3D prop gun revolver Magnum .44 and it is a great design.

Unfortunately I could not go to the hardware store to buy screws to put it together. So I went tot the catalog on Fusion360 and downloaded the srews I needed.

Printed them out and cut to length. I drilled out the holes a little since the screws can't cut thread. Dit not need any glue either. Just pushed in the screws and it works great!!!

Note: If you cant find the Steiner Prop Gun anymore, you can still download it via this link: https://web.archive.org/web/20220603083031/https://www.thingiverse.com/thing:3004363
