Simple Dark Water Bait Boat MK2 + Line Release
Print Profile(1)
Description

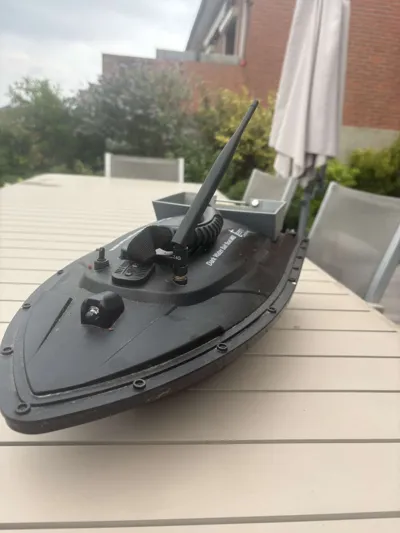

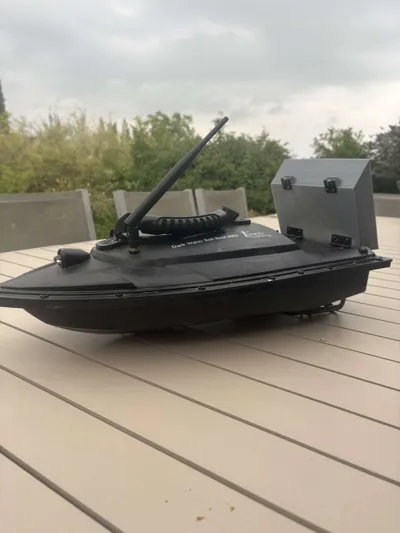

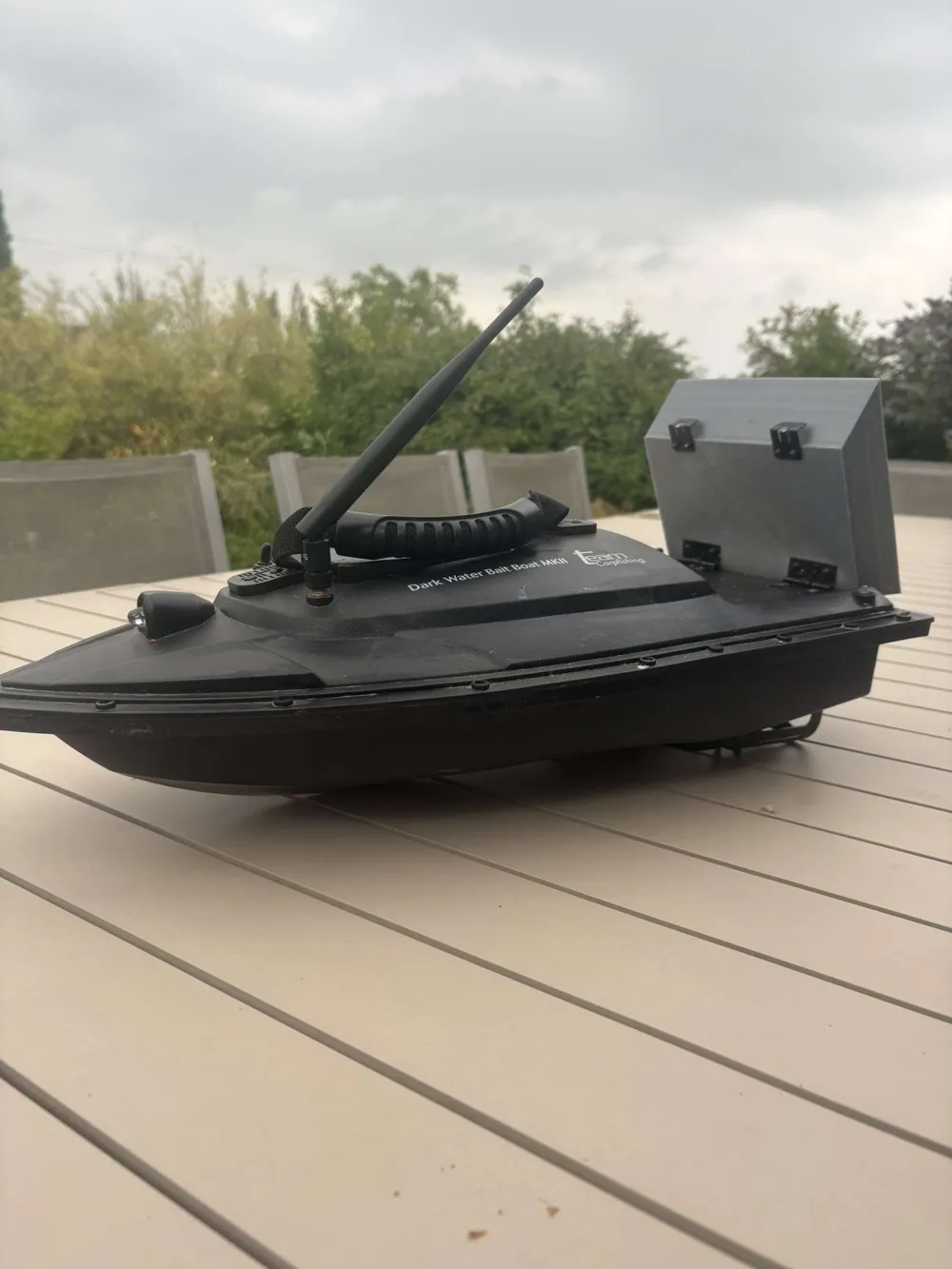

🔧 Modification and Installation – Carpe Team Carpfishing Dark Water Bait Boat

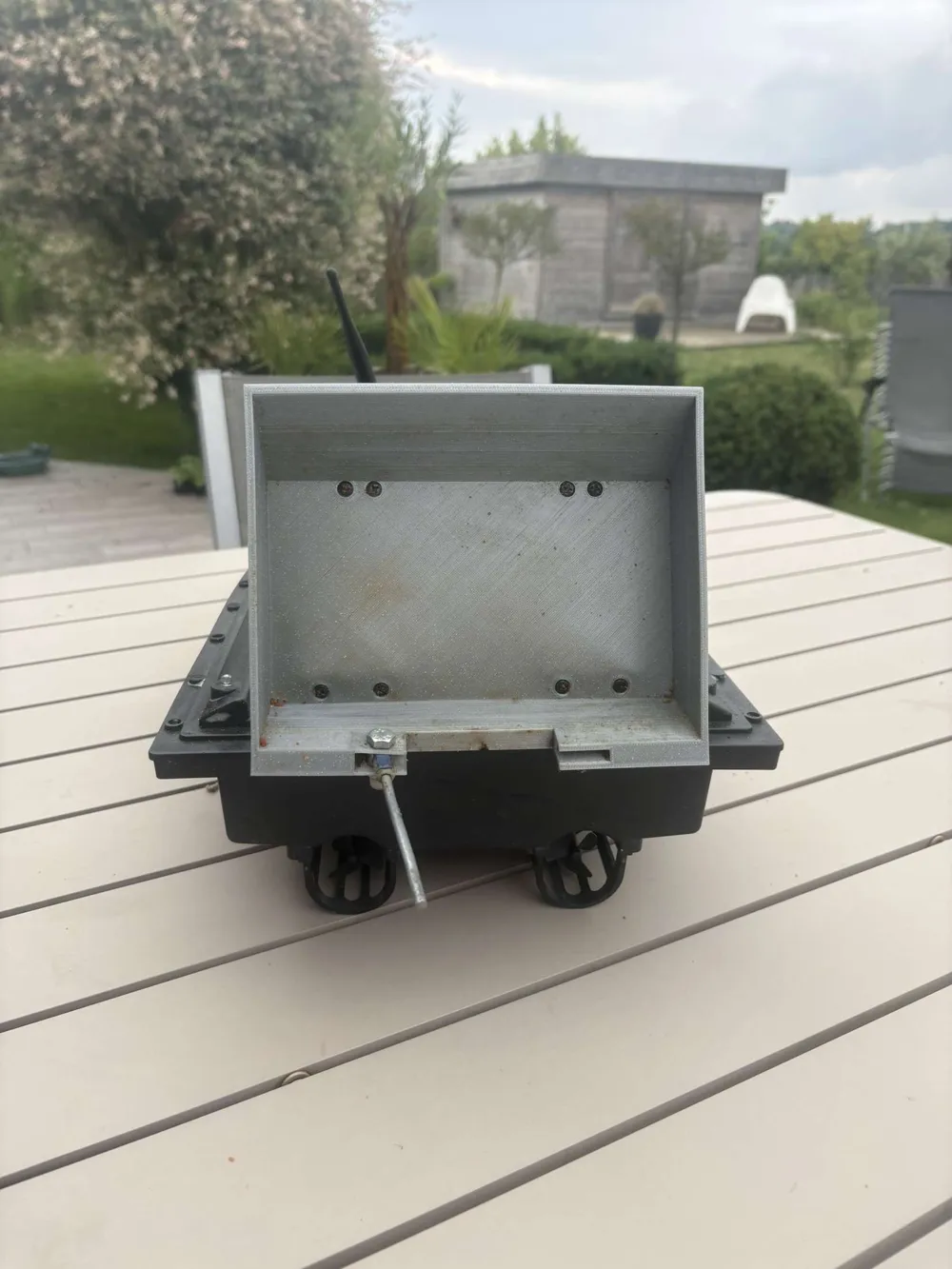

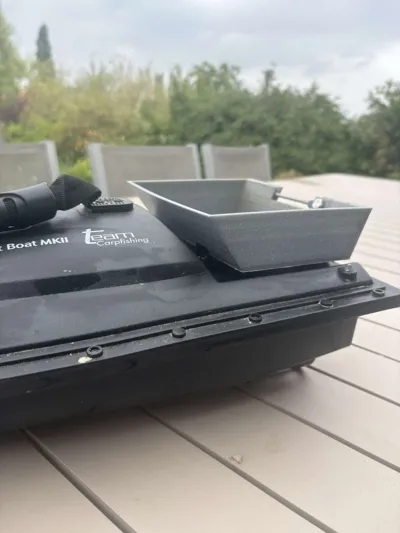

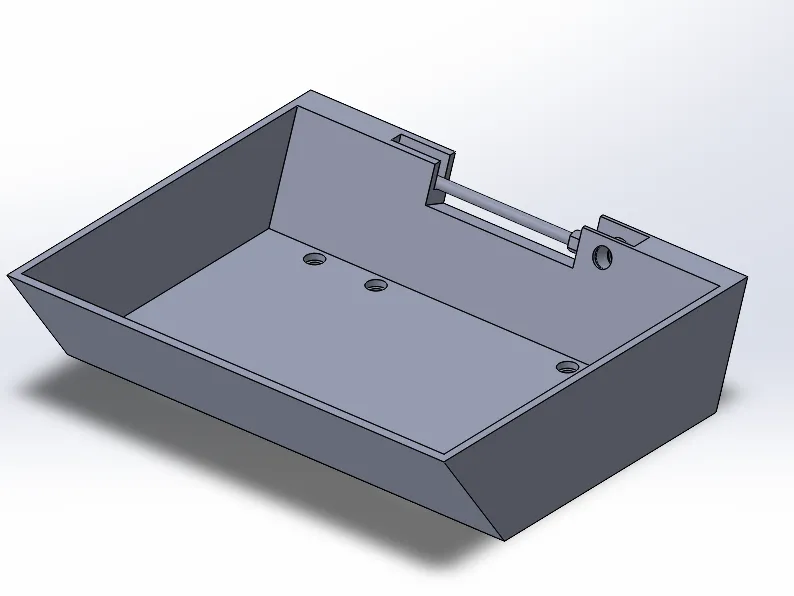

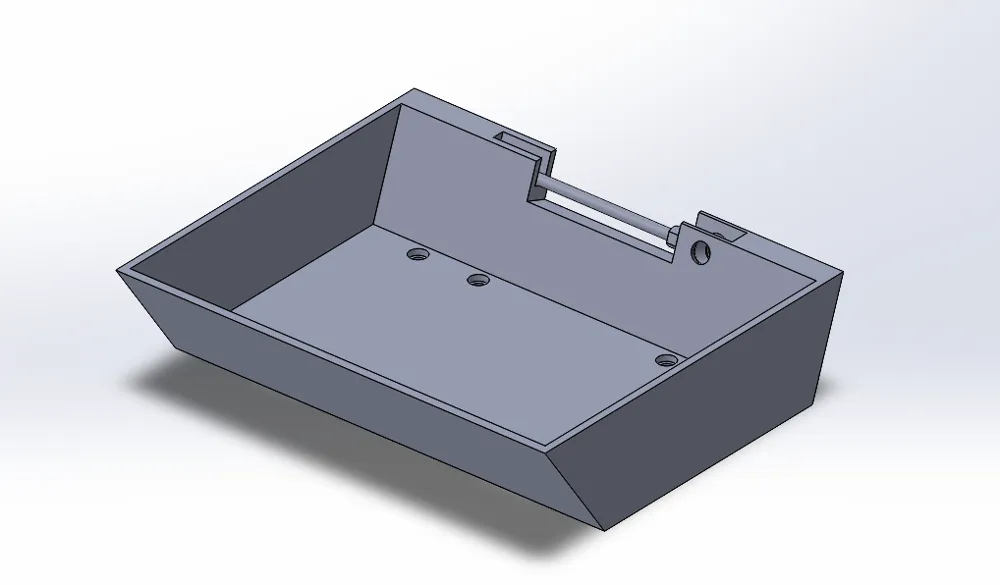

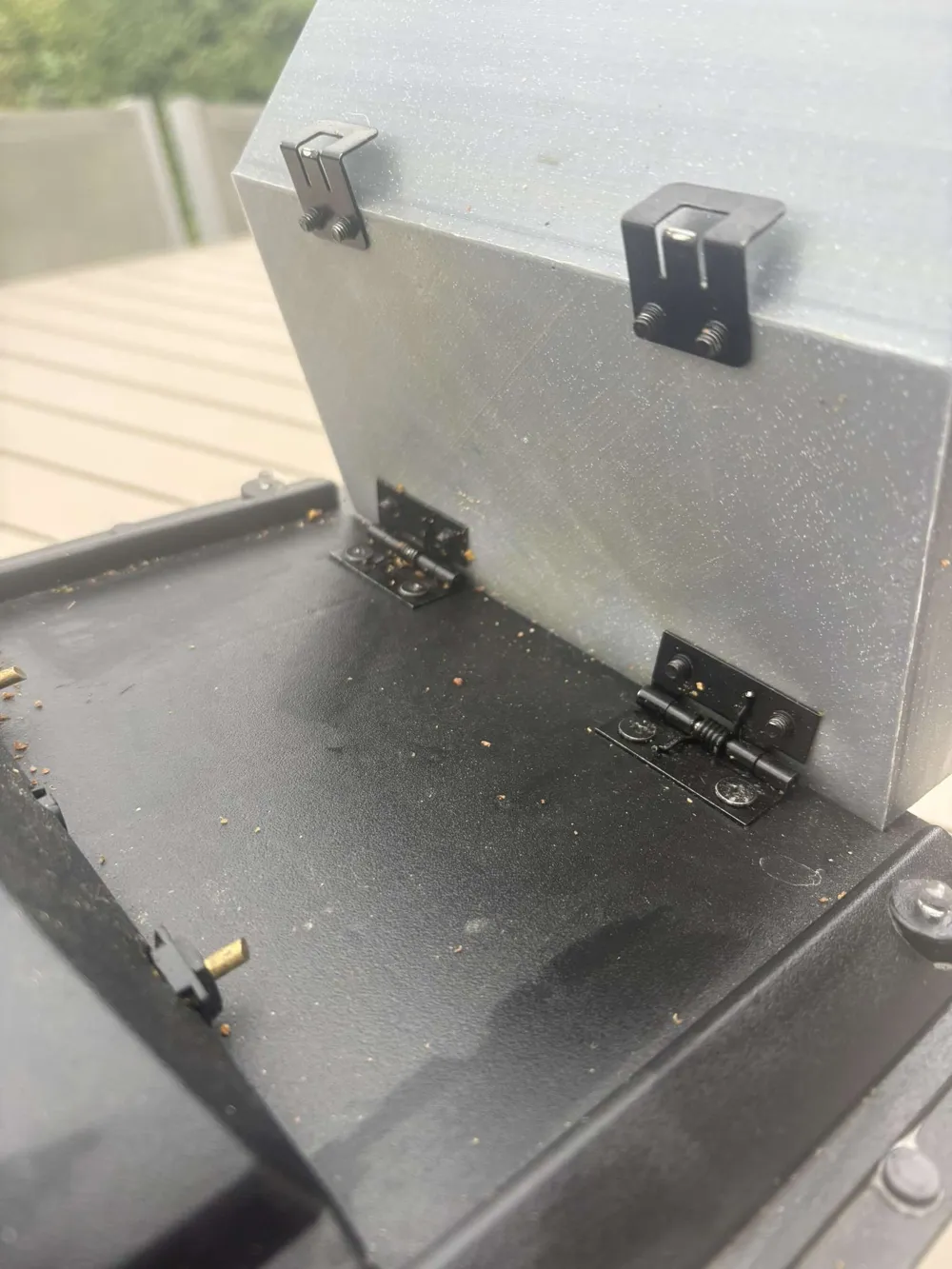

✅ 1. Single-Compartment Tray Design
To improve the Carpe Team Carpfishing Dark Water bait boat, I replaced the original two-tray system with a single-compartment tray.
This new design allows for:
- A wider, centralized opening,
- More precise baiting,
- Simplified handling for the user.
👉 For the line release system assembly, you will need:
- 1 M7 screw
- 1 M7 nut

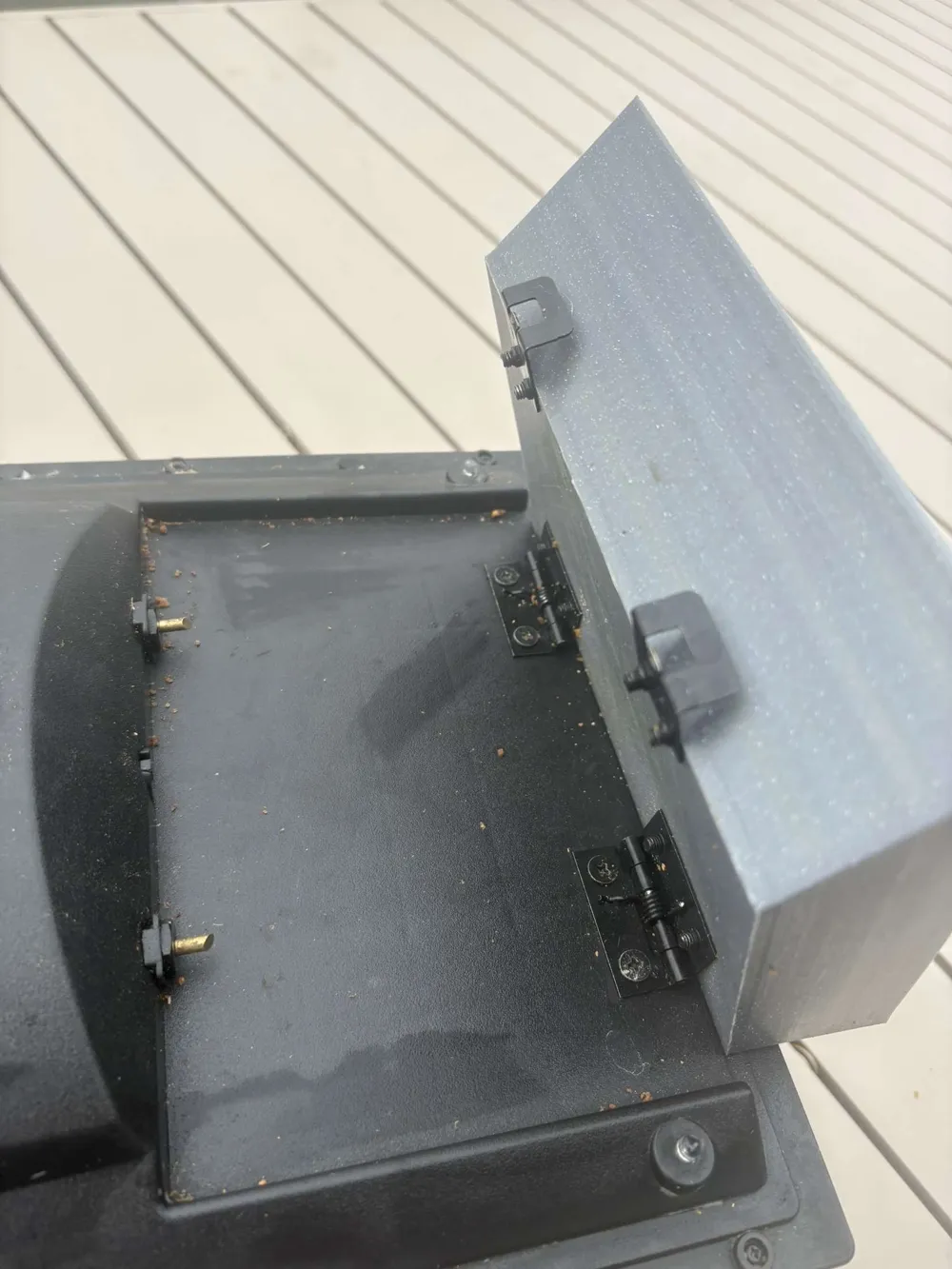

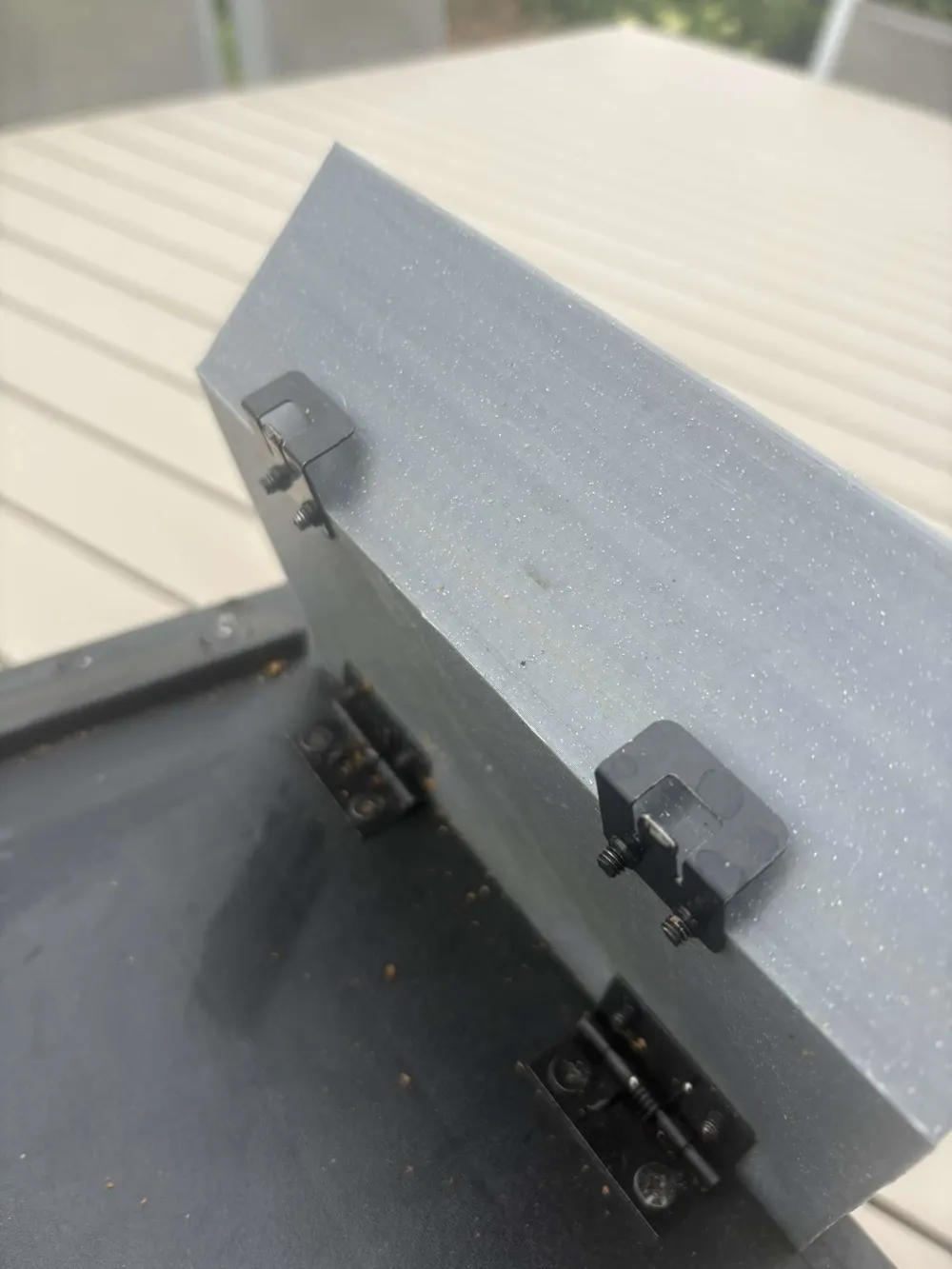

These components will securely fasten the mechanism to the tray.

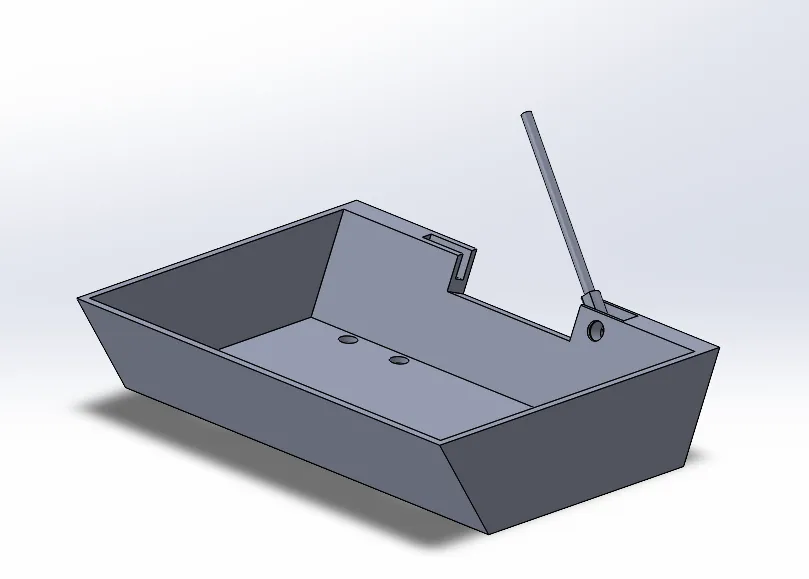

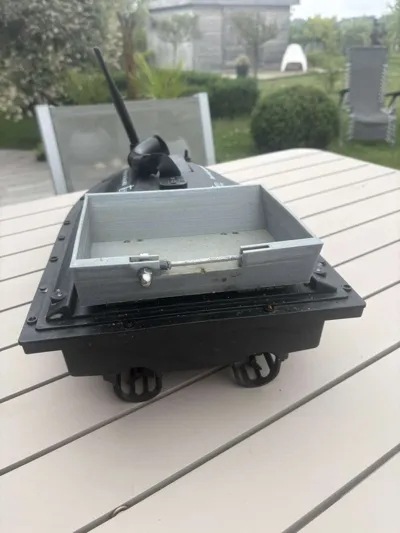

🎯 2. Installing the Line Release System
The line release system is designed to hold the rig during navigation. When the tray opens, it automatically releases to deploy the rig precisely at the baiting location, ensuring optimal accuracy.
🔧 To finalize this system:
- Cut a 4 mm diameter iron rod to the correct length,
- Glue this rod into the designated part (serving as an axis or guide for the release system).
This assembly ensures smooth, reliable operation suited to the specific needs of carp fishing with a bait boat.
