2-Axle Trailer for CyberBrick Truck
Print Profile(3)
Bill of Materials
Description

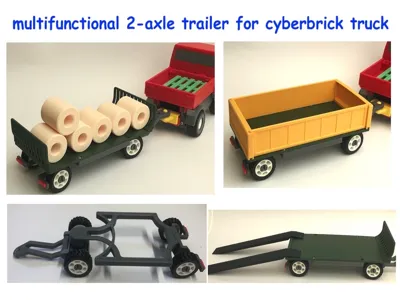

This is a modular two-axle trailer
The various superstructures can be changed by simply attaching them

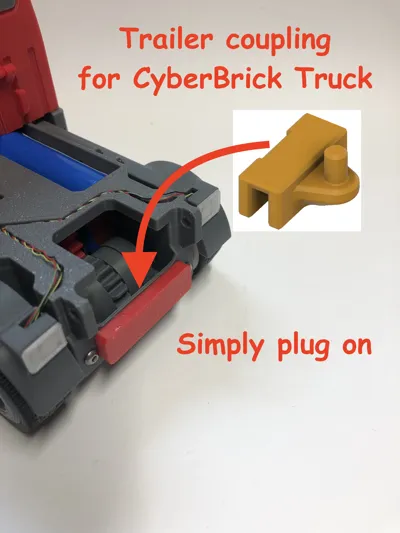

A suitable trailer hitch for the CyberBrick Truck is included in the print profile
I currently have 3 variants set up

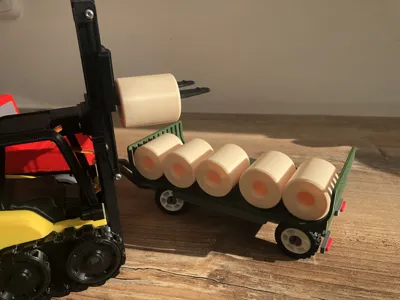

- an agricultural trailer for transporting hay bales => this also includes a special fork for the forklift. The hay bales can be stored on a small special pallet so that they are easier to pick up with the forklift

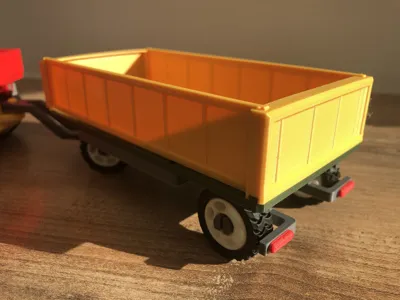

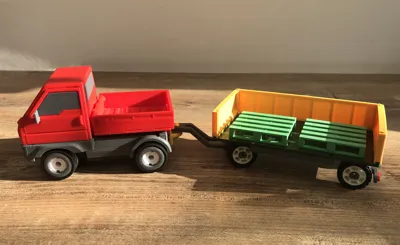

- a normal body with side walls. The side walls are easy to pull out for loading the trailer
- and the matching ramps. (It's best to print the ramps in PLA Matte so the surface is a bit rougher)
Playing with the model requires some skill. This includes among other things
- maneuvering "backwards" with a two-axle trailer
- picking up and putting down hay bales
- or carefully driving the forklift over the ramps onto the trailer

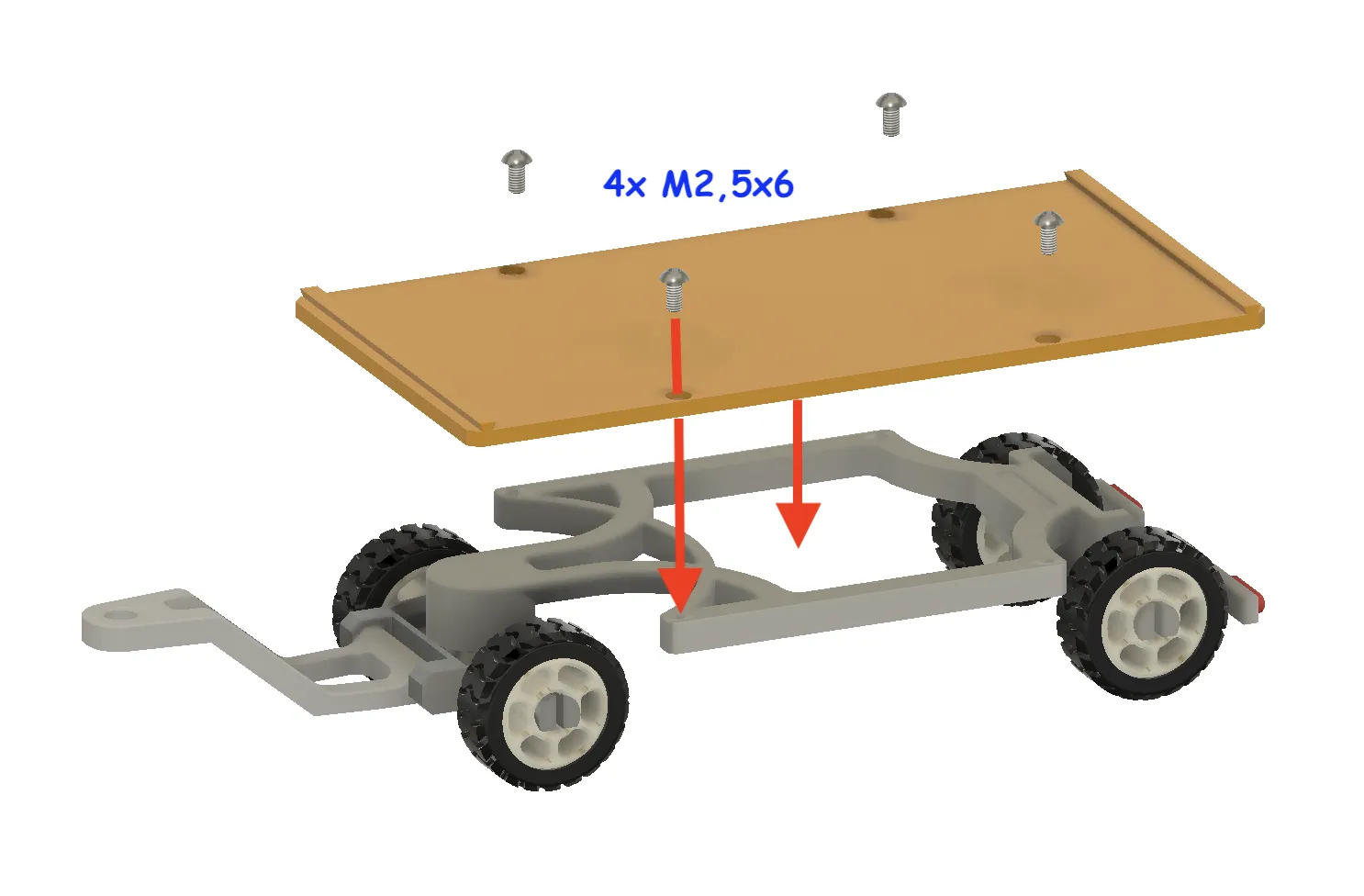

I designed the model so that additional superstructures can be easily added to the chassis

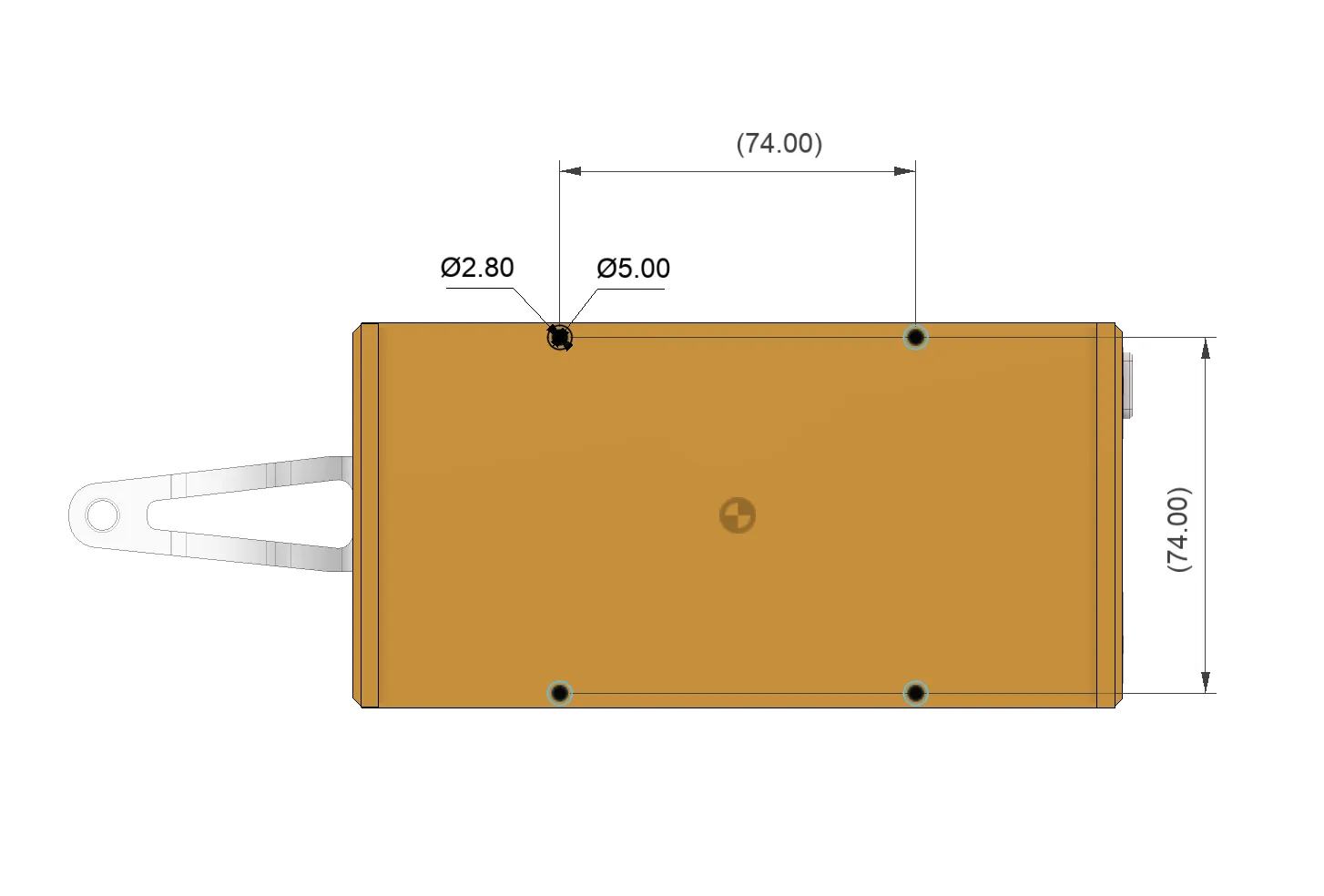

Only 4 mounting holes need to be provided on the base plate for this. See sketch for dimensions
I would be happy if more print profiles for new superstructure variants are uploaded
