Adjustable watering nozzle for 1/2" hose

Apollo100
Household>Garden
IP Report
GIF
GIF

Print Profile(3)

All
P1S
H2D Pro
X1 Carbon
A1
H2C
P2S
A1 mini
H2D
X1E
X1
P1P
H2S
X2D
A2L
Flow piece with two connections
Flow piece with two connections
Designer
2.9 h
1 plate
4.7(6)
End piece, only one connection
End piece, only one connection
Designer
2.7 h
1 plate
5.0(3)
with 18cm long ground spike
with 18cm long ground spike
Designer
6.4 h
2 plates
Open in Bambu Studio
Boost
53
233
17
5
110
64
Released

Description

Content has been automatically translated.
Show original

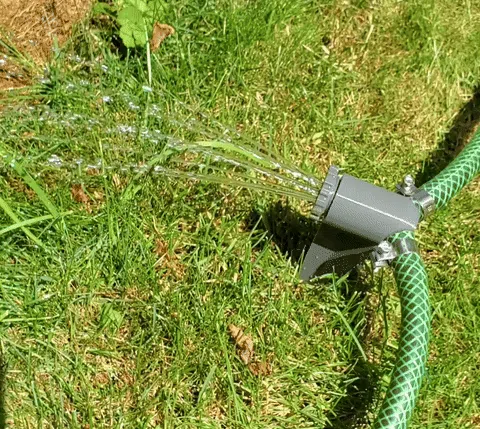

For the targeted simultaneous watering of several bushes with a (cut-up) ½" garden hose.

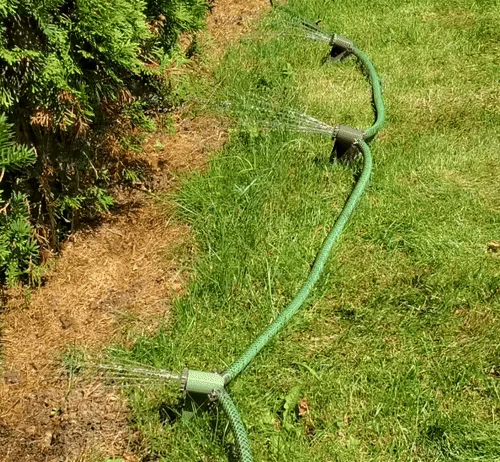

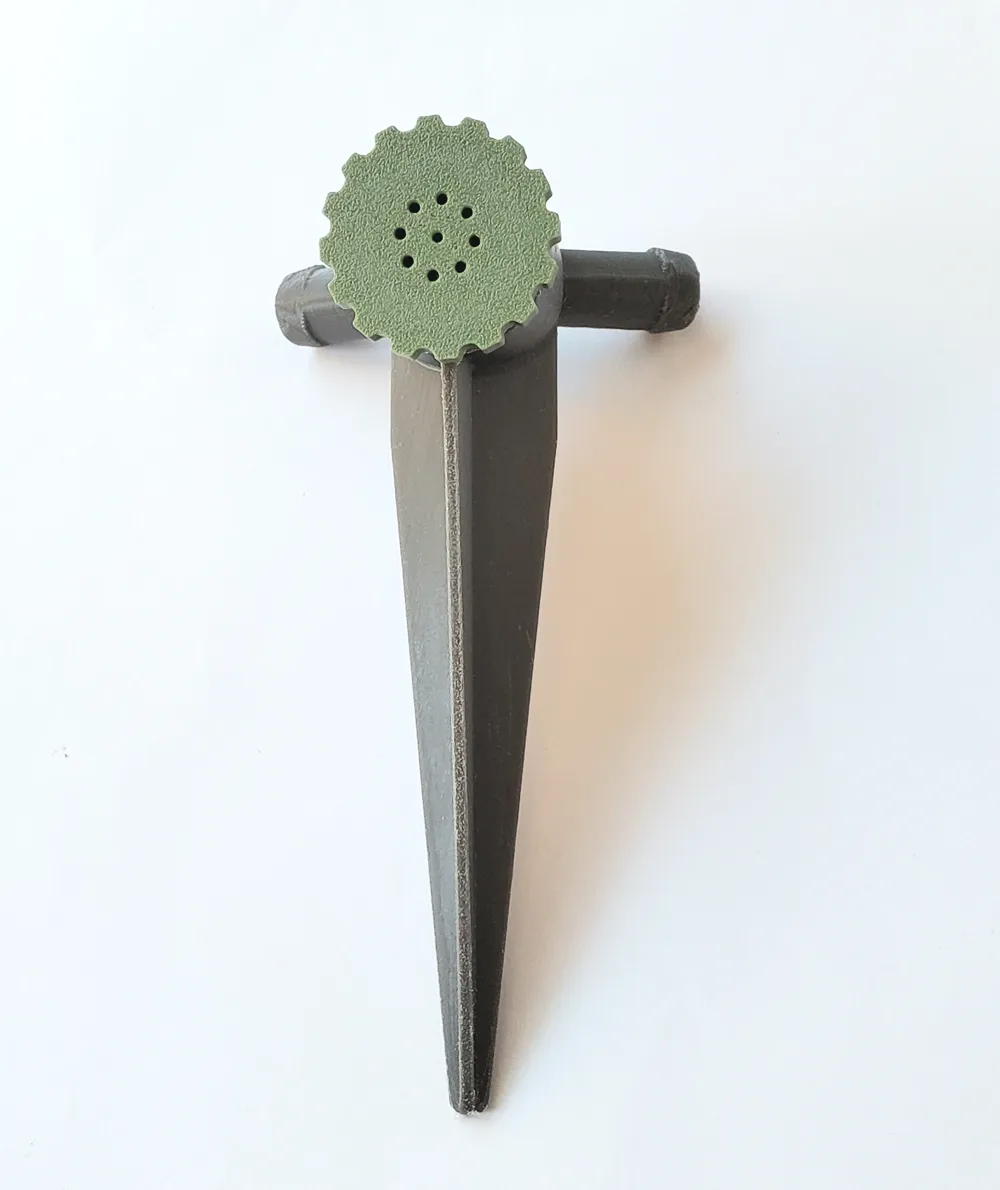

The nozzles can be connected in series, are adjustable and closable.

There is also an end piece for the hose end.

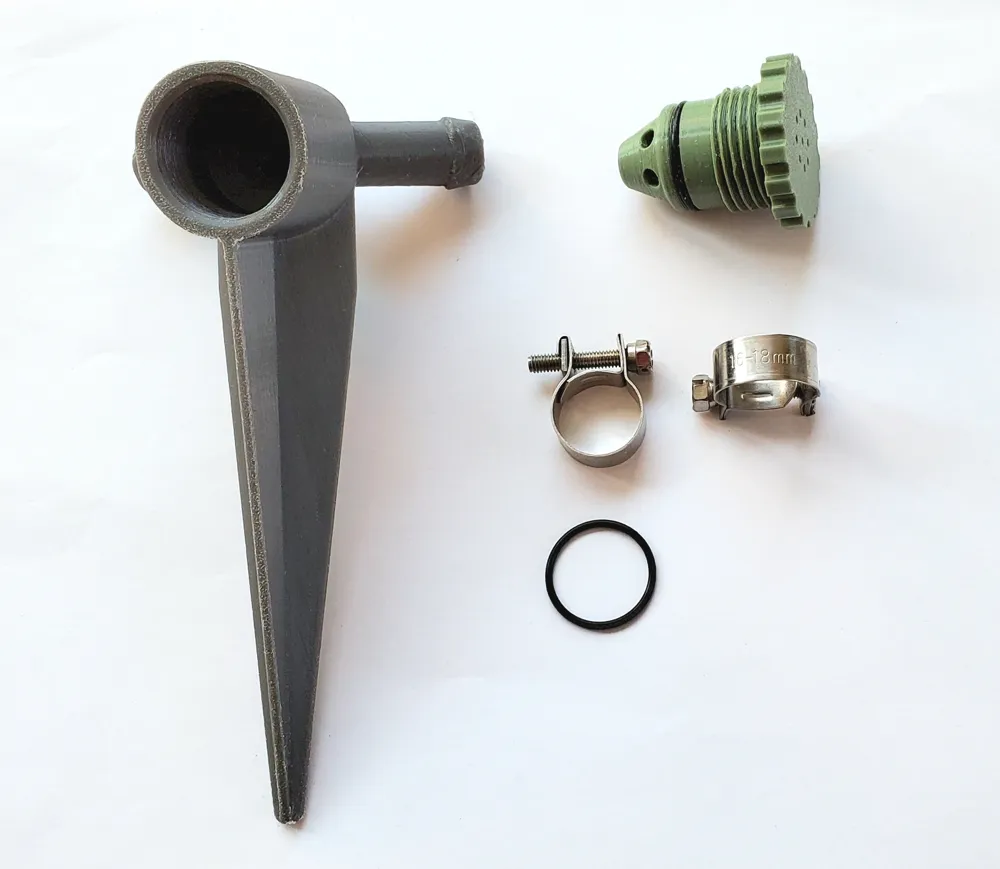

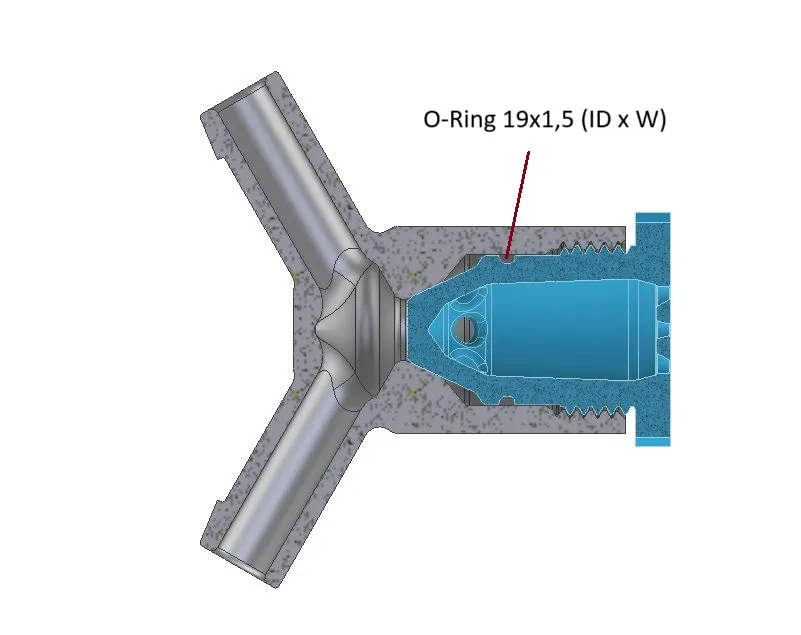

Required are an O-ring size 19x1.5mm (inner diameter x cord thickness) and 2x hose clamps 16-18mm each.

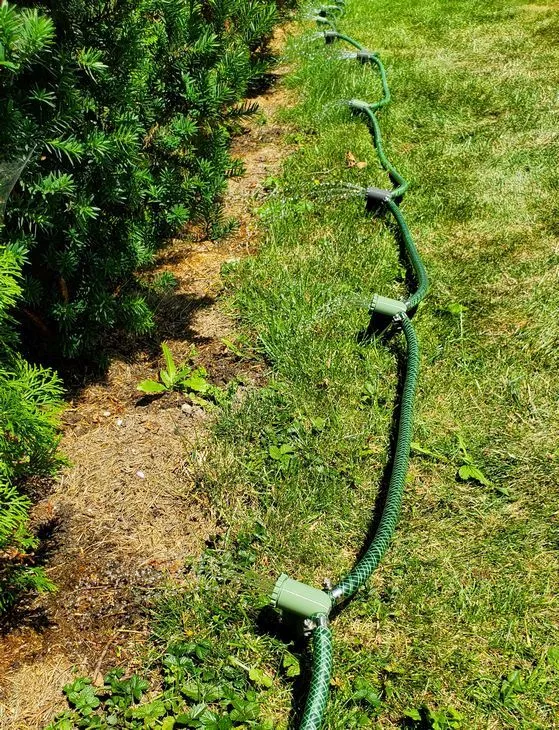

I can water 12 spots simultaneously with this,

however, this is already borderline with my cistern pump at 4 bar (40m delivery height).

garden
bewaesserungssystem
spruehduese
gartenschlauch
water
Watering can
giesen

Comment & Rating (17)

(0/1000)
@capman.deluxe
Boosted
Simply top designer! Thank you for the longer ground stake! edit: we've already printed a few of these 😁 40 more to follow
(Edited)
Show original
0
Reply
@Andre277
Boosted
Print Profile
End piece, only one connection
exactly what we were looking for…👍🏼
Show original
0
Reply
@Andre277
Boosted
Print Profile
Flow piece with two connections
exactly what we were looking for…👍🏼
Show original
0
Reply
@capman.deluxe
Boosted
Wonderful model! Would it perhaps be possible for you to create a version with a longer earth spike? 17-20cm earth spike would be perfect - so it sticks out of the ground a bit further (at least where we are).
The designer has replied
Show original
0
Reply
@elindner
I have added an additional print profile, with 18cm earth tip
Show original
1
Reply
@capman.deluxe
Boosted
Replying to @elindner :
Awesome - thank you very much! Boosted again straight away :) My wife is ordering tons of these parts from me :D
Show original
0
Reply
@user_3806801933
Hi super project Could you also provide the .stl files Thank you
The designer has replied
Show original
0
Reply
@elindner
The STEP files (.stp) intended for CAD applications are available for download If .stl files are preferred, these can be exported in Bambu Studio with the project open Simply right-click on the component with the mouse and export
Show original
0
Reply
@user_3806801933
Replying to @elindner :
Super thanks for the quick reply
Show original
0
Reply
@user_3565786150
Print Profile
Flow piece with two connections
Top!
0
Reply
@capman.deluxe
Boosted
Works wonderfully - highly recommended!
Show original
0
Reply
@user_3915638361
Print Profile
Flow piece with two connections
0
Reply
@user_3915638361
Print Profile
End piece, only one connection
0
Reply
@user_1064956636
Print Profile
Flow piece with two connections
0
Reply
