P1S Exhaust Magnetic External Discharge Ventilation Solution

This model is based on Wang Zai Bao Bei's design, and adapts the mobile air conditioner exhaust baffle based on this configuration.

Because I already have an 80mm duct, I modified it to an 80mm version and adapted a mobile air conditioner baffle (perfect fit, it might be tight, brute force might do the trick, please take note of filament shrinkage).

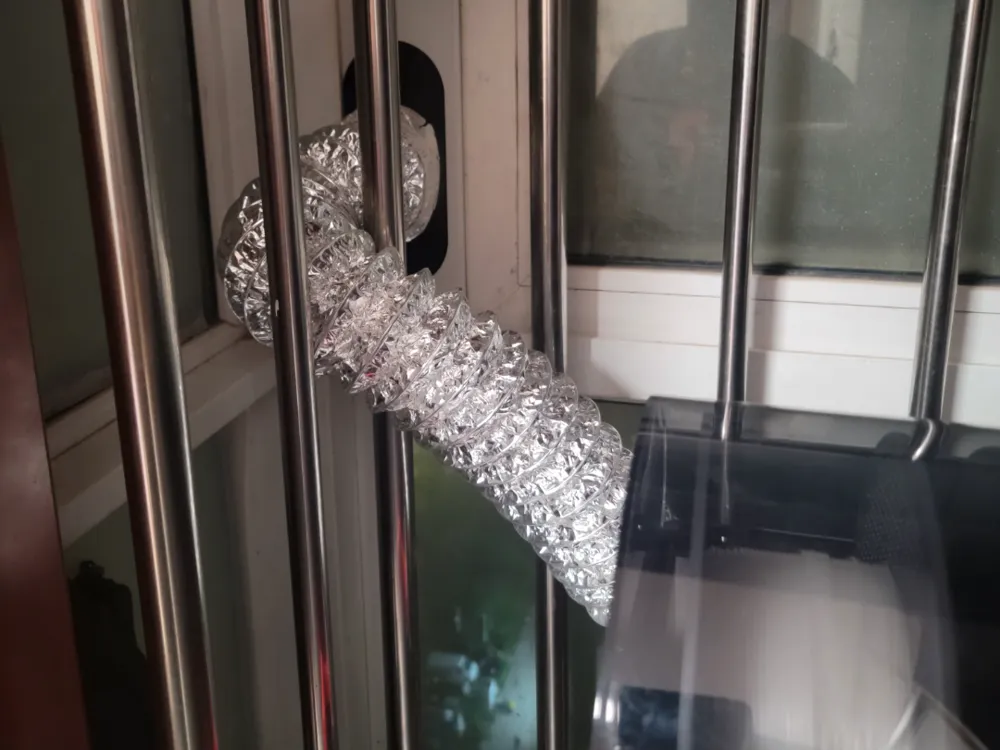

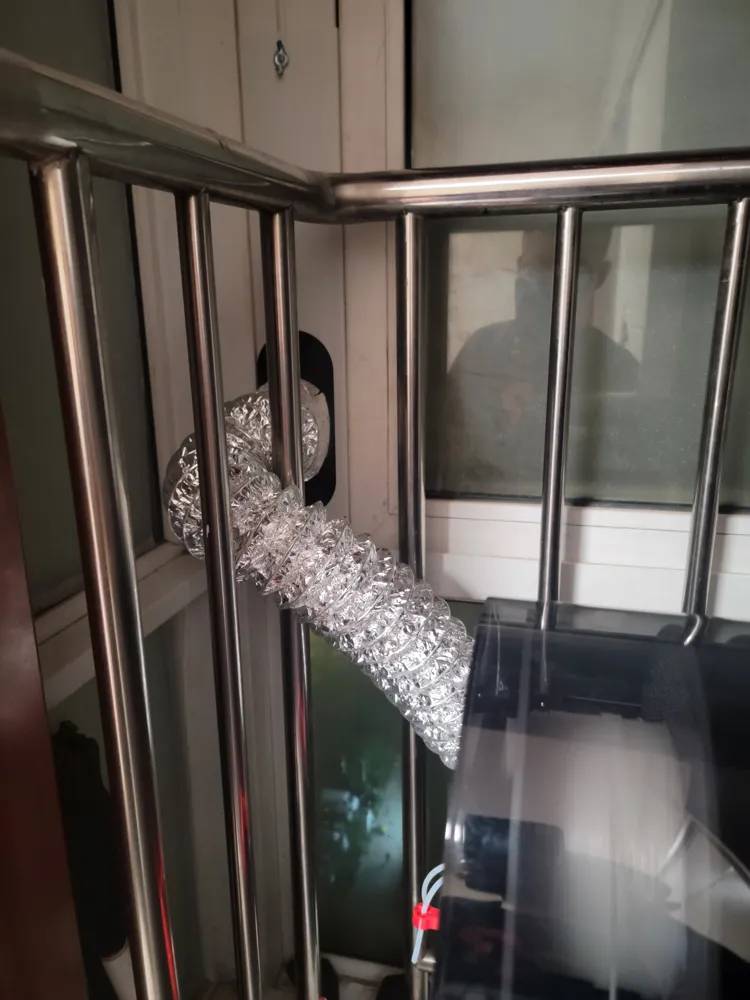

Through testing, there is almost no smell indoors without adding a fan.

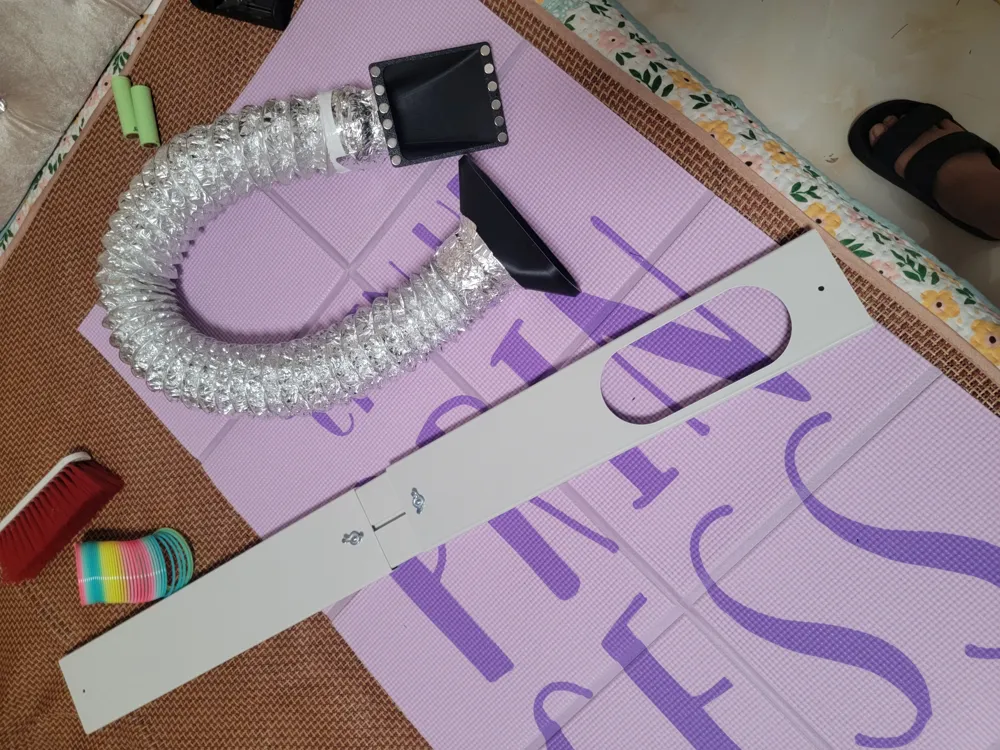

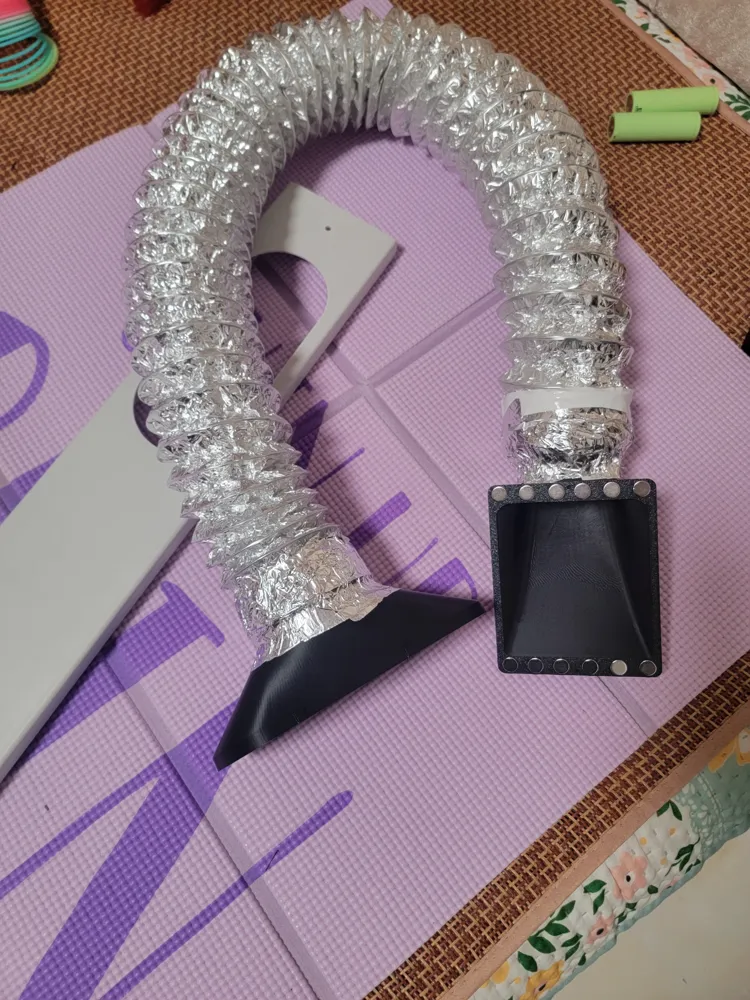

Parts list:

4-10 10*2mm magnets (If they are N52 magnets, 4 should suffice).

Aluminum foil exhaust pipe, 80cm diameter.

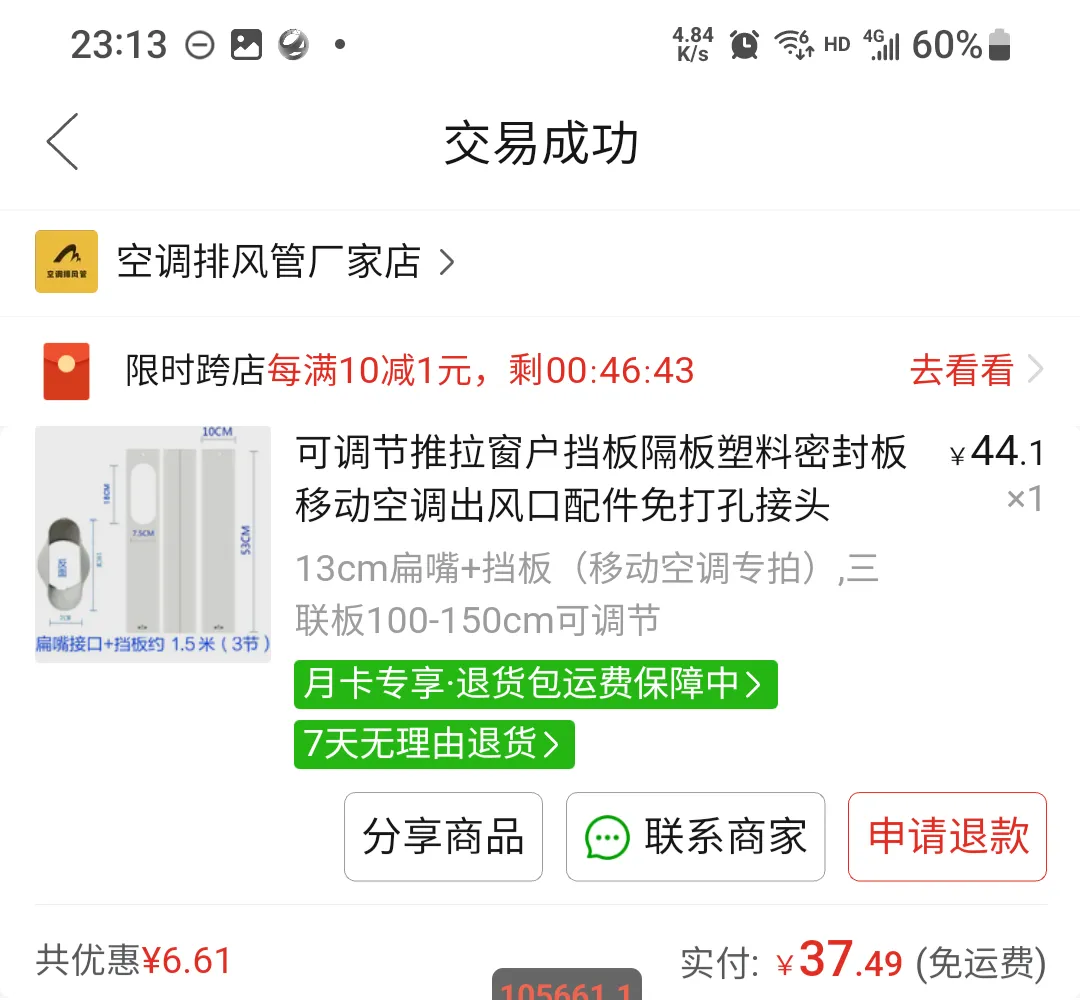

Mobile air conditioner baffle (window height can be freely selected, the hole position should be selected according to the actual situation), please DM for the link.

The following parts list is optional.

24V 5025 fan (after removing the activated carbon filter, I feel it's okay, I haven't added a fan yet).

MX1.25-4P extension cord.

MX1.25-4P splitter.

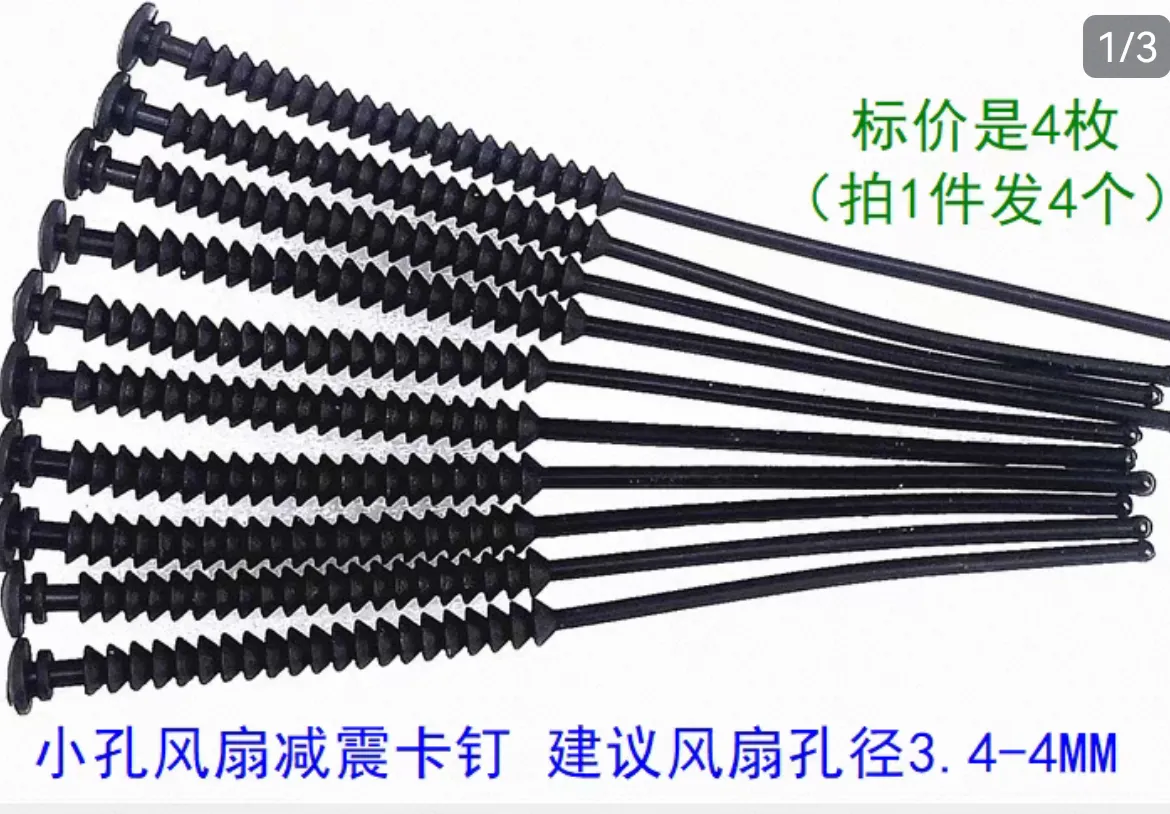

Fan fixing screws (total length 118mm, cut off the excess, buy this type).
