Warning - Sudden loud noises - W038 ISO 7010

ISO 7010 - Warning Sign

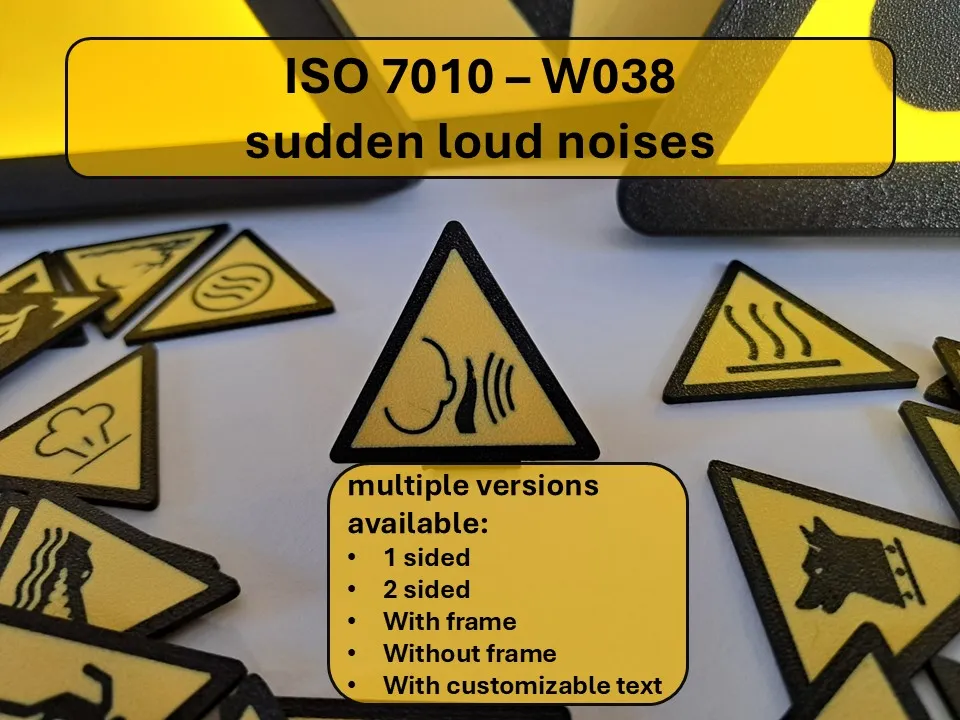

W038 – Sudden loud noises

A while ago I uploaded a complete set of ISO 7010 signs,

but the quality was not good enough if you wanted to scale them up. I took this as an opportunity to revise the signs.

For this upload, I focused on improving the quality of the source data as well as the user-friendliness.

An AMS is mandatory for printing.

You will find the following pictogram templates in the print profile:

• Pictogram only visible on one side
  • face-up version
  • face-down version
• Pictogram visible on both sides (mirrored)
• Pictogram visible on both sides, scaled-up (show-through)
  • face-up version
  • face-down version
• Pictogram only visible on one side (with frame)
  • face-up version
  • face-down version
• Pictogram with customizable Text only visible on one side (with frame)
  • face-up version
  • face-down version

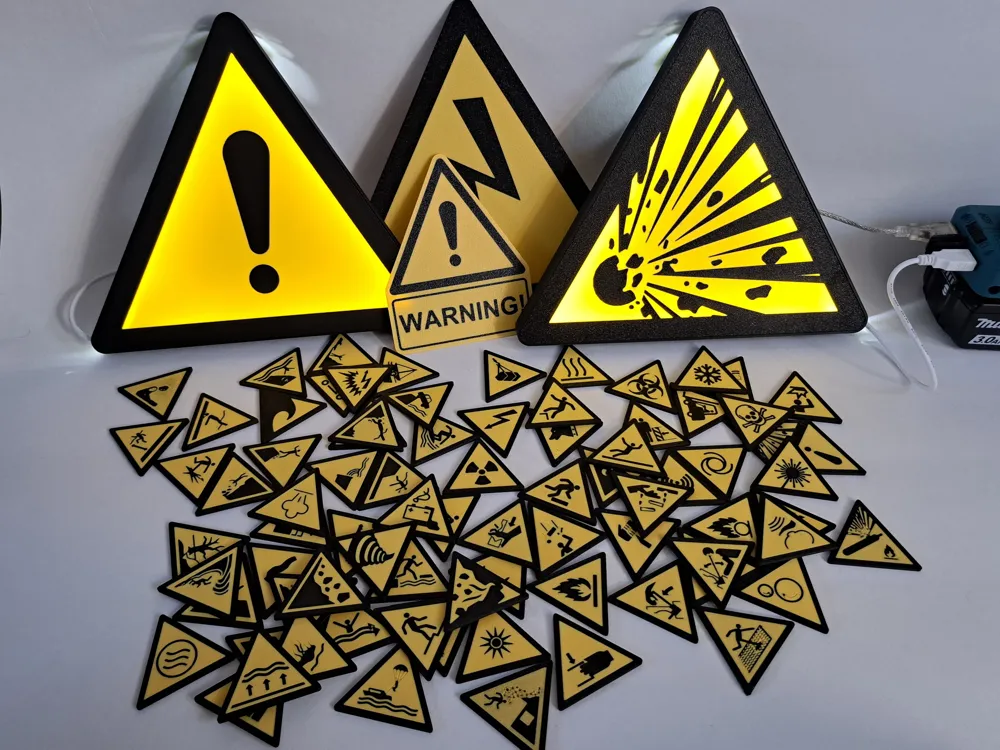

The Cover Pictures show the two sided version scaled to 50%

The Lightbox shown in the pictures will be uploaded at a later tome as this is still a work in progress.

I added Pictures of W001 - General Warning Sign to show the different Versions avaliable.

If you are interested in other ISO 7010 warning signs, have a look on this collection:
