【Mclaren】McLaren 720S all-rounder supercar hardtop sports car 1:64 scale assembly/movable tires

【Special Notes for F1 Models】

1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!

4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!

【Read Before Printing!!! Warm Tips】

It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.

Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.

---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------

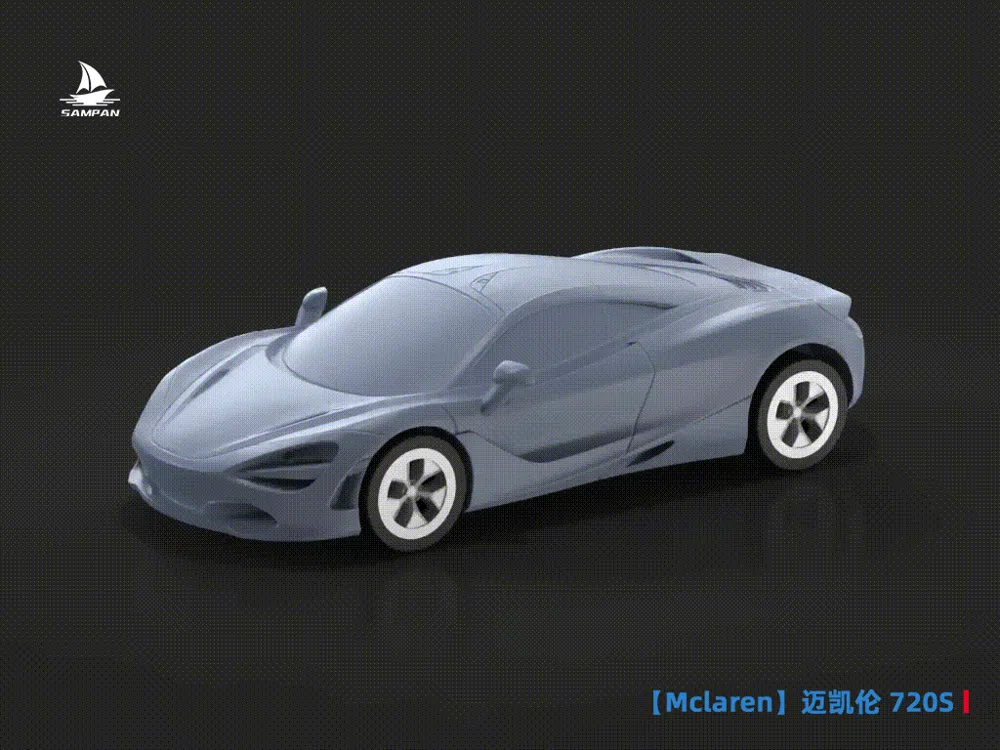

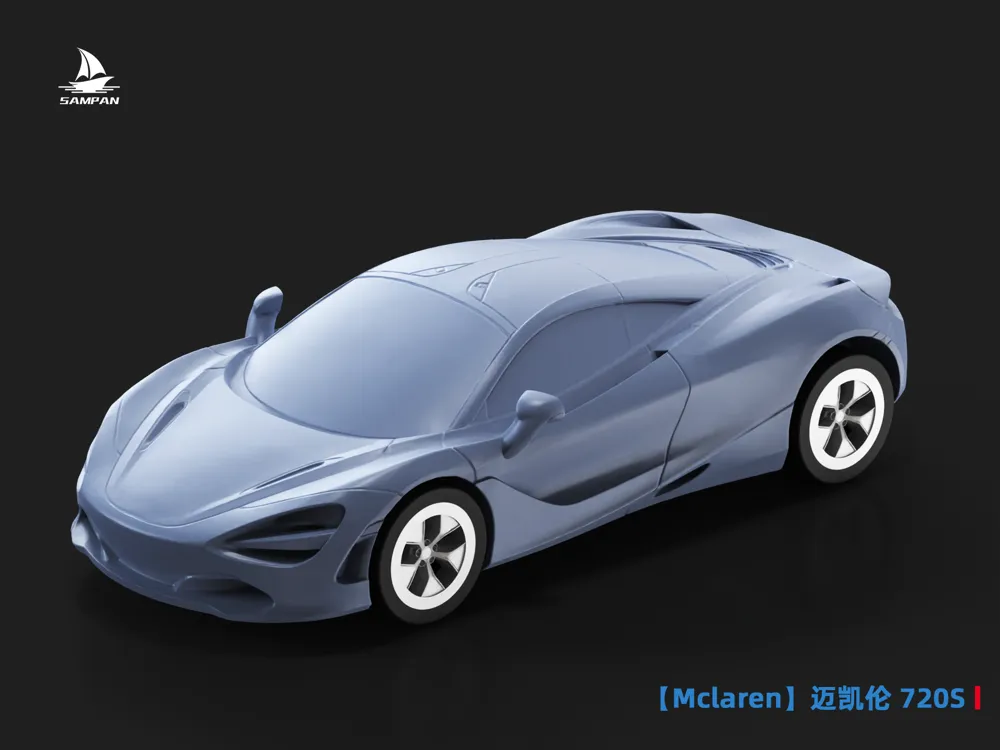

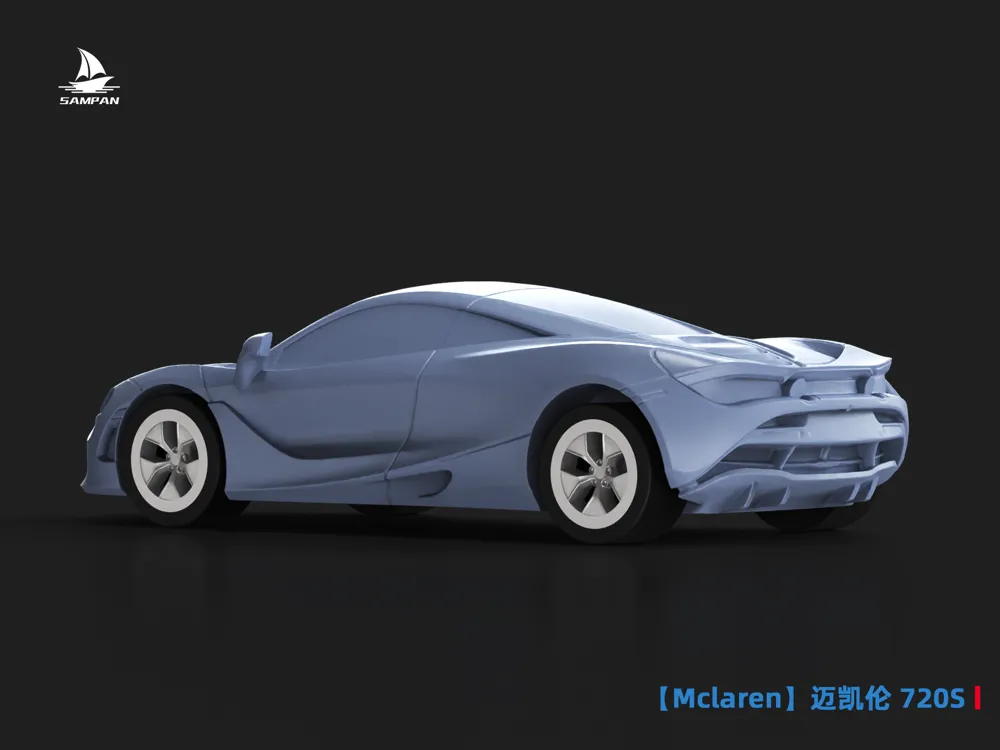

McLaren 720S: The performance benchmark and all-rounder supercar icon of the Super Series

As a benchmark in modern supercars, it perfectly blends extreme performance, daily comfort, and outstanding reliability.

With core technologies such as the Monocage II full carbon fiber monocoque, M840T 4.0-liter twin-turbo V8 engine, and Proactive Chassis Control II active chassis control, it achieves a balance between supercar performance and everyday usability.

Although discontinued, the 720S remains one of the most important models in McLaren's history, and a highly collectible and enjoyable choice in the used supercar market.

Model Description

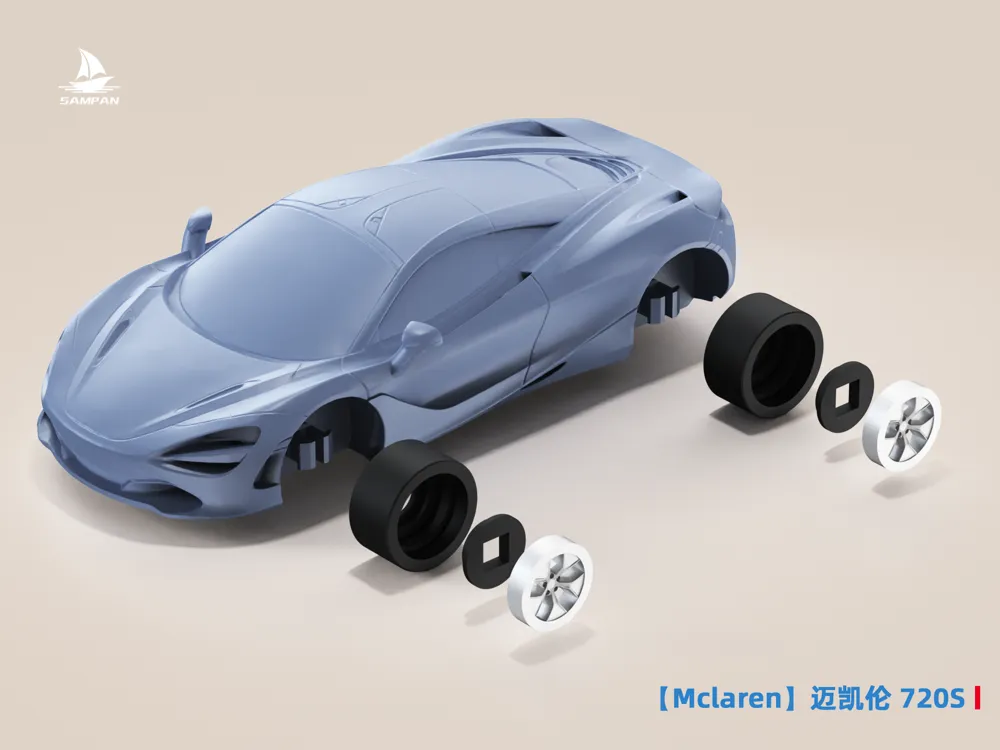

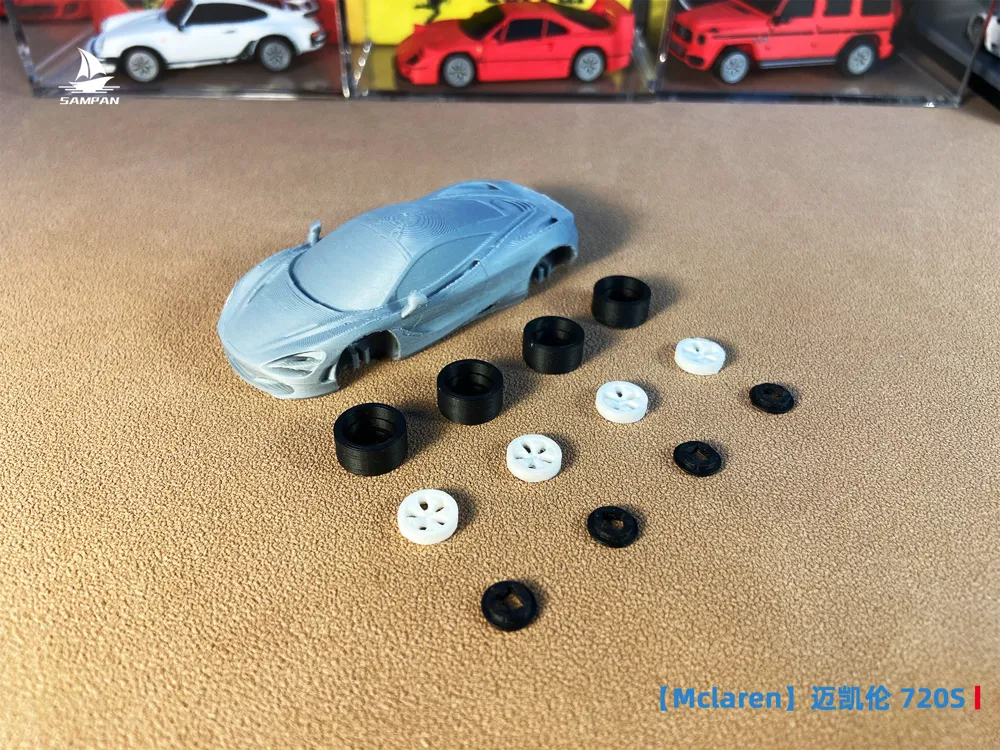

- Movable wheels, glue-free assembly

- You can replace the rich variety of wheel hubs available under this account, browse the homepage and download your favorite wheel hub styles

Size
- 1:64 scale

- 1:43 scale: The model can be scaled to 150% for clearer details
- Sliced files, use minimum printer size settings. You can adjust the number of models printed at once according to your printer size to save time and filament

FDM Print Settings

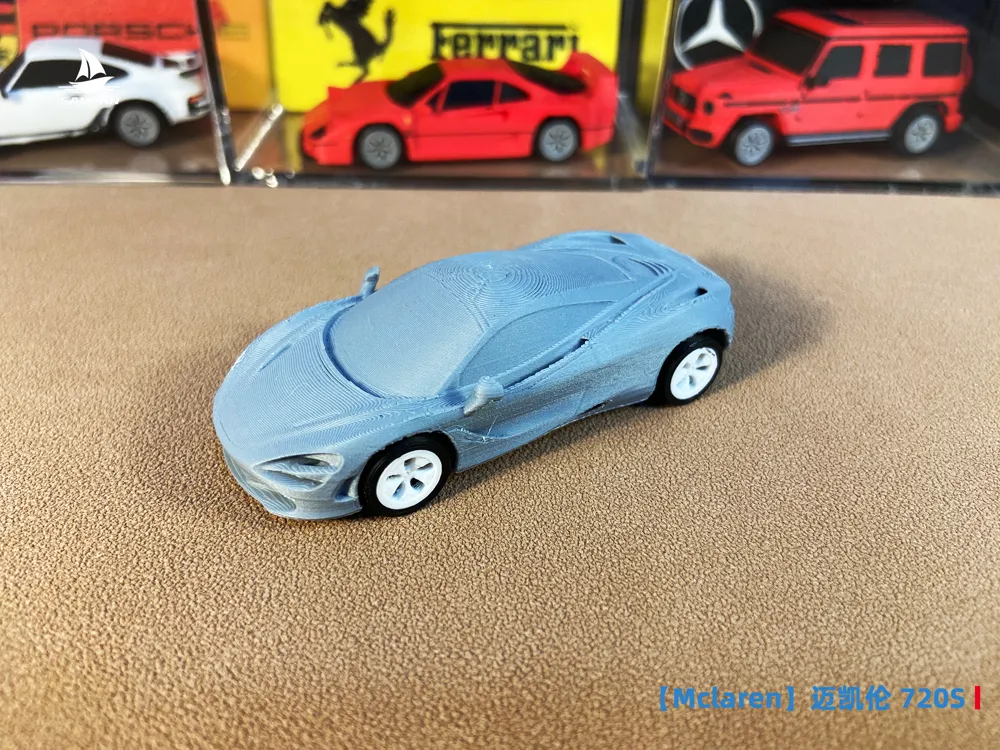

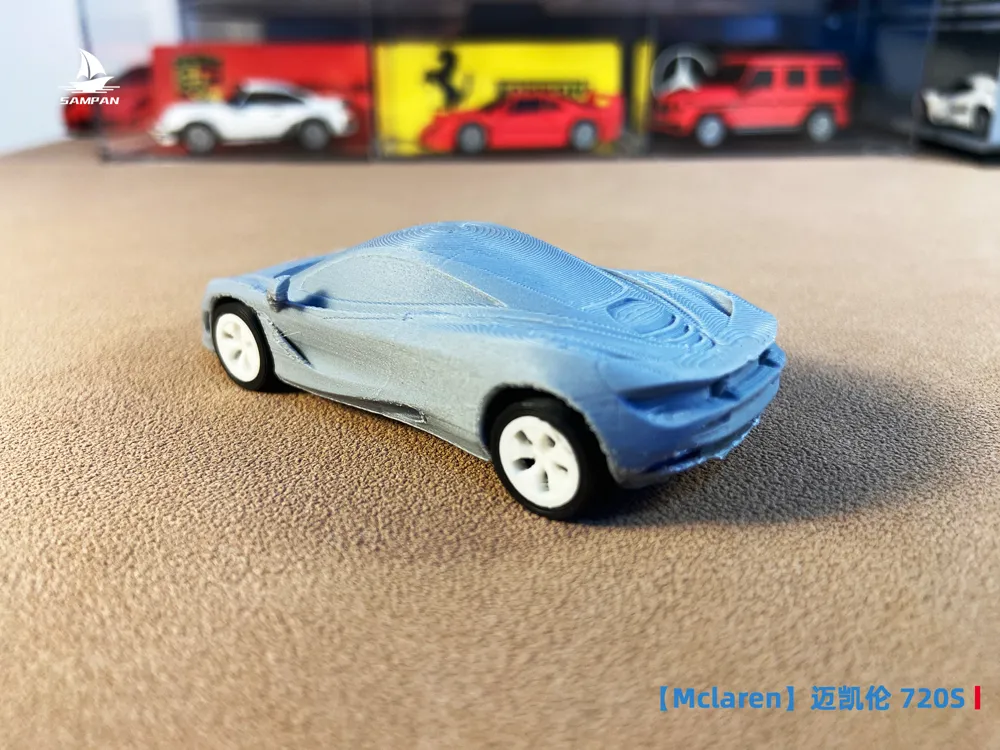

- The physical model was printed using an A1 mini with a 0.4mm nozzle, 0.12mm layer height, and official PLA. Using equipment, parameters, and filament with higher specifications will yield better results (If assembly is too tight or too loose, you can compensate by adjusting the XY outer contour dimensions of the components, or by using sanding tools and 409 glue for processing and connection)
- Infill density: 15%. To increase the model's heft, the infill density can be adjusted to 100%
- Supports: A combination of normal and tree supports was used

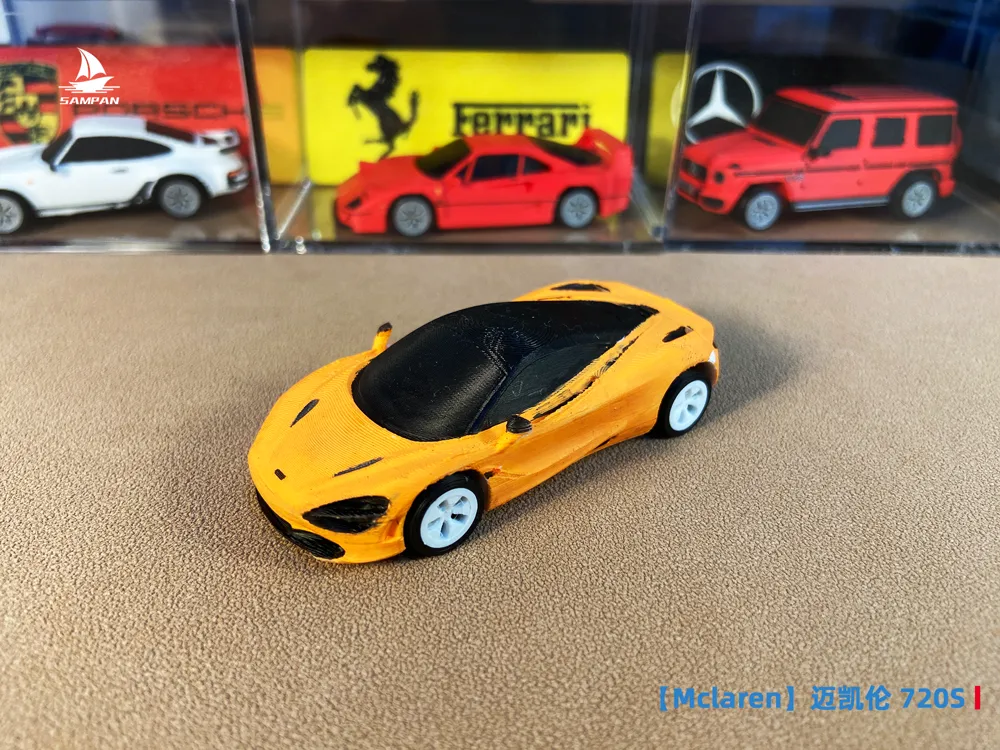

- Various painted versions will be released later. Follow the account to get the latest updates.

- You can also adjust the printing parameters based on your own printing experience

Support Removal Instructions

- The model is small, and supports have been added at key locations. To remove supports, use side cutters and tweezers. Breaking them off by hand will likely lead to structural breakage, especially the side mirrors and rear wing sections

- Tip: To ensure successful removal of supports from multi-color models and prevent breakage, you can first print a single-color model for practice to understand the model and support structure, then remove the supports from the multi-color model (If breakage occurs, 409 glue can be used for connection)

Single-Color Painting Reference

- Sanding: (Optional) Sand in the order of 400-600-800 grit

- Painting: Paint with acrylic paint brushes (For bleeding issues with layer lines at edges, first apply the main color over a large area, then paint the edges)

- Polishing: Polish with a flannel cloth to make the acrylic paint shine

Assembly Instructions

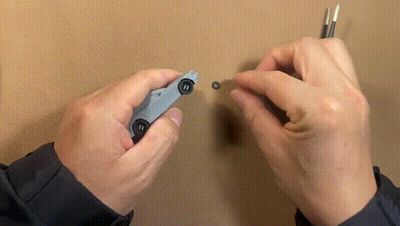

- For long-term stability, the wheels require appropriate force for installation and will be relatively tight when first rotated. After playing with them a few times, they will become more flexible. See the GIF for wheel installation

- For convenient installation of wheel calipers, a dedicated wheel caliper installation tool has been designed and produced, link: 1:64 scale wheel caliper installation tool by SAMPAN Replicas - MakerWorld

Visit the author's homepage to see all vehicle models, welcome to like and follow!

Hope to see more friends share your printing photos, I'm curious what kind of works you will print!

We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
