3 Way, 1 Inch ID, 90 deg, Elbow

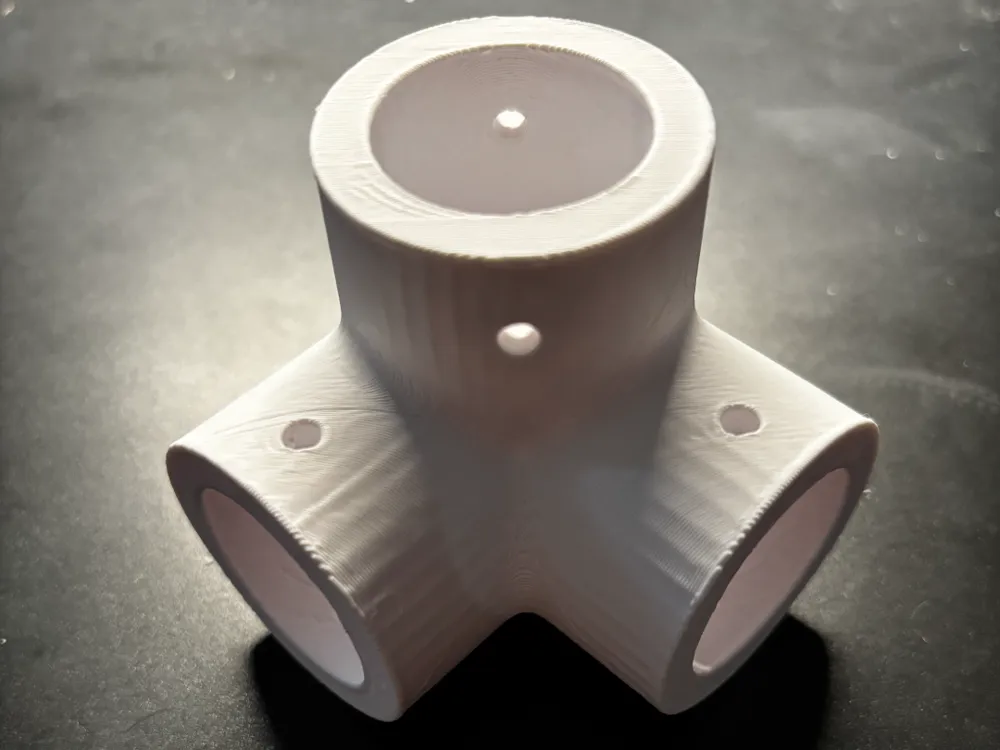

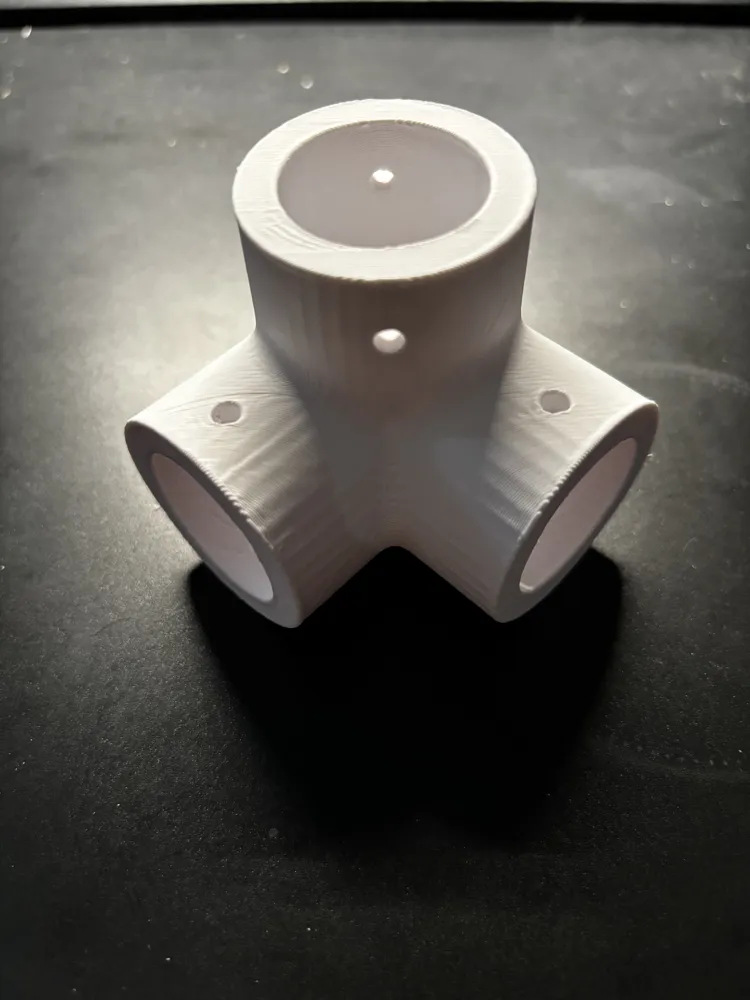

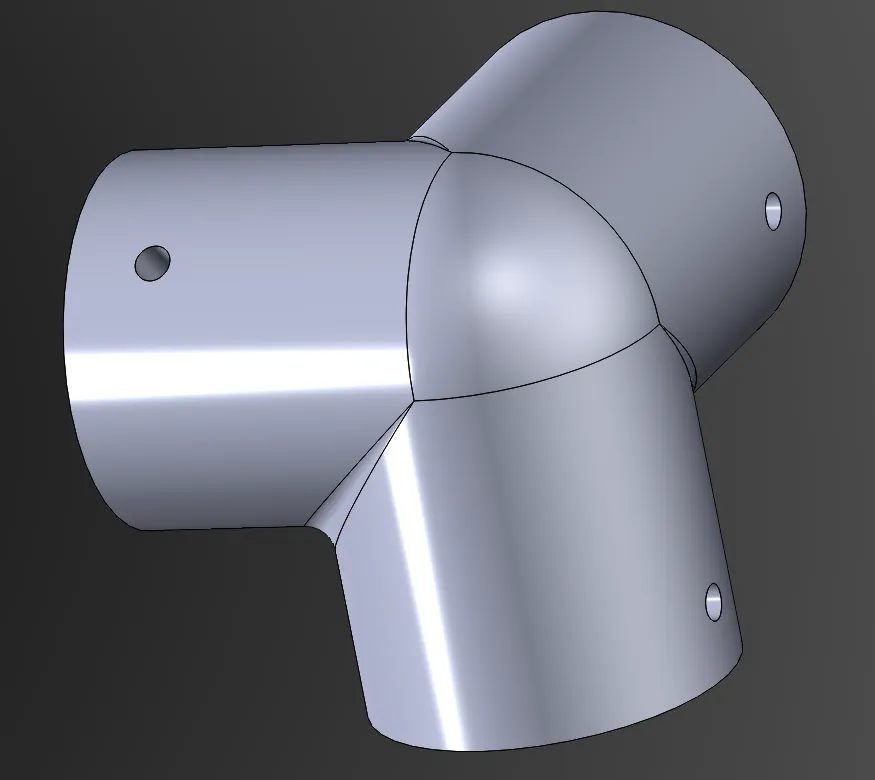

This is my first attempt at publishing a model. I created this 3-way, 90-degree elbow for ¾" PVC pipe [1-inch (25.4mm) outer diameter PVC pipe] to use in my wife's garden as part of a trellis system. I modeled some through-holes to be used as pilot holes for securing the ends of the pipe into the elbow, in case you don't want to glue them together.

Material: PETG HF

Print settings I used:

  Nozzle Diameter: 0.4

  Layer height:  .20mm standard profile on my A1mini

  Supports: Recommended; I used tree(auto) slim style.

  Orientation: I oriented the elbow with open ports facing up. This helps keep the amount of overhang to a minimum as well as keep the 3-way openings circular as much as possible.

  Model Print Time: Estimated time at settings above is around 1h28m for 1.

Leave a comment if you have any suggestions about what can be improved or if modifications would be nice. Thanks.
