HC-SR04 Ultrasonic Sensor Housing
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 50% infill
Designer
39 min
1 plate
Open in Bambu Studio
Boost
175
436
23
6
795
420
Released
Description
Content has been automatically translated.

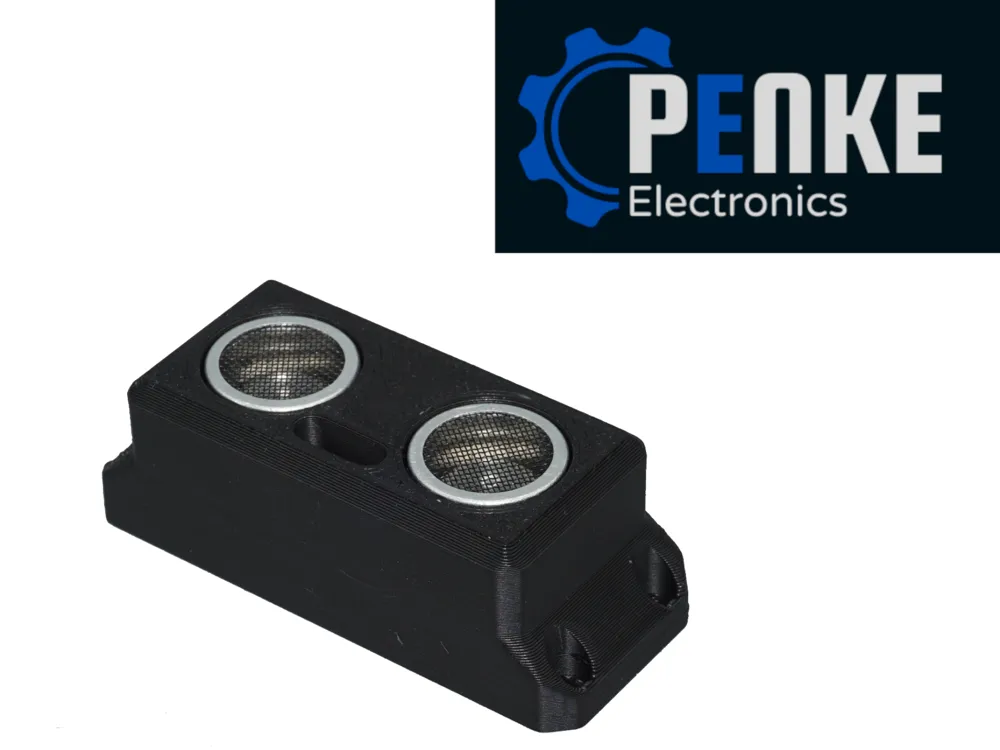

This high-quality 3D-printed sensor mount is specifically designed for the HC-SR04 ultrasonic sensor, ensuring secure, stable, and precise mounting in your DIY and electronics projects. Ideally suited for use with Arduino platforms.

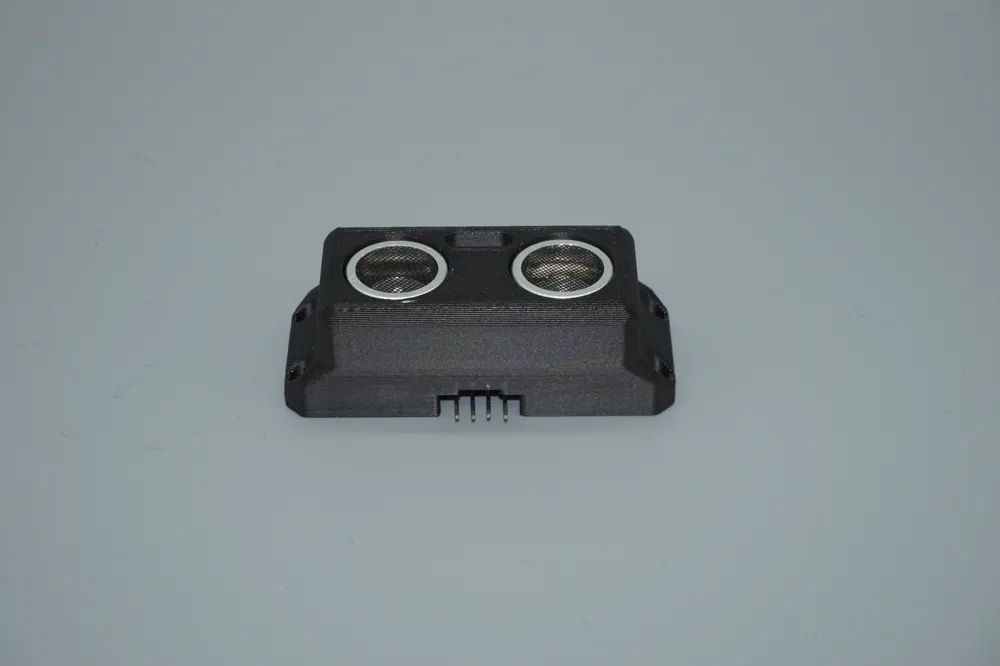

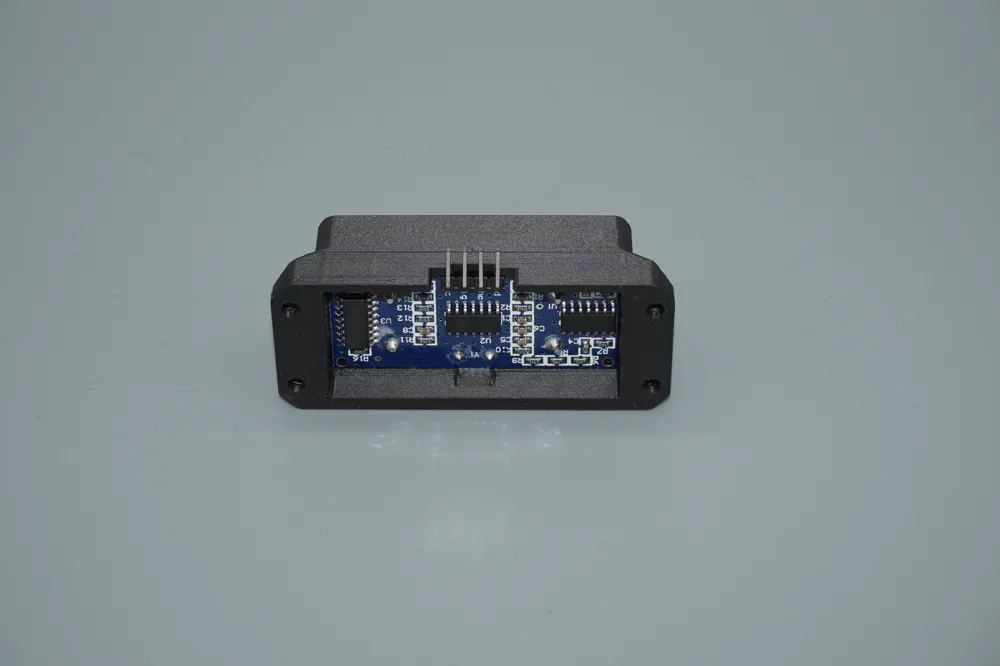

The HC-SR04 ultrasonic sensor simply clips into the housing and does not require separate screwing. The housing itself is then attached to the substrate with 4 mounting screws.
The model's infill density is 50% to ensure good stability; no supports are necessary.
The screws, corresponding cables, and the sensor are available in our shop.
Also visit our YouTube channel and see here how such a model is created.
