Ok, my last modification to reduce gluing parts.(first sorry for the mess on my work space)All this does is puts the shaft on the Lower Chamber instead of Pommel 1 and adds threads at the bottom.All parts slide on and is fixed in place by the Pommel 4 at the bottom.  The Lower Chamber is glued to the Grip, bu the remaining bottom parts can be access/changed by unscrewing the Pommel 4.

Optional Bottom Section Reduced gluing








OK, the reason I don&#39;t normally like gluing parts:After just publishing the other profile, I thought about being able to change the upper section.  Since I glued it, I couldn&#39;t do that without printing entire model.  So, the answer came to me in my sleep - this is an optional Upper Chamber with the tab as part to screw into the Upper Chamber.  Now, you can glue the tab into the middle section, the grip, and if you want to change or modify the top section, you can unscrew it.

Optional Upper Chamber with screwed tab

Screenshot 2025-08-27 102805.jpg


CaseStudyno8&#39;s original STL/CAD files seem to be missing.  I am only adding the wrapped grip STL I used to print for my X1C.  All of the files are available on Printables: <a target="_blank" rel="noopener noreferrer ugc" href="https://www.printables.com/model/870142-rey-skywalkers-lightsaber/comments">https://www.printables.com/model/870142-rey-skywalkers-lightsaber/comments</a>I did not download or print the unwrapped grip.

File for wrapped grip on a X1C printer






01 - top and teeth.jpg

02 - teeth into top.jpg

03 - teeth.jpg

04 - 14.5mm.jpg

05 - top and bottom of Upper Emitter.jpg

06 - top and bottom assembled.jpg

07 - top and bottom assembled - no teeth.jpg

08 - top and bottom right side up.jpg

09 - teeth stop.jpg

10 - 3 indexed rotator.jpg

11 - Rotator top and rod.jpg

12 - indexed Rotator and rod.jpg

13 - rounded top of rotator.jpg

14 - Upper Chamber to Lower Emitter Connector.jpg

First, kudos to CaseStudyno8 for a great design of Rey’s Light-saber.&nbsp;These comments and designs are for the upper section of the light-saber.&nbsp;I had a few issues with the Emitter teeth design where they snapped onto the bar in the Upper Emitter. I broke about 20 teeth.  I thought there may be a better way.  I am a fan of using filament as axles.  So, I resigned the Upper Emitter by splitting it at the Emitter Teeth axles, making the Emitter Teeth with enclosed ends and using filament for teeth rotation.  You should cut the filament length at about 14.5mm. I designed the upper part of the Upper Emitter in a way that it enclosed the lower portion of the Upper Emitter. To assemble this I found it best to lay the top portion on table, insert the teeth and then insert the bottom portion by pushing down onto the top (upside down) part. At first this let the teeth rotate too far back and so I added a block that only let them rotate a smaller angle.  You can see the gap in the picture with the brown assembly.&nbsp;As far as the Upper Rotator: I had an issue with the Upper Rotator going to high and occasionally coming out of the Lower Emitter – I extended the length by 2mm and lowered it down the corresponding 2mm.  I also decided to add additional indexing marks along the side.  The original design had only 1 and I thought 3 would provide better guidance up the tube. At first, I designed them at equal angles (120 degrees apart), but you needed to be care to insert it into the Lower Emitter at the correct orientation.  So, I offset two of the index marks by 5 degrees.  Now, it will only fit in one way, the correct way.  I also had a printing issue that the Bambu Studio slicer wanted to print it upside down and this would often destroy the top of the Upper Rotator.  So, I split the Upper Rotator into a top section and a rod for the bottom.  I inserted a threaded section on the Rod to screw into the top section.  I could have used a gluing method, but I am not a fan of glue, if I can avoid it. This made printing easier.  The threaded part of the Rod doesn’t need support, and Studio did not recommend it.  However, Studio did want to use support on the inside treads of the top part. This is also not needed, and the support is very hard to remove.  So, in the print profile I tell Studio to not support the inside threads.  I have had no problem (just remember to remove the support inside hole for the Platform rod).  One thing I did add, since the Rod needs to be screwed in the correct amount. I added index marks on both pieces. The treads should just bottom out, but you should screw it in, so the index marks align. Finally, I added a small, rounded lip at the top to raise the teeth.&nbsp;Finally, the “Connector” connecting the Upper Chamber and the Lower Emitter: With only a single Connector, the Activation Gear could rotate almost 360 degrees making the Upper Rotator go all the way up, and then back down.  I thought a 180-degree capability would be better: it would rotate all the way, stop, and to lower, you would reverse the direction.  I first added a second connector, but I decided to just make a single larger connector.

Rey Light Saber Upper Section mod

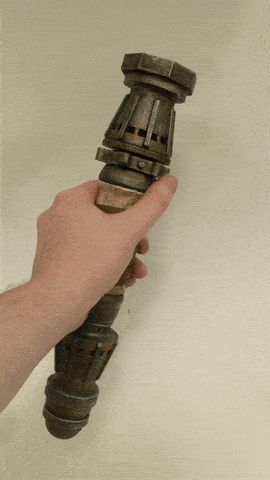

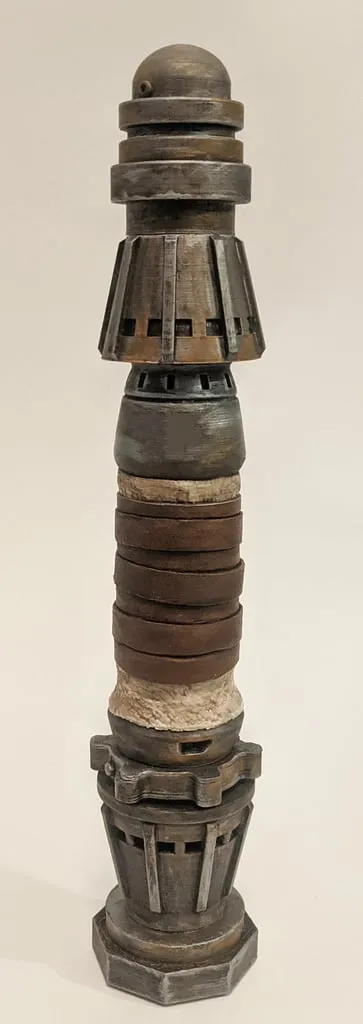

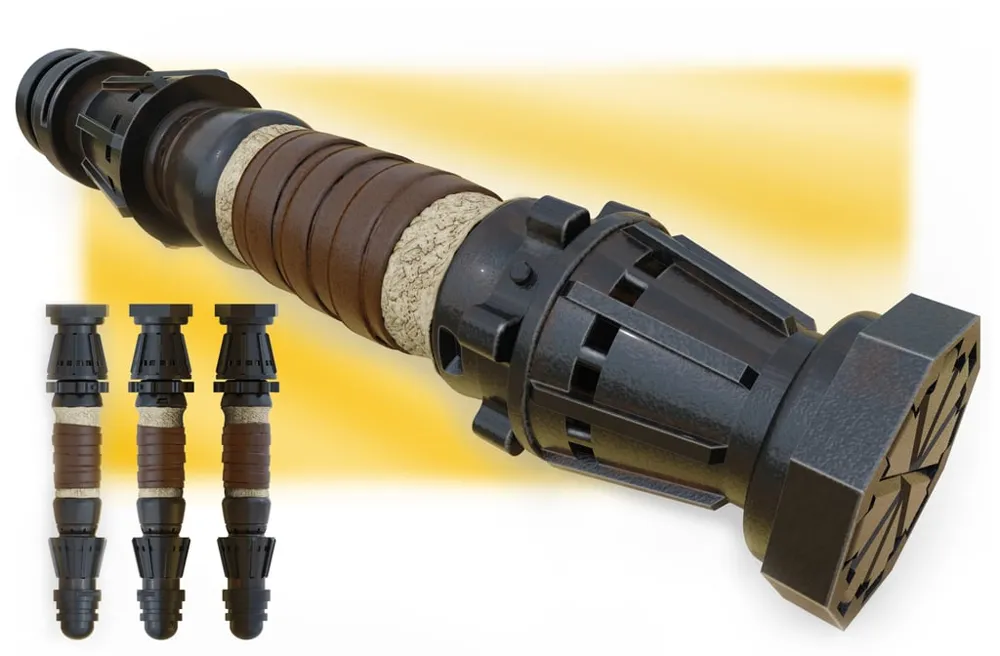

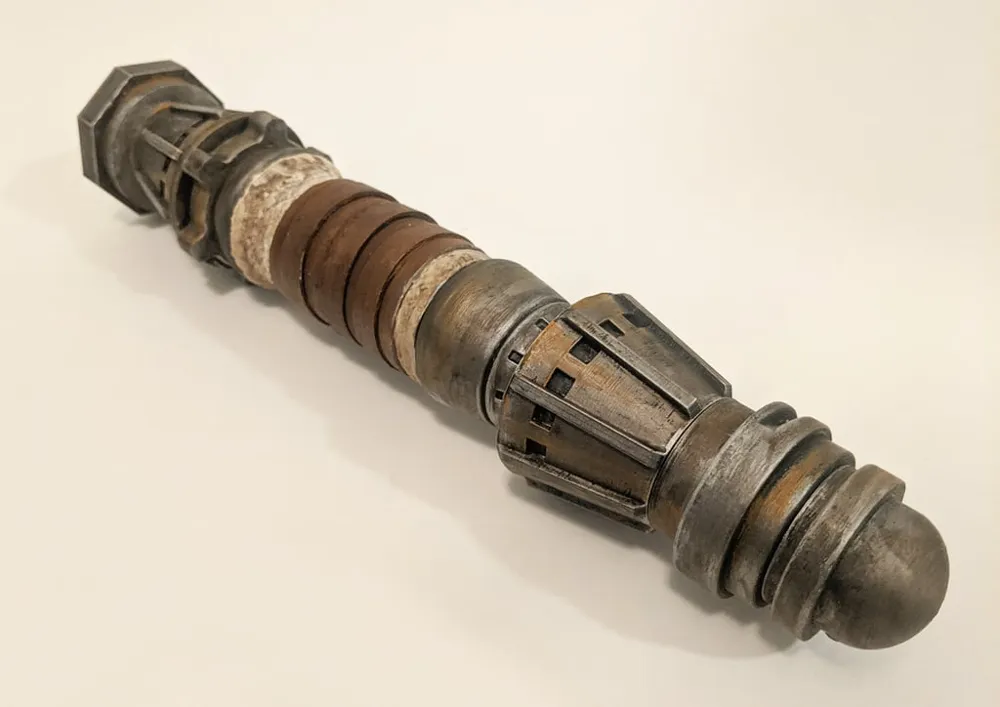

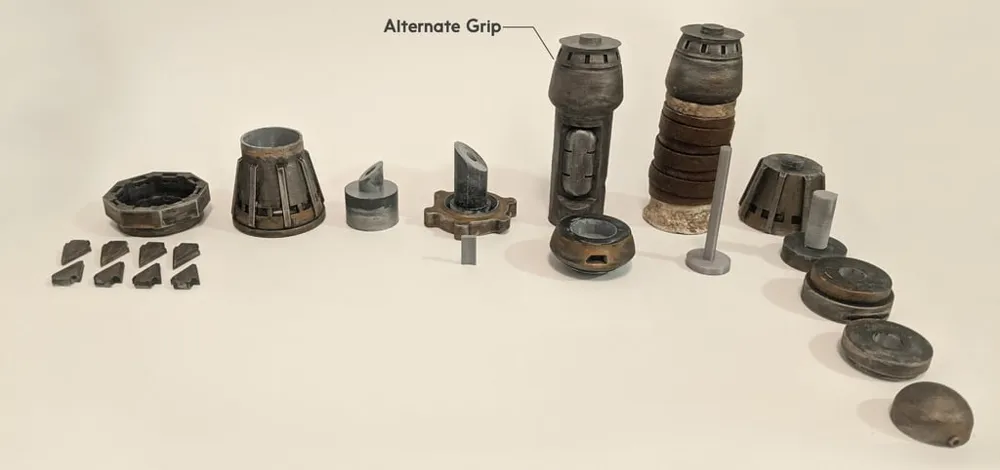

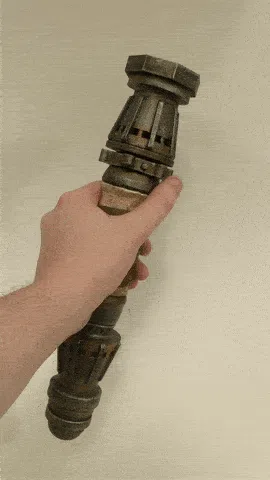

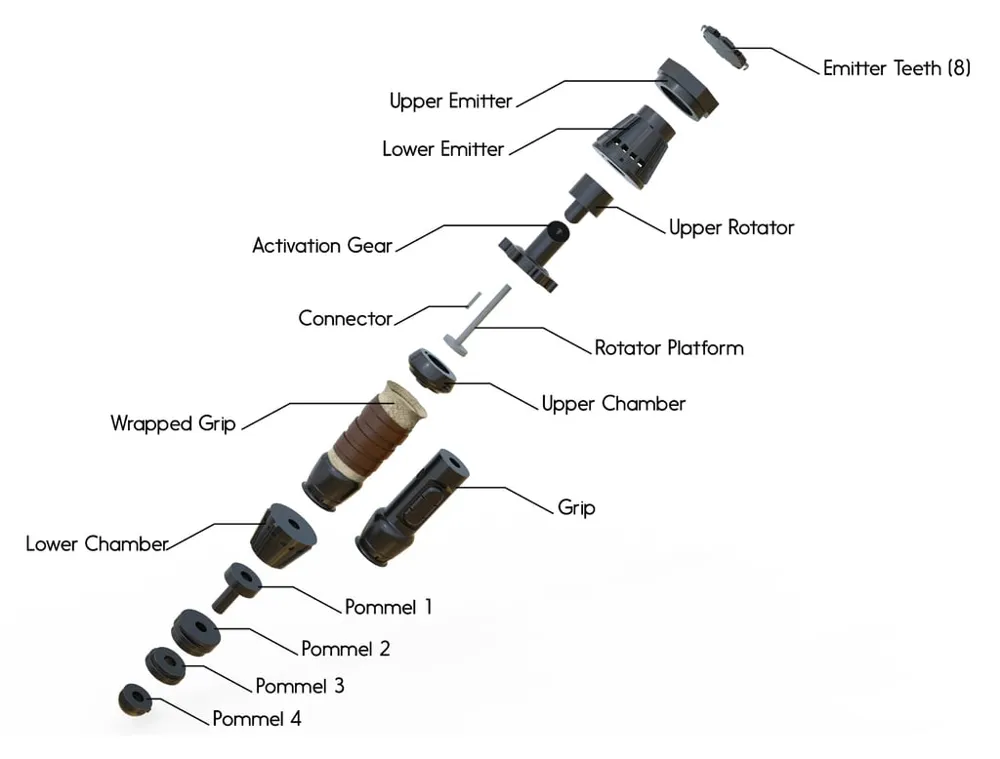

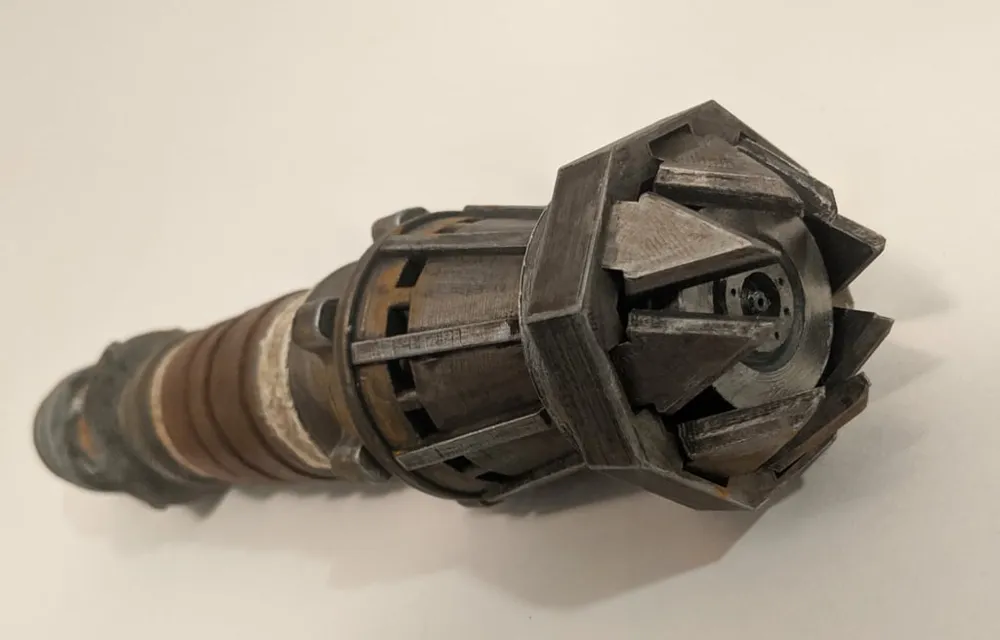

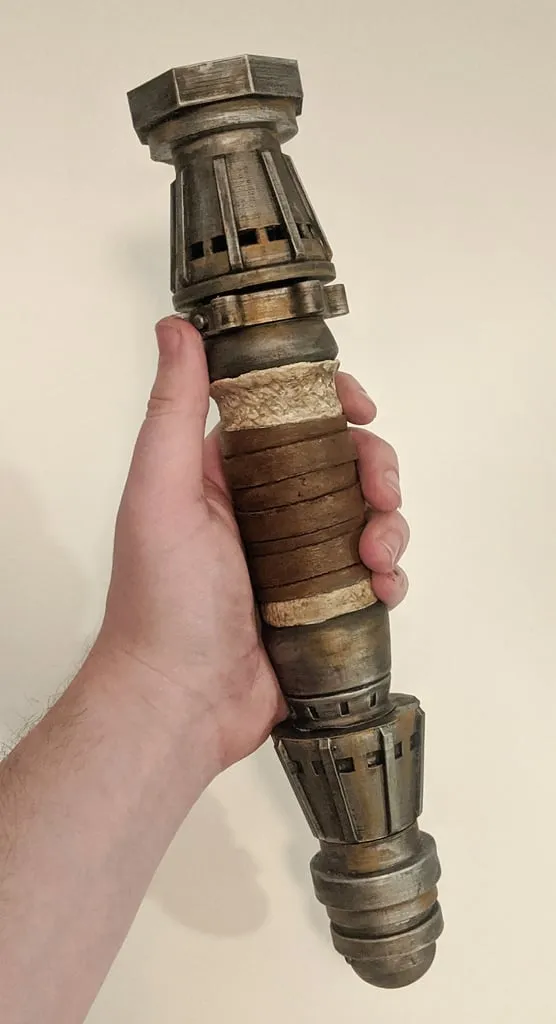

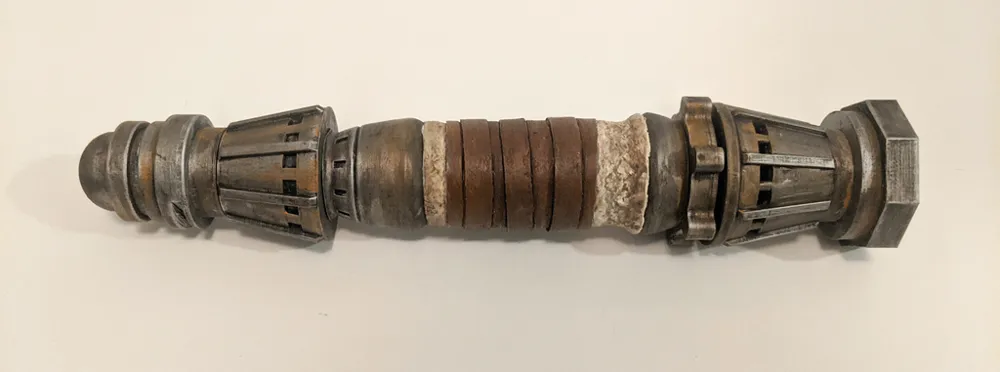

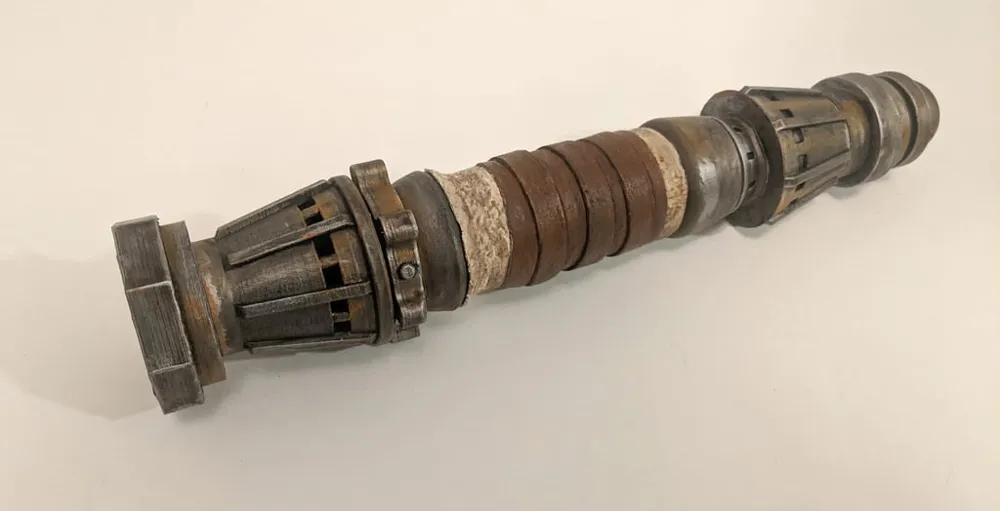

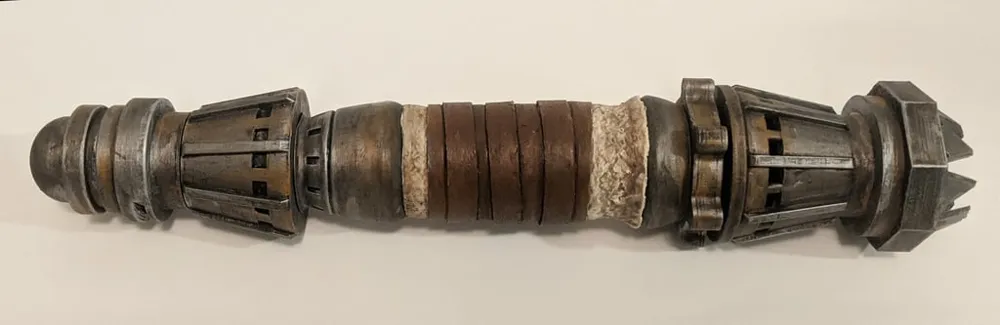

<h2>Summary</h2>Rey&#39;s new lightsaber! This design features a simple mechanism in the top that allows you to rotate the Activation Gear and raise up the Emitter Teeth on top. In order to get the mechanism working, everything needs to be tightly glued together and the Upper Rotator may need something to help it grip the sides to always rise up. I&#39;ve made some modifications similar to UnimatrixRed&#39;s fantastic re-mix to help with the mechanism.&nbsp;I&#39;ve included 2 versions of the grip: one with a sculpted cloth wrap and one that is naked, so you can make a real cloth wrapping if that&#39;s your thing.&nbsp;Personally I printed the Upper Emitter, Upper Chamber and Wrapped Grip with supports generated in Cura. All of the STLs are in the orientation I printed them.&nbsp;Happy Printing!

Rey Skywalker's Lightsaber
