15x7 CharliePlex Enclosure with Translucent Window
Print Profile(1)
Description

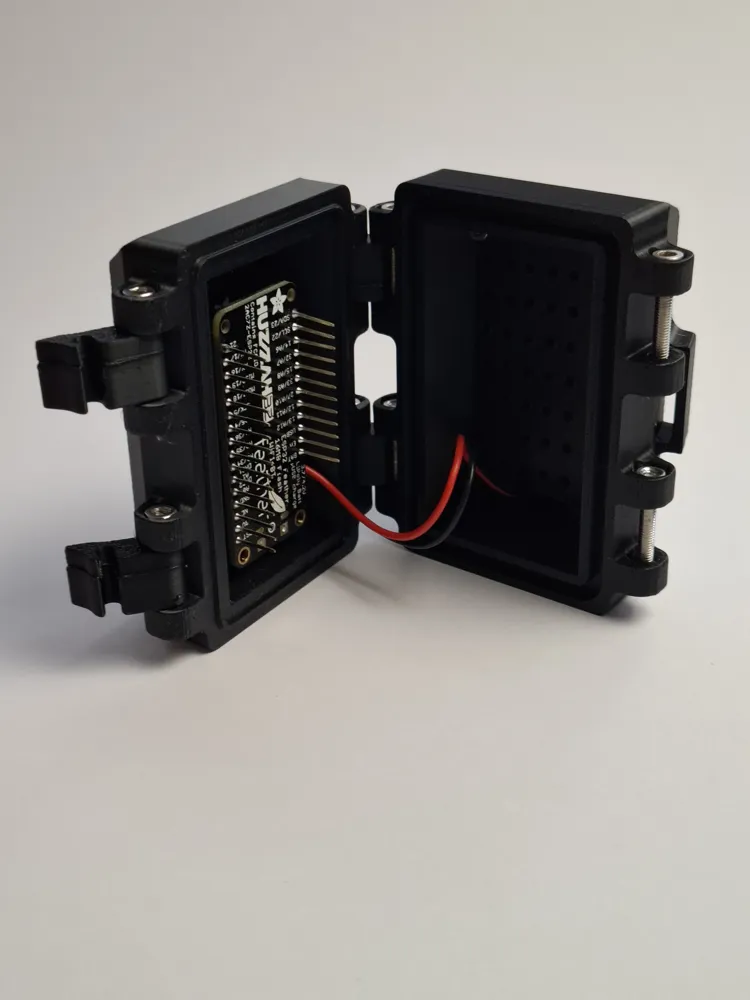

A small rugged weather-proof enclosure for the 15x7 CharliePlex FeatherWing and Adafruit HUZZAH32 – ESP32 Feather Board.

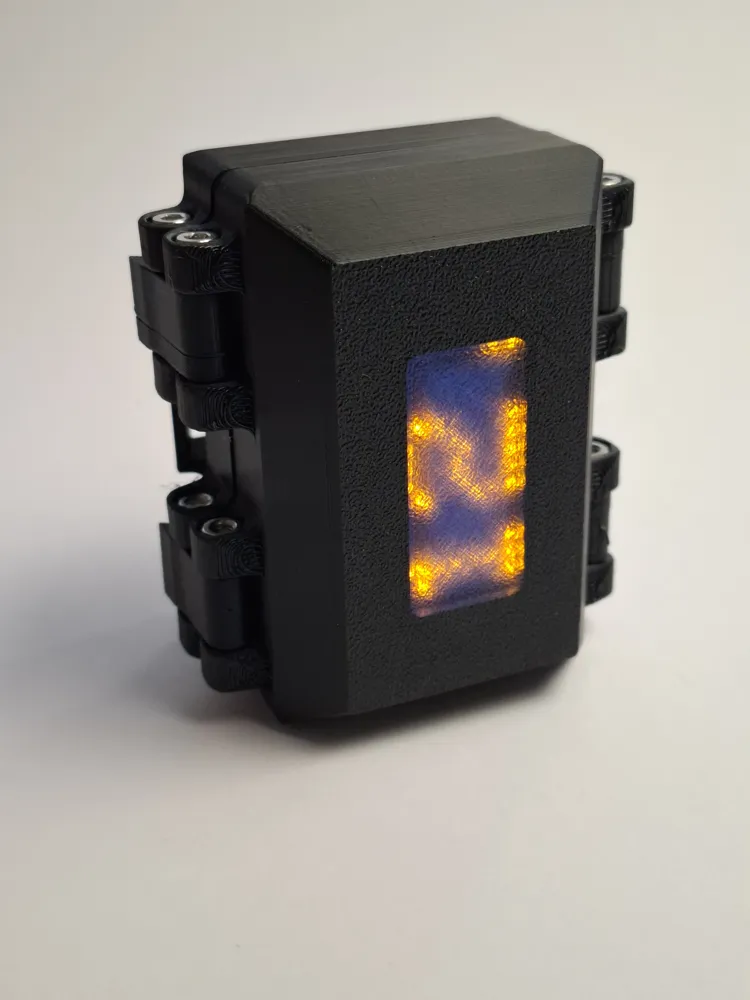

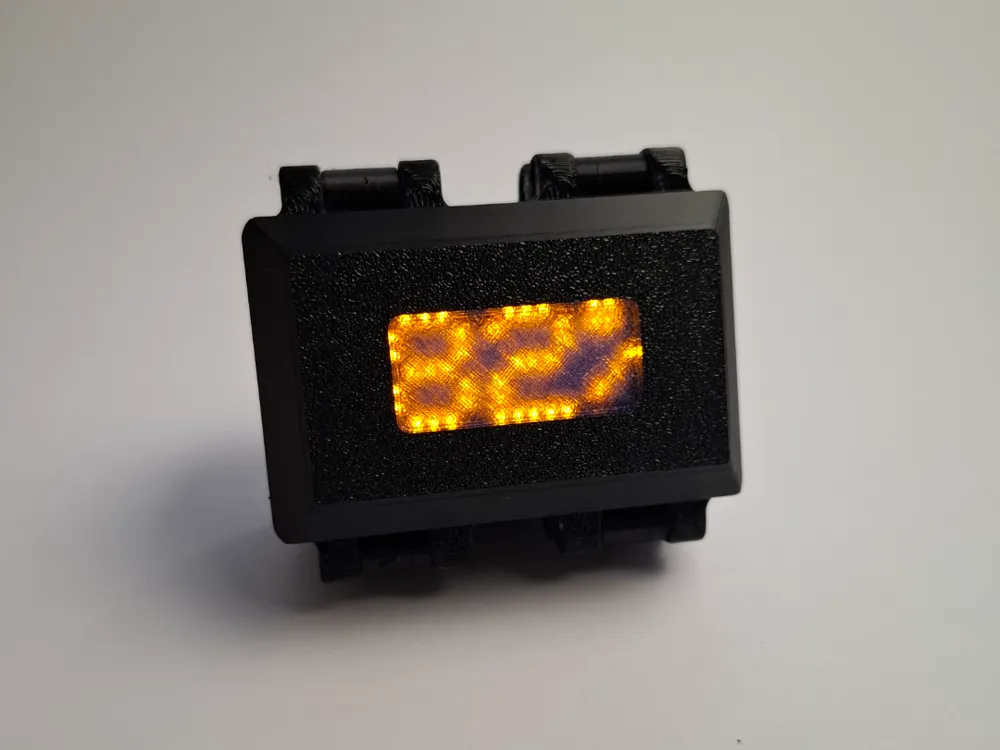

The window can be printed in the lid in translucent filament (PLA or PETG) but should be the same material type as the enclosure.

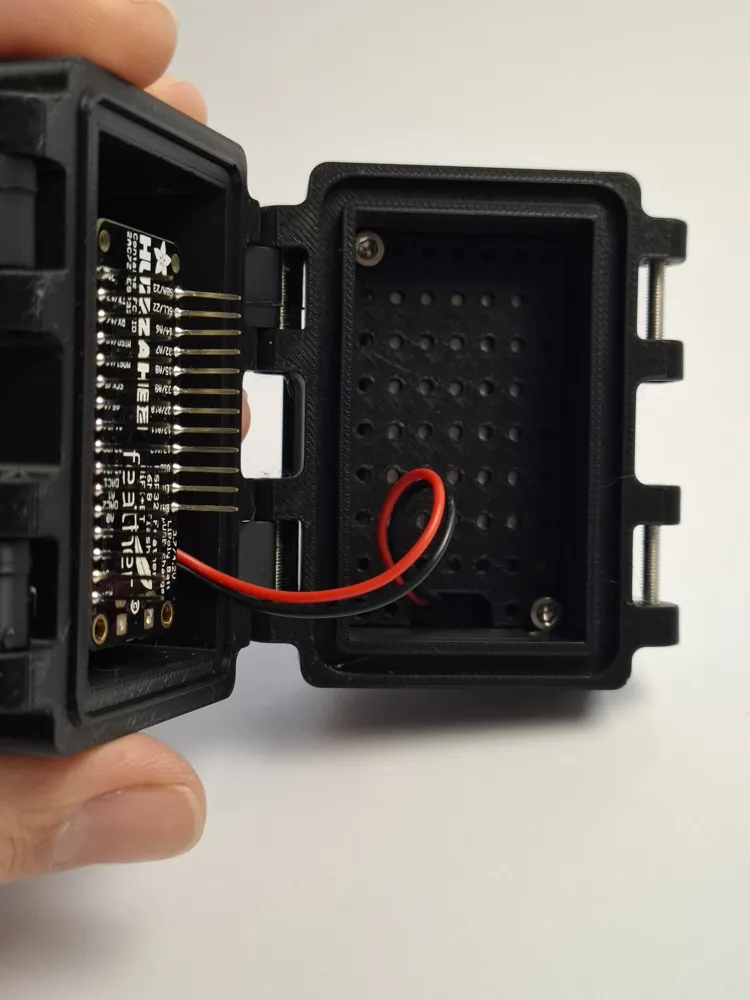

A small 1100mAh battery also fits under the mounting plate
The CharliePlex in mounted to the lid with small M2.5 x 5mm screws.
The mounting plate is secured with M3 x 6mm screws.
I filled the groove in the body of the enclosure with JB weld liquid gasket to create a gasket, wait 24 hours to set!
The ridge on the lid will compress the gasket and create a water-tight seal!
It's recommended to print in at least PETG filament for outdoor use!
4 of the clasp are needed per box, and they are attached to the lid with 20mm M3 bolts and nuts.
4x 20mm bolts are also used as clasp-points on the body.
