【Porsche】Porsche 911 (996) Turbo Hardtop Supercar Race Car Assembly/Articulated Wheels

【Special Notes for F1 Models】

1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!

4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!

【Read Before Printing!!! Warm Tips】

It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.

Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.

---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------

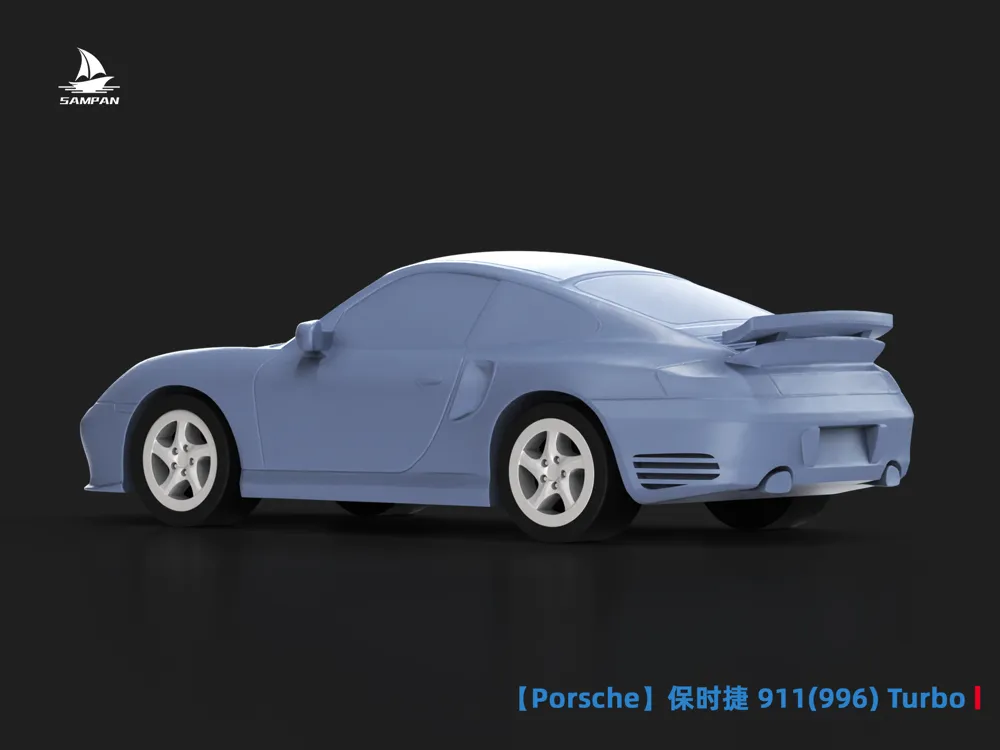

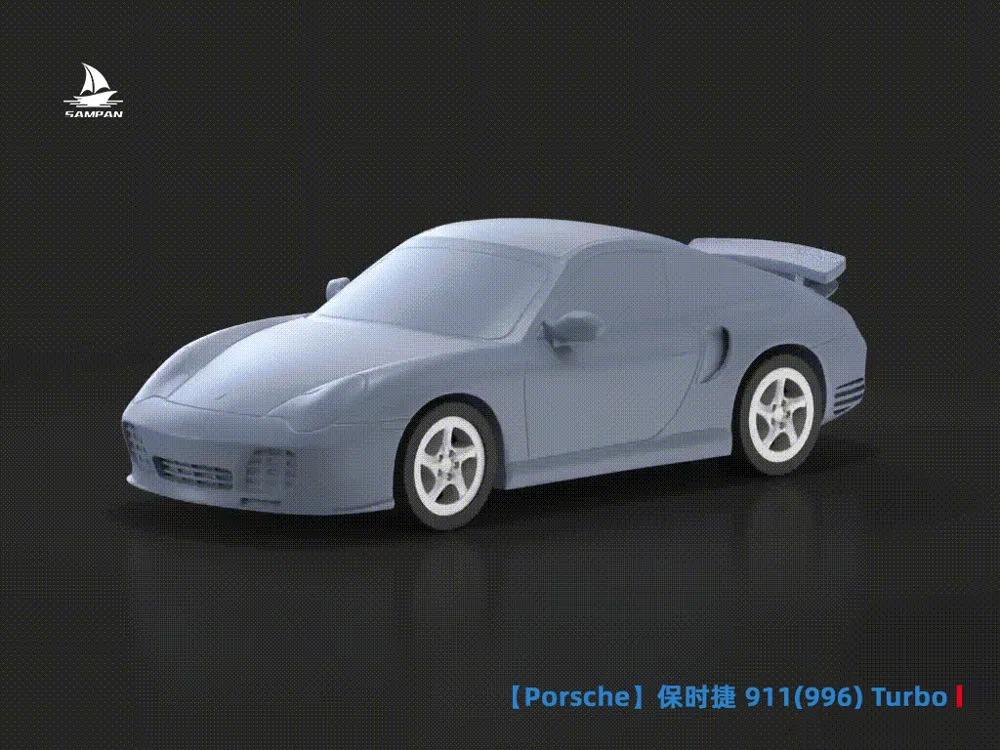

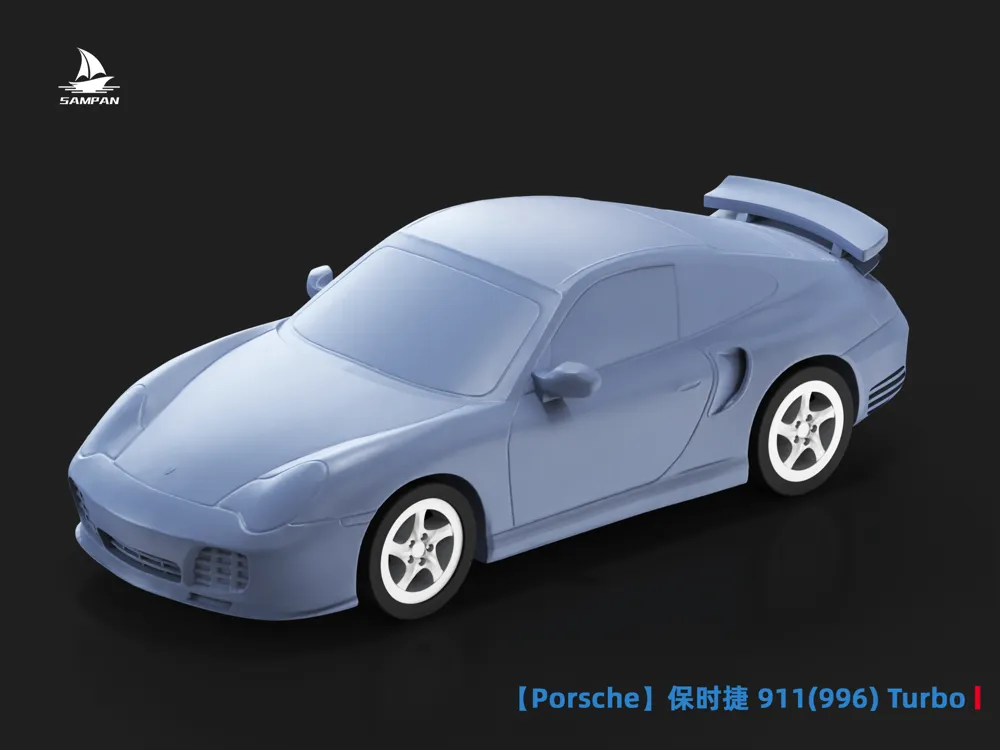

Porsche 911 (996) Turbo: The original turbocharged benchmark of the water-cooled era (2001-2005 models)

Equipped with the legendary Mezger engine, standard PTM all-wheel drive and active suspension, it achieved a perfect balance of performance and daily usability, while also offering convertible and Turbo S high-performance variants for the first time, laying a solid foundation for the subsequent development of the 911 Turbo

For performance car enthusiasts and 911 collectors, the 996 Turbo is a classic performance flagship that combines historical significance with driving pleasure

Model Description

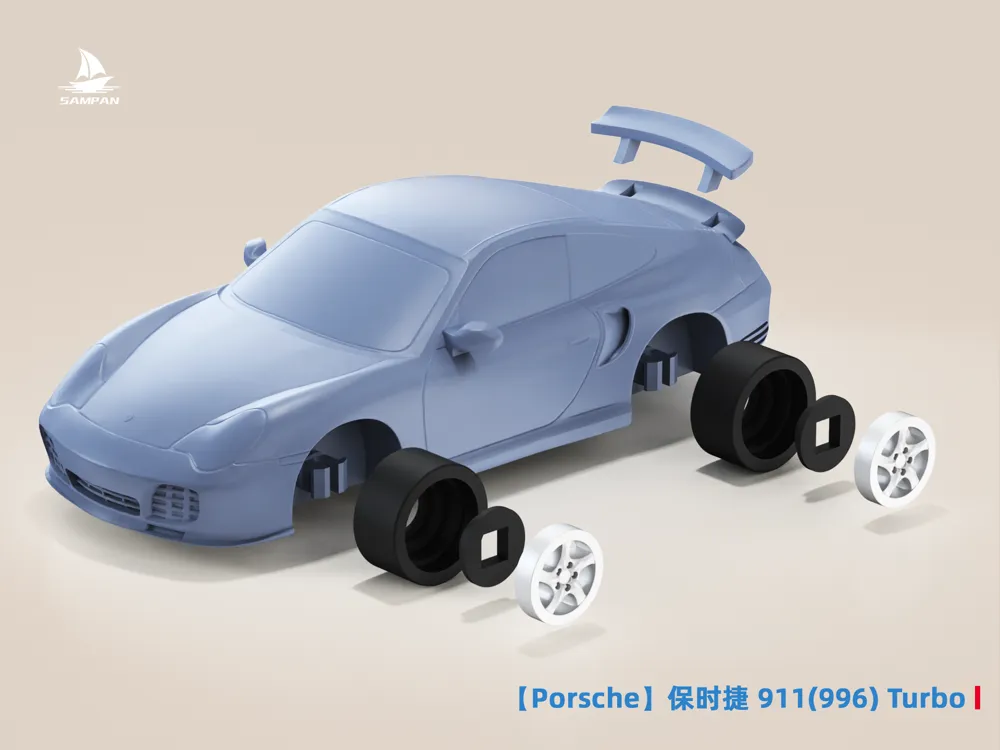

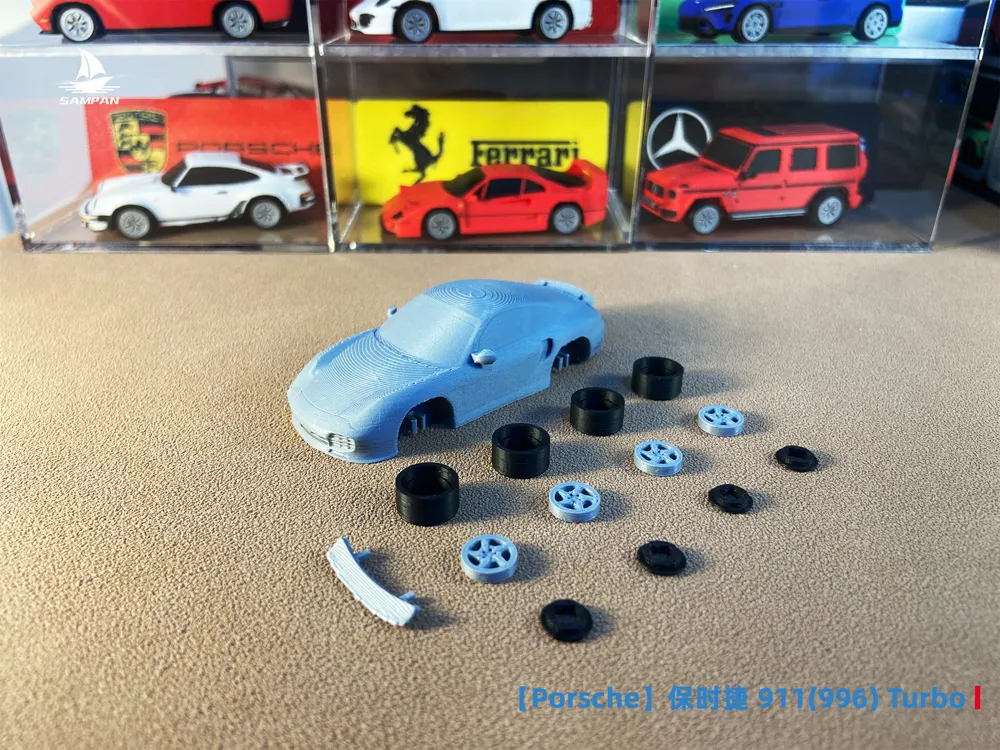

- Movable wheels, assembly requires no glue

- Replaceable with a wide variety of wheels under this account, browse the homepage to download your favorite wheel styles

Dimensions
- 1/64 scale

- 1/43 scale: Scale the model to 150% for clearer details
- Sliced files, set to minimum printer size. You can adjust the number of models printed at once based on your printer size to save time and filament

FDM Print Settings

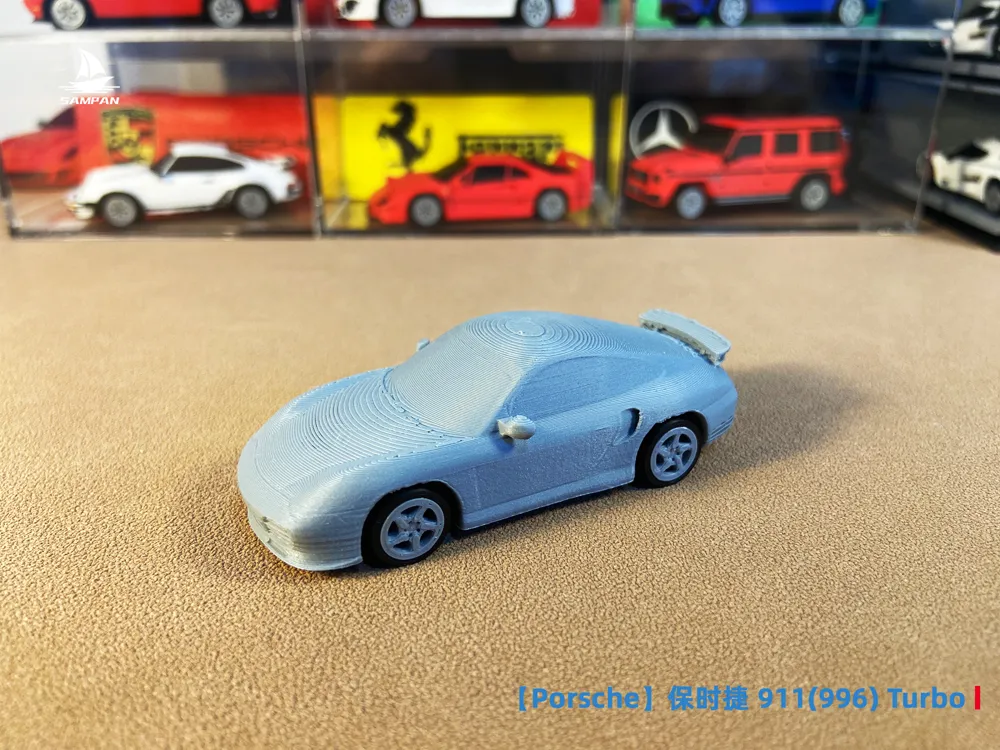

- The actual model was printed using an A1 mini with a 0.4mm nozzle, 0.12mm layer height, and official PLA. Using equipment, parameters, and filament with higher specifications will yield better results (If assembly is too tight or too loose, you can compensate by adjusting the XY contour size of the components, or use sanding tools and 409 glue for processing and connection)
- Infill density: 15%. To increase the model's weighty feel, the infill density can be adjusted to 100%
- Supports: A combination of normal and tree supports was used

- Various painted versions will be released later, follow the account to get updates as soon as possible

- You can also adjust the parameters for printing based on your own printing experience

Support Removal Instructions

- The model is small, and supports have been added at critical locations. Removing supports requires the use of flush cutters and tweezers. Breaking them off by hand will likely lead to structural breakage, especially for the side mirrors and rear wing

- Tip: To ensure successful removal of supports for multi-color models and avoid breakage, you can first print a single-color model for removal to understand the model and support structure, then remove the supports for the multi-color model (if there is breakage, 409 glue can be used for connection)

Single-Color Painting Reference

- Sanding: (Optional) Sand in the order of 400-600-800 grit

- Coloring: Use acrylic paint brushes for painting (for issues with layer lines bleeding at edges, you can first paint the main color over a large area, then draw the edges)

- Polishing: Use a flannel cloth for sanding and polishing; acrylic paint will show a luster

Assembly Instructions

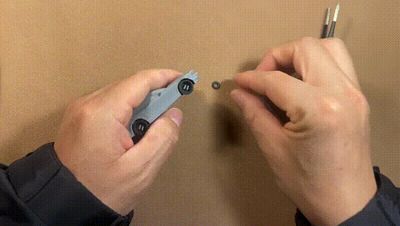

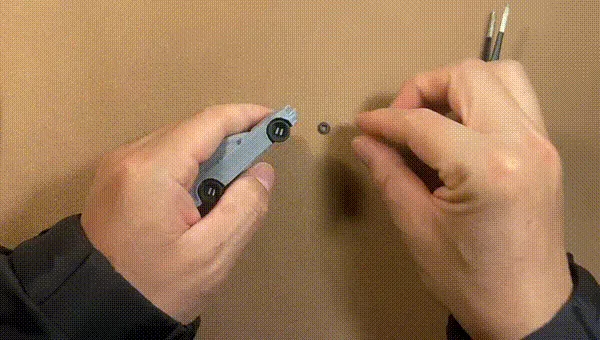

- For long-term stability of the wheels, installation requires appropriate force, and the initial rotation will be quite tight. After playing with it a few times, it will become more flexible. See the GIF demonstration for wheel installation

- To facilitate the installation of wheel calipers, a wheel caliper installation tool has been specially designed and produced, link: 64 Scale Wheel Caliper Installation Tool from SAMPAN Replicas - MakerWorld

Visit the author's homepage to see all vehicle models, welcome to like and follow!

Hope to see more friends share your printing photos, I'm curious what kind of works you will print!

We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
