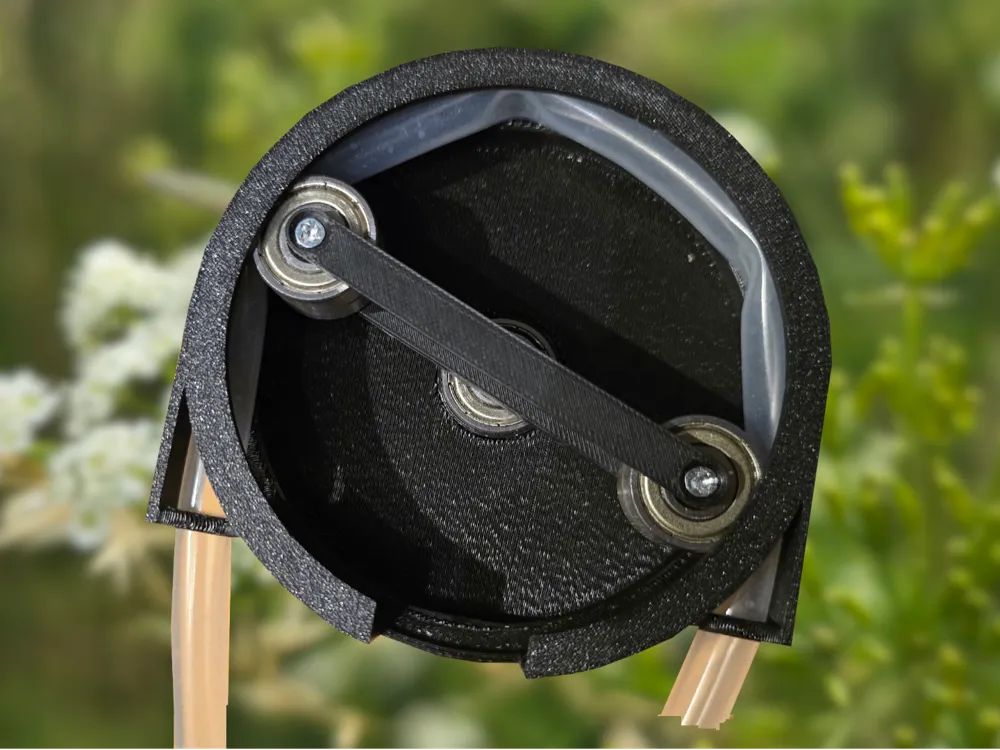

Tubing Pump - Peristaltic Pump

This pump offers the advantage of being usable even above the water level

A silicone tube with an outer diameter of 1 cm and a wall thickness of 1 mm is required

Furthermore, the following parts are needed:

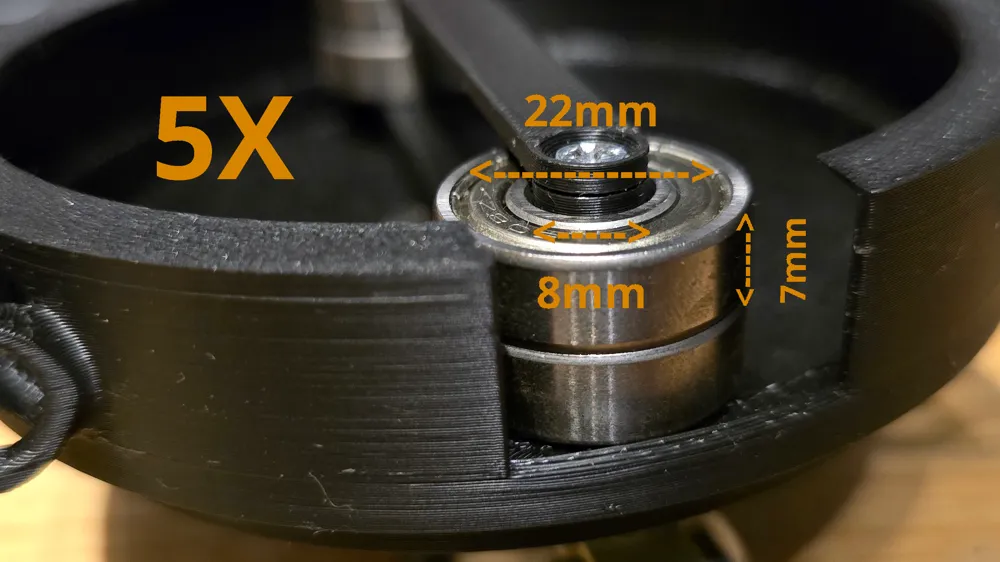

• 5x ball bearings

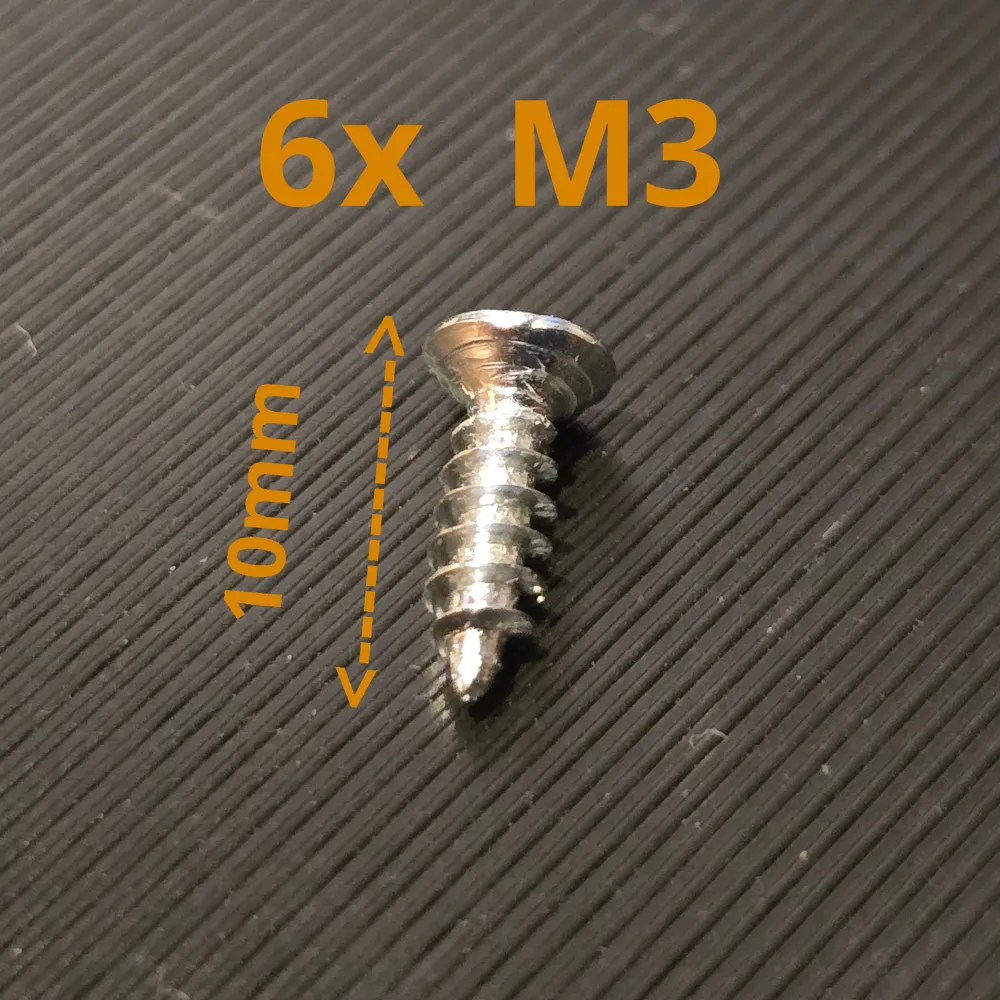

• 6x M3 wood screws (1 cm long)

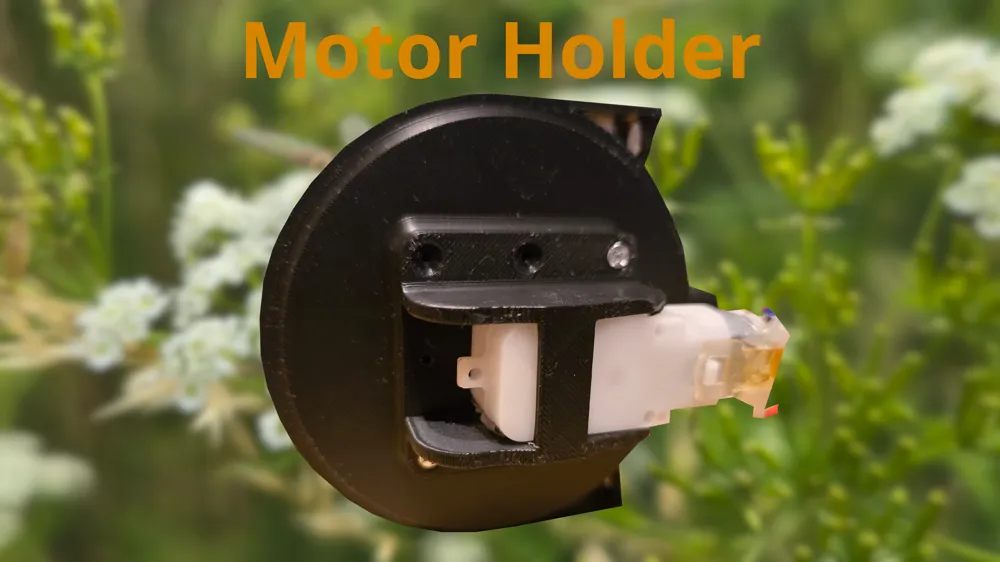

• a suitable motor

The pump can:

• pump approximately 0.5 liters per minute
• achieve a suction height of up to 1 meter (maximum 130 cm) with my motor
• pump both air and water

Important: This project is for educational and informational purposes only. Use is at your own risk.

The creator assumes no liability for damage to persons, property, or third parties resulting from the use, printing, or assembly of the model.

Extreme caution is advised, especially in safety-critical applications such as DIY tools.

It is the user's responsibility to ensure that all parts are correctly constructed, tested, and used safely.

Please observe all applicable safety regulations and legal provisions.
